FCC ID A4R-GFHD200

Google GFHD200 FCC filing (A4R-GFHD200)

Name: Google GFHD200 FCC filing dataset
Creator: Google LLC

Public FCC record for Google GFHD200 (A4R-GFHD200), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-GFHD200

Device categoryNetworking

Authorization dateJun 13, 2014

Plain-English filing summary

What this FCC record tells you

GFHD200 is the device filed under FCC ID A4R-GFHD200 by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover status lights and button controls.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeGFHD200The filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rulesPart 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDHdZ99fs4ydtL6E463R1pTg==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jun 13, 2014

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: n2UweSgDMHcZPTd+55VrLg==, HdZ99fs4ydtL6E463R1pTg==, QXrTnzfI5VQiLN+twj8sWA==
Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 4 ranges grouped below
Power density	0.55 mW/cm2 \| 1.0 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info (2294859) p. 9

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

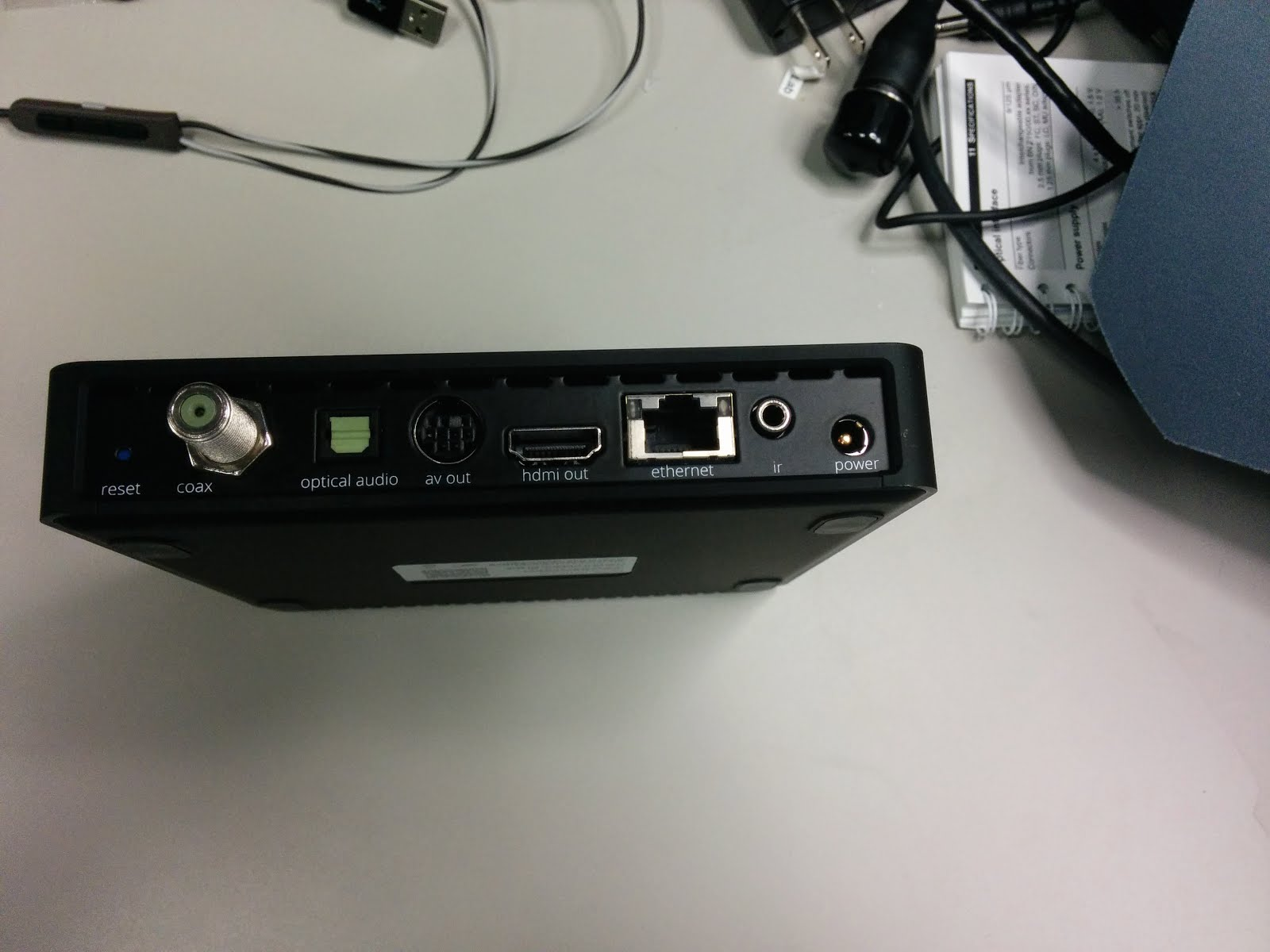

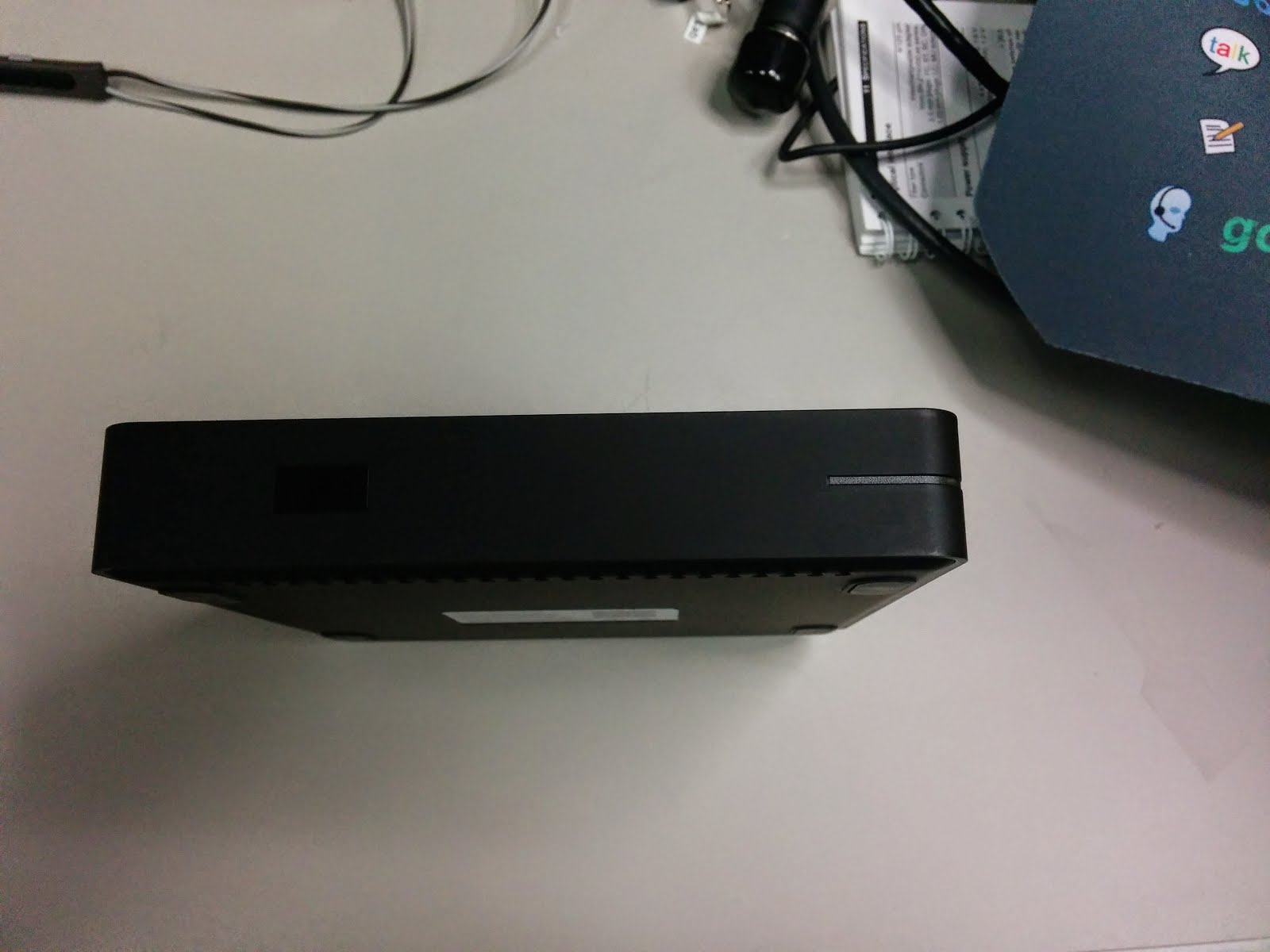

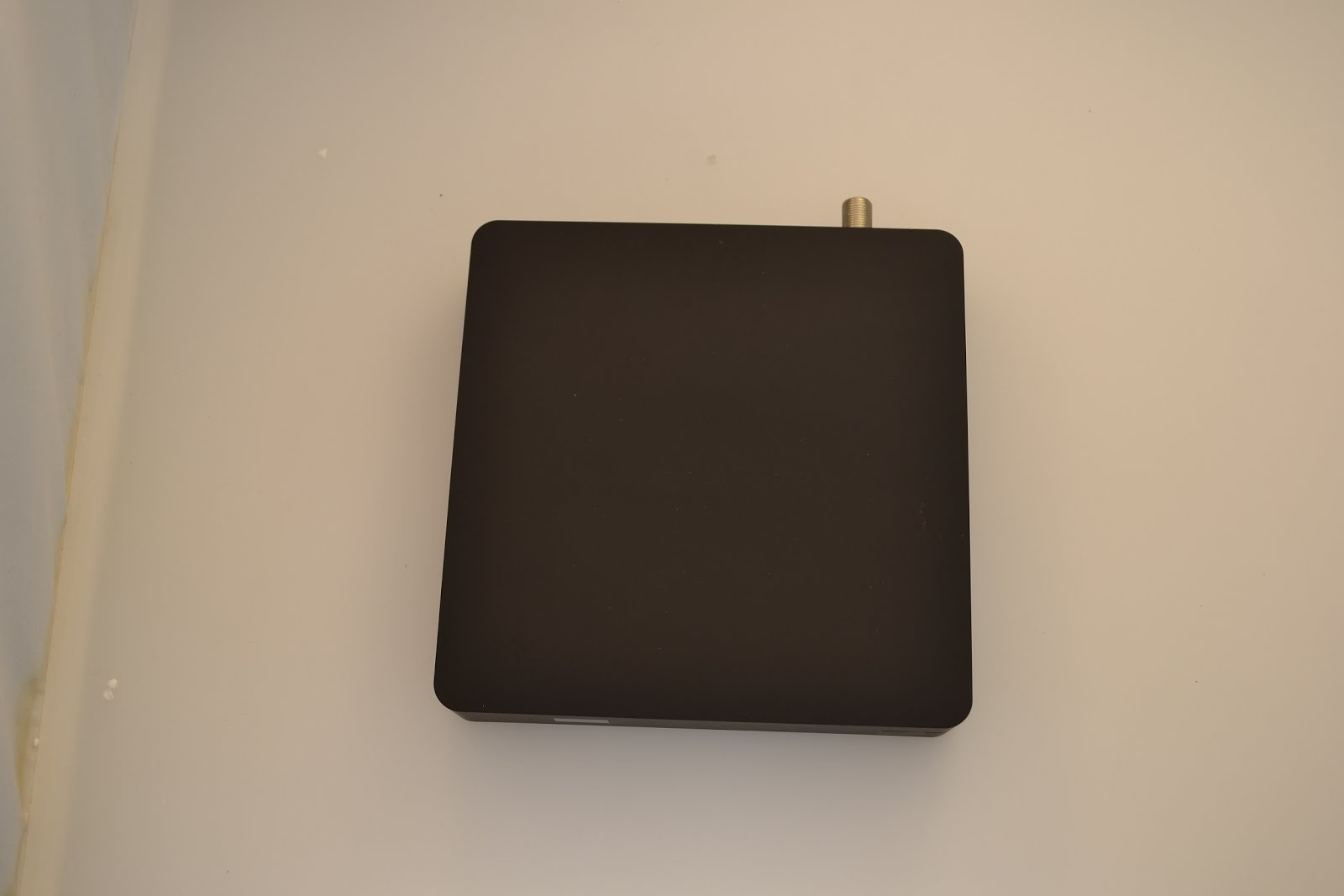

External viewGoogle GFHD200 external FCC photo from External Photos p. 1Source: External Photos p. 1

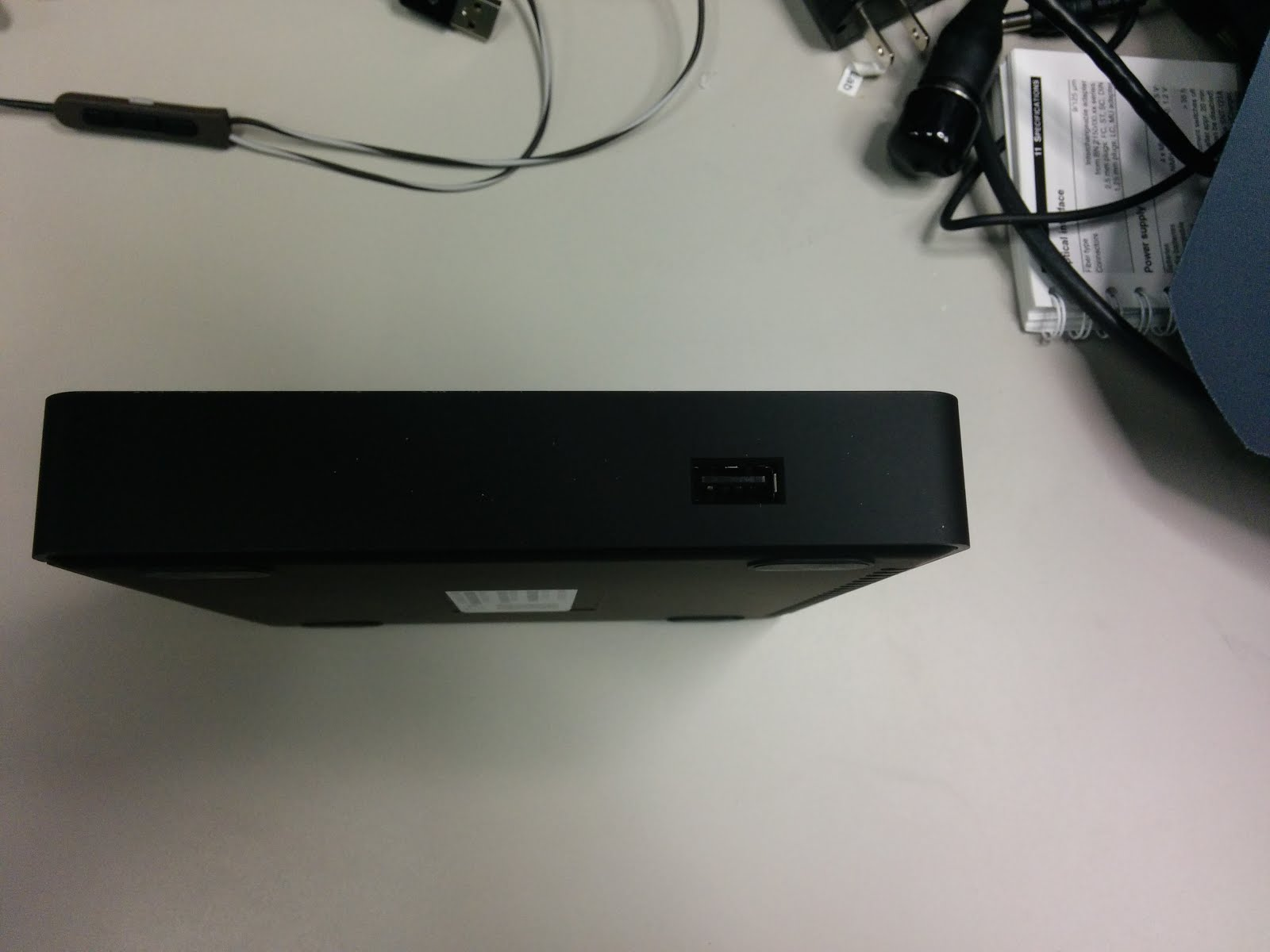

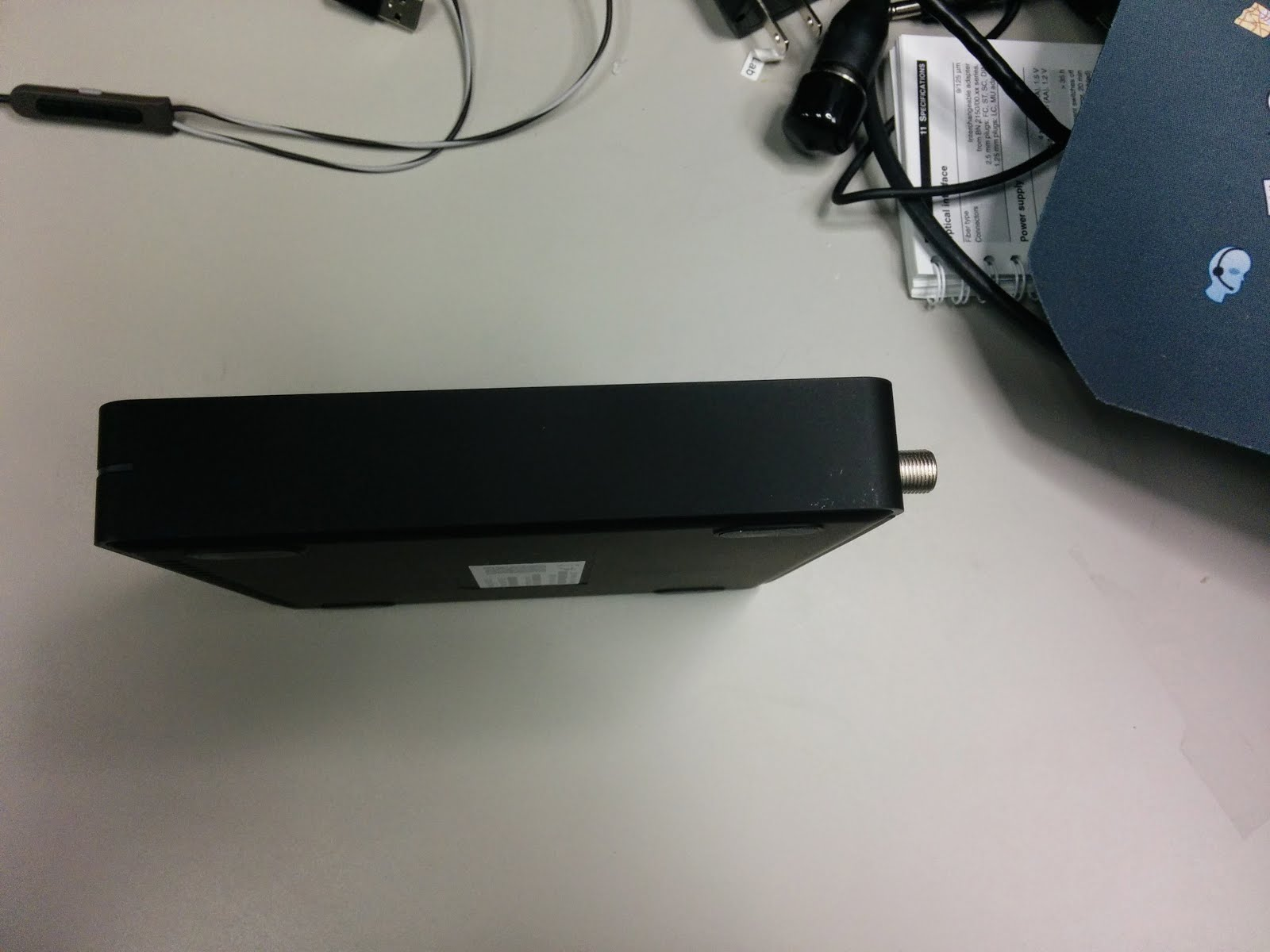

External viewGoogle GFHD200 external FCC photo from External Photos p. 2Source: External Photos p. 2

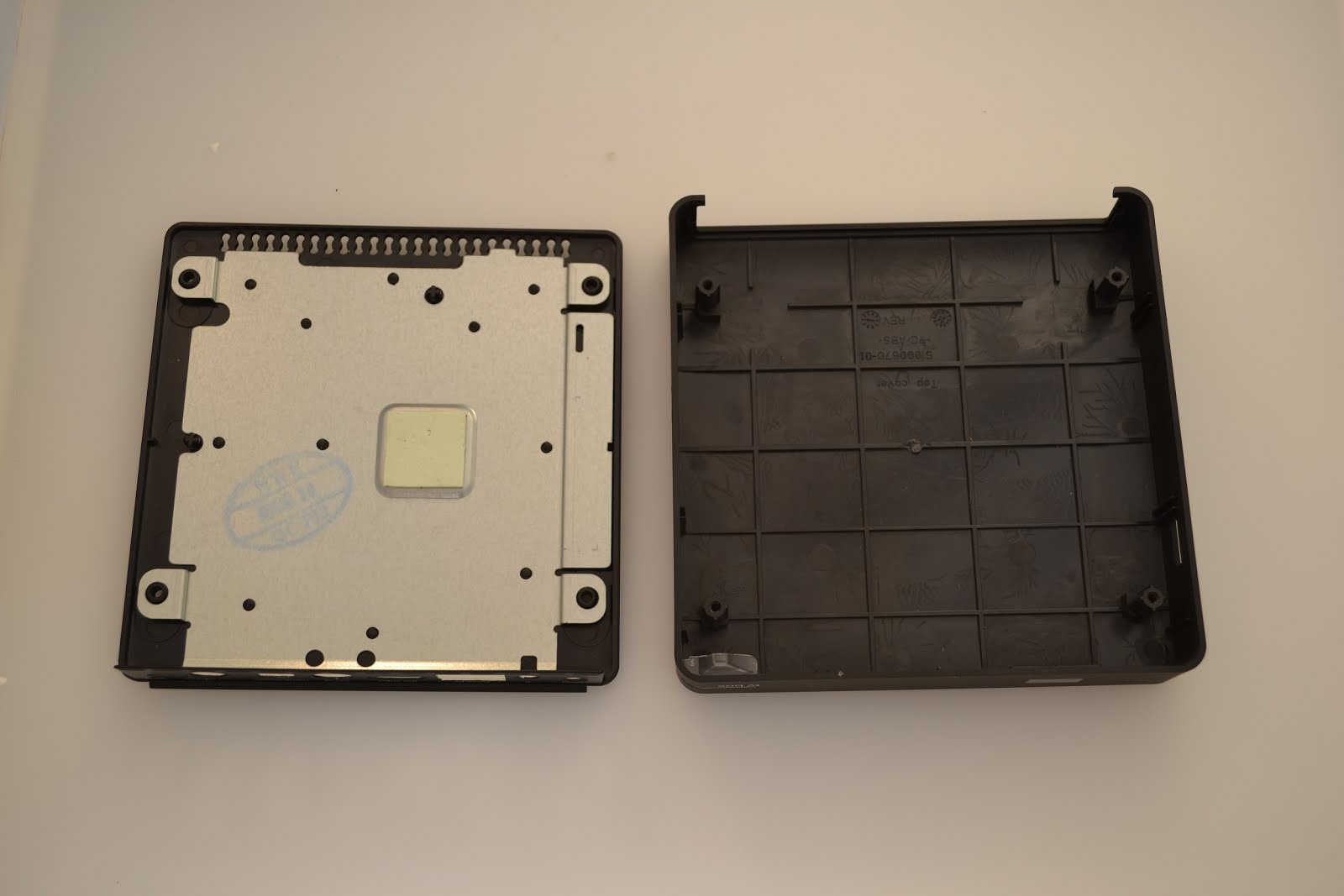

Internal viewGoogle GFHD200 internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

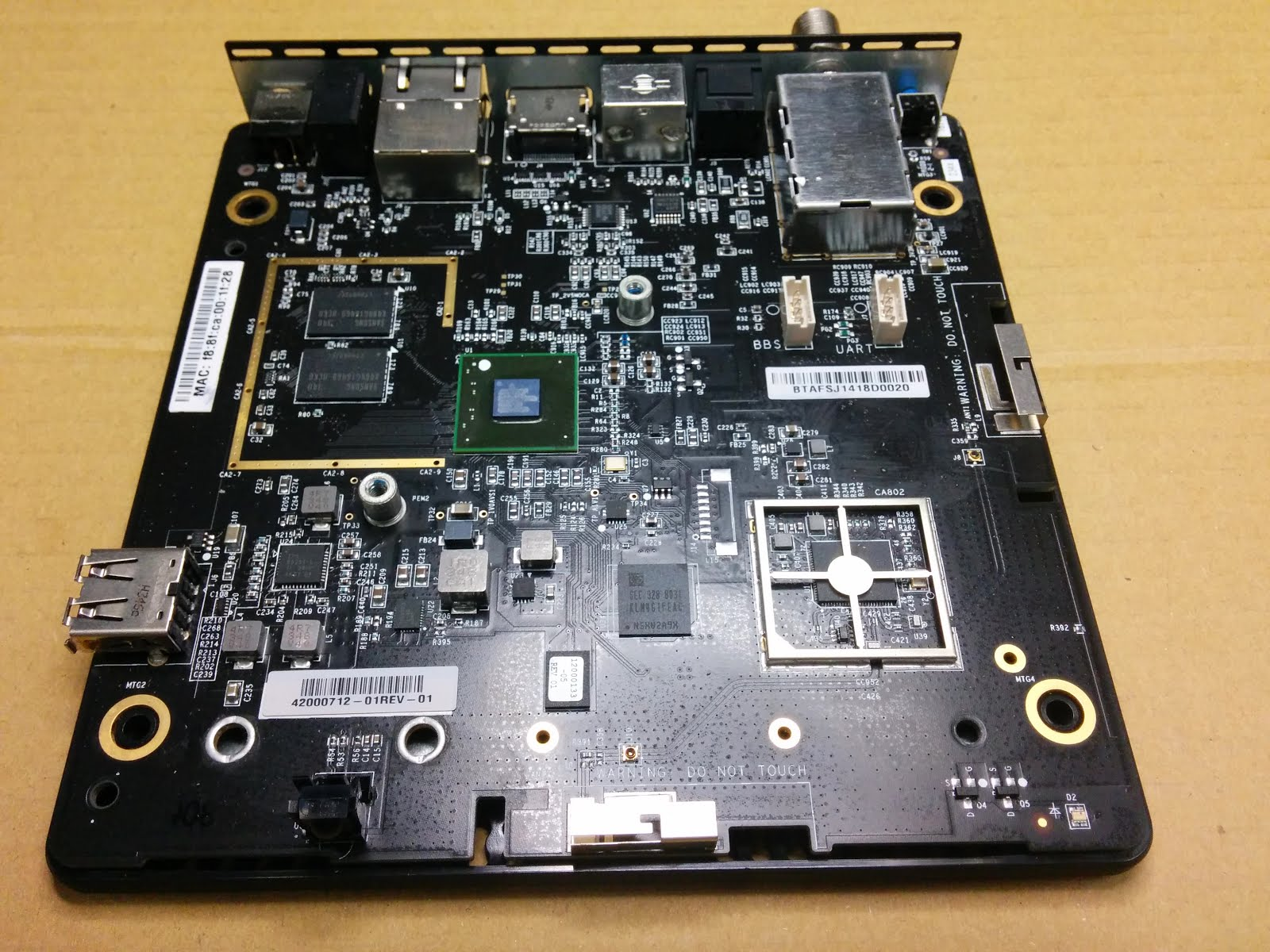

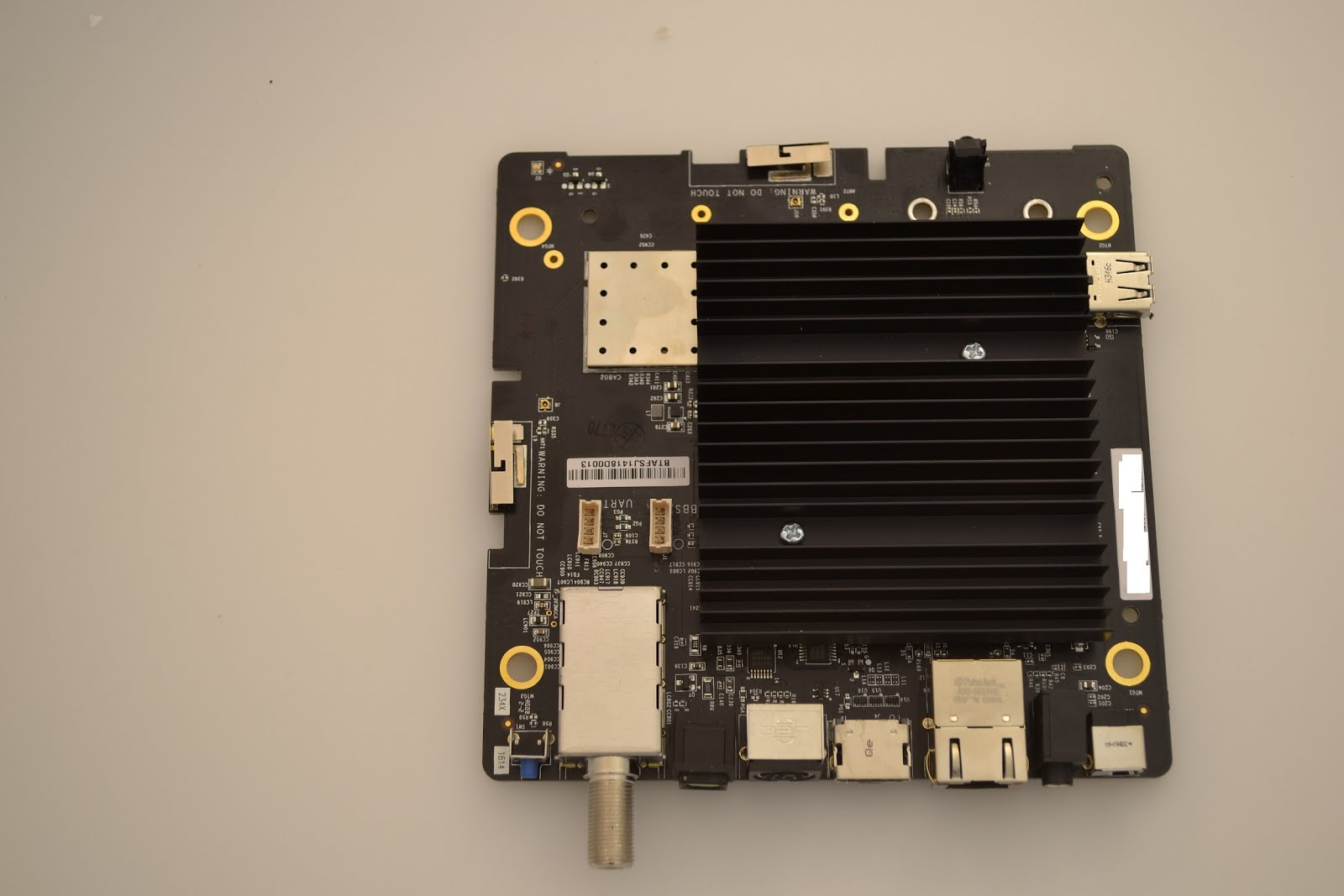

Internal viewGoogle GFHD200 internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

LED and status lights

When the TV Box is properly connected and powered on, the LED on the front lights up solid blue.

Manual page 2

"When the TV Box is properly connected and powered on, the LED on the front lights up solid blue."

Users Manual

Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual5 pages197 KB public file

The public manual includes useful status-light, and button and port details.

Manual at a glance

Buttons and portsp. 3

What do the status lights mean?

Specialist can provide this cable, if needed.

Source: Users Manual, page 2

What buttons or ports does the manual describe?

Although the connector on the back of the TV Box looks just like a headphone jack, it is an IR extender port.

Source: Users Manual, page 3

Buttons and ports

Although the connector on the back of the TV Box looks just like a headphone jack, it is an IR extender port.

Source: Users Manual, page 3

Open FCC filing source

Official FCC documents

Open the original FCC files used to check the details shown here. Badges separate whether a file is public from whether details from that file appear on this page.
