FCC ID A4R-G4TSL

Google Pixel Watch 2 smartwatch FCC filing (A4R-G4TSL)

Name: Google Pixel Watch 2 FCC filing dataset
Creator: Google LLC

Public FCC record for Google Pixel Watch 2 (A4R-G4TSL), a smartwatch filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth.

Wearables A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G4TSL

Device typesmartwatch

Authorization dateAug 12, 2023

Plain-English filing summary

What this FCC record tells you

Google Pixel Watch 2 is the smartwatch filed under FCC ID A4R-G4TSL by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover power details.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG4TSLThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDSS - spread-spectrum wireless transmitterIn plain English, this covers a spread-spectrum wireless transmitter.

FCC rule partsPart 15C - low-power wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDKuRsrrN7cp03blIOWJvhUw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Aug 12, 2023

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: Jd34T9Viryq+920LRpX5qQ==, KuRsrrN7cp03blIOWJvhUw==
Equipment classes: DTS - digital wireless transmitter; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 2 ranges grouped below
Frequency range	2400 - 2483.5 MHzSource: RF Exposure Info p. 5
Maximum conducted output power	0.8 W \| 1.2 WTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: RF Exposure Info p. 17; RF Exposure Info p. 19
SAR	4.31 W/kg \| 5.24 W/kg \| 4.20 W/kg \| 4.32 W/kg \| 5.25 W/kg \| 0.0828 W/kg \| 0.145 W/kgRF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 1; RF Exposure Info p. 2

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

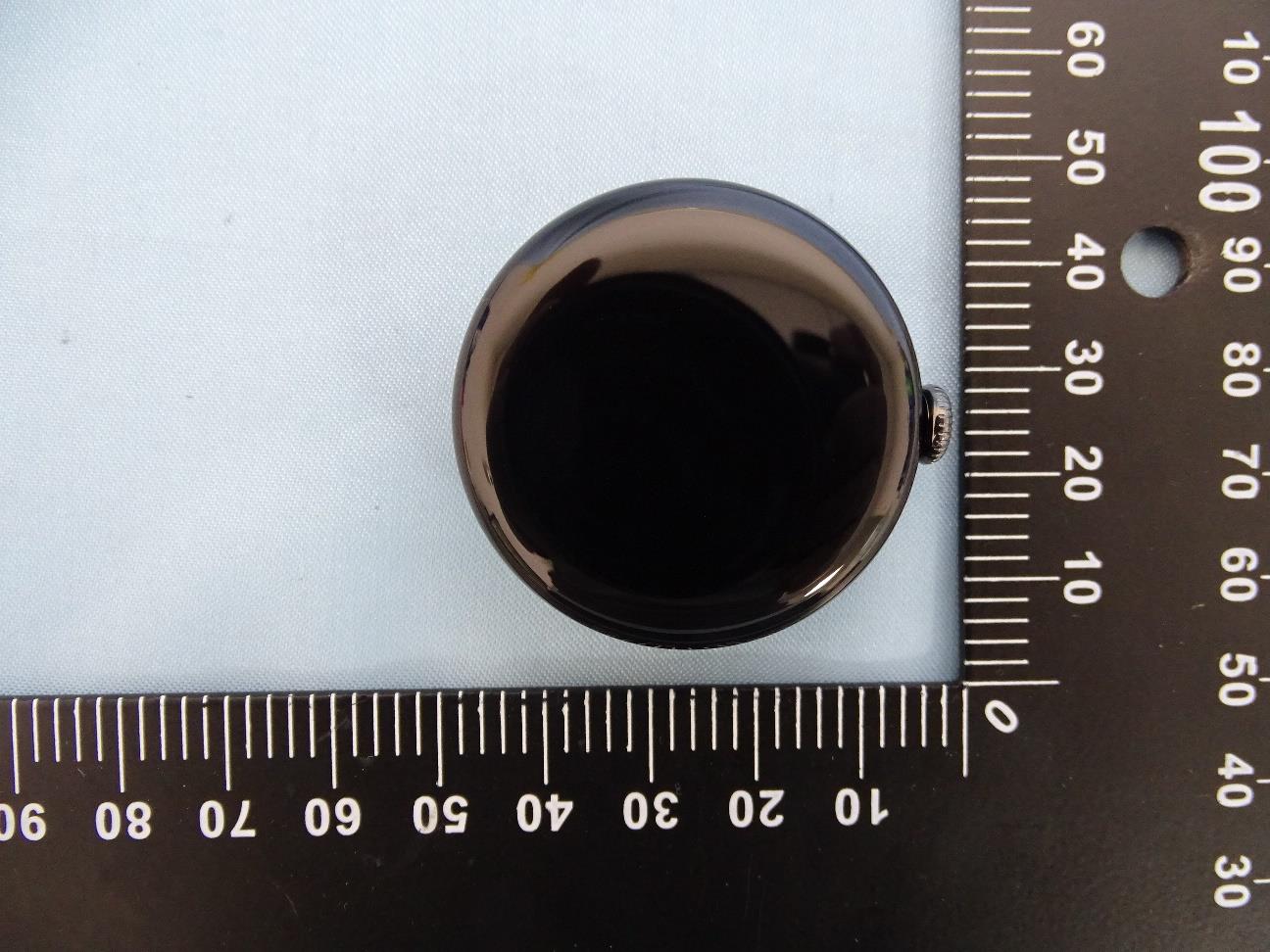

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 1Source: External Photos p. 1

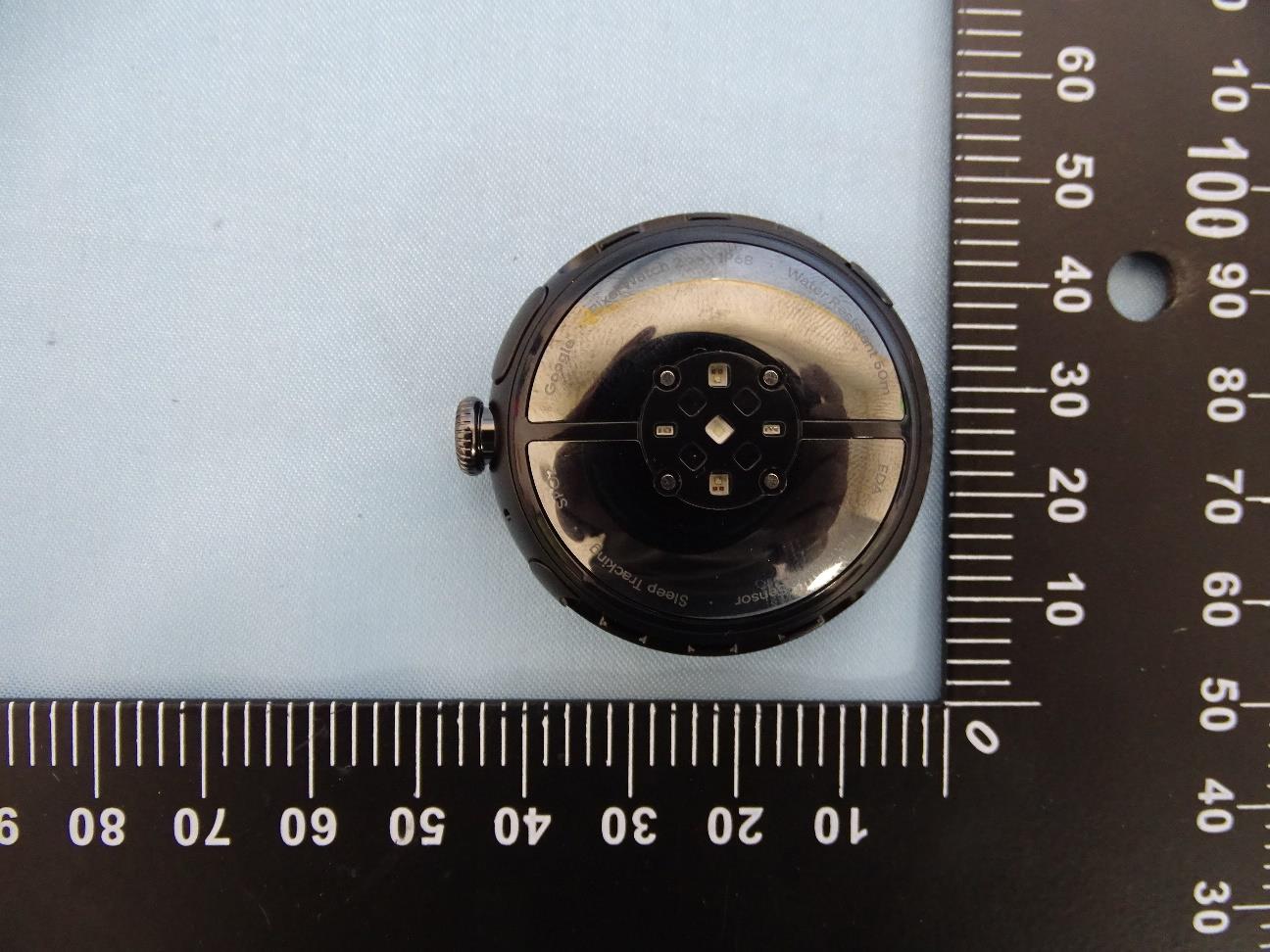

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 2Source: External Photos p. 2

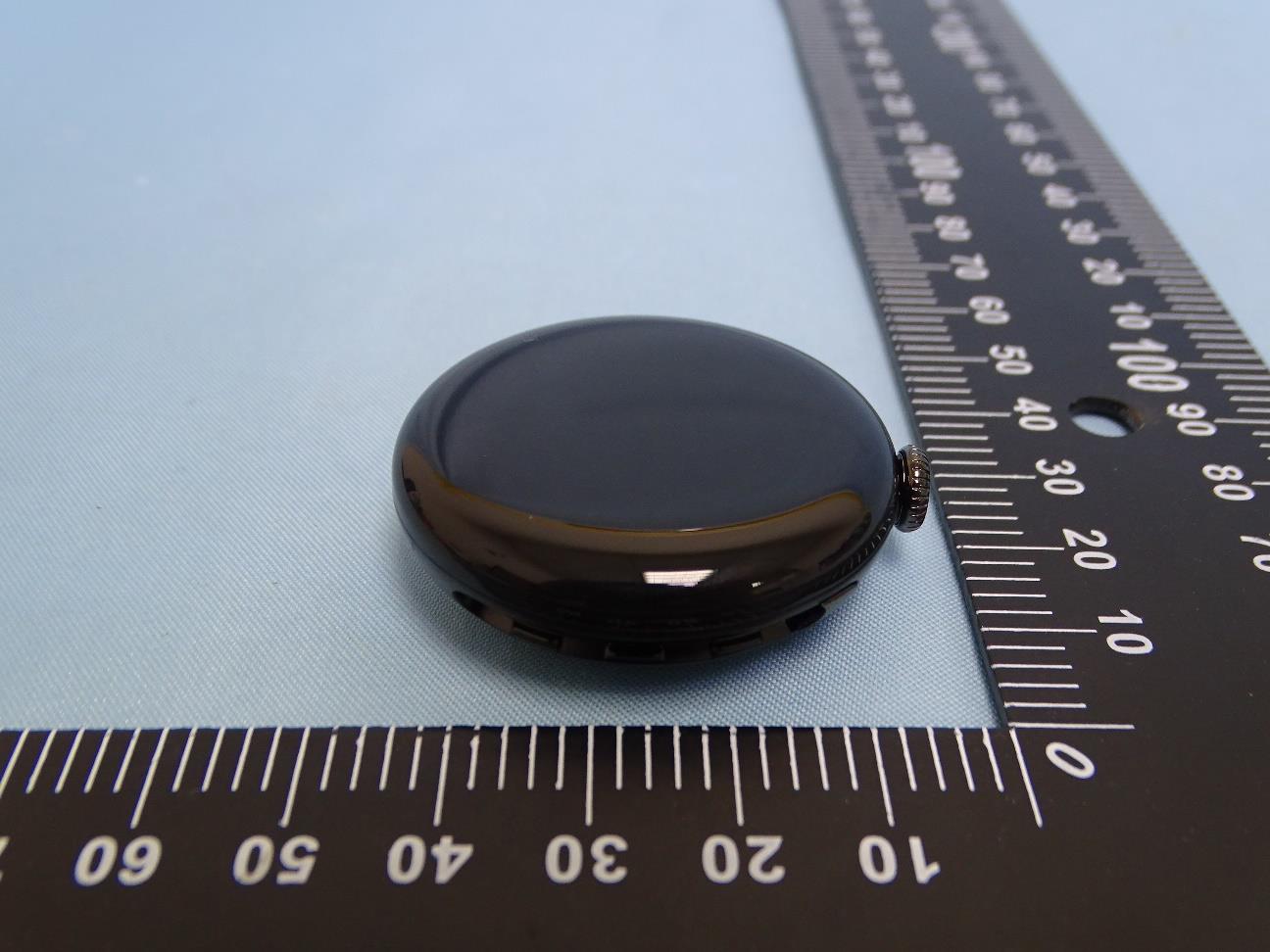

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 3Source: External Photos p. 3

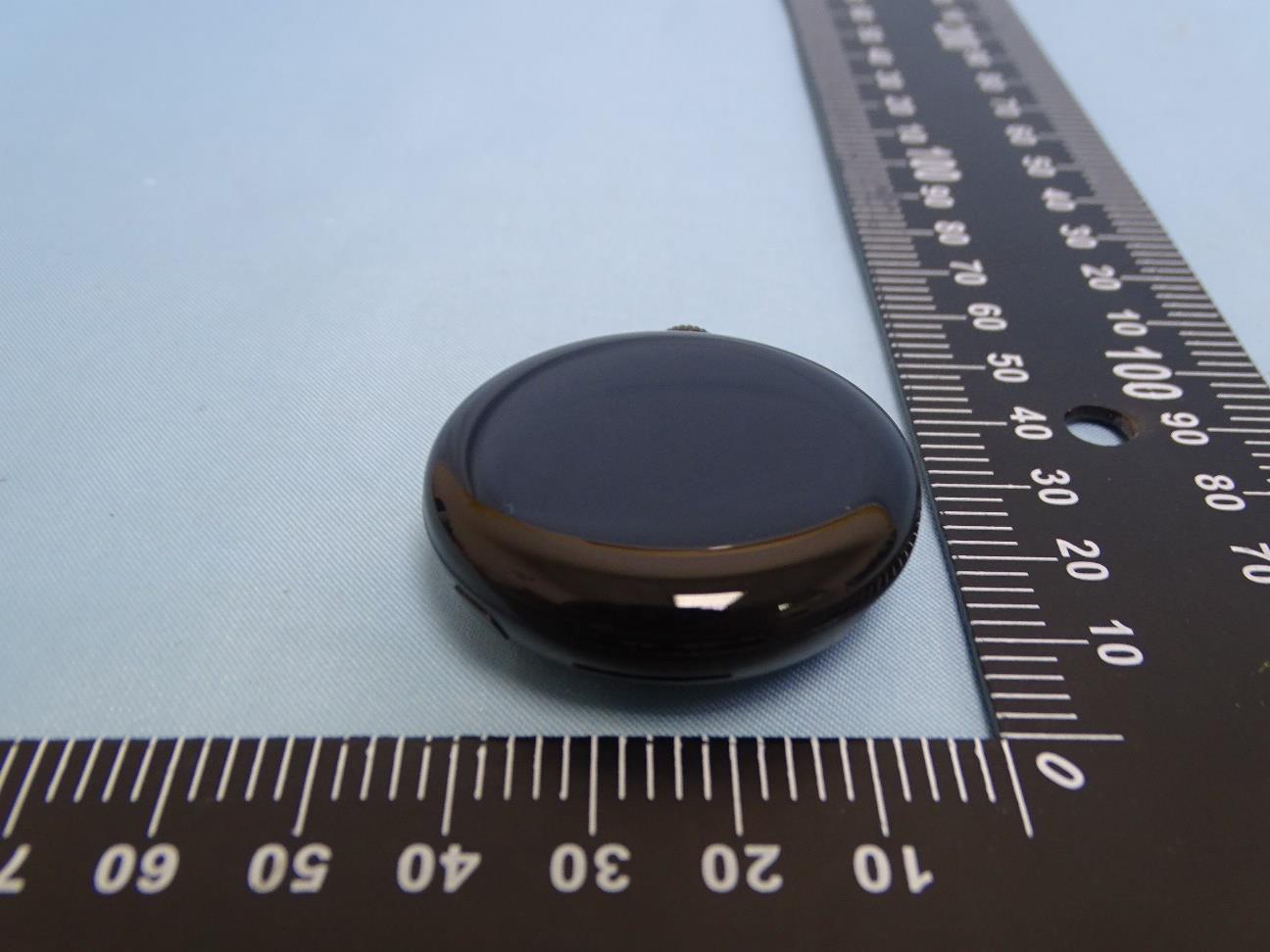

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 4Source: External Photos p. 4

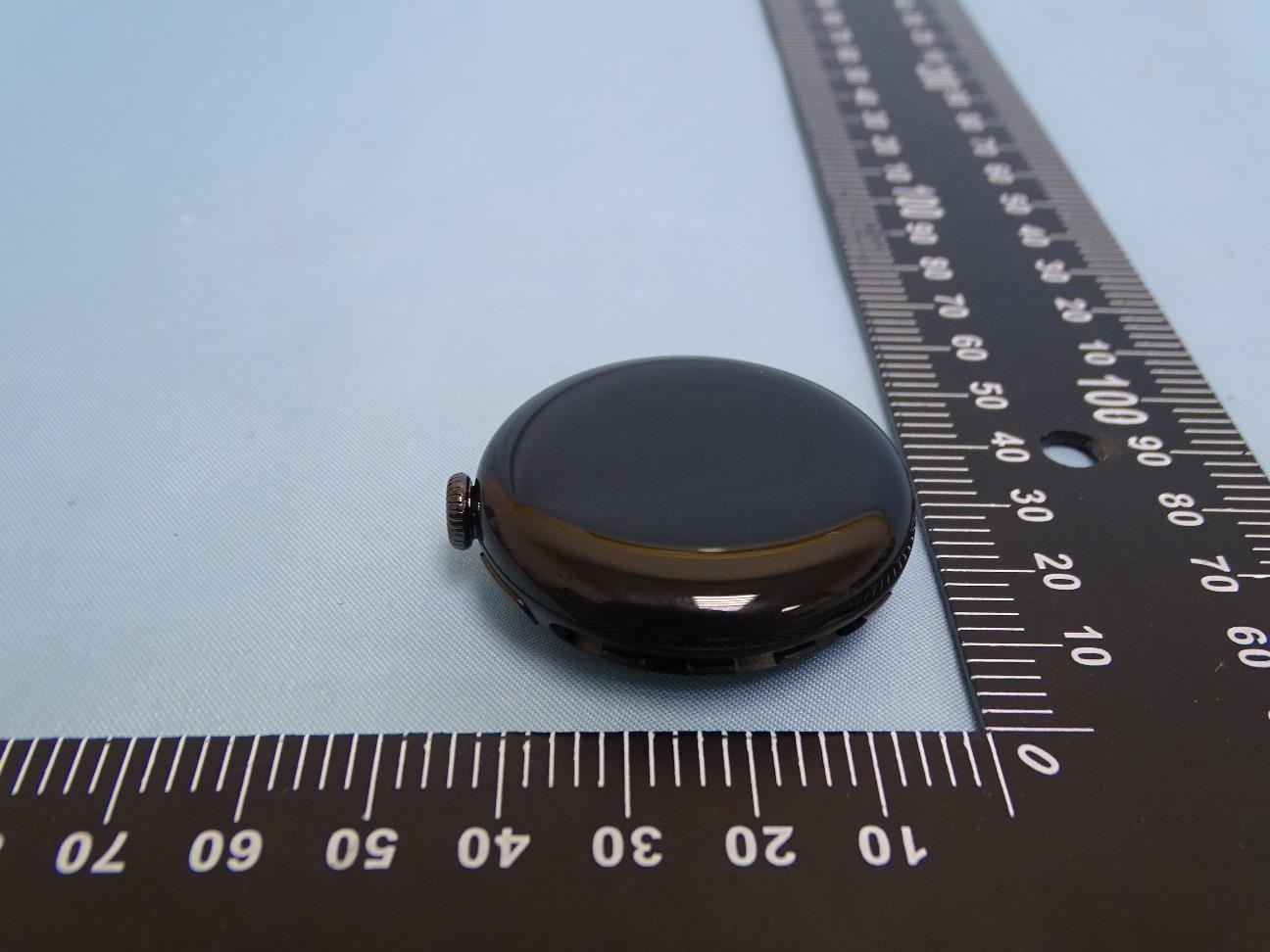

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 5Source: External Photos p. 5

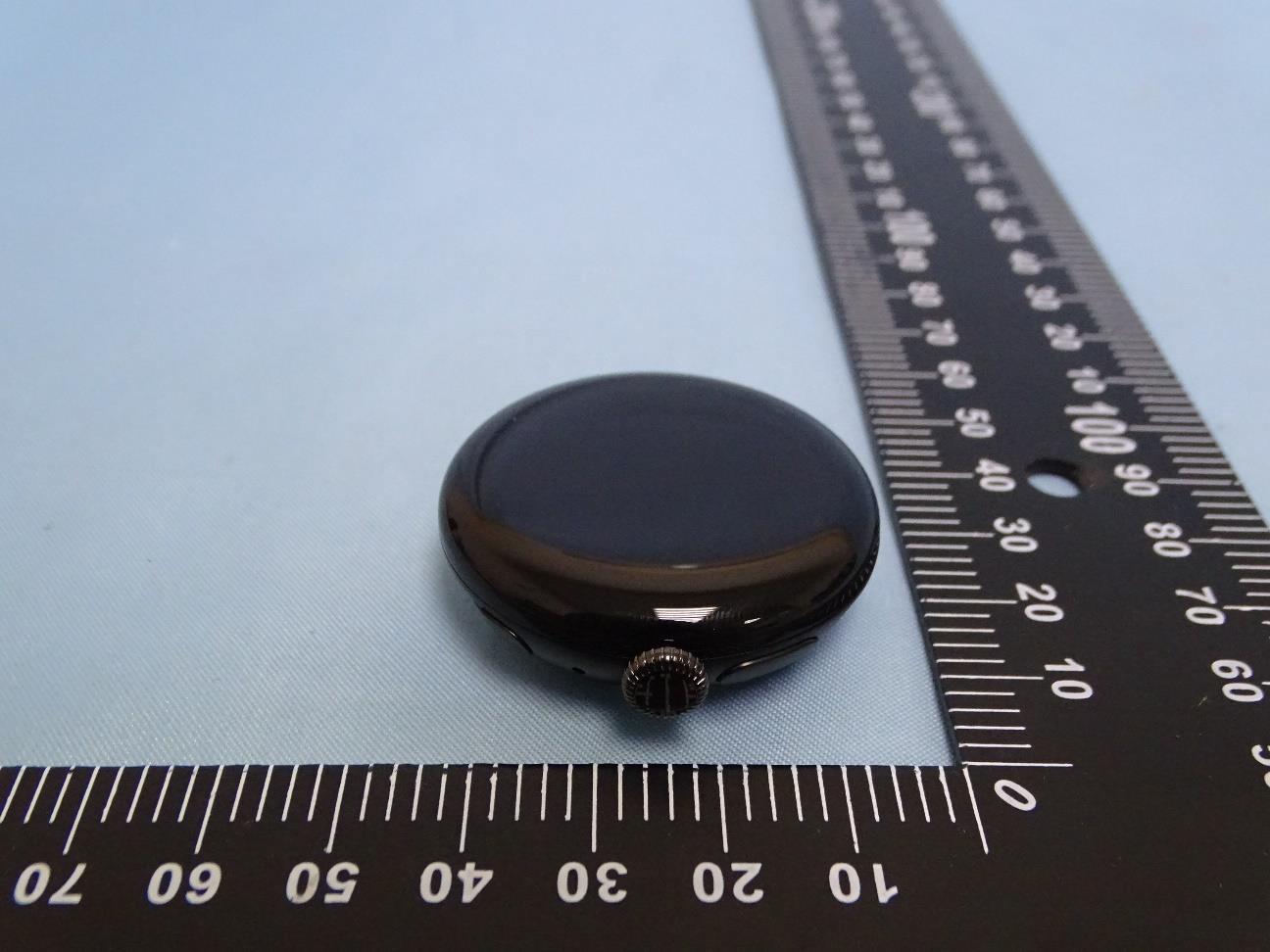

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 6Source: External Photos p. 6

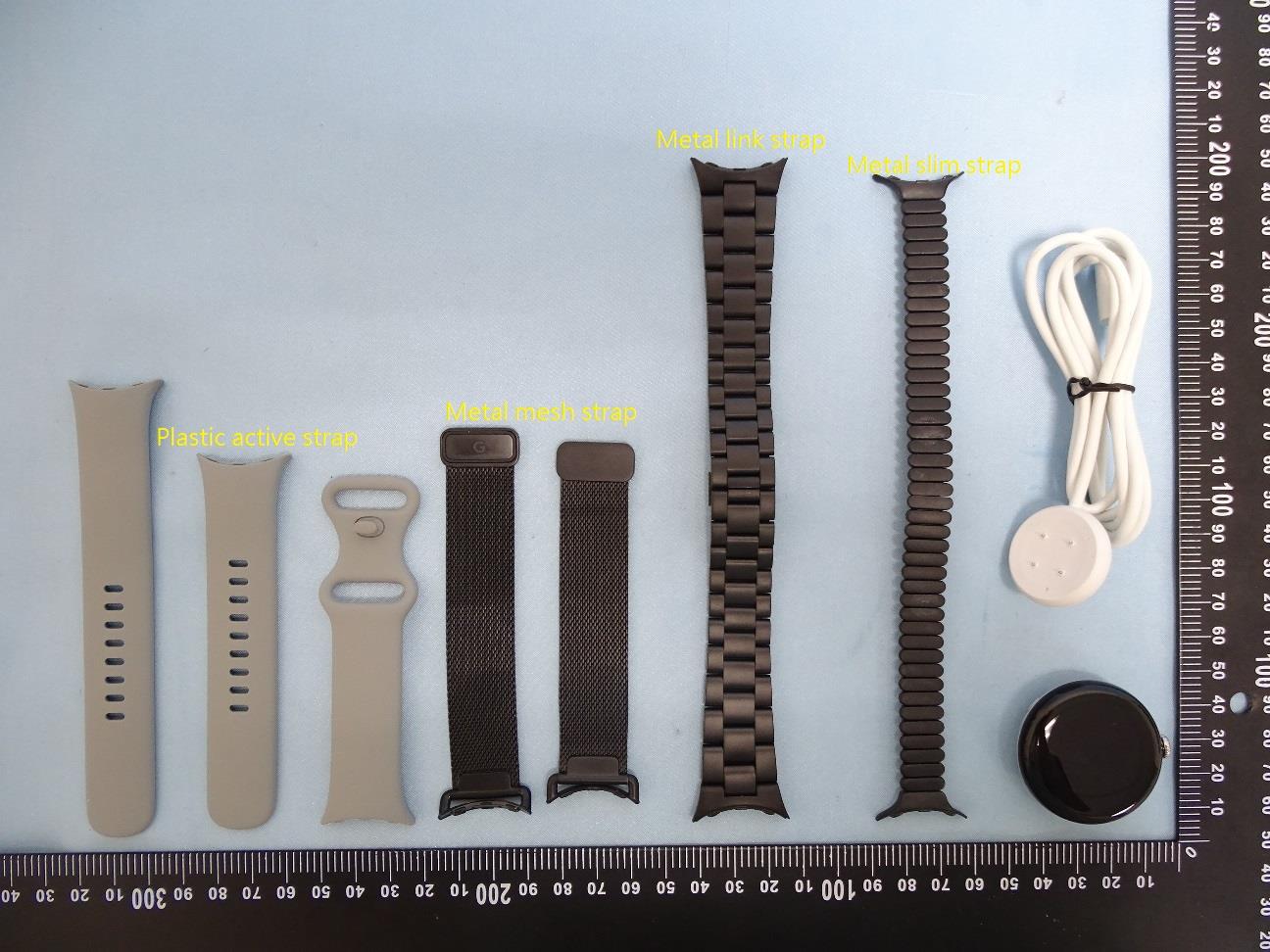

External viewGoogle Pixel Watch 2 external FCC photo from External Photos p. 7Source: External Photos p. 7

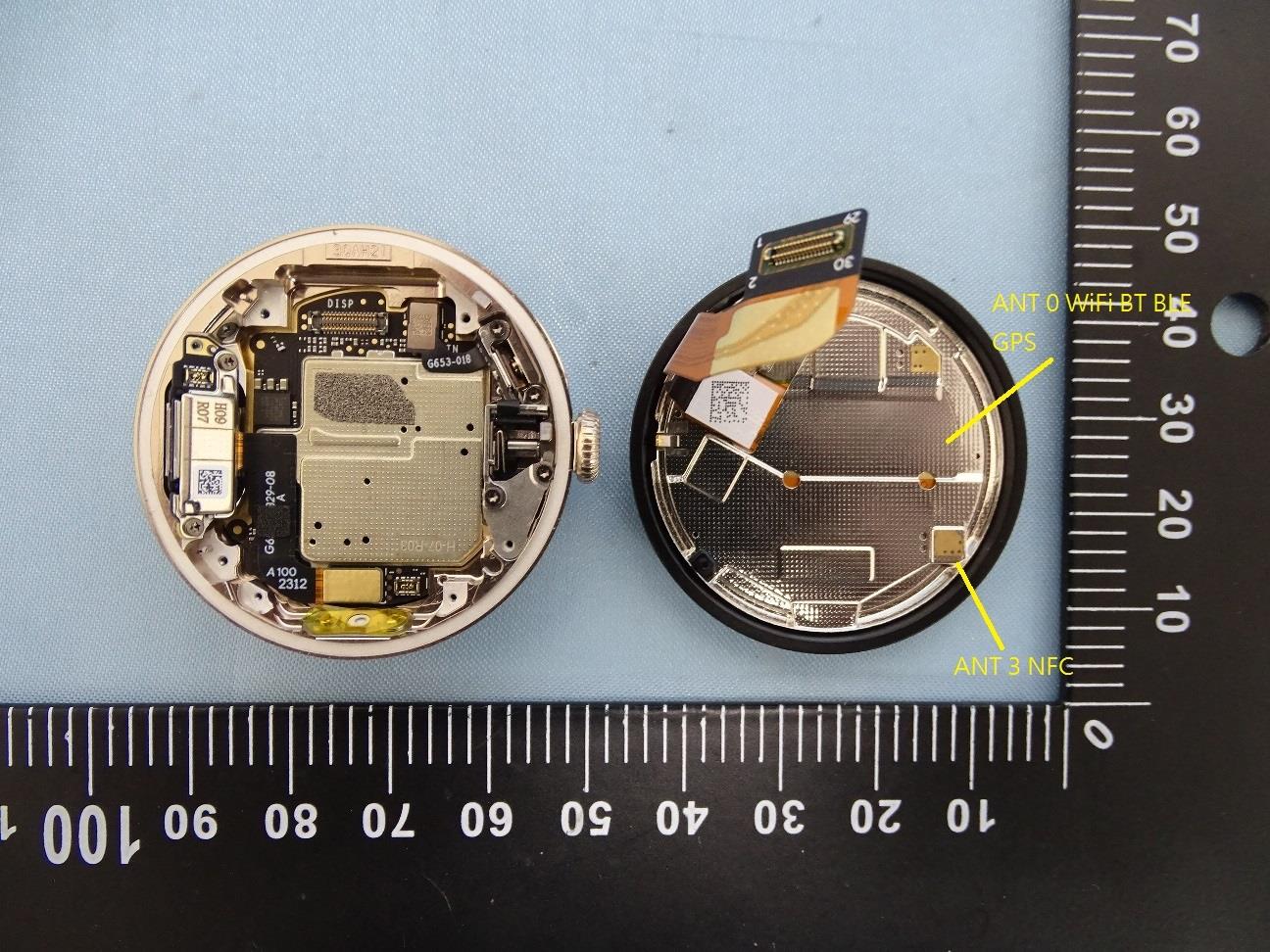

Internal viewGoogle Pixel Watch 2 internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual530 KB public file

The public manual includes useful power details.

Manual at a glance

Power and chargingp. 2

What power or charging details does the manual include?

Unlock your device and turn on Bluetooth® Press and hold the crown on your device for 3 seconds.

Source: Users Manual, page 1

Let’s get started

Unlock your device and turn on Bluetooth® Press and hold the crown on your device for 3 seconds.

Source: Users Manual, page 1

Power and charging

(0° and 35° C) and should be stored between ambient temperatures of -4° and 113° F (-20° and 45° C).

Source: Users Manual, page 2
