FCC ID A4R-G1KAW

Google Pixel Watch 4 (45mm) smartwatch FCC filing (A4R-G1KAW)

Name: Google Pixel Watch 4 (45mm) FCC filing dataset
Creator: Google LLC

Public FCC record for Google Pixel Watch 4 (45mm) (A4R-G1KAW), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 6 GHz Wi-Fi, 5 GHz Wi-Fi, 1.6 GHz bands, and 2 GHz bands.

Wearables A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G1KAW

Device categoryWearables

Authorization dateJul 7, 2025

Plain-English filing summary

What this FCC record tells you

Google LLC filed FCC ID A4R-G1KAW for Google Pixel Watch 4 (45mm), a digital transmission system device.

The public manual identifies this filing as Google Pixel Watch 4 (45mm).

The public FCC record includes external photos, internal photos, a user manual, and RF exposure information.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG1KAWThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15F; Part 25; Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15F is one of the FCC rule sections cited for this authorization. Part 25 is one of the FCC rule sections cited for this authorization. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application ID0mspZR1DfJY774mPimx6tw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jul 7, 2025

Original Equipment

4 FCC applications

4 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: iv60a5KtxFoIYdMS0eNwdA==, mWYQVIcxC2PkL7DEu7AQHw==, 0mspZR1DfJY774mPimx6tw==, 8cJg7DQYiA0XM+U2DQlCxA==
Equipment class: NII - Wi-Fi-style wireless device
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules; Part 15F; Part 25
Bands: 6 GHz Wi-Fi: 3 ranges; 5 GHz Wi-Fi: 5 ranges; 1.6 GHz bands: 1 range; 2 GHz bands: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15F; Part 25; Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	6 GHz Wi-Fi: 3 ranges; 5 GHz Wi-Fi: 5 ranges; 1.6 GHz bands: 1 range; 2 GHz bands: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 10 ranges grouped below
Frequency range	1850 - 1910 MHz \| 1710 - 1755 MHz \| 824 - 849 MHz \| 2500 - 2570 MHz \| 699 - 716 MHz \| 777 - 787 MHz \| 704 - 716 MHz \| 1850 - 1915 MHz \| 814 - 849 MHz \| 1710 - 1780 MHzSource: RF Exposure Info (8328951) p. 5

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

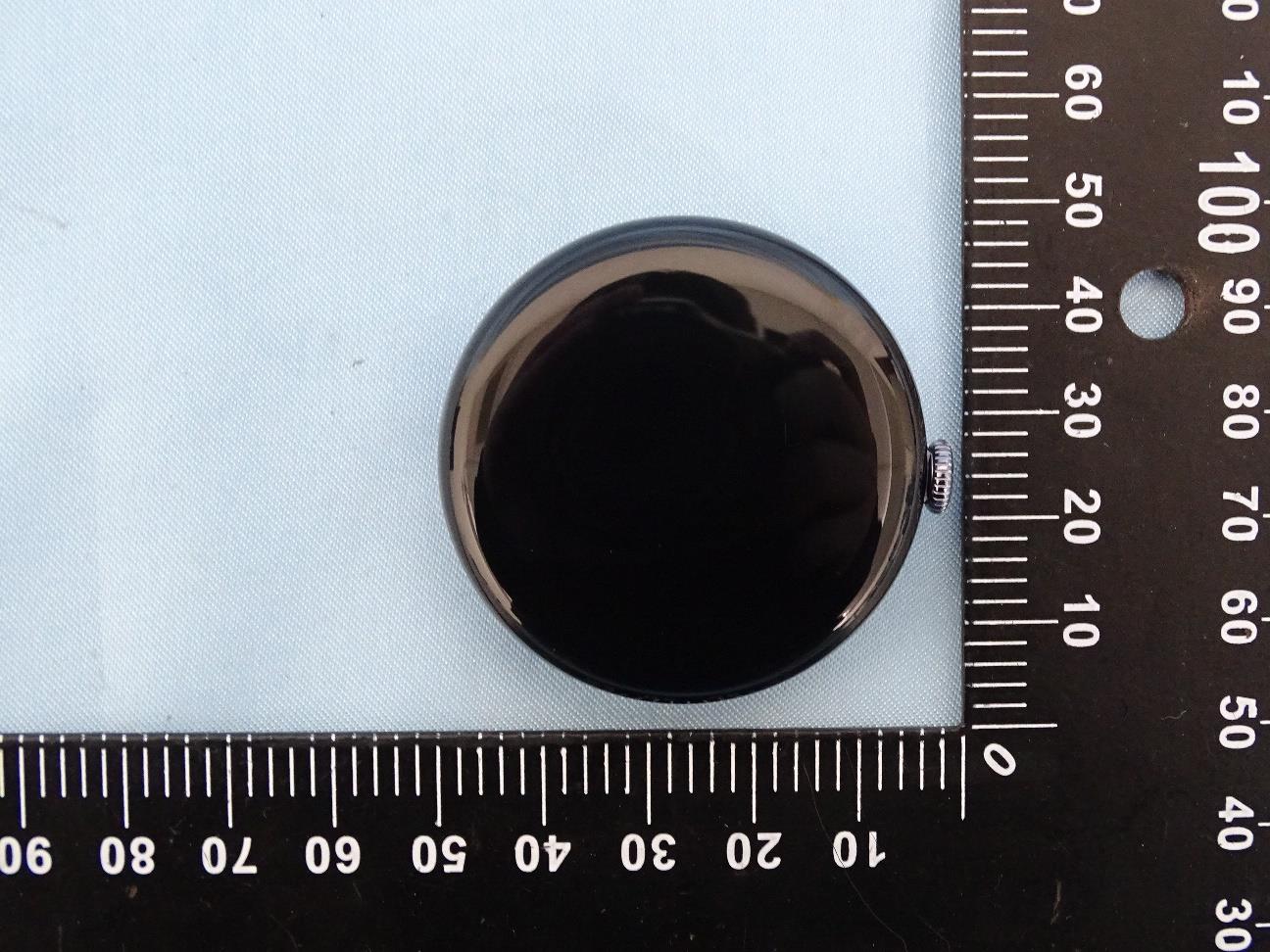

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 1Source: External Photos p. 1

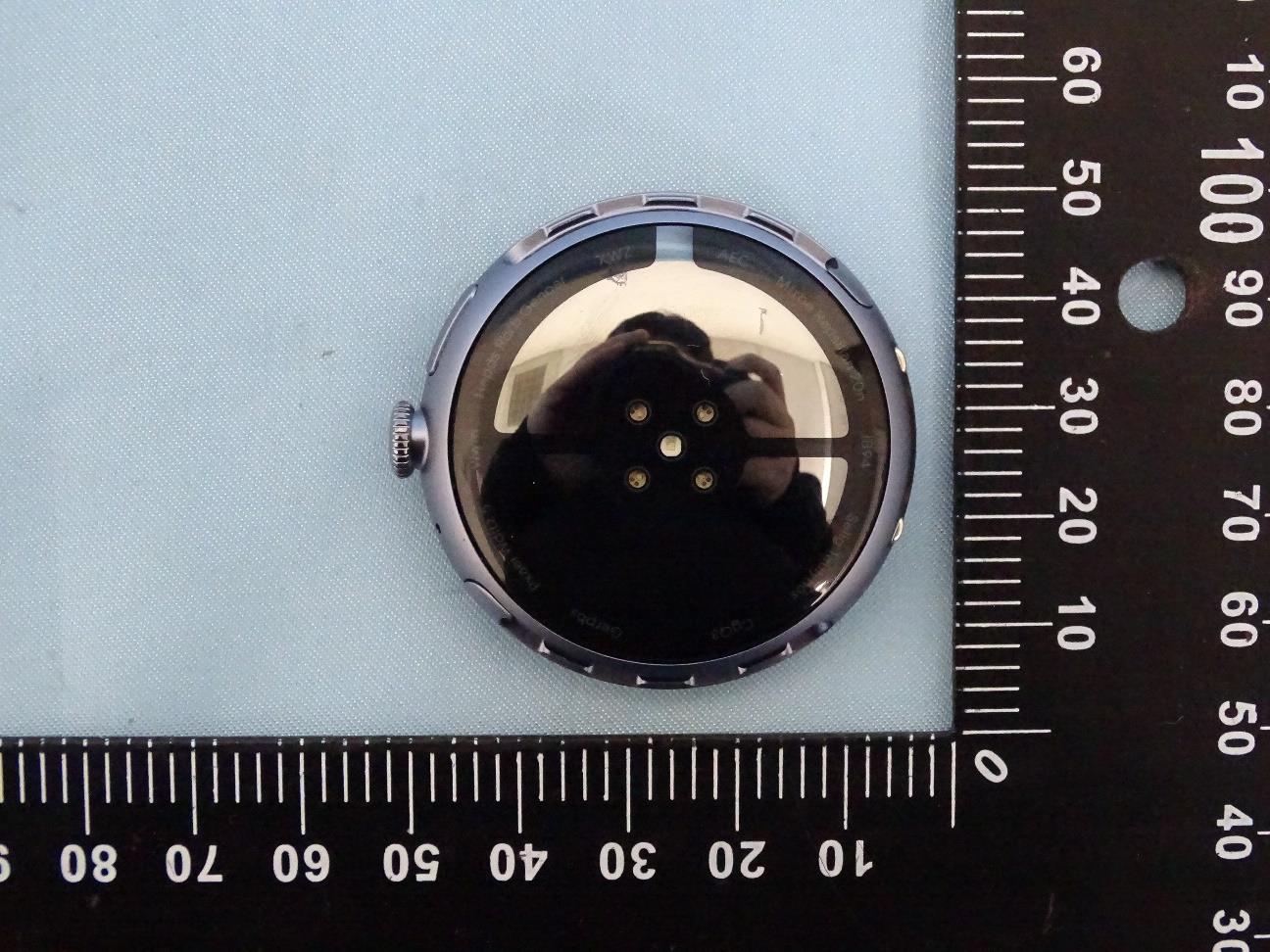

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 2Source: External Photos p. 2

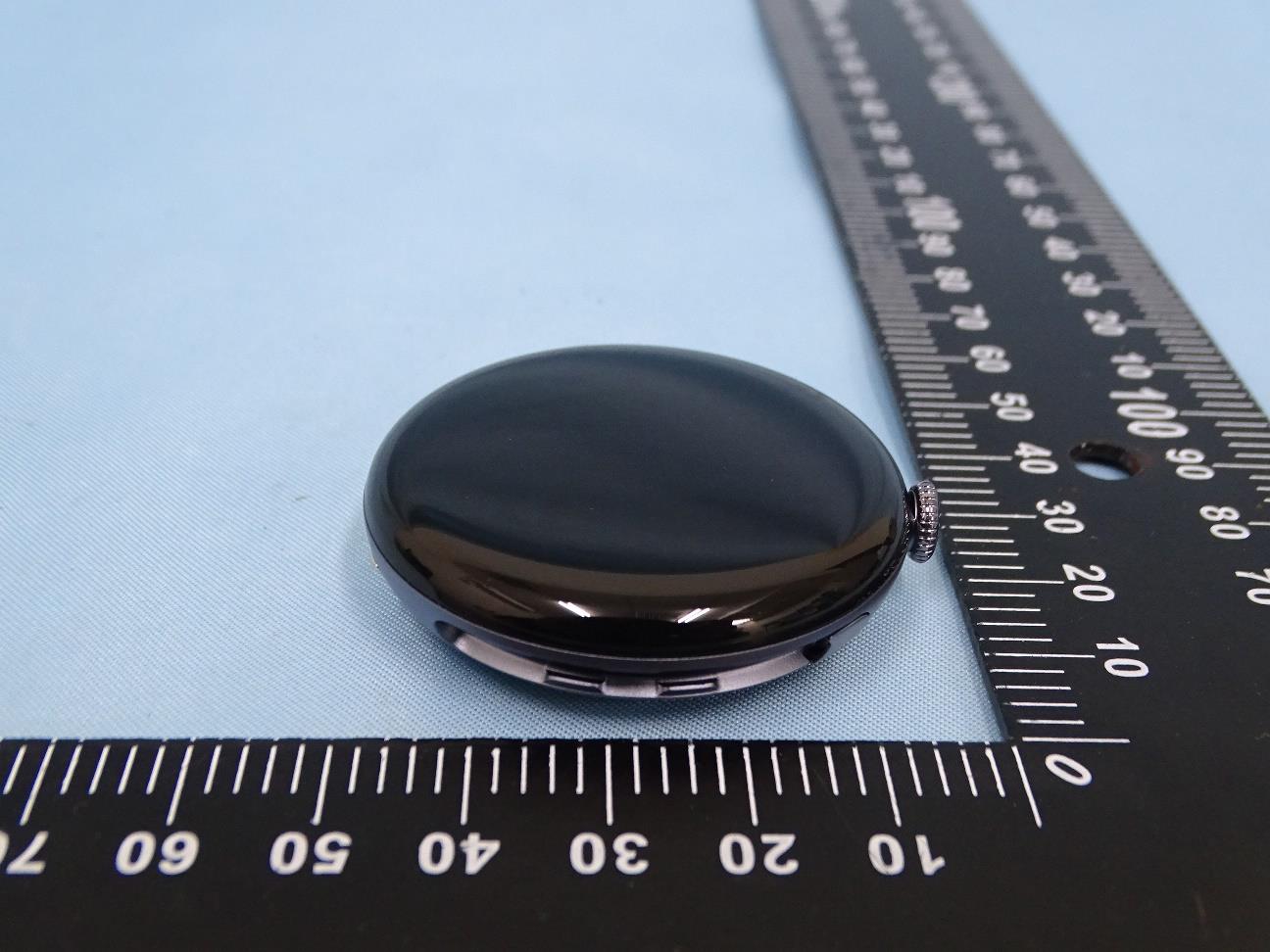

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 3Source: External Photos p. 3

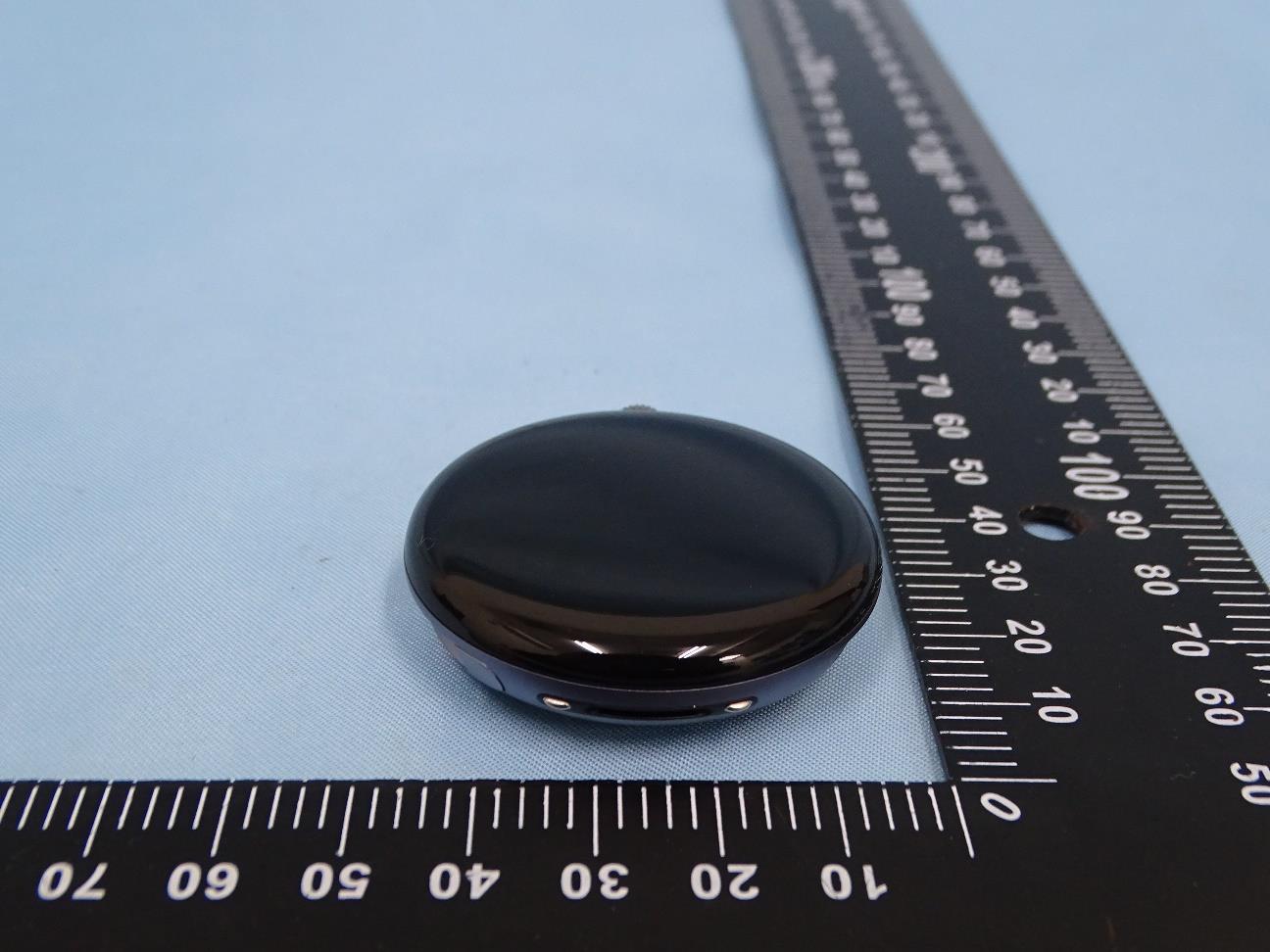

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 4Source: External Photos p. 4

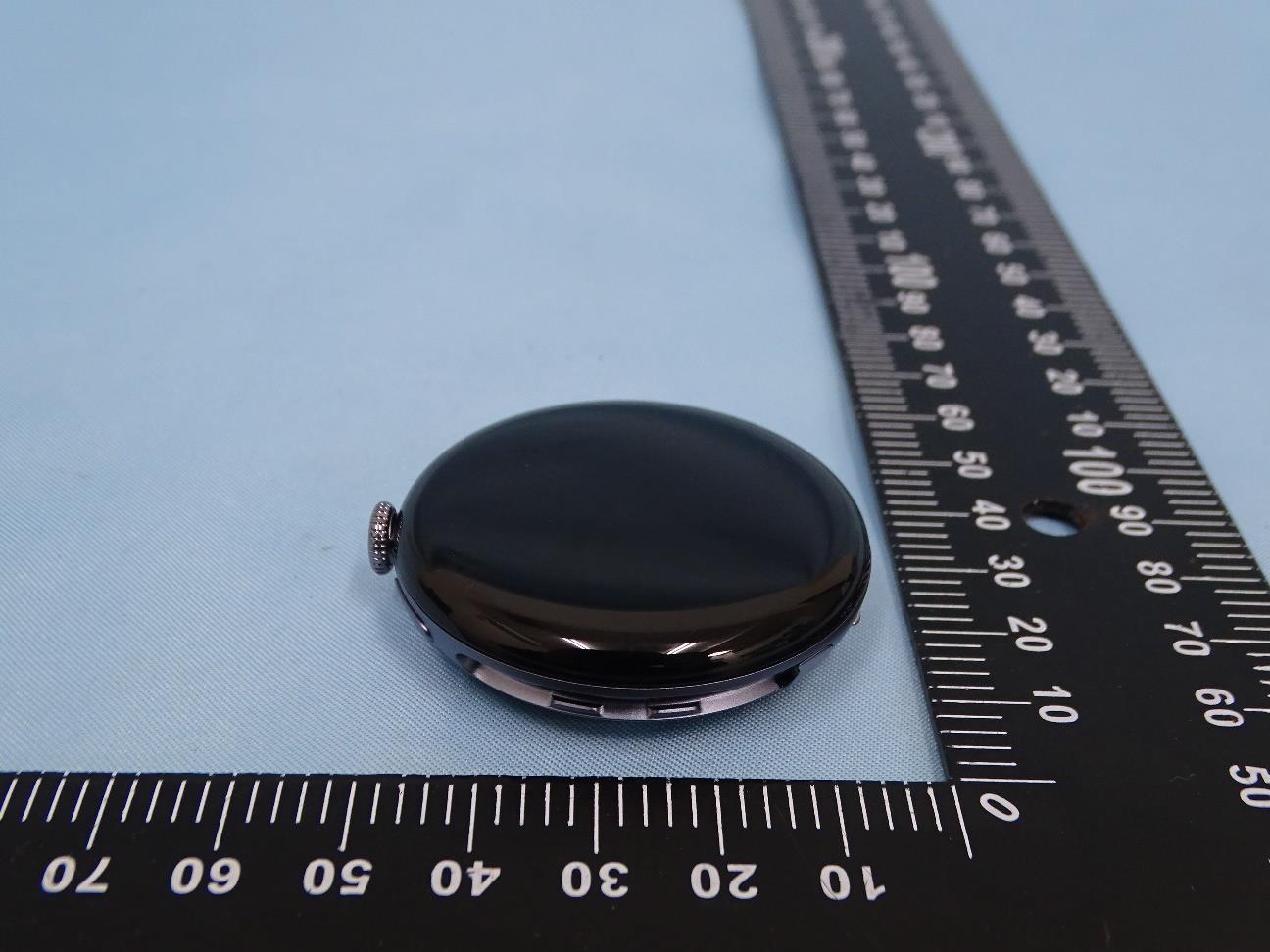

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 5Source: External Photos p. 5

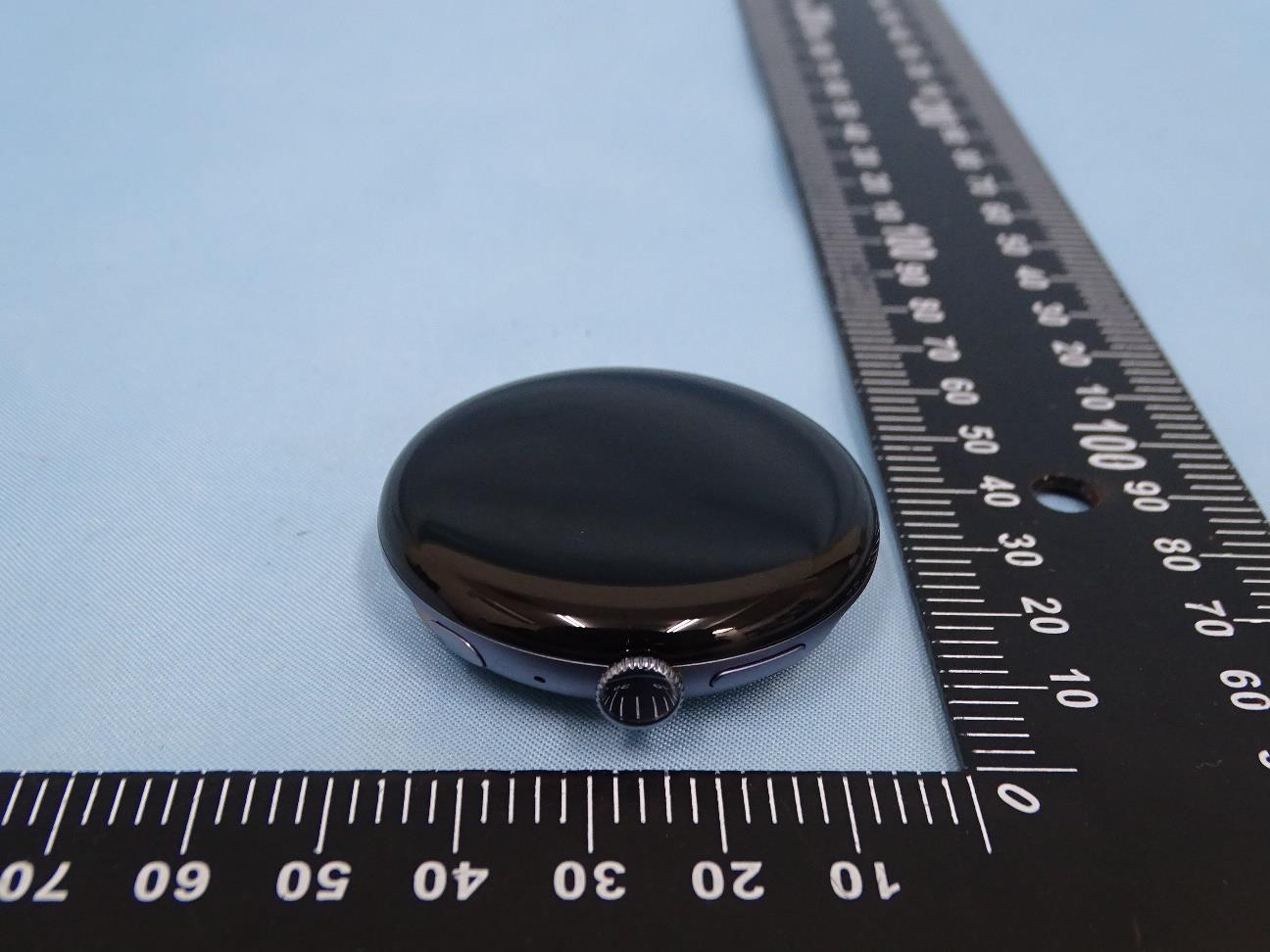

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 6Source: External Photos p. 6

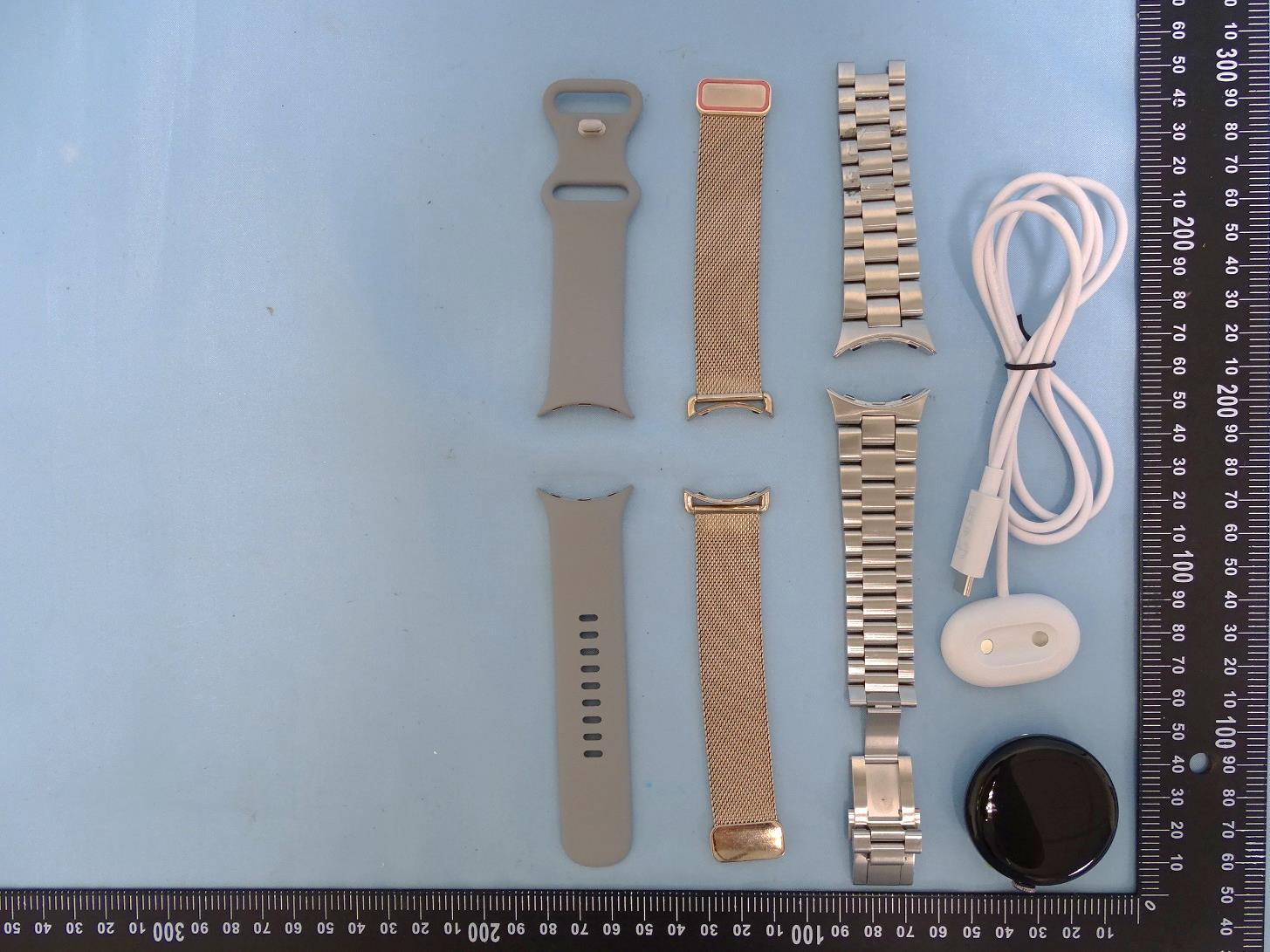

External viewGoogle Pixel Watch 4 (45mm) external FCC photo from External Photos p. 7Source: External Photos p. 7

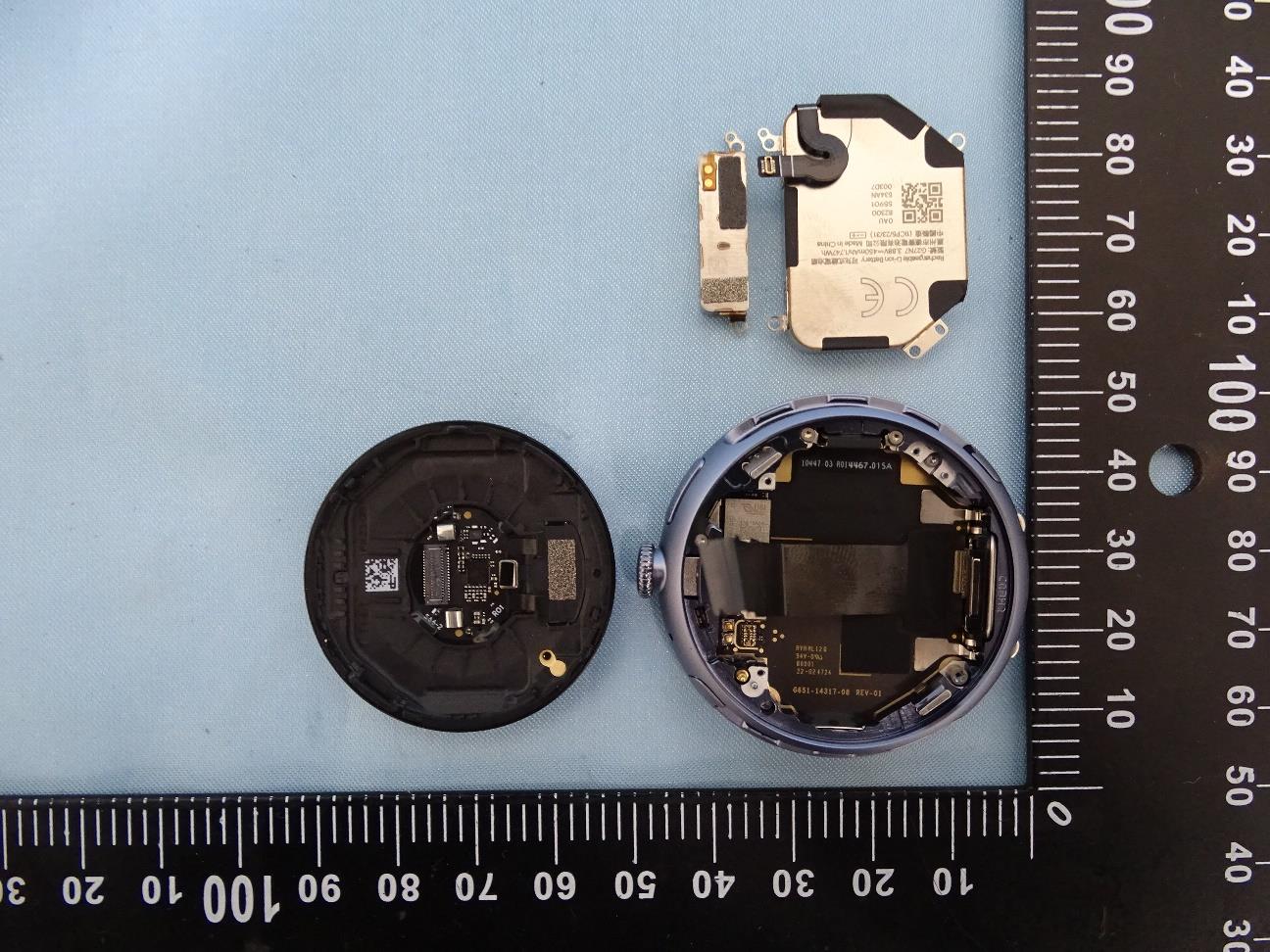

Internal viewGoogle Pixel Watch 4 (45mm) internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

Setup note

3. Follow the setup instructions on your phone to finish the setup.

Manual page 1

"3. Follow the setup instructions on your phone to finish the setup."

Users Manual

Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual6 pages164 KB public file

The public manual includes useful power details.

Manual at a glance

What’s in the boxp. 1
Power and chargingp. 2

What power or charging details does the manual include?

Device
Charging Cable

How to Set Up the Device

Press and hold the crown on the device for 3 seconds.

Source: Users Manual, page 1

What’s in the box

Device
Charging Cable

How to Set Up the Device

Press and hold the crown on the device for 3 seconds.

Source: Users Manual, page 1

Power and charging

maximum 3 Amp.

Source: Users Manual, page 2

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

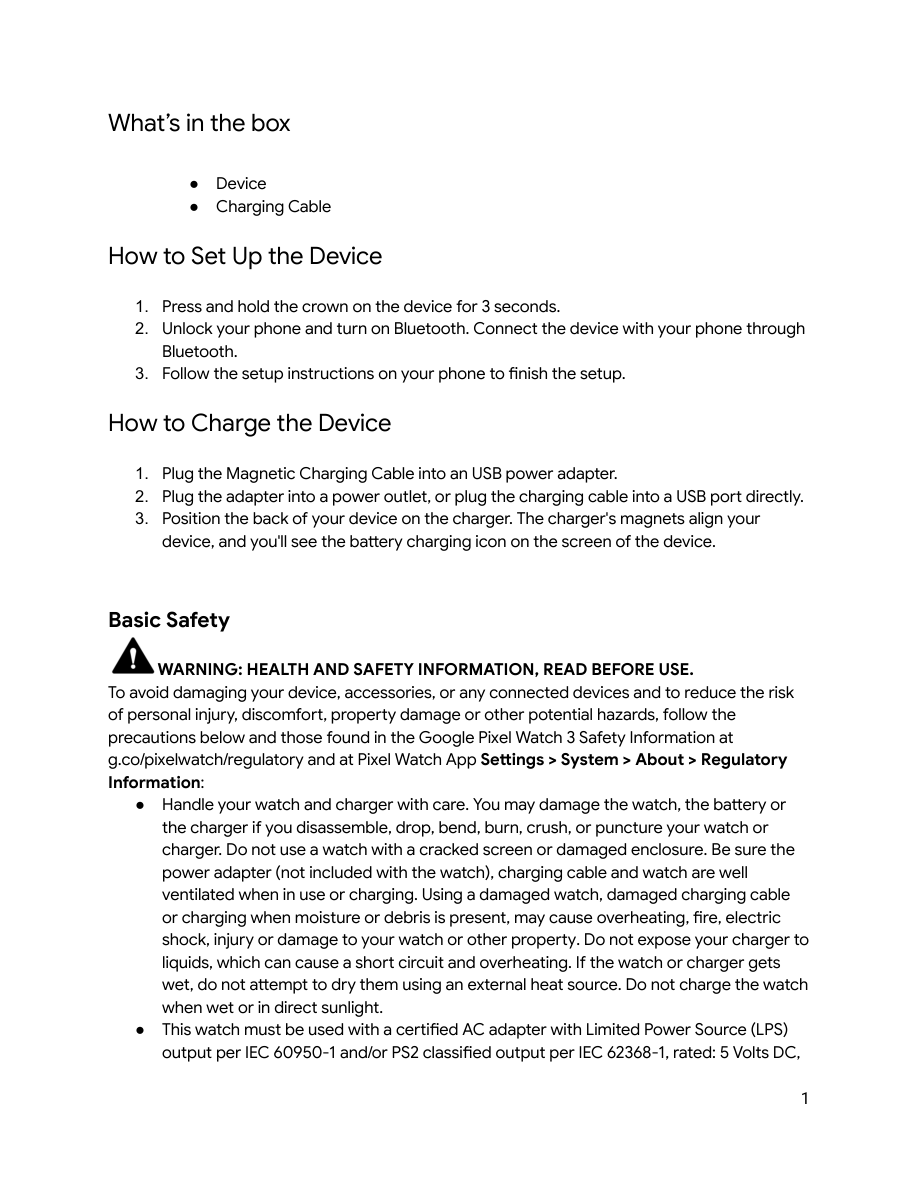

What’s in the box visual from the manual from the FCC user manual — What’s in the box visual from the manualSource: Users Manual, page 1
