FCC ID A4R-G9BQD

Google G9BQD FCC filing (A4R-G9BQD)

Name: Google G9BQD FCC filing dataset
Creator: Google LLC

Public FCC record for Google G9BQD (A4R-G9BQD), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 6 GHz Wi-Fi, 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, and NFC / short-range.

Smart Home A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G9BQD

Device categorySmart Home

Authorization dateAug 30, 2023

Plain-English filing summary

What this FCC record tells you

G9BQD is the device filed under FCC ID A4R-G9BQD by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual setup and troubleshooting notes.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 6 GHz Wi-Fi, 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, and NFC / short-range.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG9BQDThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment class15E - Part 15 Low Power Transmitter Below 1705 kHz

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDIsZAXINwRu0uHn6qVTuBpQ==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Aug 30, 2023

Original Equipment

4 FCC applications

4 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: 9lHxpE9pxwf/H+dGV13ybw==, Ph1IYpHUIm5FlT4gqHibXw==, mVnDGTJfZEn3zTbnXhdbjw==, IsZAXINwRu0uHn6qVTuBpQ==
Equipment classes: NII - Wi-Fi-style wireless device; 15E - 6 GHz Low Power Dual Client; DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 6 GHz Wi-Fi: 3 ranges; 5 GHz Wi-Fi: 5 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; NFC / short-range: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	6 GHz Wi-Fi: 3 ranges; 5 GHz Wi-Fi: 5 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; NFC / short-range: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 11 ranges grouped below
Maximum conducted output power	5 WTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: RF Exposure Info p. 6

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

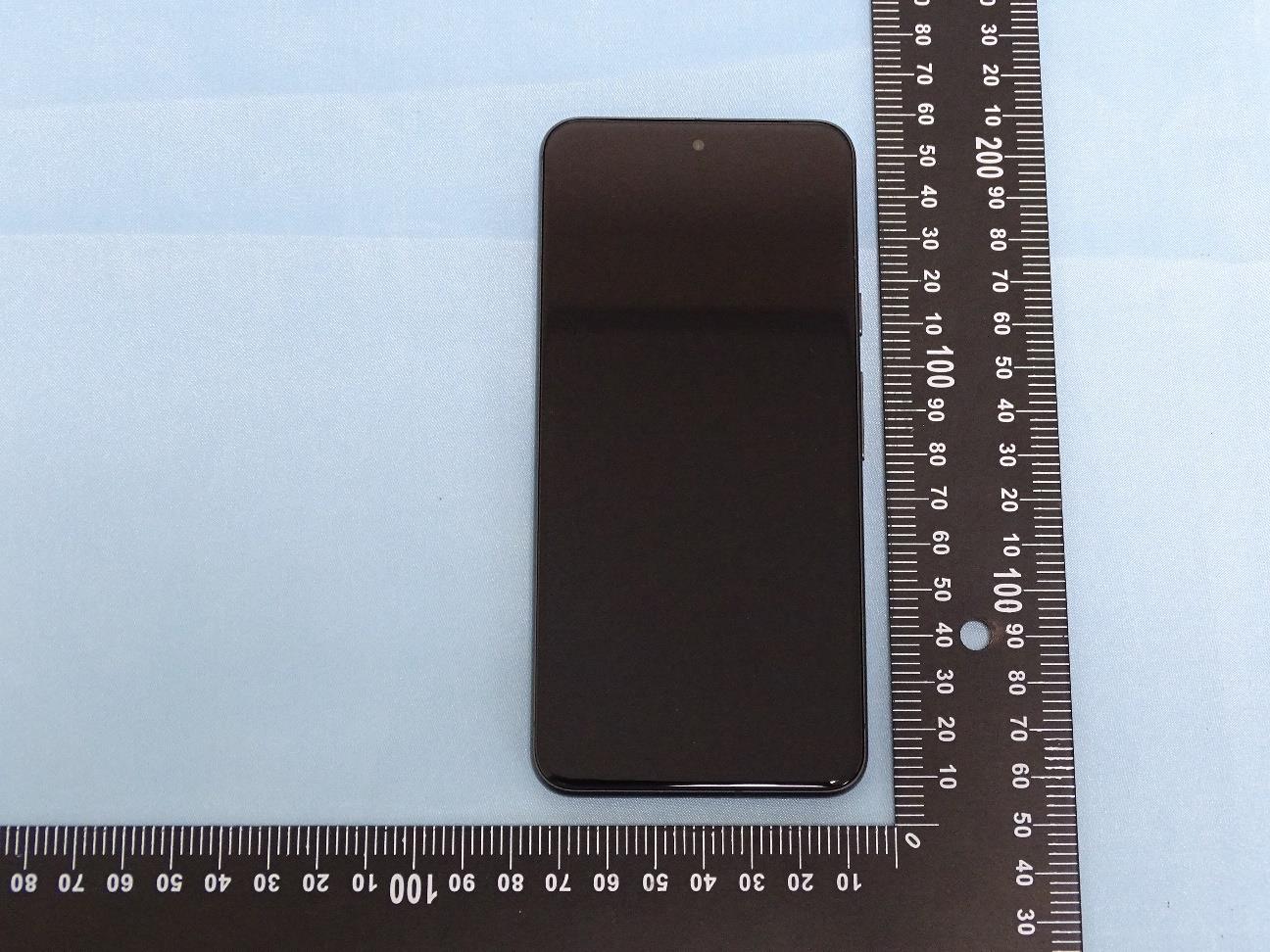

External viewGoogle G9BQD external FCC photo from External Photos p. 1Source: External Photos p. 1

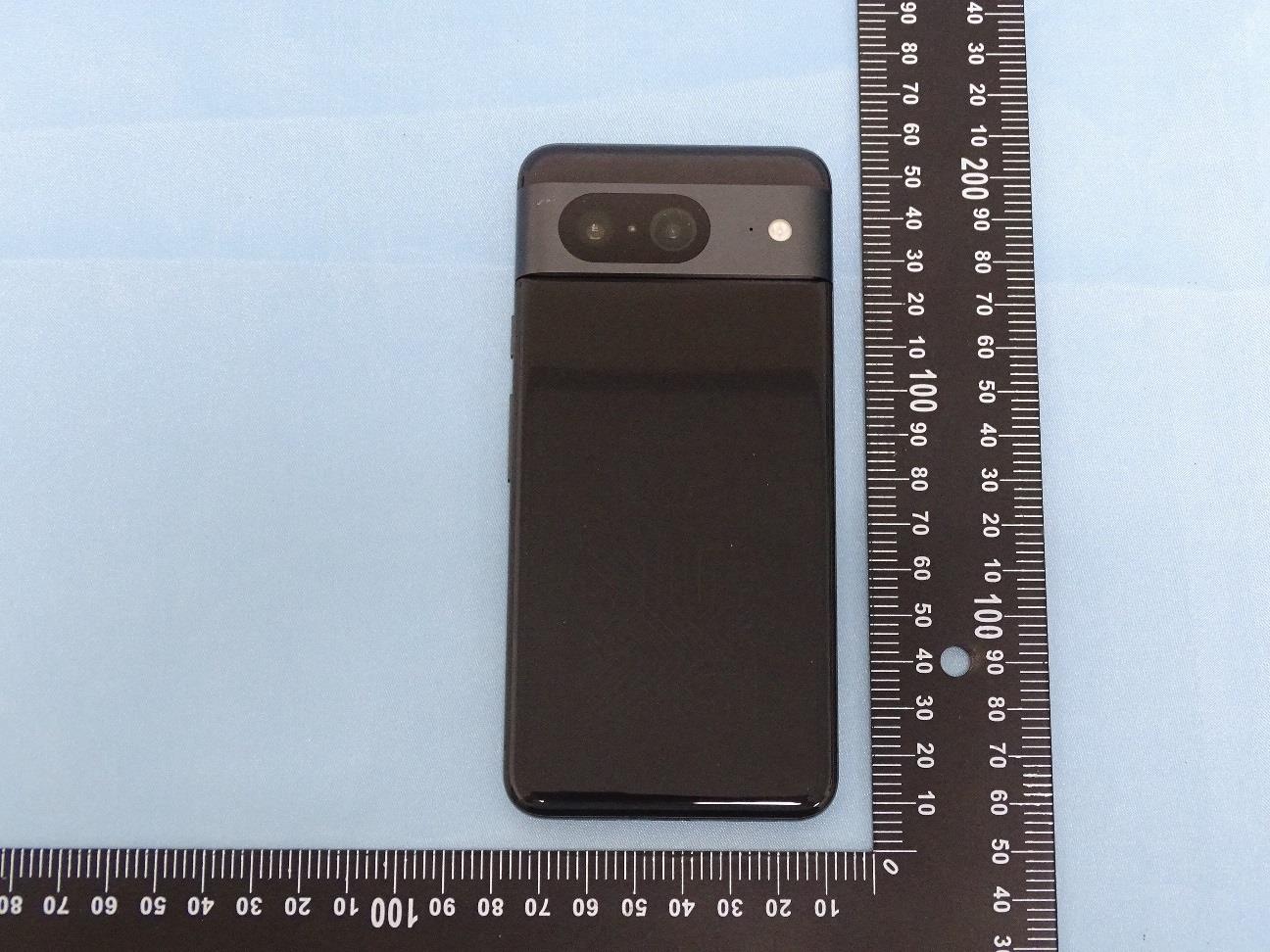

External viewGoogle G9BQD external FCC photo from External Photos p. 2Source: External Photos p. 2

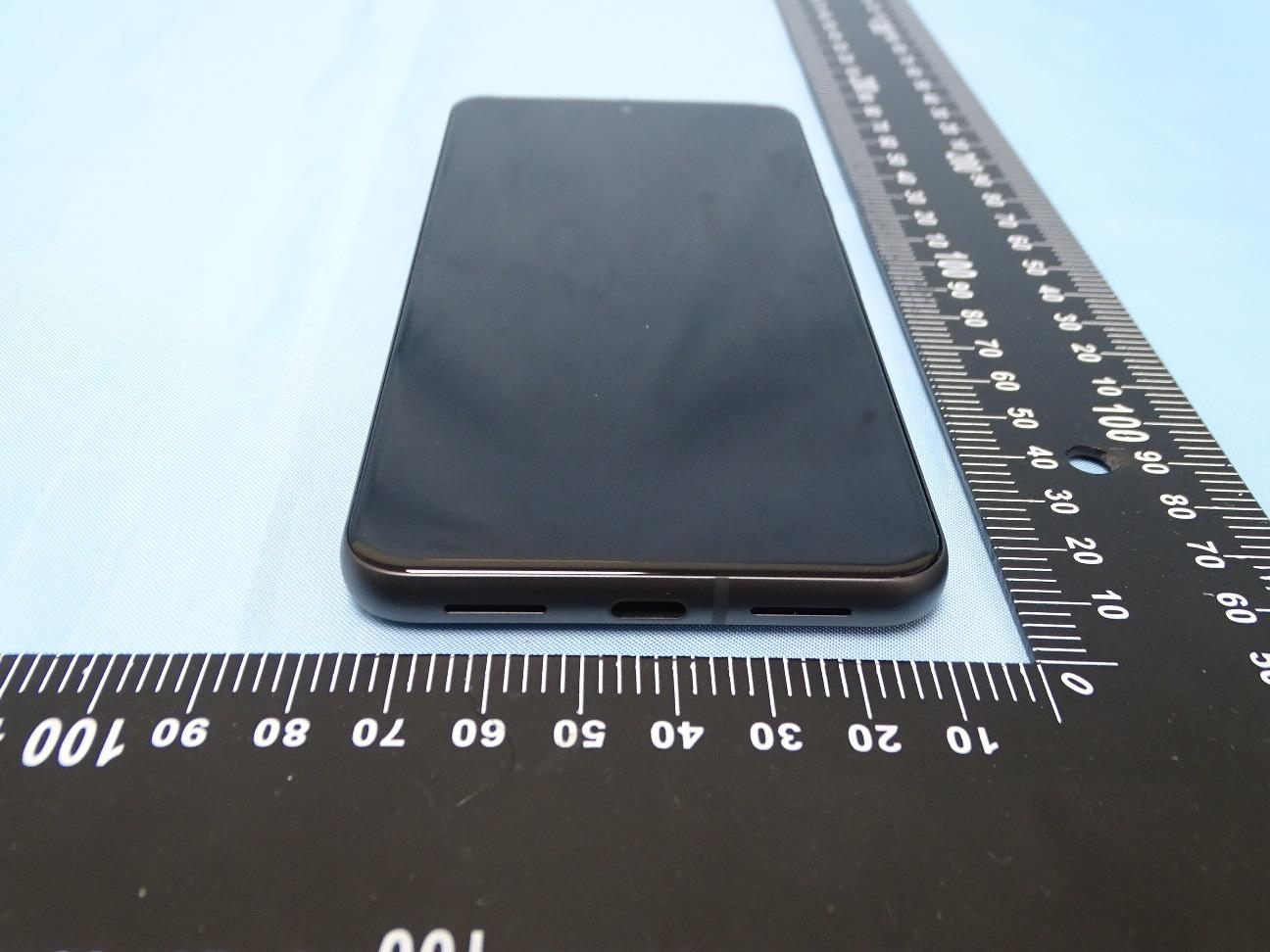

External viewGoogle G9BQD external FCC photo from External Photos p. 3Source: External Photos p. 3

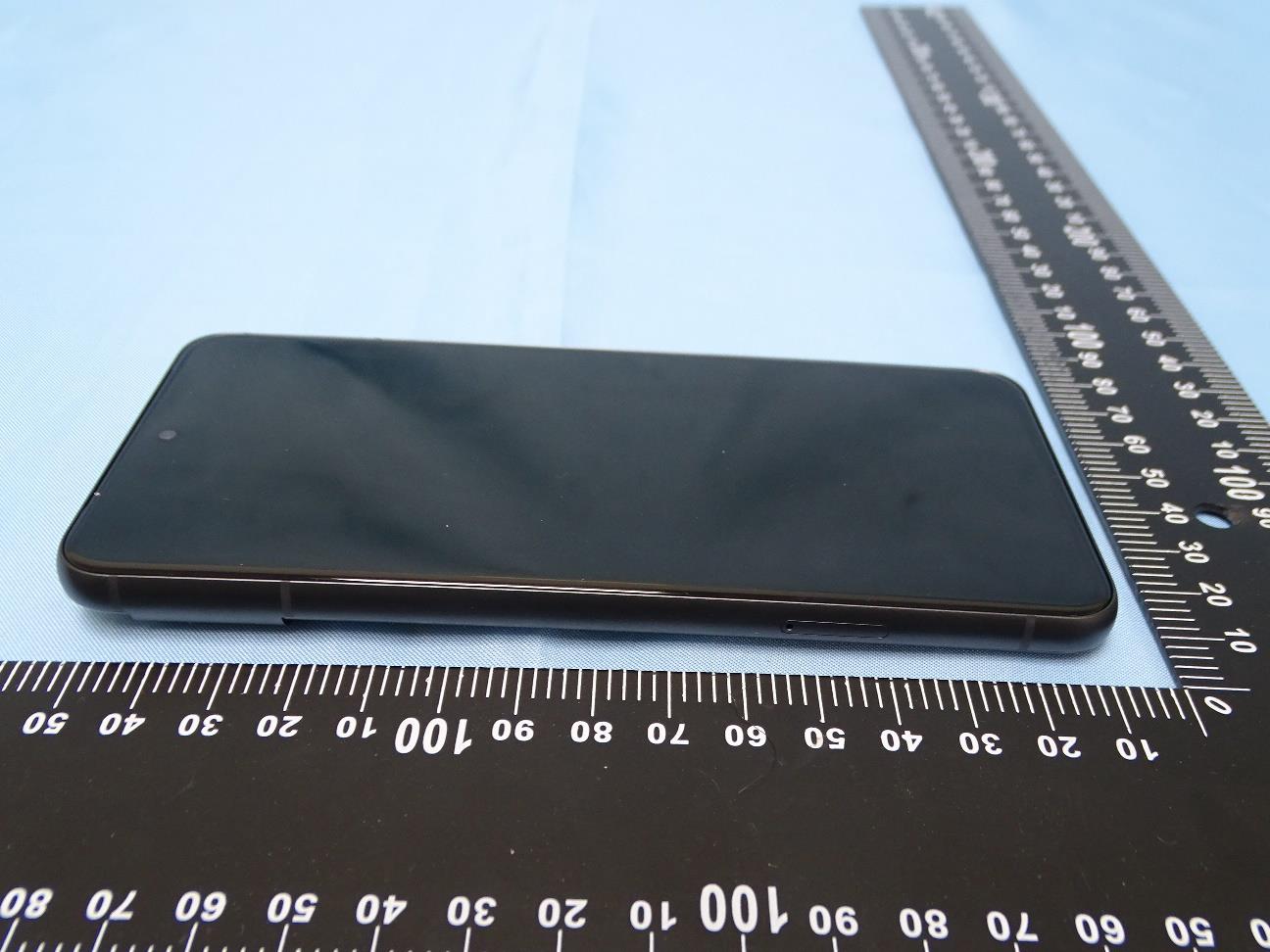

External viewGoogle G9BQD external FCC photo from External Photos p. 4Source: External Photos p. 4

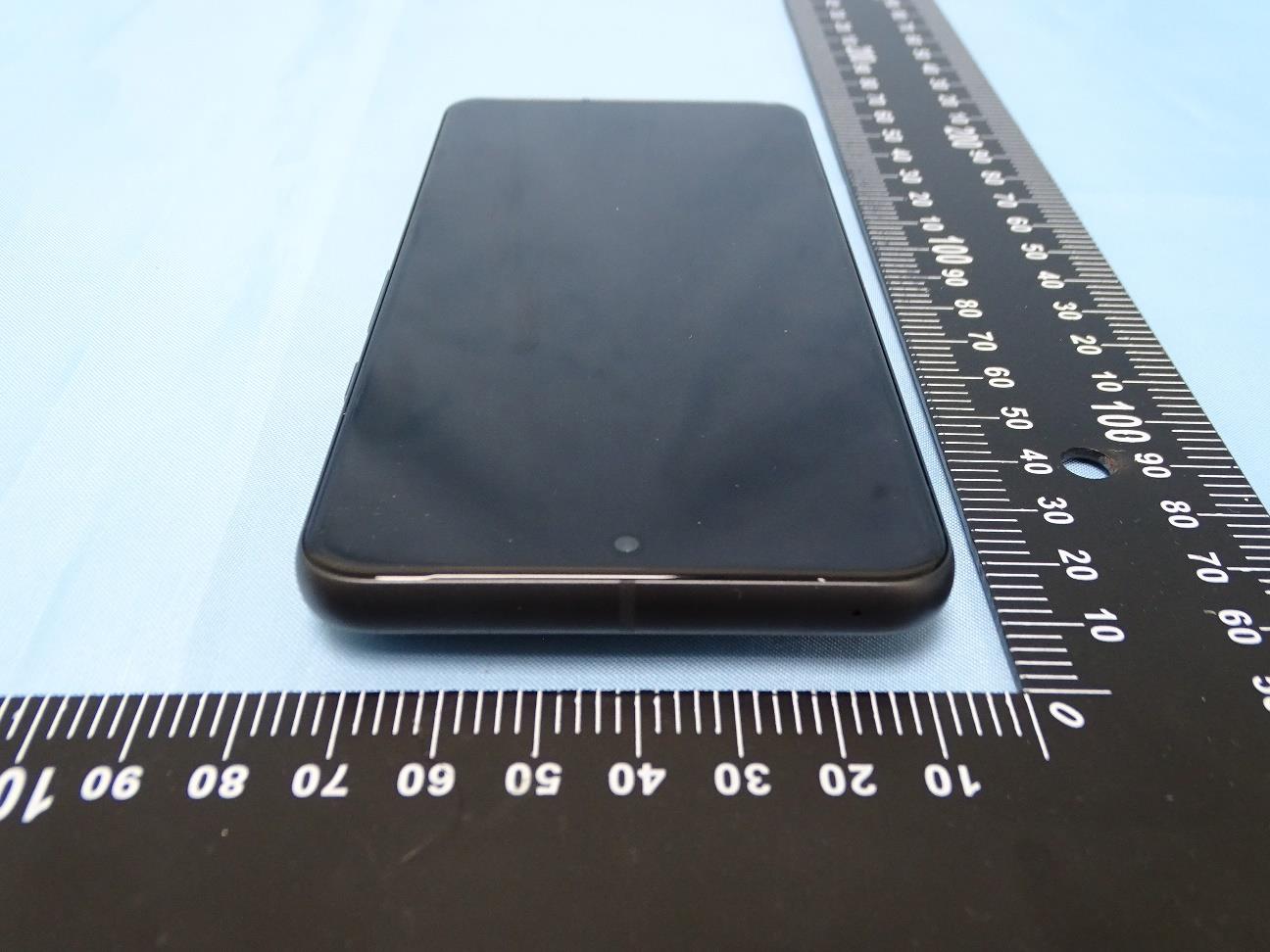

External viewGoogle G9BQD external FCC photo from External Photos p. 5Source: External Photos p. 5

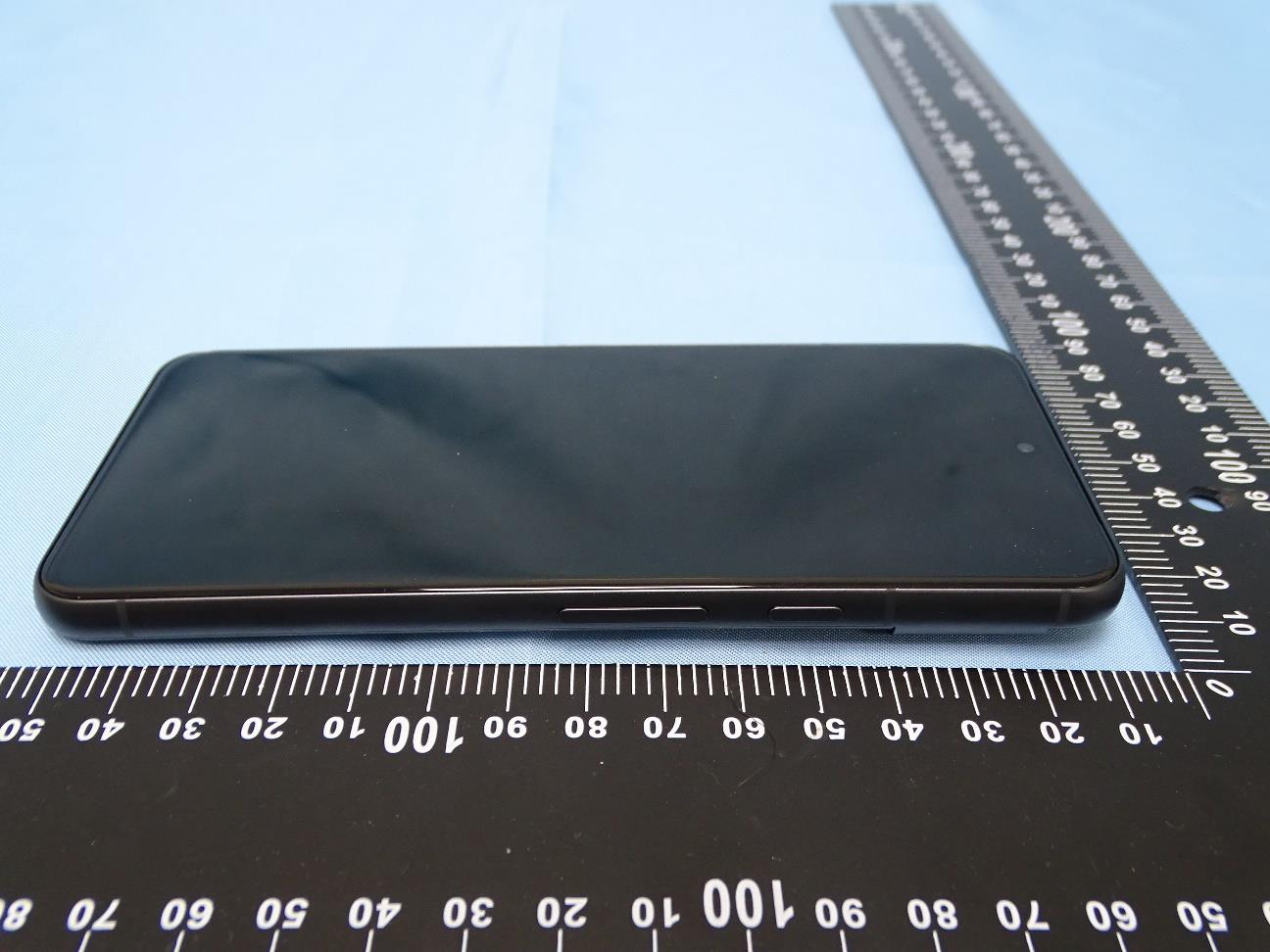

External viewGoogle G9BQD external FCC photo from External Photos p. 6Source: External Photos p. 6

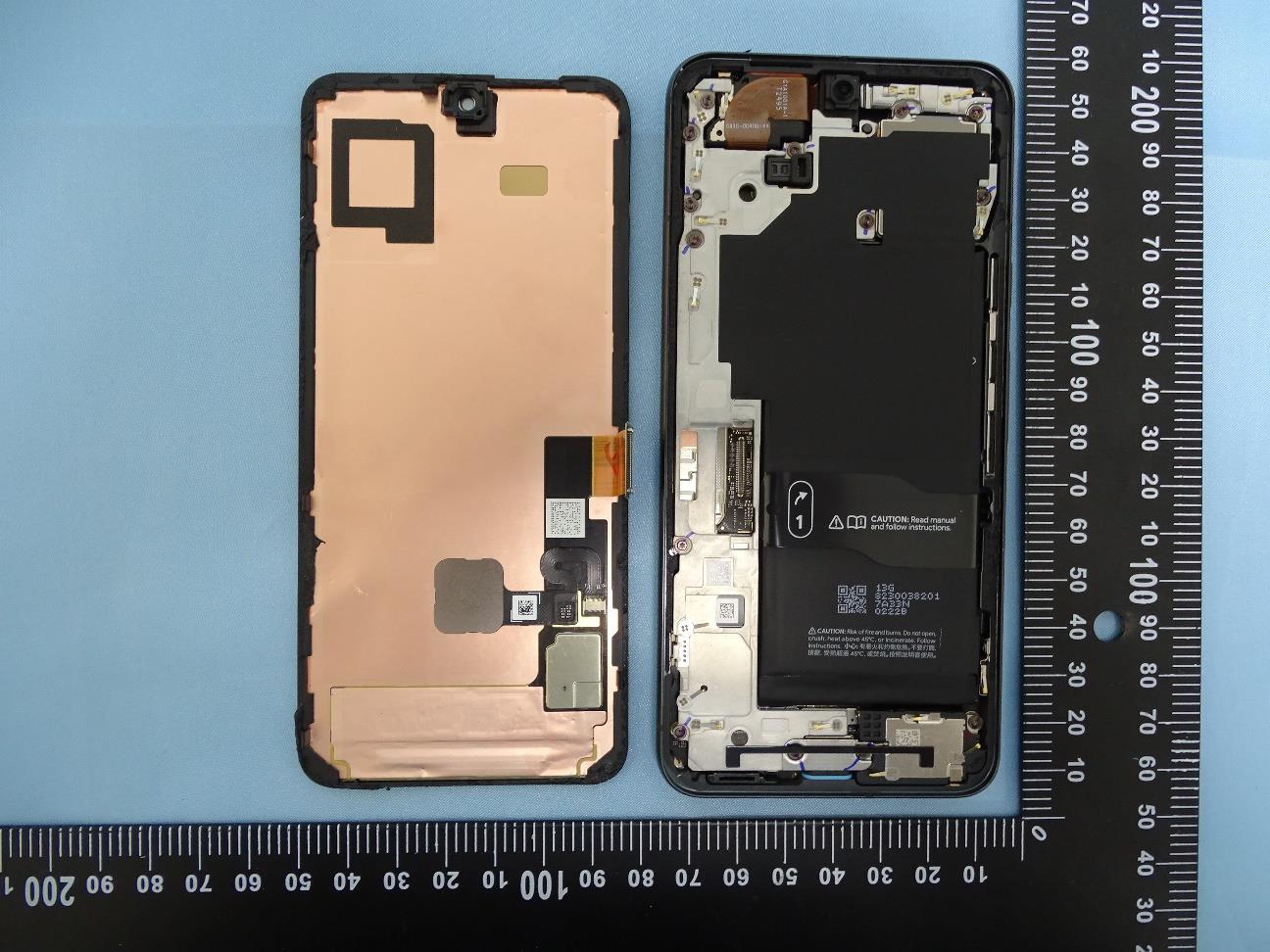

Internal viewGoogle G9BQD internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

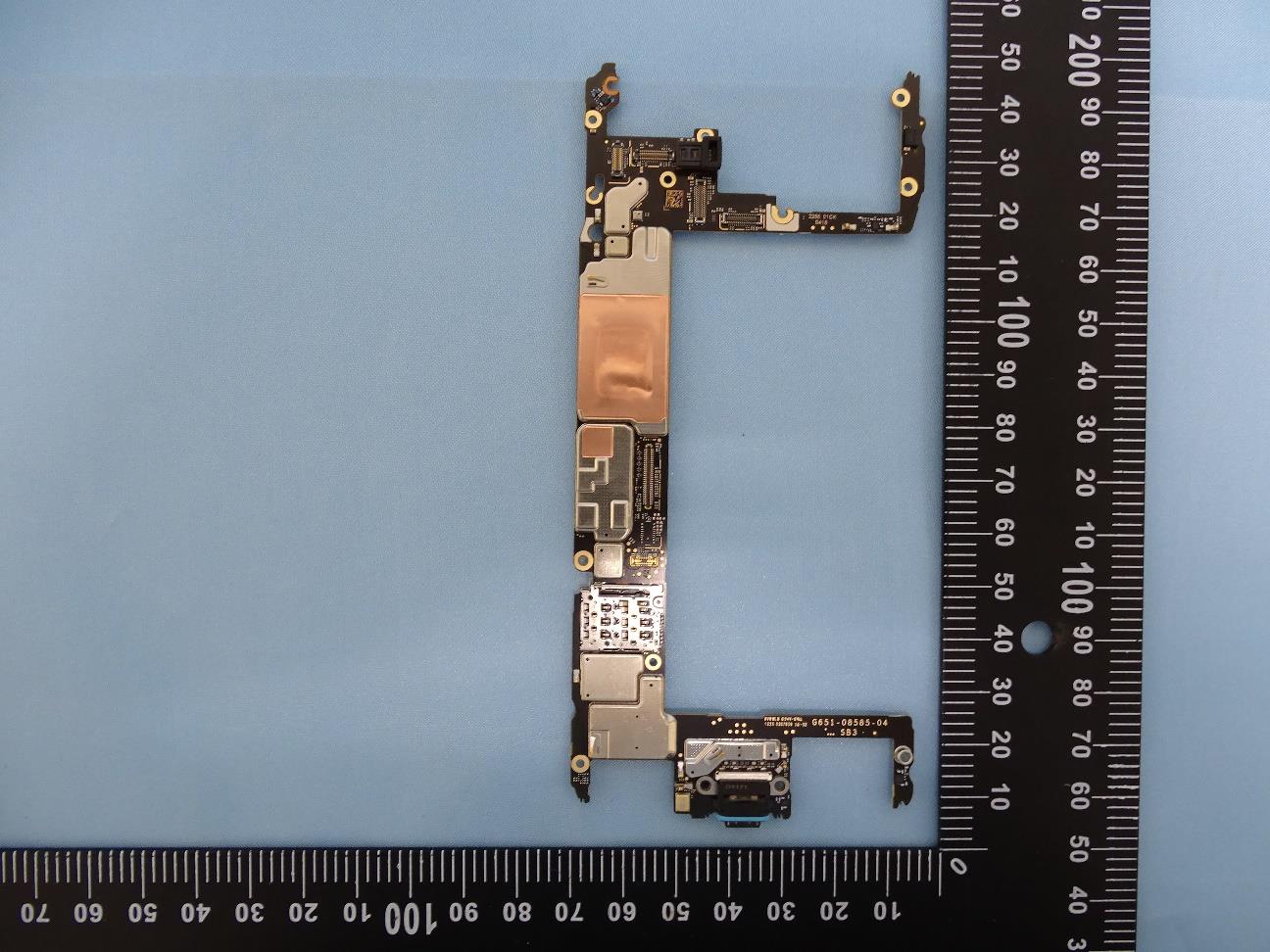

Internal viewGoogle G9BQD internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual excerpts

Readable manual highlights

Highlights from the public manual exhibit.

Official FCC source: Users Manual4 pages68 KB public file

Manual note
Do not place other metallic or magnetic objects between the wireless charger and your phone, as this could cause heating of the other object or cause your device not to charge properly.
Source: Users Manual
