FCC ID SS3-MT4MFVD23

DJI MT4MFVD23 remote controller FCC filing (SS3-MT4MFVD23)

Name: DJI MT4MFVD23 FCC filing dataset
Creator: SZ DJI Technology Co., Ltd.

Public FCC record for DJI MT4MFVD23 (SS3-MT4MFVD23), a digital transmission system device filed by SZ DJI Technology Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth.

Drones SS3 brand hub

ManufacturerSZ DJI Technology Co., Ltd.

FCC IDSS3-MT4MFVD23

Device categoryDrones

Authorization dateSep 5, 2023

Plain-English filing summary

What this FCC record tells you

MT4MFVD23 is the device filed under FCC ID SS3-MT4MFVD23 by SZ DJI Technology Co., Ltd.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover power details.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSS3The FCC-assigned applicant code at the start of the FCC ID.

Product code-MT4MFVD23The filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDjv2F0Lc530Vp44NpzcpmSg==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Sep 5, 2023

Original Equipment

FCC application

This FCC application appears to be the original authorization package for the device, with the matching grant and public exhibits grouped together.

Application ID: jv2F0Lc530Vp44NpzcpmSg==
Equipment class: DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 12 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 12 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 12 ranges grouped below
Frequency range	2400 - 2483.5 MHz \| 5170 - 5250 MHz \| 5725 - 5850 MHz \| 2402 - 2480 MHz \| 2403.5 - 2467.5 MHz \| 2405.12 - 2469.12 MHz \| 2405.5 - 2465.5 MHz \| 2408.2 - 2468.2 MHz \| 2404.5 - 2469.5 MHz \| 2407.5 - 2467.5 MHzSource: RF Exposure Info p. 6; RF Exposure Info p. 7

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

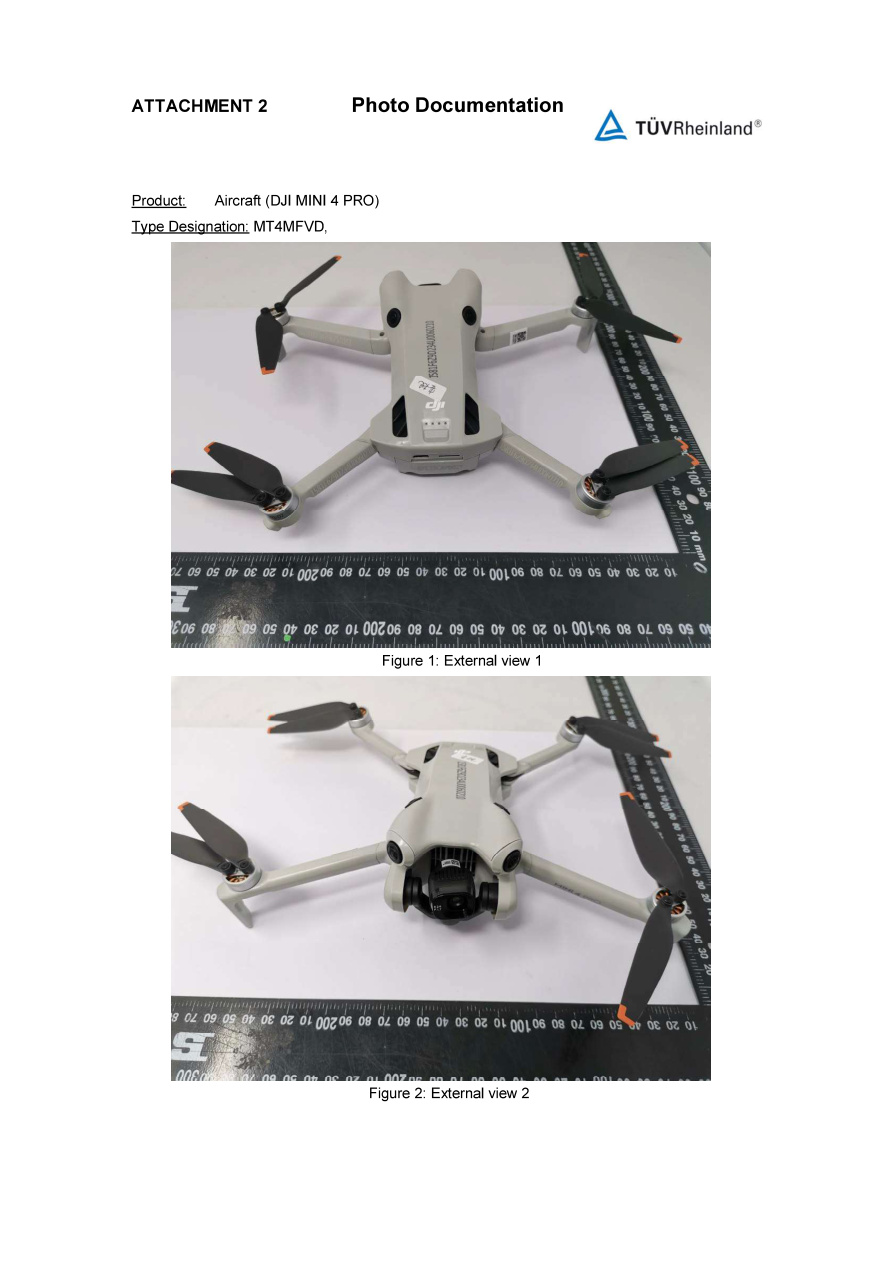

External viewDJI MT4MFVD23 external FCC photo from External Photos p. 1Source: External Photos p. 1

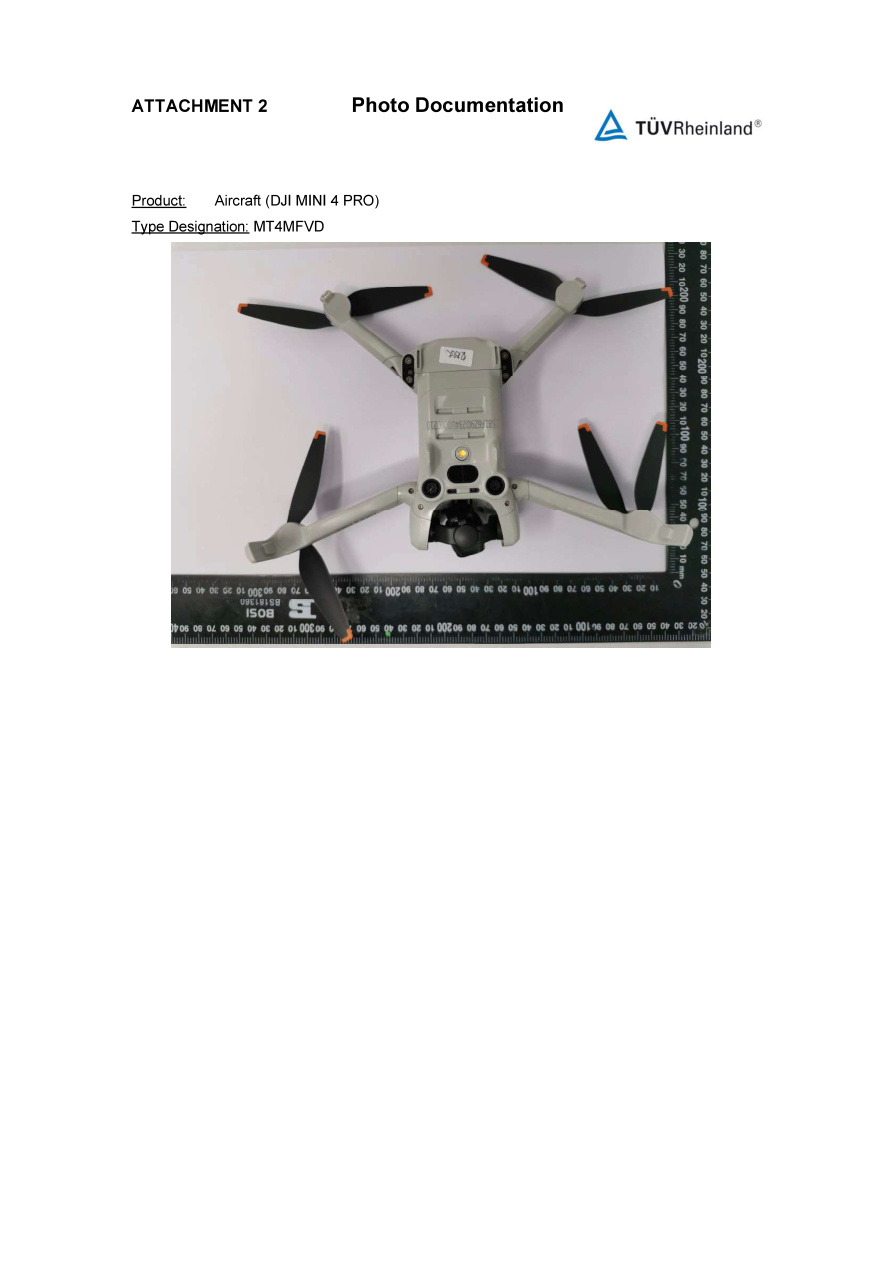

External viewDJI MT4MFVD23 external FCC photo from External Photos p. 2Source: External Photos p. 2

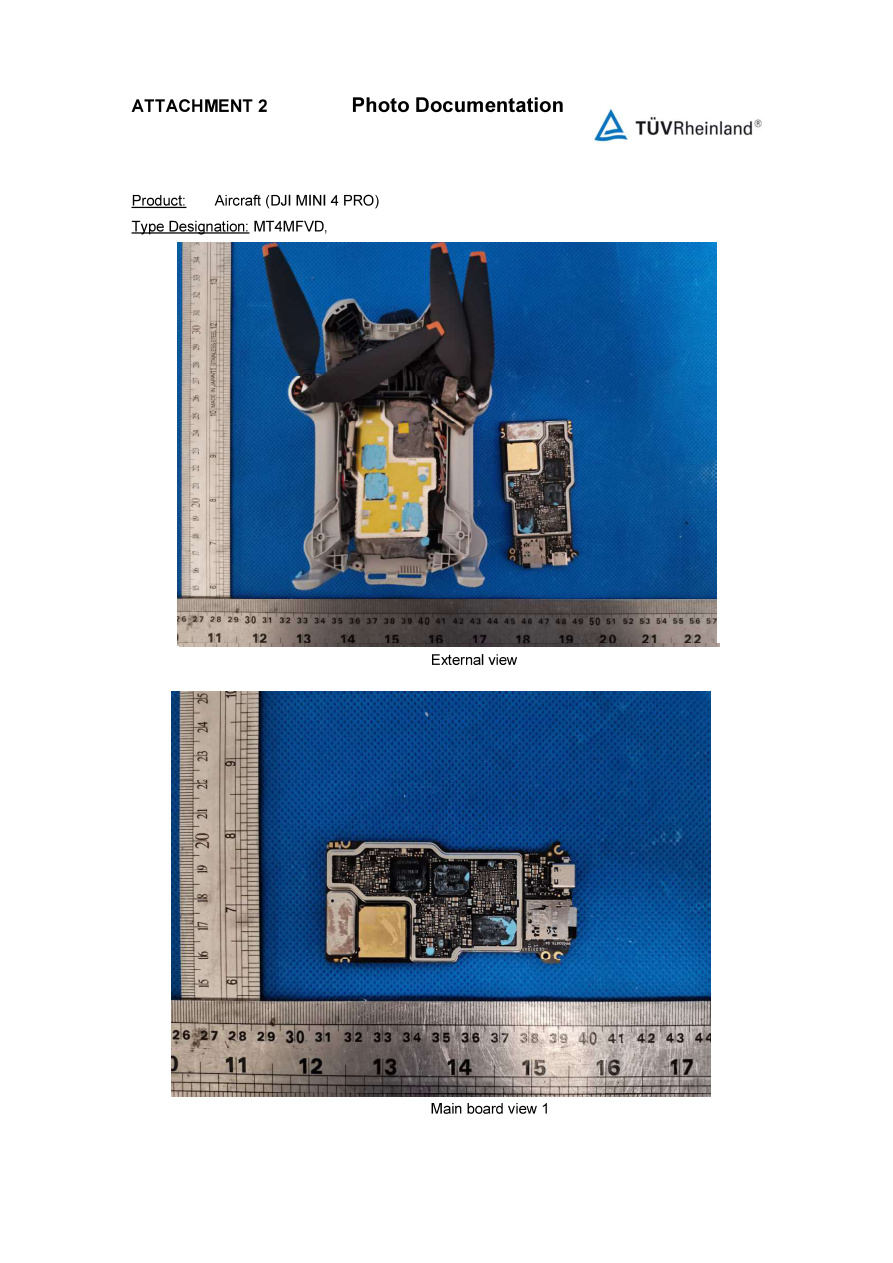

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

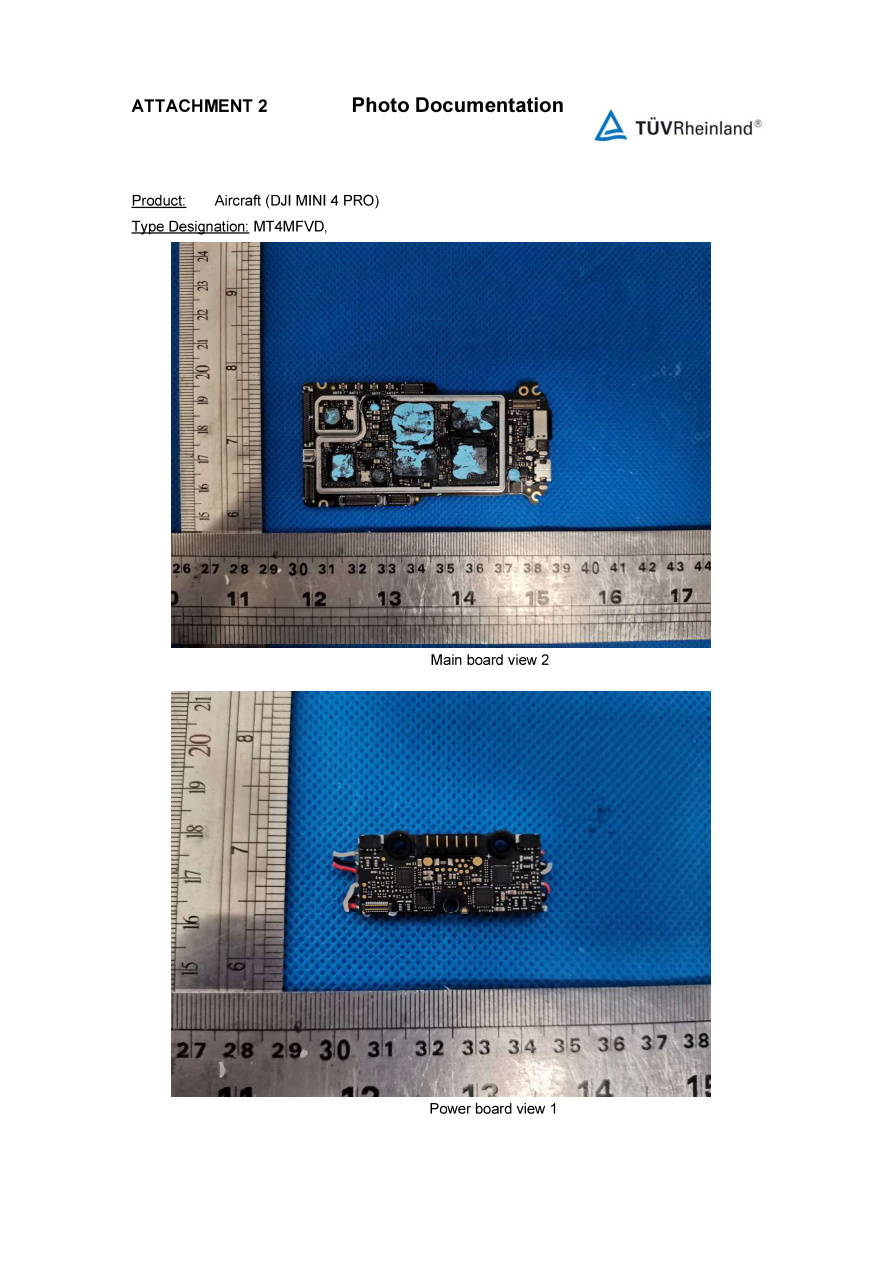

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

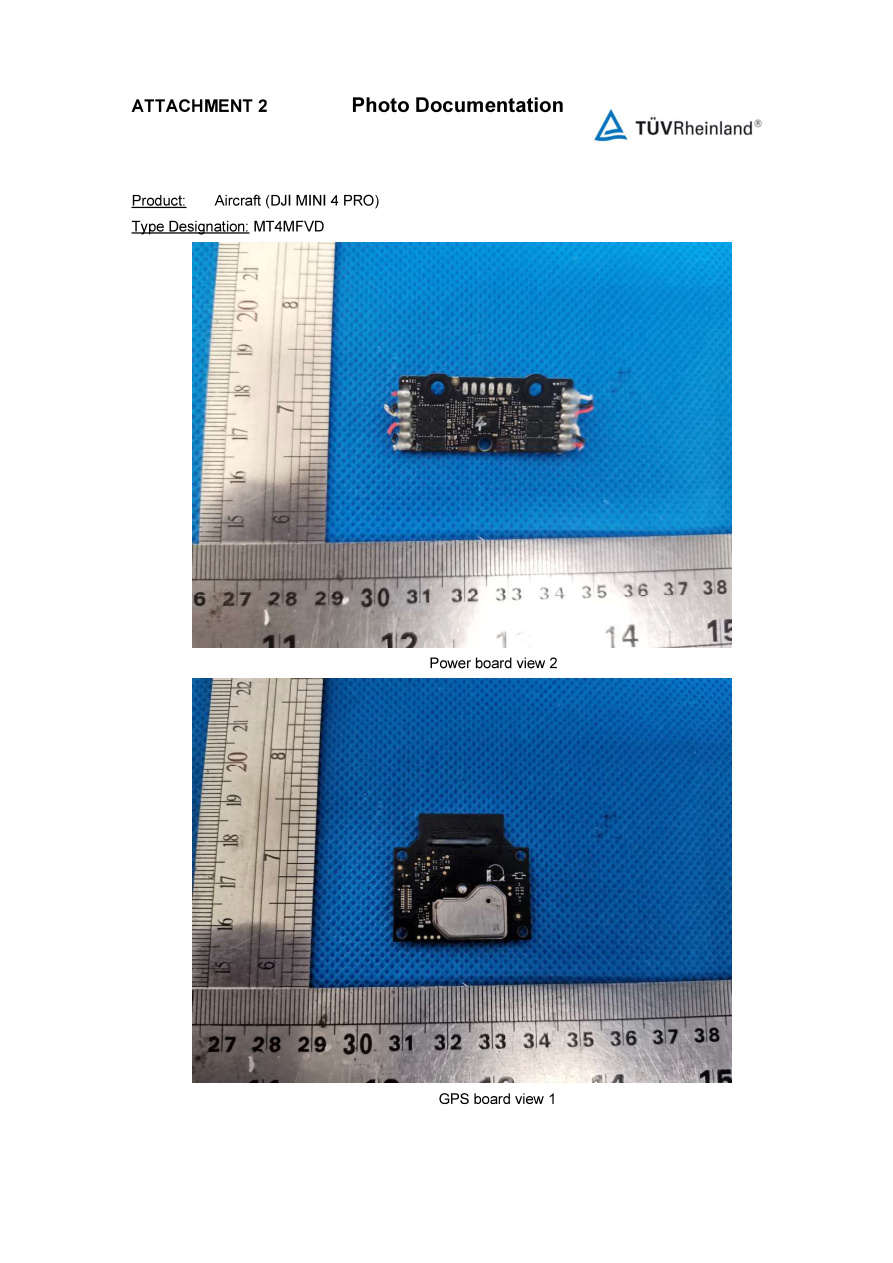

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 3Source: Internal Photos p. 3

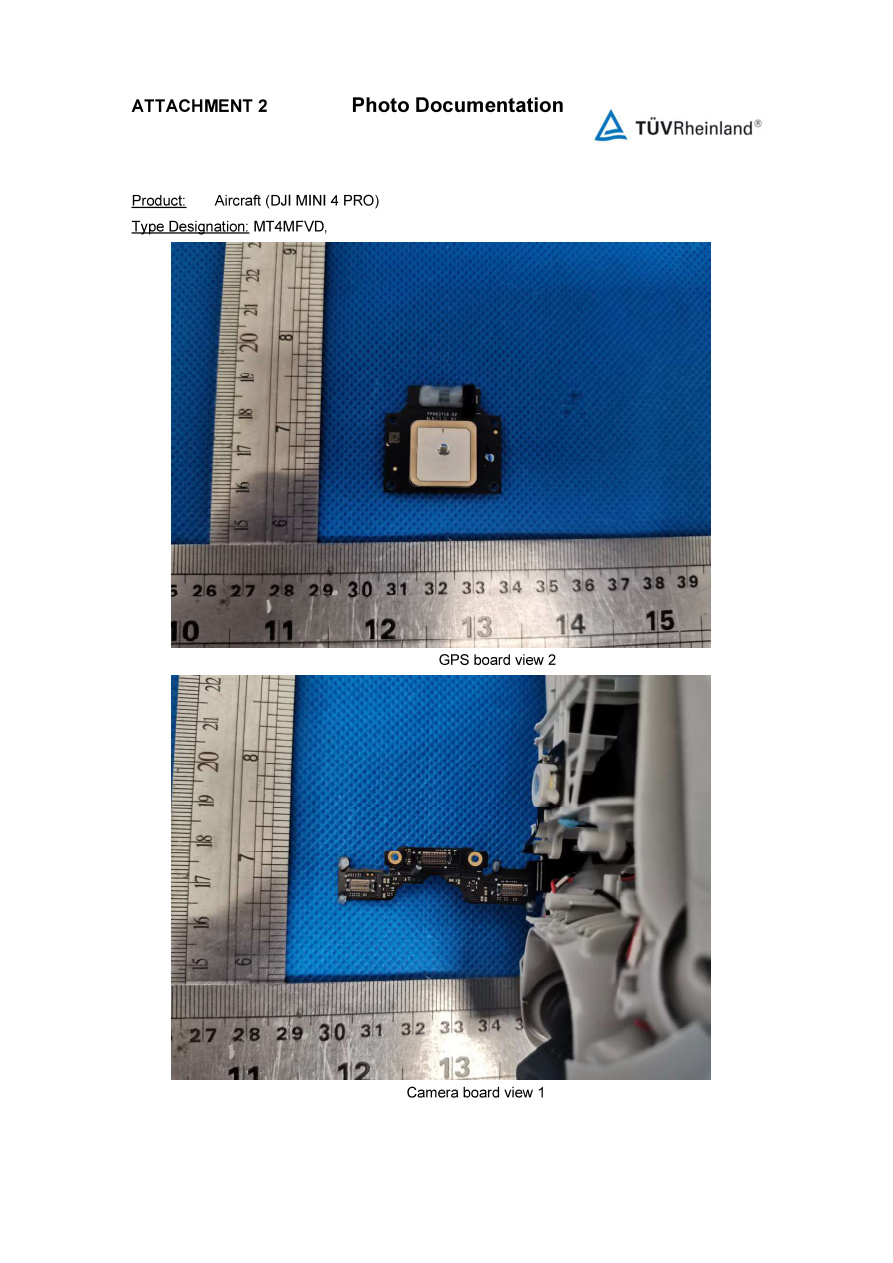

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 4Source: Internal Photos p. 4

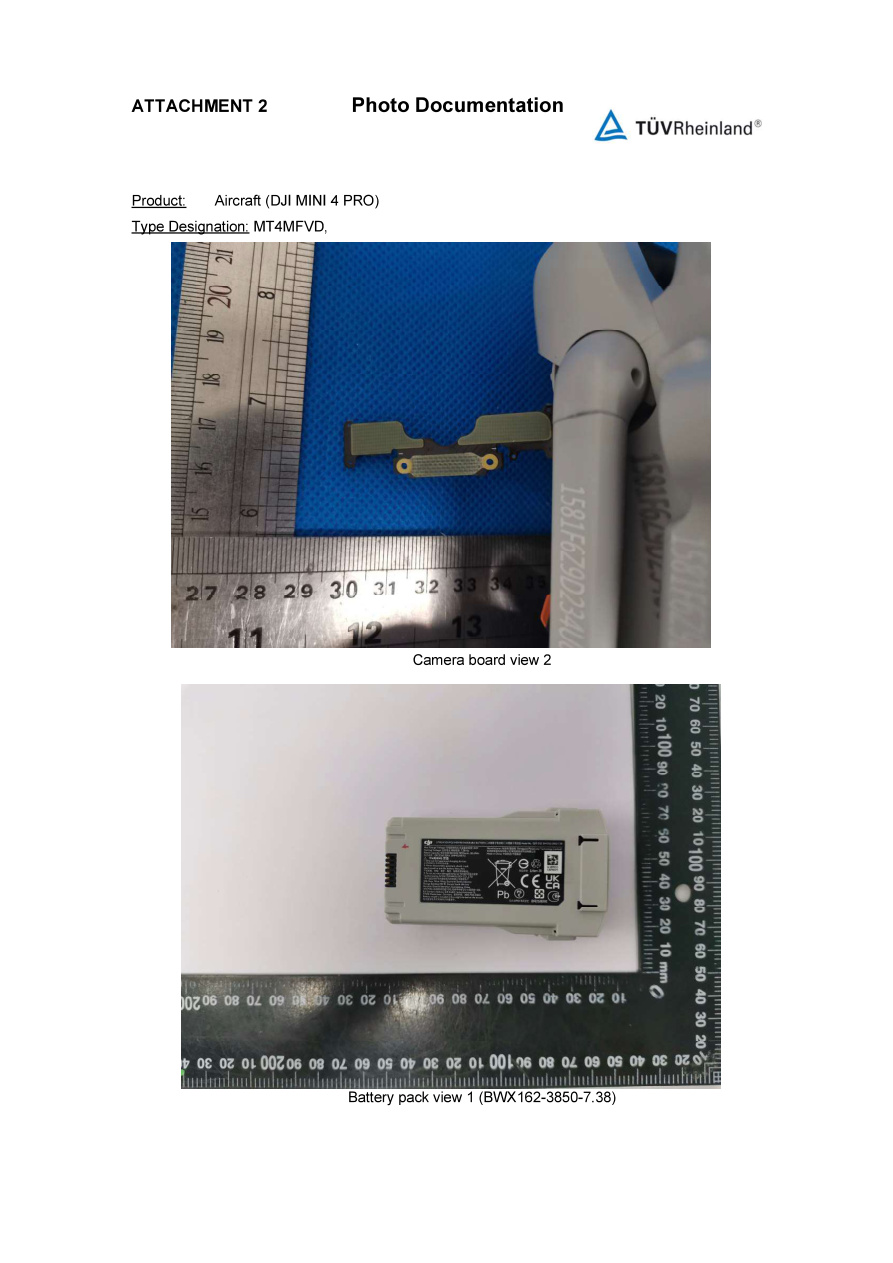

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 5Source: Internal Photos p. 5

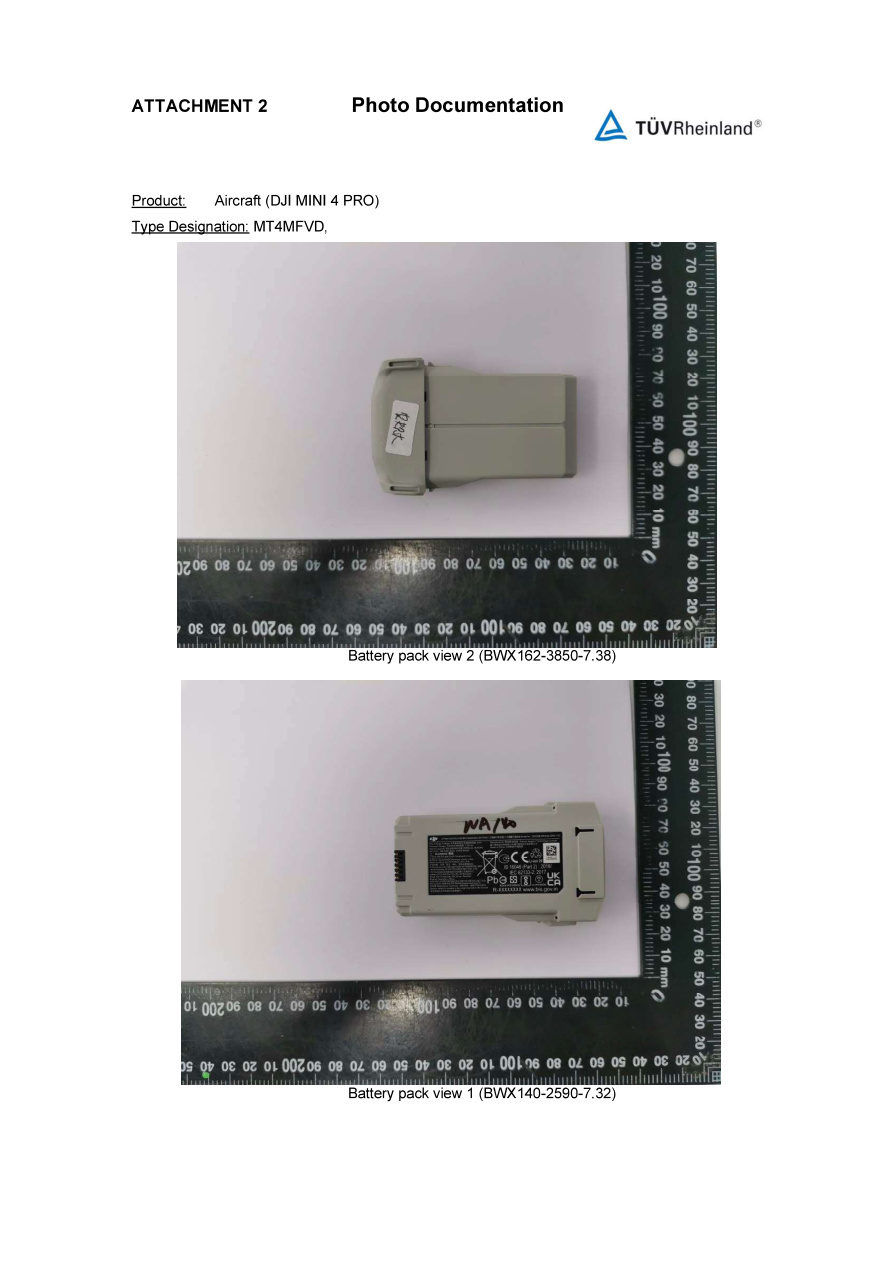

Internal viewDJI MT4MFVD23 internal FCC photo from Internal Photos p. 6Source: Internal Photos p. 6

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual18 pages2.2 MB public file

The public manual includes useful power details.

Manual at a glance

Charging to Activatep. 3
Preparing the Aircraftp. 4

What power or charging details does the manual include?

Checking the Battery Level and Powering On/Off Press once to check the battery level.

Source: Users Manual, page 3

Charging to Activate

Checking the Battery Level and Powering On/Off Press once to check the battery level.

Source: Users Manual, page 3

Preparing the Aircraft

Preparing the Remote Controller Ready to Fly Power on the remote controller and the aircraft, and run the DJI Fly app.

Source: Users Manual, page 4
