FCC ID SS3-M302110

DJI Matrice 30 drone FCC filing (SS3-M302110)

Public FCC record for DJI Matrice 30 (SS3-M302110), a drone filed by SZ DJI Technology Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

DronesSS3 brand hub
SZ DJI Technology Co., Ltd.
SS3-M302110
drone
Mar 23, 2022
Plain-English filing summary

What this FCC record tells you

Matrice 30 is the drone filed under FCC ID SS3-M302110 by SZ DJI Technology Co., Ltd.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover button controls and power details.

Terms in this filing

FCC ID
A public identifier assigned to a wireless device authorization.
Grantee Code
The manufacturer/applicant portion of an FCC ID.
DTS
FCC equipment class for digital transmission systems.
Part 15C
FCC rules for many unlicensed intentional radiators.
Part 15E
FCC rules often associated with 5 GHz and 6 GHz network devices.
Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSS3The FCC-assigned applicant code at the start of the FCC ID.
Product code-M302110The filing-specific product code. It is not always the retail product name.
Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.
FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.
FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.
Application IDY+gFNb0cLfA2JZqr2p4Y8g==The FCC tracking ID for this application batch.
Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Mar 23, 2022

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

  • Applications: Y+gFNb0cLfA2JZqr2p4Y8g==, RfdQdT8PDxdFCyy1ZZqYtw==
  • Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device
  • FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
  • Bands: 5 GHz Wi-Fi: 7 ranges; 2.4 GHz Wi-Fi / Bluetooth: 7 ranges
  • Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report
SourcesFCC grantFCC exhibit listUser manual
Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment classDTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands5 GHz Wi-Fi: 7 ranges; 2.4 GHz Wi-Fi / Bluetooth: 7 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 14 ranges grouped below
Frequency range2403.5 - 2469.5 MHz | 2405.12 - 2471.12 MHz | 2405.5 - 2468.5 MHz | 2408.2 - 2471.2 MHz | 2407.5 - 2467.5 MHz | 2412.5 - 2462.5 MHz | 2422.5 - 2452.5 MHzSource: Test Report p. 9; Test Report p. 10; Test Report p. 11
Maximum conducted output power4 WTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 18
Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

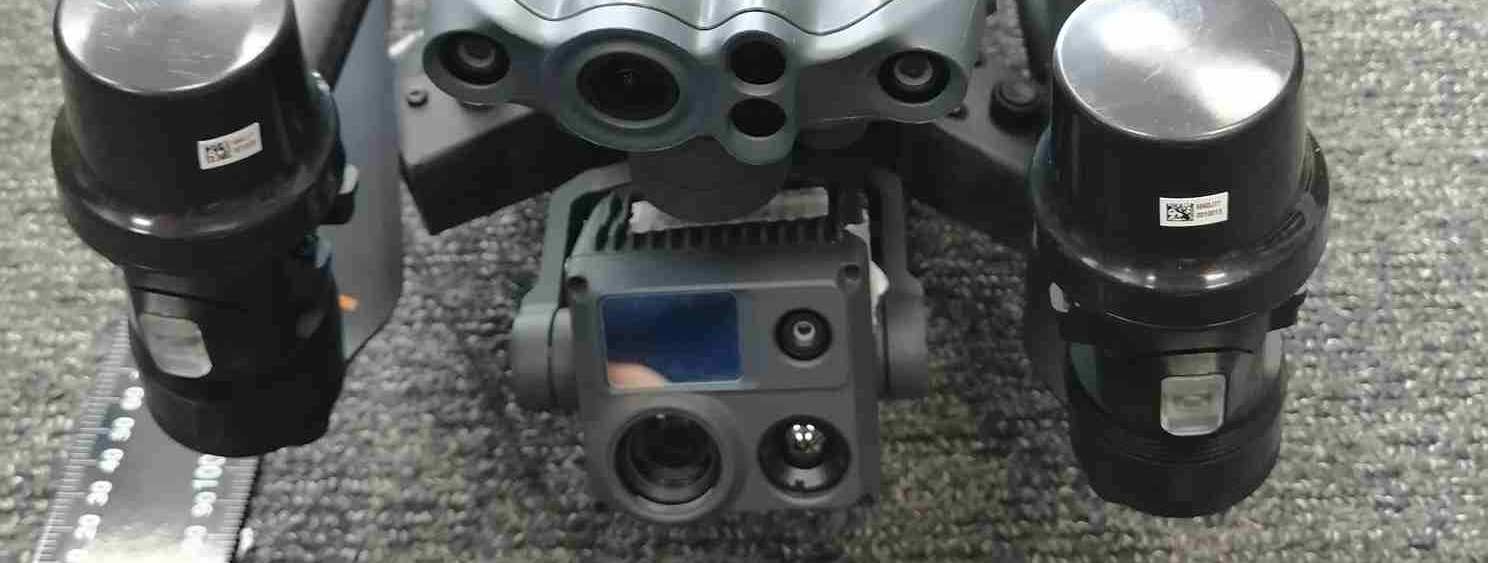

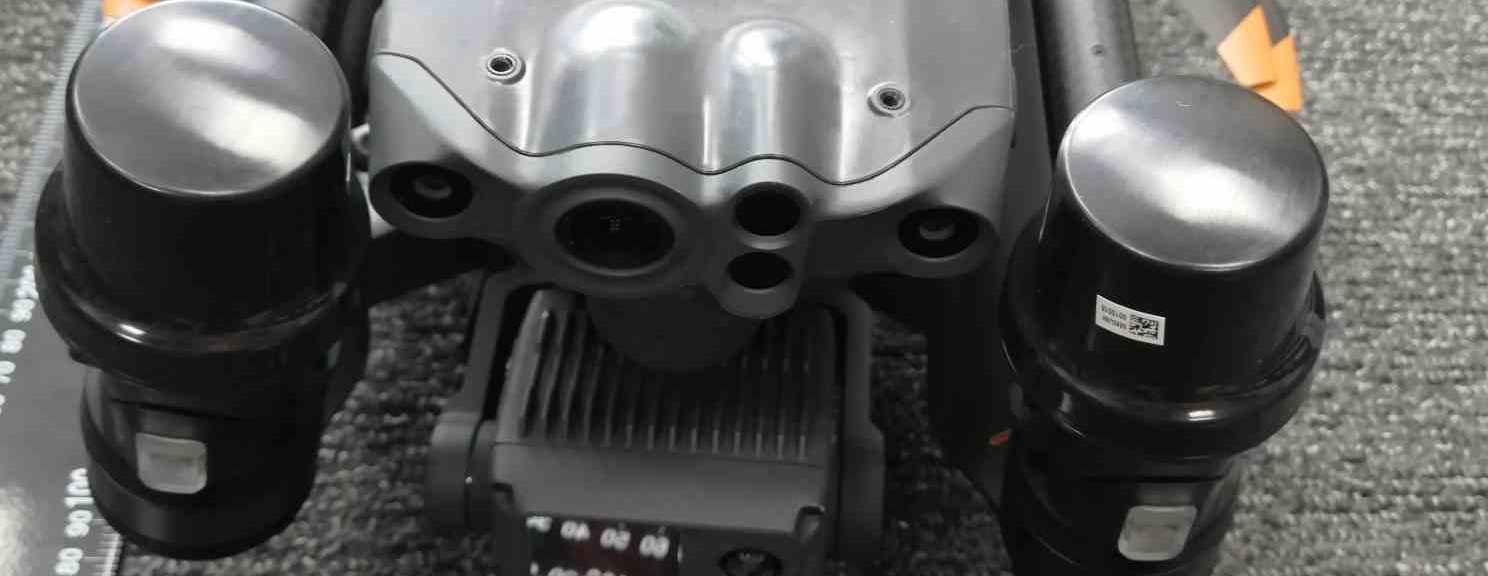

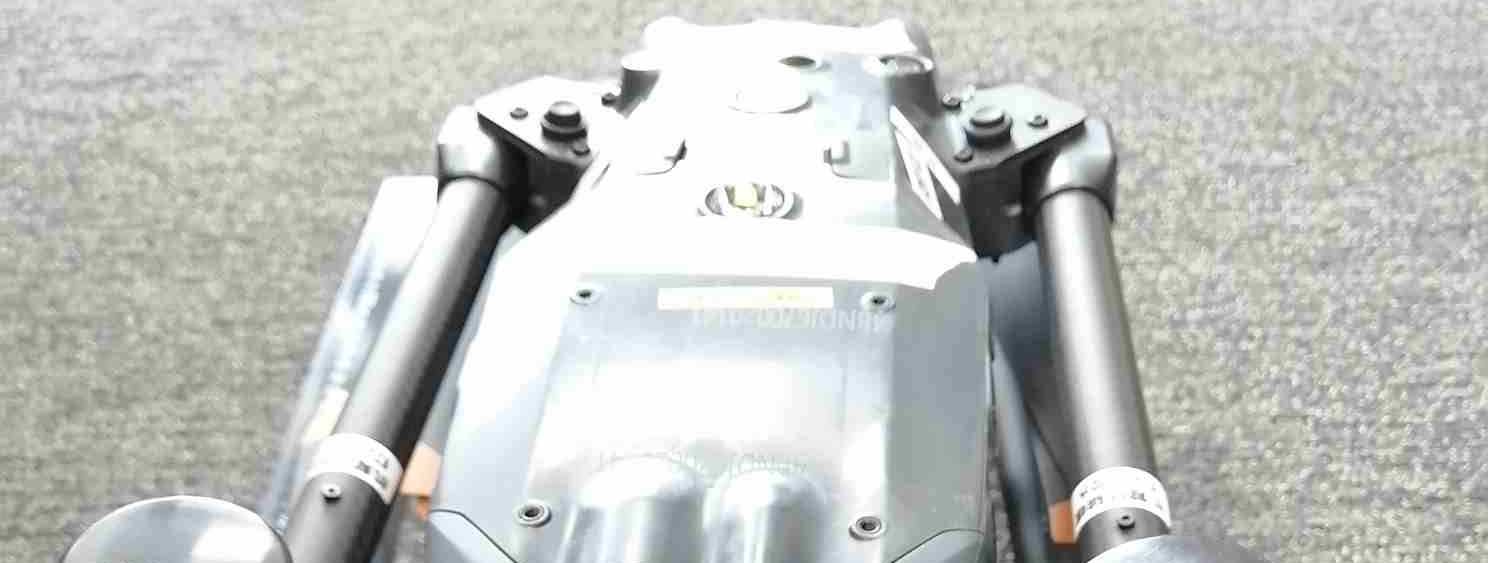

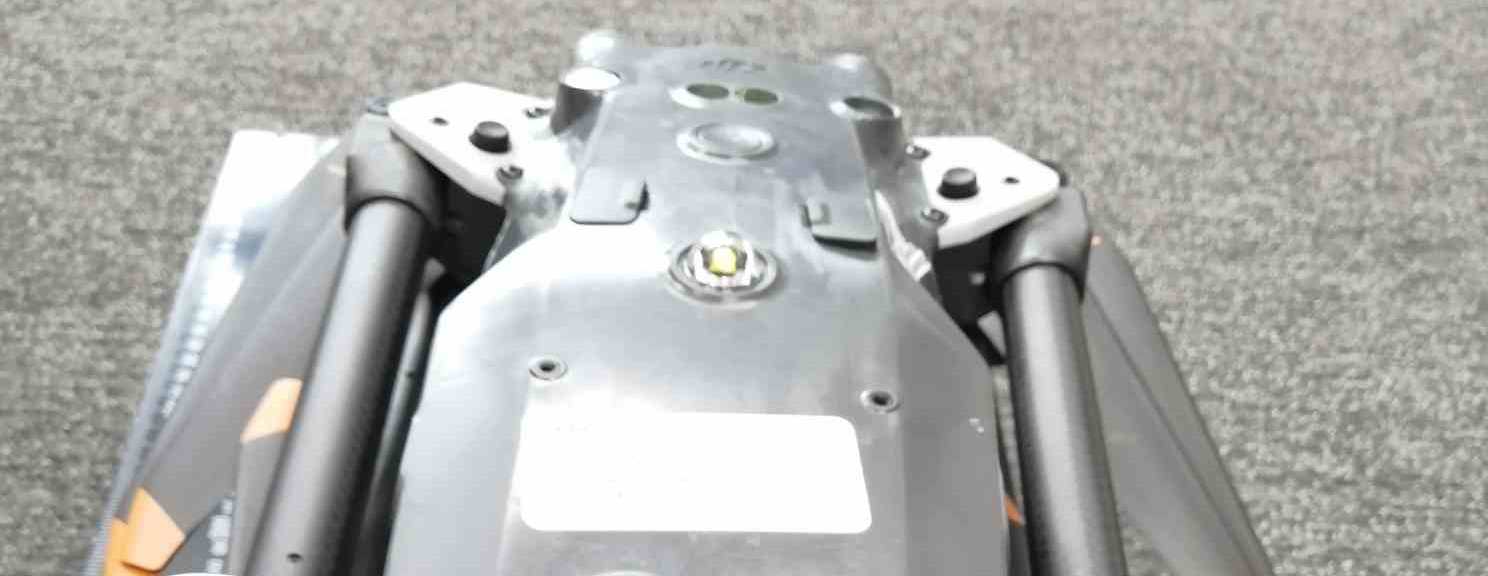

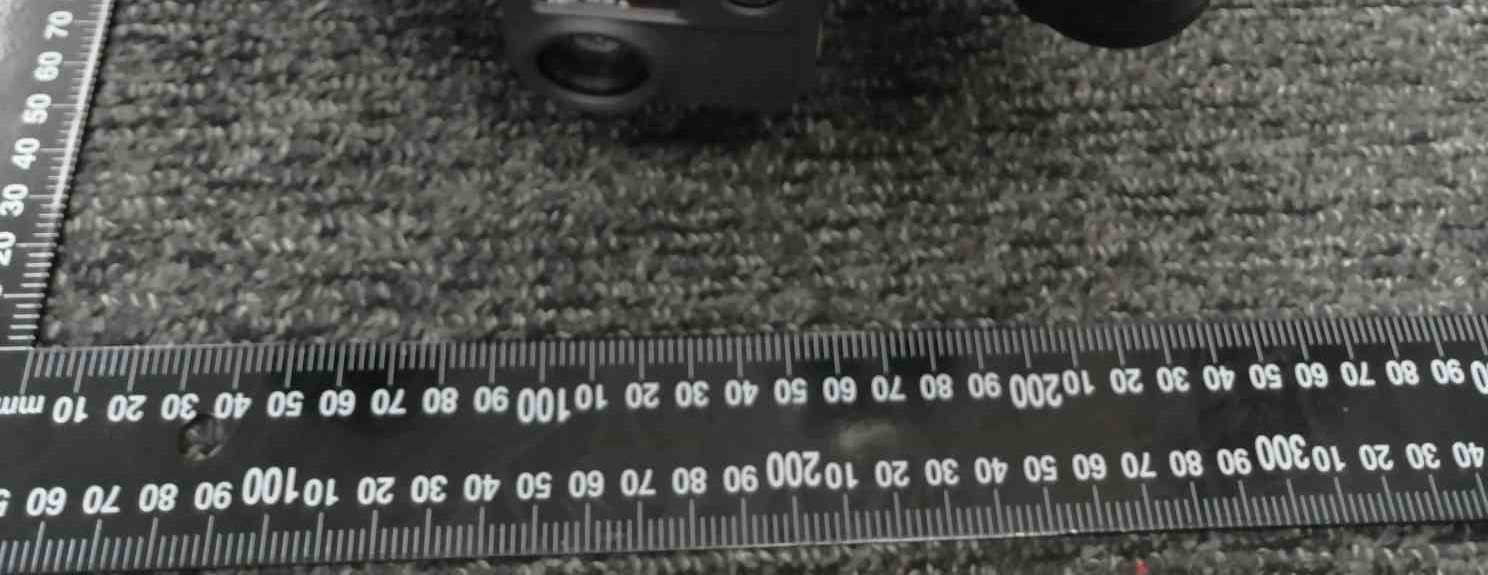

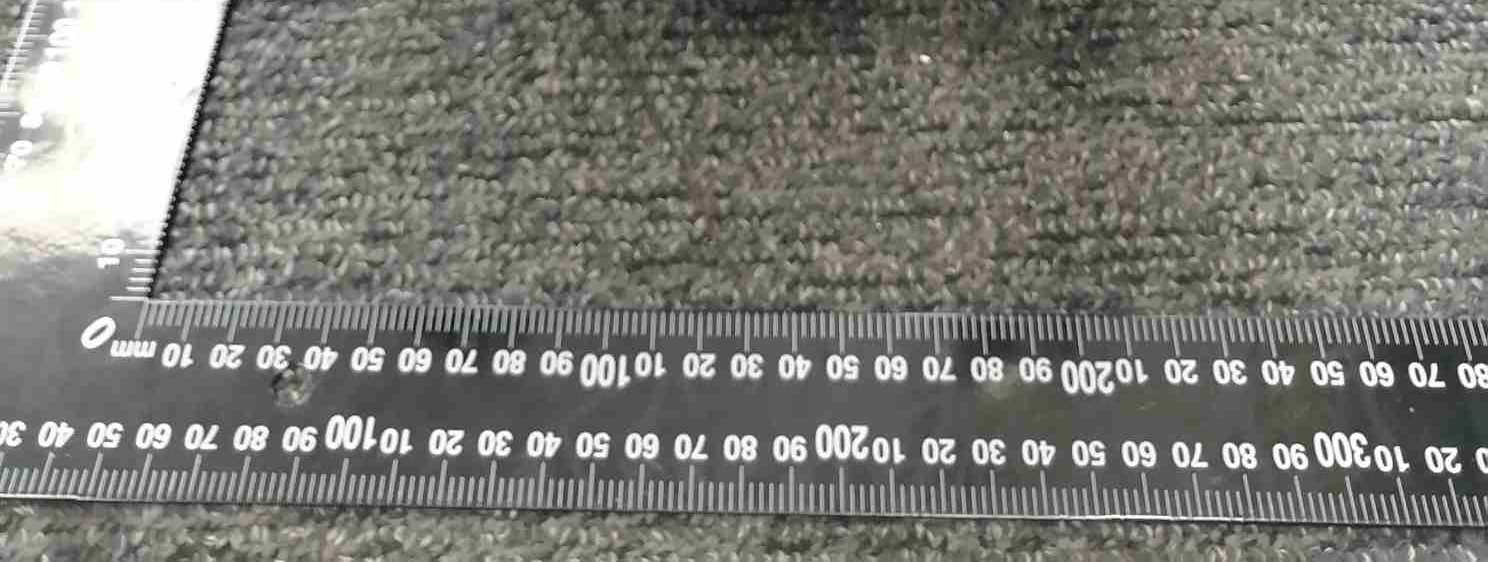

DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1
DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1
DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1
DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1
DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1
DJI Matrice 30 external FCC photo from External Photos p. 1
External viewDJI Matrice 30 external FCC photo from External Photos p. 1Source: External Photos p. 1

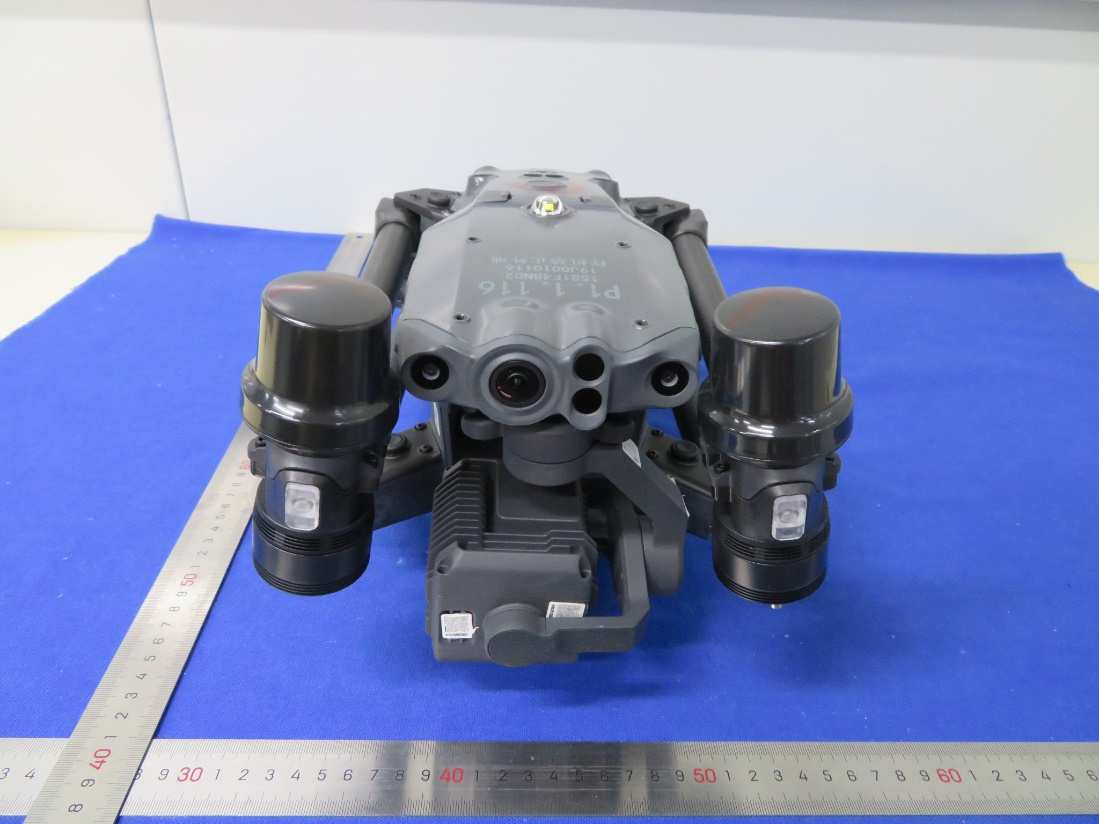

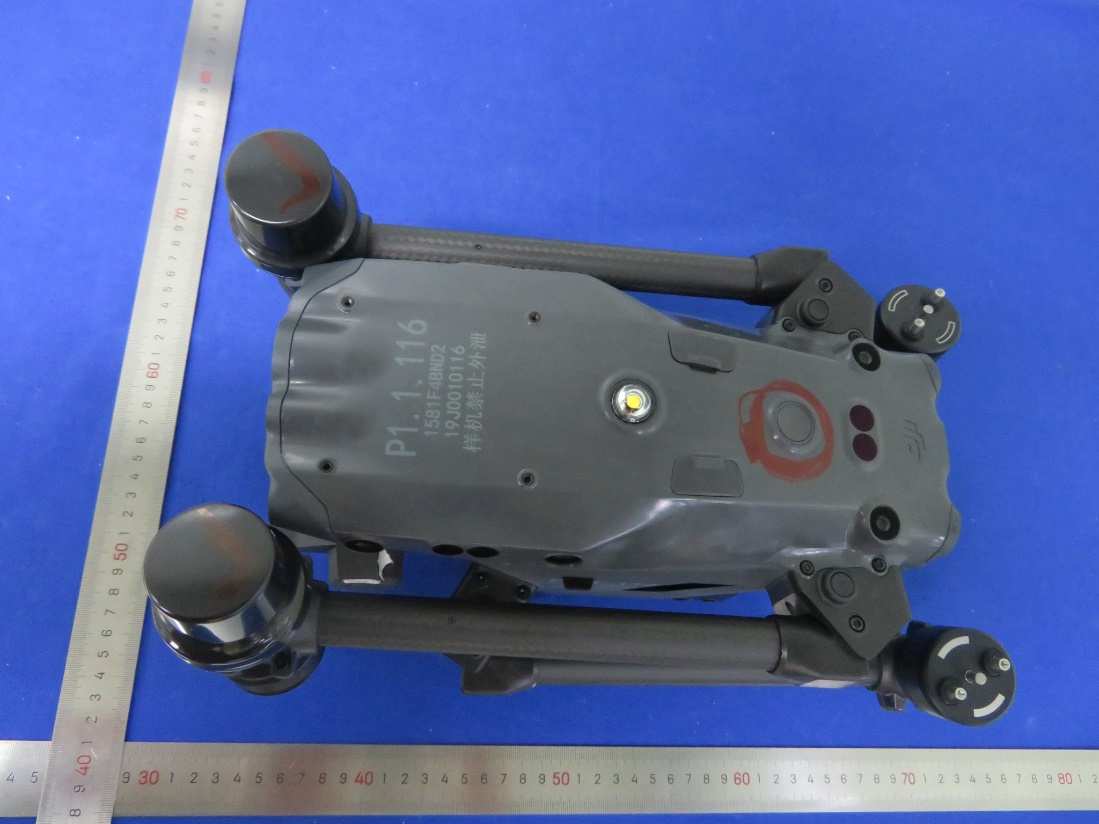

DJI Matrice 30 external FCC photo from External Photos p. 2
External viewDJI Matrice 30 external FCC photo from External Photos p. 2Source: External Photos p. 2
DJI Matrice 30 external FCC photo from External Photos p. 2
External viewDJI Matrice 30 external FCC photo from External Photos p. 2Source: External Photos p. 2
User manual

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual (5767104)24 pages2.2 MB public file

The public manual includes useful button and port, and power details.

Manual at a glance

  • Buttons and portsp. 6
  • 1. Press the battery compartment release button onp. 7
  • Buttons and portsp. 8
  • Mounting the Intelligent Flight Batteries / Checking the Battery Levelp. 9

What buttons or ports does the manual describe?

The MATRICETM 30 (M30/M30T) is a powerful industrial drone platform with an advanced flight controller system, 6 Directional Sensing and Positioning system and FPV camera*.

Source: Users Manual (5767104), page 2

What power or charging details does the manual include?

Insert a pair of batteries.

Source: Users Manual (5767104), page 9
Matrice 30

The MATRICETM 30 (M30/M30T) is a powerful industrial drone platform with an advanced flight controller system, 6 Directional Sensing and Positioning system and FPV camera*.

Source: Users Manual (5767104), page 2
Buttons and ports

Check battery level: press once.

Source: Users Manual (5767104), page 6
1. Press the battery compartment release button on

the back of the remote controller down to open the cover.

Source: Users Manual (5767104), page 7
Buttons and ports

When the angle between the antennas and the touchscreen of the remote controller is 90°, 180° or 270° the connection between the remote controller and aircraft can reach its optimal performance.

Source: Users Manual (5767104), page 8
Mounting the Intelligent Flight Batteries / Checking the Battery Level

Insert a pair of batteries.

Source: Users Manual (5767104), page 9

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

2 visuals

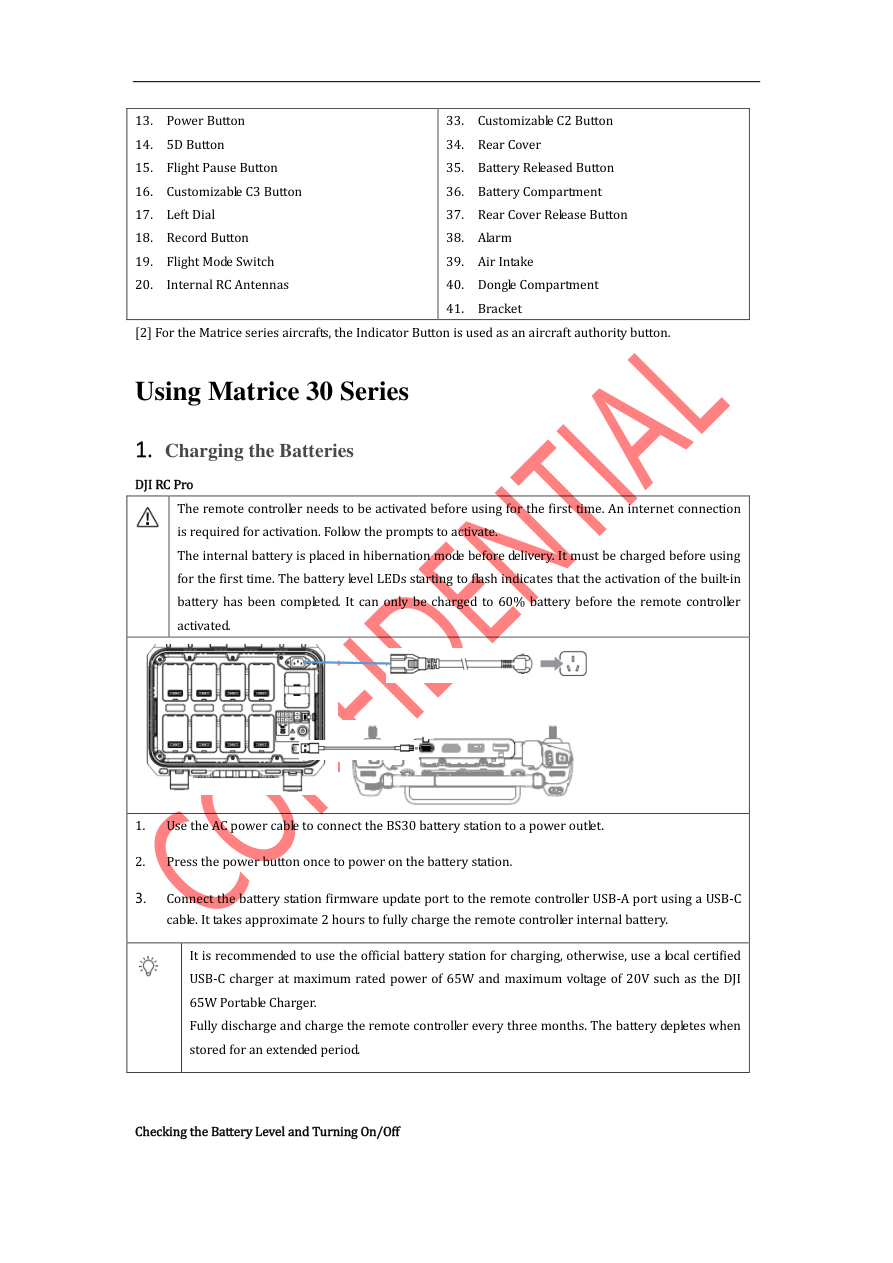

13. Power Button visual from the manual from the FCC user manual
13. Power Button visual from the manualSource: Users Manual (5767104), page 5
Mounting the Intelligent Flight Batteries / Checking the Battery Level visual from the manual from the FCC user manual
Mounting the Intelligent Flight Batteries / Checking the Battery Level visual from the manualSource: Users Manual (5767104), page 9
Open FCC filing source

Official FCC documents

Open the original FCC files used to check the details shown here. Badges separate whether a file is public from whether details from that file appear on this page.

FCC grant

Official FCC grant or authorization record.

Public FCC fileUsed on this page
Source

Users Manual (5767104)

Public user manual or setup guide from the FCC filing.

Public FCC fileUsed on this page
FCC type: Users ManualApplication ID: Y+gFNb0cLfA2JZqr2p4Y8g==
Source

Internal Photos (5767103)

Internal product photo exhibit from the FCC filing.

Public FCC fileUsed on this page
FCC type: Internal PhotosApplication ID: Y+gFNb0cLfA2JZqr2p4Y8g==
Source

External Photos (5767102)

External product photo exhibit from the FCC filing.

Public FCC fileUsed on this page
FCC type: External PhotosApplication ID: Y+gFNb0cLfA2JZqr2p4Y8g==
Source

RF Exposure Info (5767106)

RF exposure exhibit from the FCC filing.

Public FCC fileOriginal FCC file
FCC type: RF Exposure InfoApplication ID: Y+gFNb0cLfA2JZqr2p4Y8g==
Source

19 additional official FCC documents

Additional FCC exhibits are grouped here by source type instead of repeated as individual rows.

Source index
1 grant record1 manual or setup guide1 internal photo exhibit1 external photo exhibit1 RF exposure exhibit6 RF report exhibits8 test report exhibits
