FCC ID SS3-MT3PD22

DJI MT3PD22 FCC filing (SS3-MT3PD22)

Name: DJI MT3PD22 FCC filing dataset
Creator: SZ DJI Technology Co., Ltd.

Public FCC record for DJI MT3PD22 (SS3-MT3PD22), a digital transmission system device filed by SZ DJI Technology Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Drones SS3 brand hub

ManufacturerSZ DJI Technology Co., Ltd.

FCC IDSS3-MT3PD22

Device categoryDrones

Authorization dateNov 22, 2022

Plain-English filing summary

What this FCC record tells you

MT3PD22 is the device filed under FCC ID SS3-MT3PD22 by SZ DJI Technology Co., Ltd.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover power details.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSS3The FCC-assigned applicant code at the start of the FCC ID.

Product code-MT3PD22The filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application ID/F0MrQcj5kgWL0GUCTCblA==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Nov 22, 2022

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: /F0MrQcj5kgWL0GUCTCblA==, OB/RgcXJDSUd5GczyiclEg==
Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 8 ranges; 2.4 GHz Wi-Fi / Bluetooth: 8 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 8 ranges; 2.4 GHz Wi-Fi / Bluetooth: 8 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 16 ranges grouped below
Frequency range	2400 - 2483.5 MHz \| 5725 - 5850 MHz \| 2402 - 2480 MHz \| 2407.5 - 2465.5 MHz \| 2409.12 - 2467.12 MHz \| 2417.5 - 2456.5 MHz \| 2405.5 - 2476.5 MHz \| 2410.5 - 2472.5 MHz \| 2412 - 2462 MHz \| 2422 - 2452 MHzSource: RF Exposure Info p. 5; RF Exposure Info p. 6

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

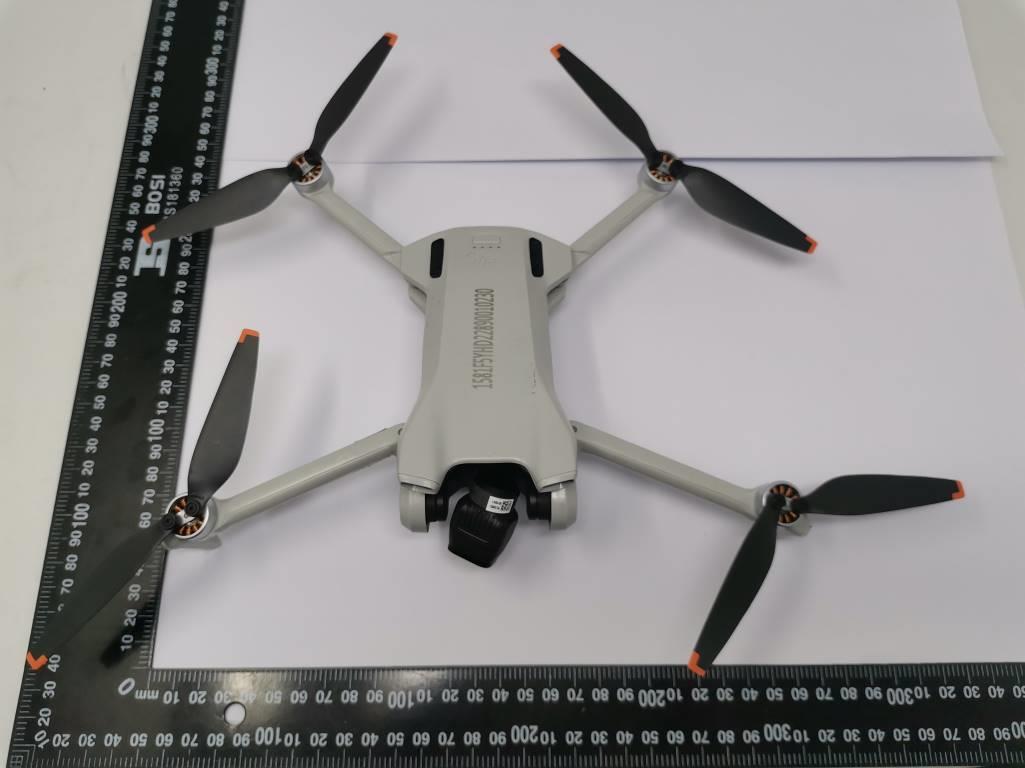

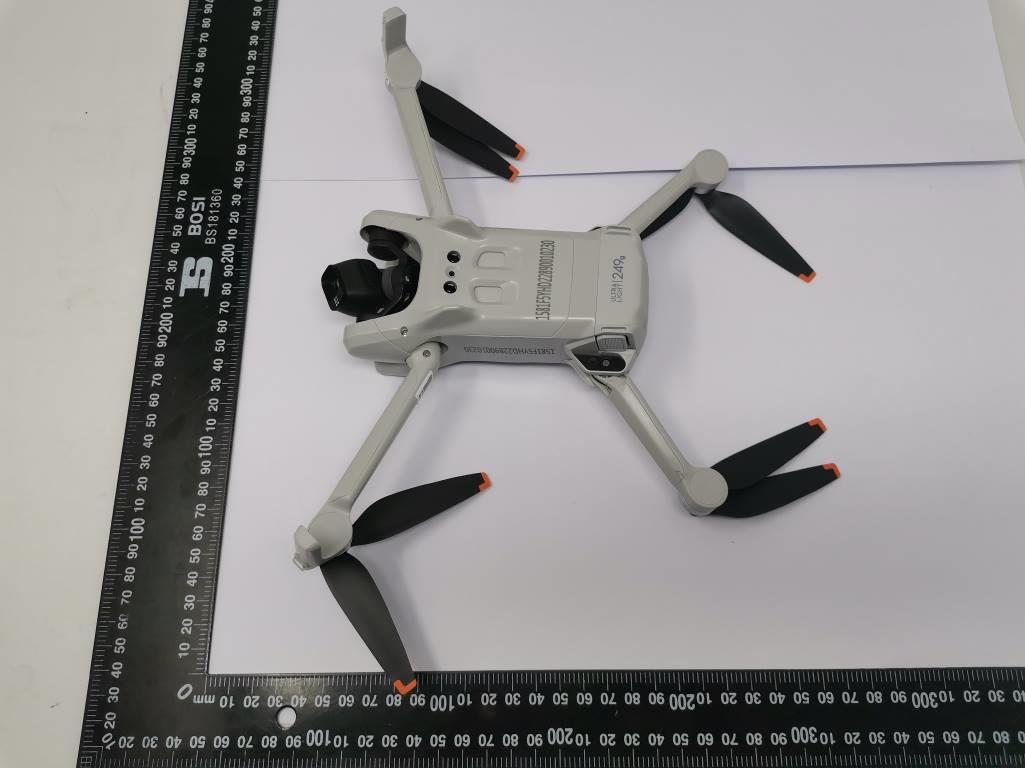

External viewDJI MT3PD22 external FCC photo from External Photos p. 1Source: External Photos p. 1

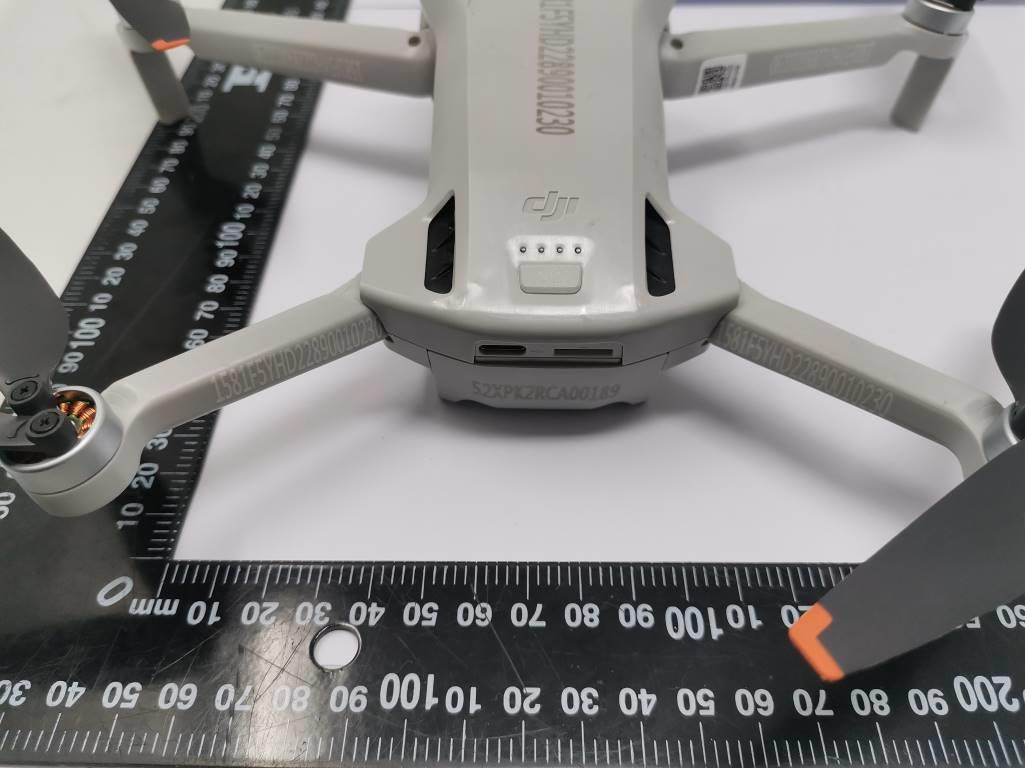

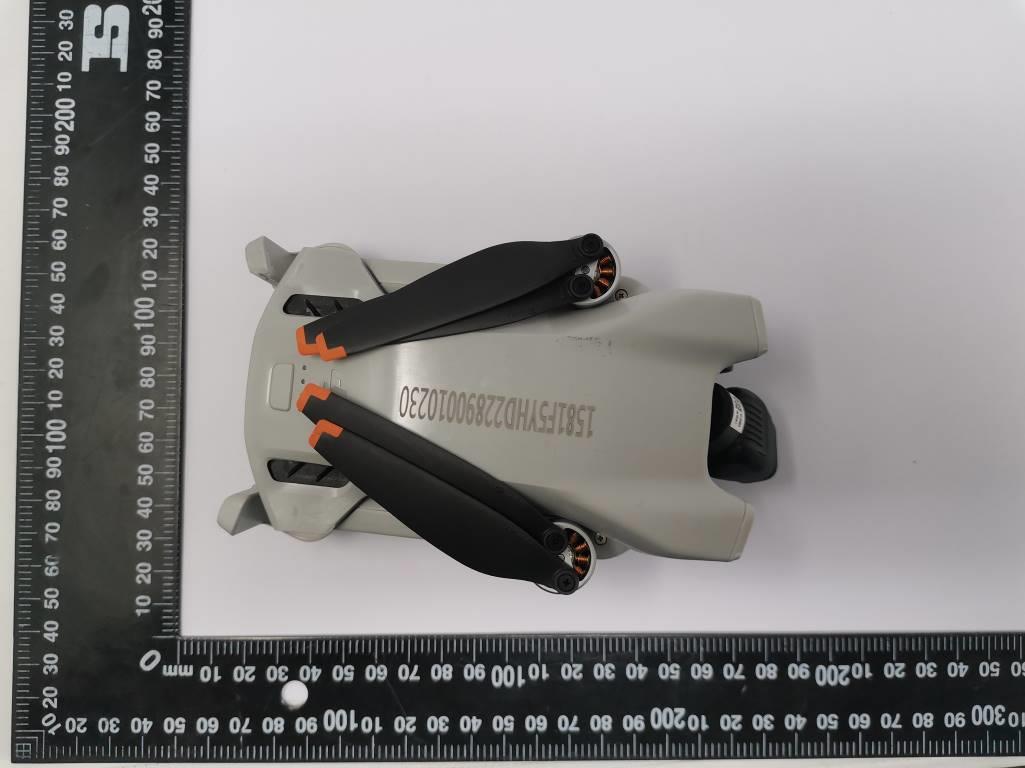

External viewDJI MT3PD22 external FCC photo from External Photos p. 2Source: External Photos p. 2

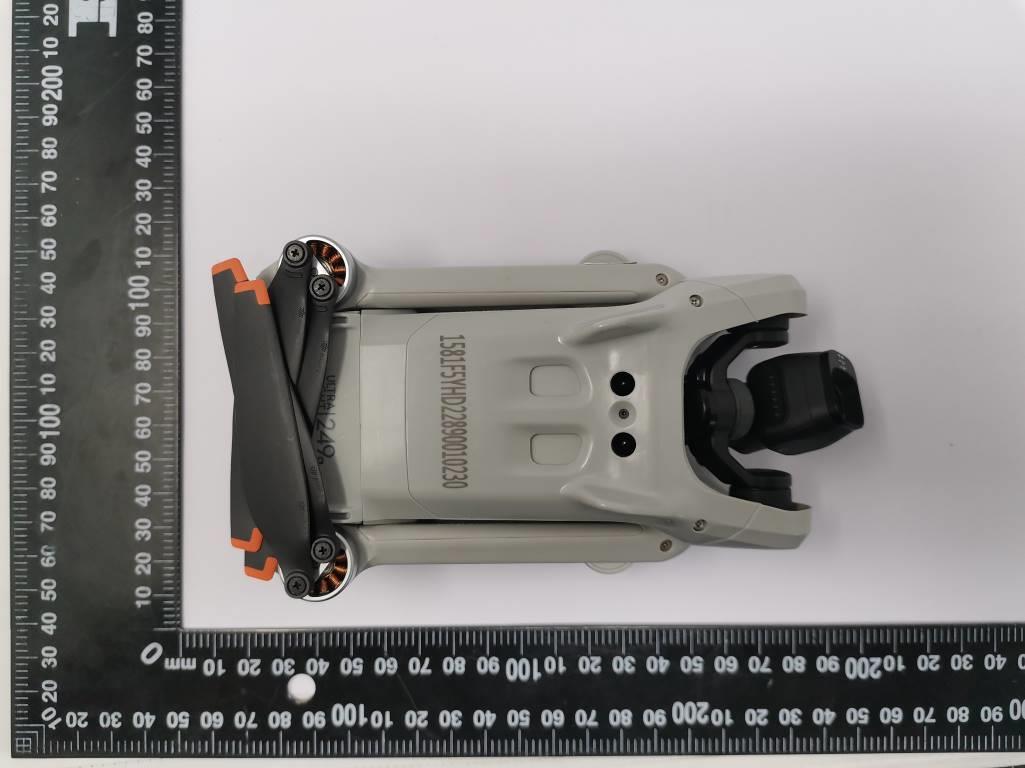

External viewDJI MT3PD22 external FCC photo from External Photos p. 3Source: External Photos p. 3

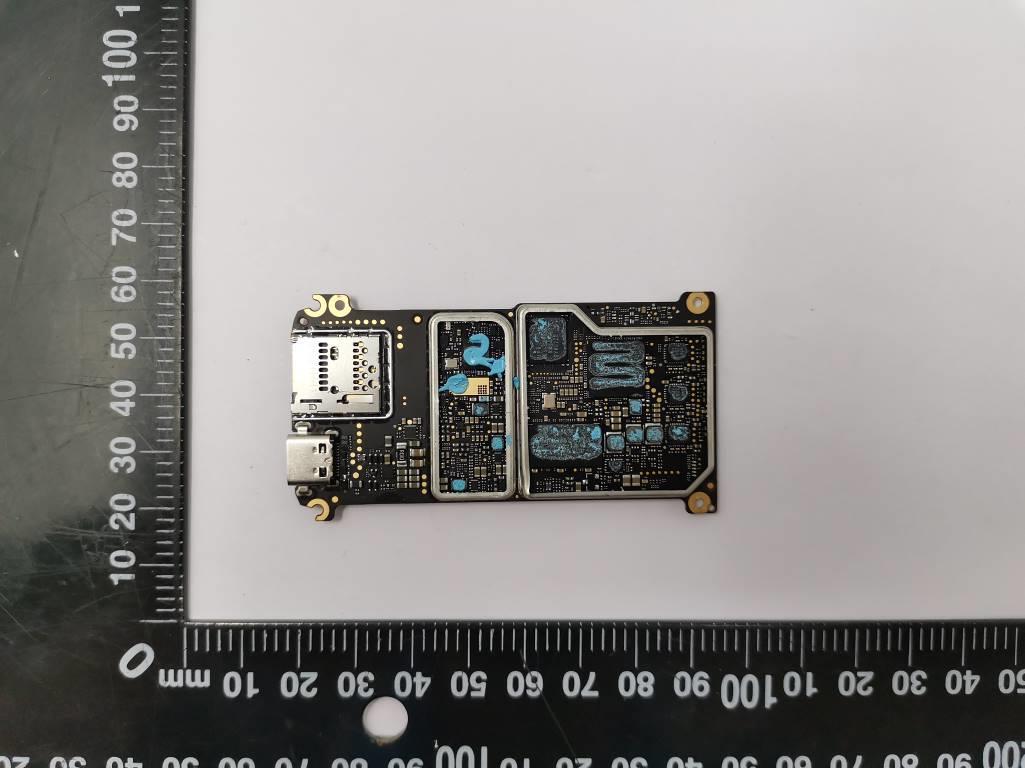

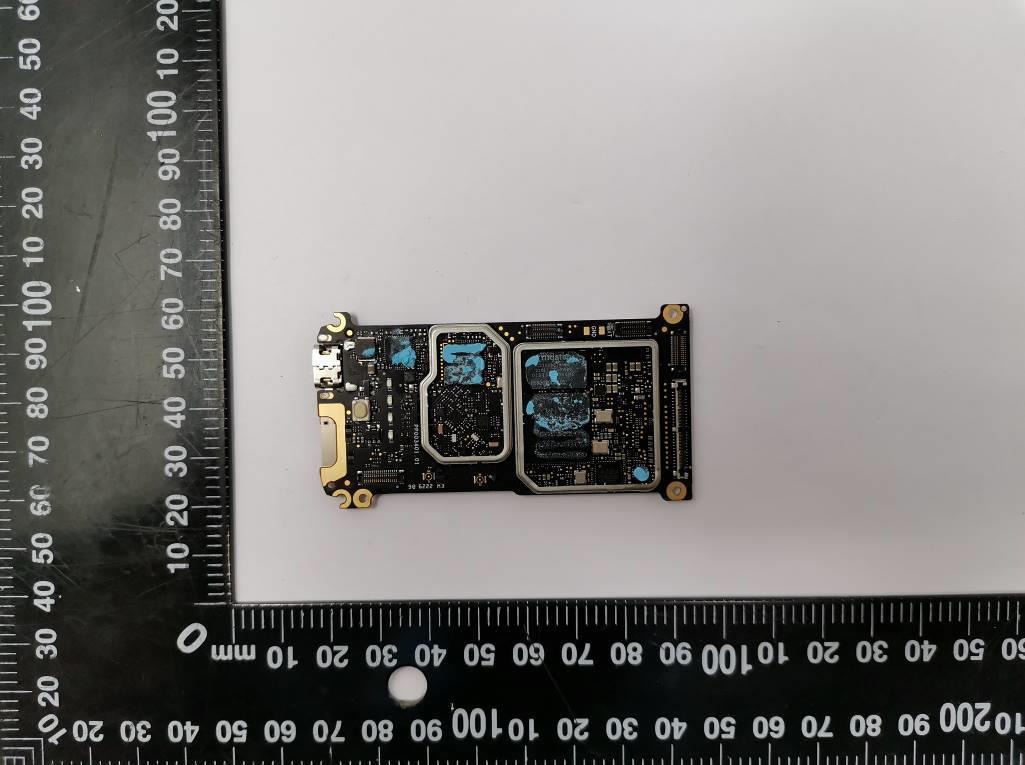

Internal viewDJI MT3PD22 internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

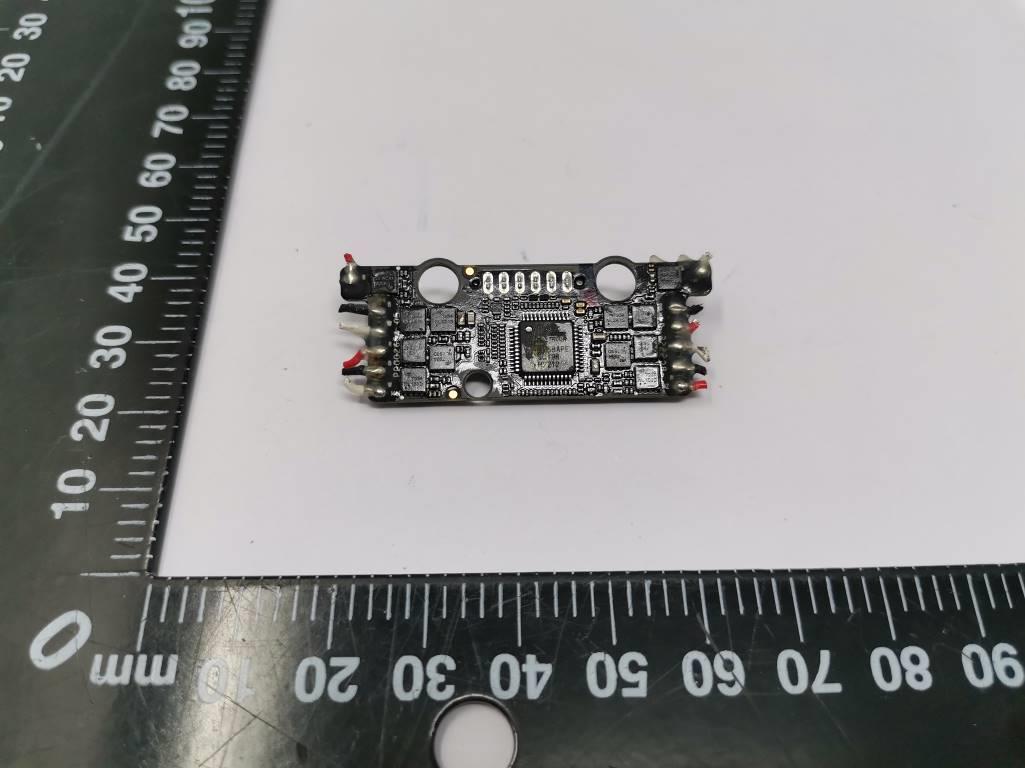

Internal viewDJI MT3PD22 internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual19 pages1 MB public file

The public manual includes useful power details.

Manual at a glance

Charge to activatep. 3
Prepare the remote controllerp. 4

What power or charging details does the manual include?

Check Battery Level, Power on/off Check battery level: press once.

Source: Users Manual, page 3

Charge to activate

Check Battery Level, Power on/off Check battery level: press once.

Source: Users Manual, page 3

Prepare the remote controller

Ready to fly Power on the remote controller and the aircraft, then launch the DJI Fly App.

Source: Users Manual, page 4

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

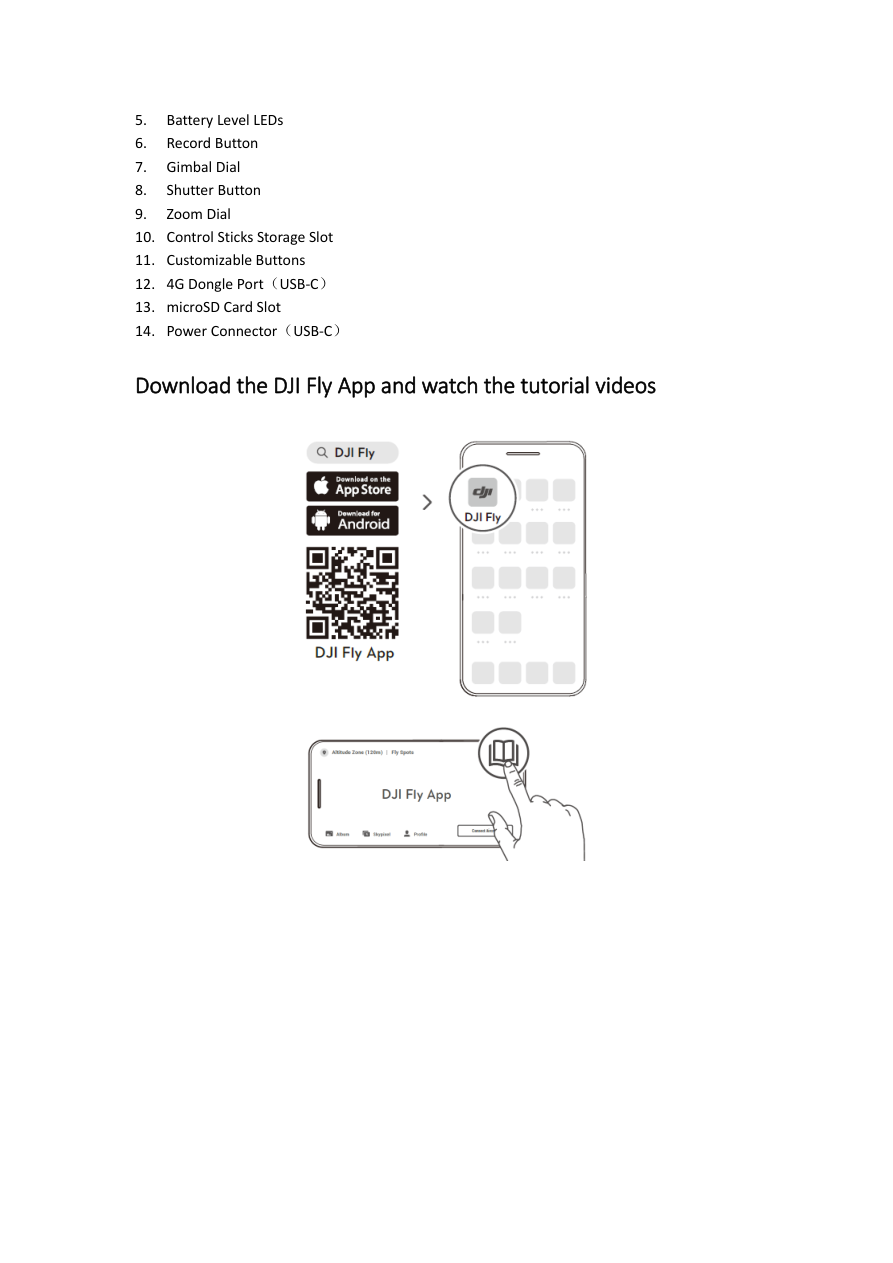

Battery Level LEDs visual from the manual from the FCC user manual — Battery Level LEDs visual from the manualSource: Users Manual, page 2

Open FCC filing source

Official FCC documents

Open the original FCC files used to check the details shown here. Badges separate whether a file is public from whether details from that file appear on this page.
