Public FCC record for DJI 201309002 (SS3-201309002), a digital transmission system device filed by SZ DJI Technology Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and wireless test details. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth.
201309002 is the device filed under FCC ID SS3-201309002 by SZ DJI Technology Co., Ltd.
Public exhibits include internal and external photos, a user manual, and wireless test reports.
The strongest extracted details are internal and external photos and manual excerpts.
Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.
The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth.
Manual excerpts cover setup, button controls, and status lights.
Raw application fields from the FCC record, shown separately from the plain-English summary.
A quick read on what each public FCC application changed or confirmed, with source links attached.
This FCC application appears to be the original authorization package for the device, with the matching grant and public exhibits grouped together.
This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.
This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.
| FCC equipment class | DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing. |
|---|---|
| FCC rule parts | Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents. |
| Frequency bands | 2.4 GHz Wi-Fi / Bluetooth: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 1 range grouped below |
| Frequency range | 2400 - 2483.5 MHzSource: Test Report p. 3 |

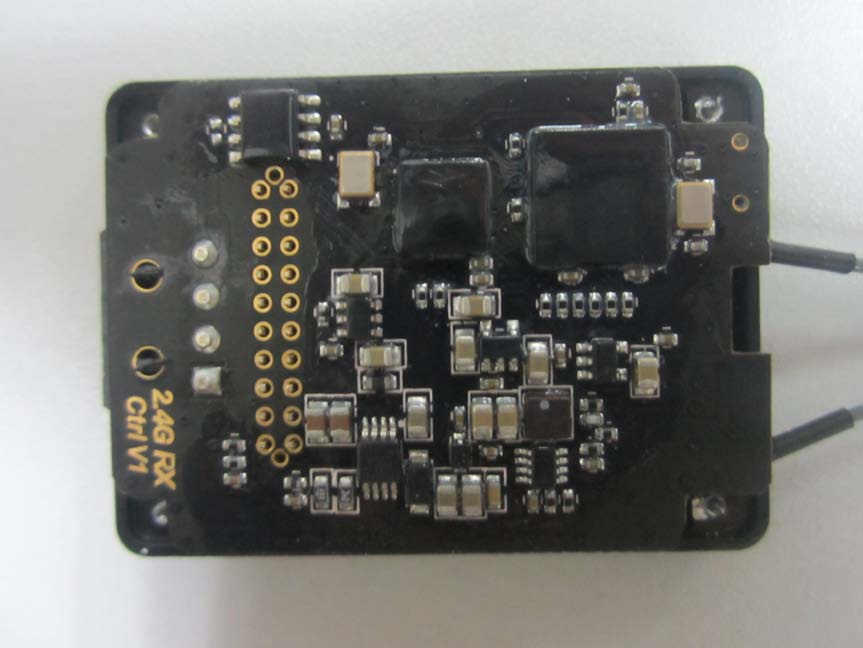

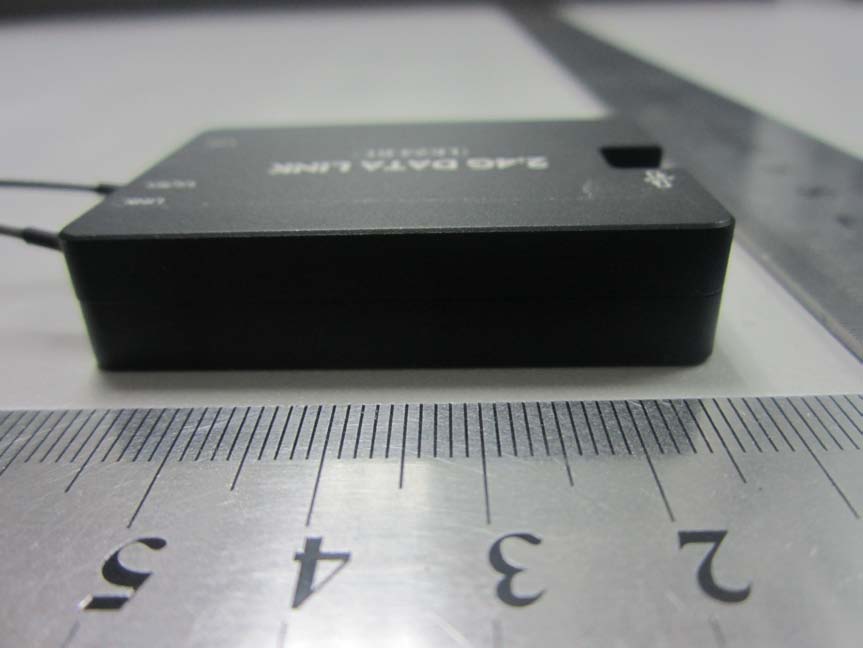

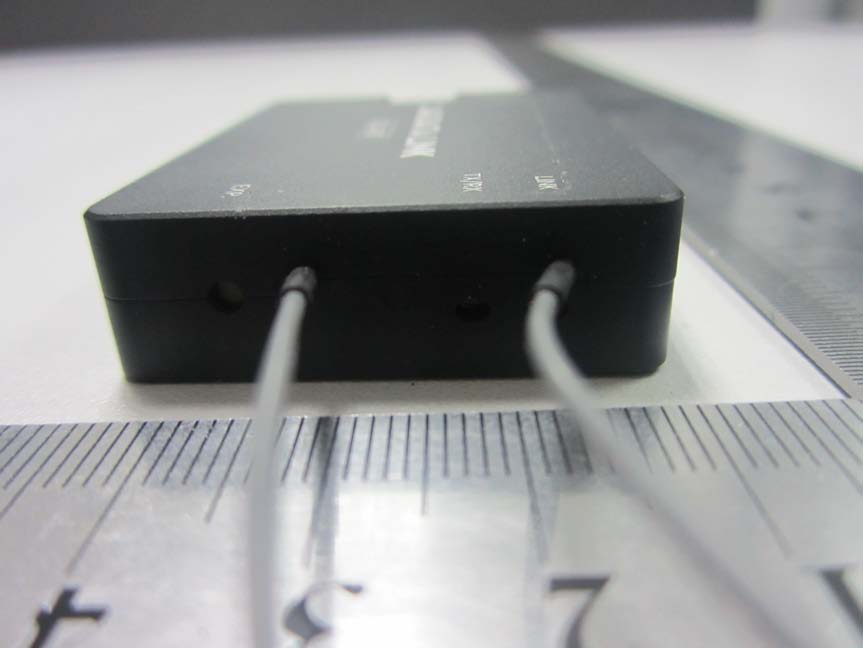

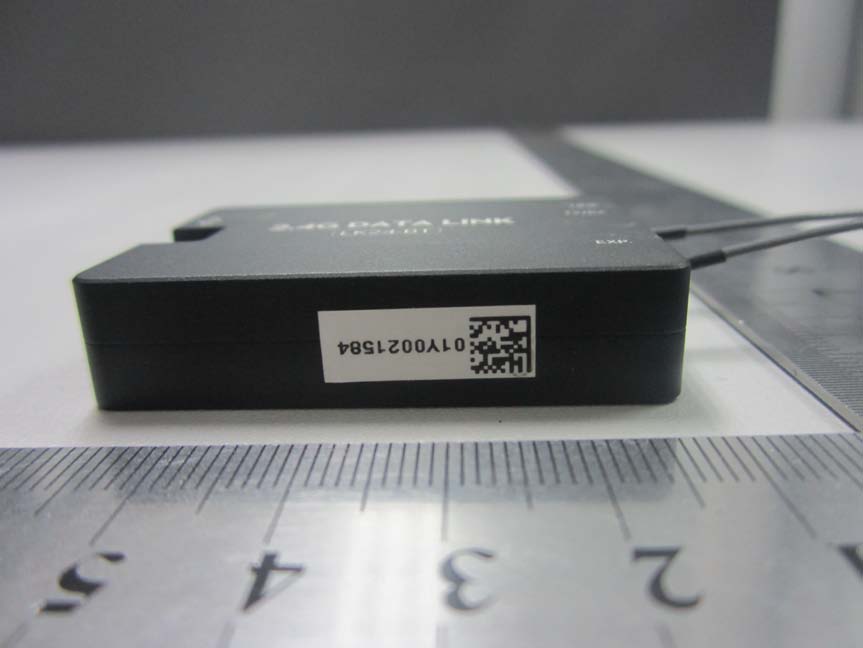

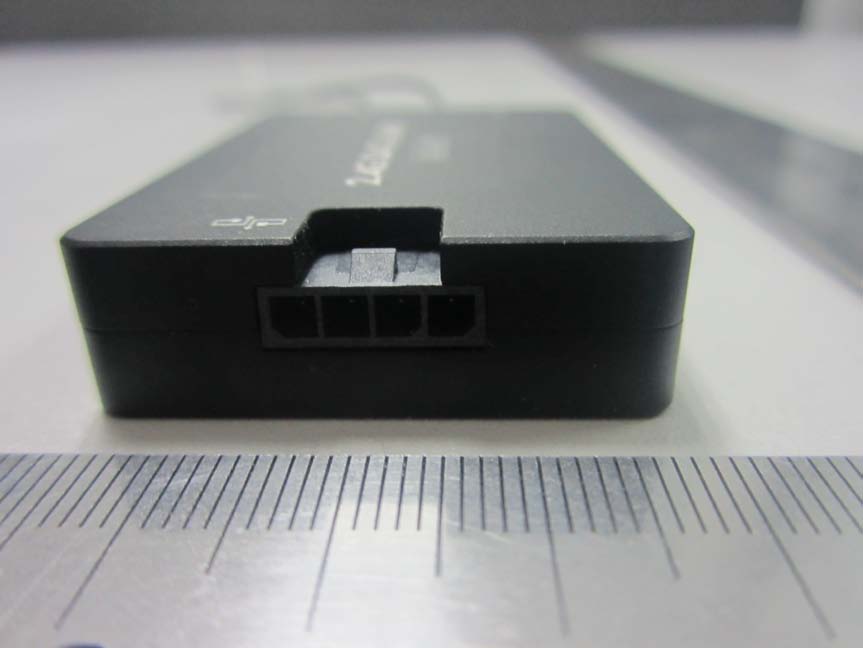

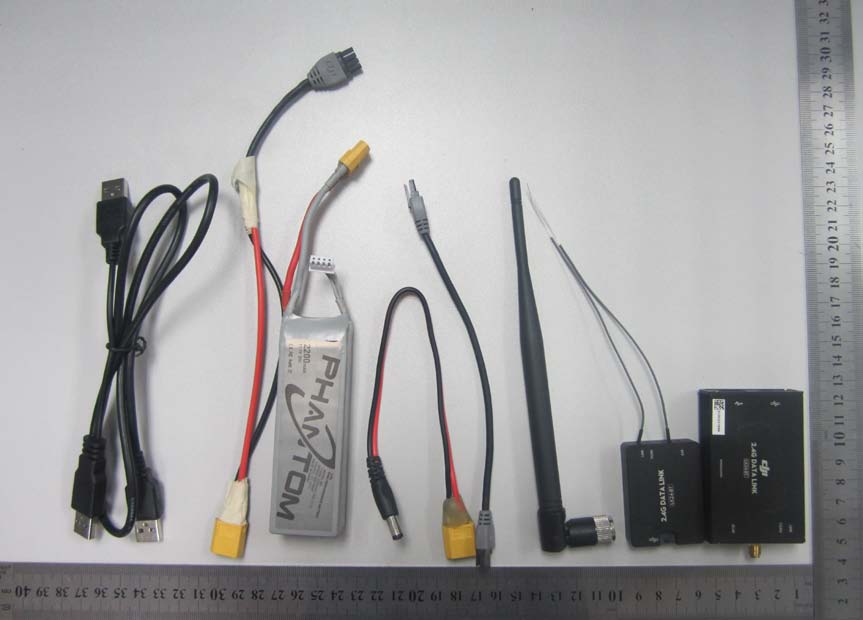

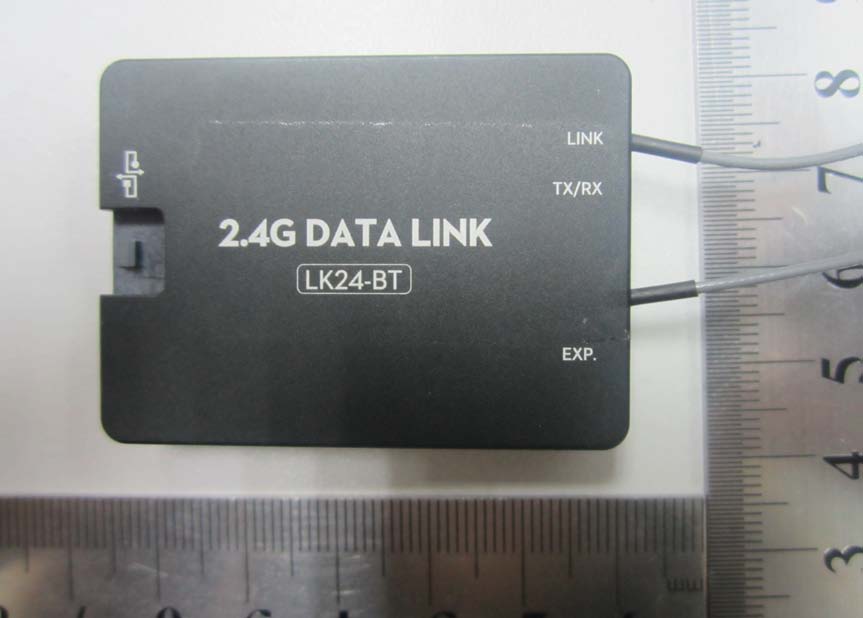

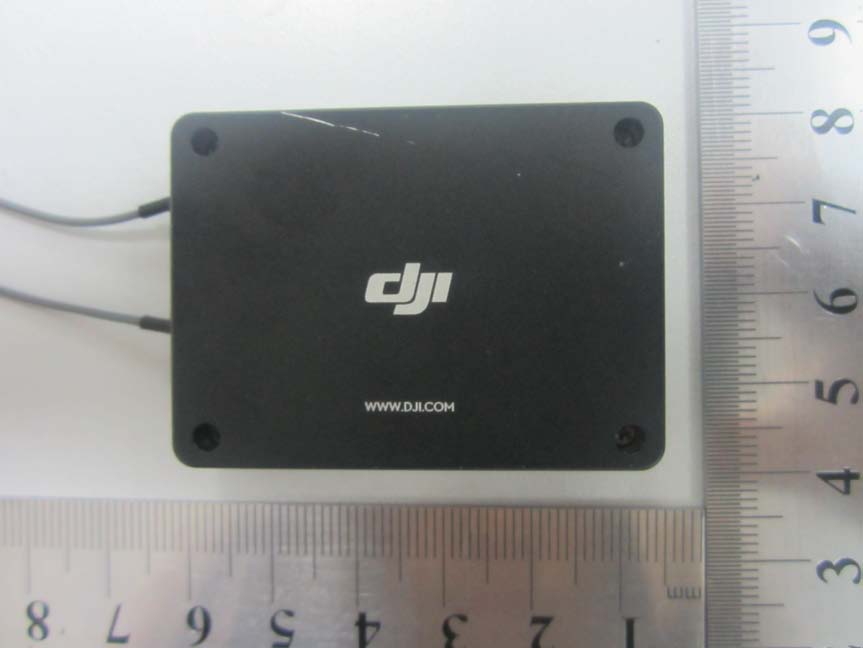

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.
Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.
Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.
Useful setup, control, or operating details from the public FCC manual exhibit.
- 1 - Thank you for purchasing DJI products. Please strictly follow this user guide to mount and connect the 2.4G Bluetooth Datalink, install the Assistant Software on your computer, as well as the App on your mobile device.

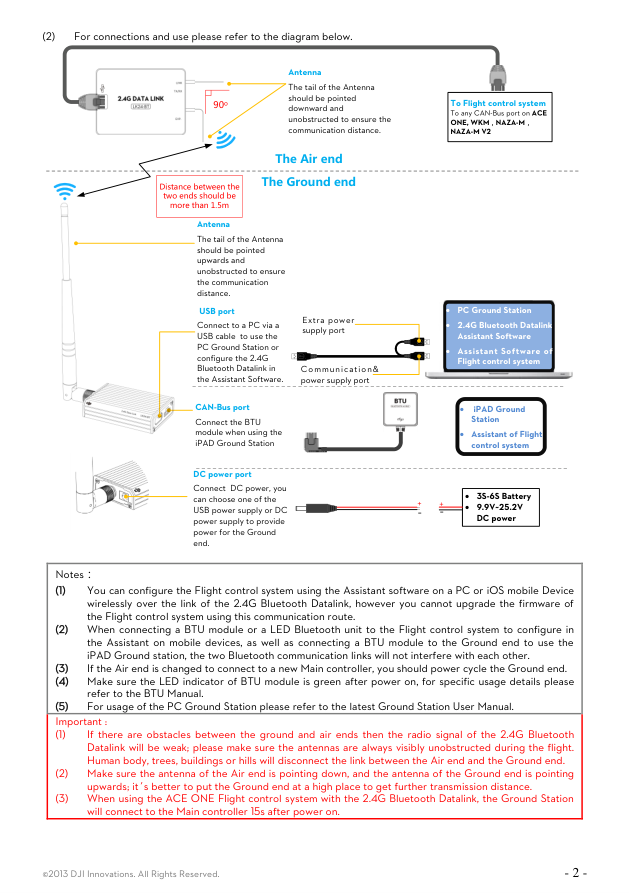

The 2.4G Bluetooth Datalink consists of the Air end and the Ground end, which provides reliable and stable remote wireless transmissions for Ground Station based applications. When connecting a DJI BTU module to the Ground end via a CAN-Bus, the Ground end can communicate with other devices via Bluetooth wirelessly. The signal flow is as shown below.
The LED Indicators of the 2.4G Bluetooth Datalink will work after power on, the descriptions are shown below.
- 4 - iPAD Ground Station App The iPAD Ground Station is designed for remote flight control in applications of surveillance, aerial photography, etc., it should be used with the 2.4G Bluetooth Datalink to achieve auto flight after the setting of the routes. The application with easy usable design offers great portability and simple operation, which will provide users with an extraordinary flight experiences.
WKM(Firmware V5.24 or above), NAZA-M, NAZA-M V2(Firmware V4.00 or above，coming soon) iOS Devices that support the iPAD Ground Station iPAD3，iPAD4，iPAD mini(iOS 6.0.1 or above)
3.1 2.4G Bluetooth specifications(Deliveries passed FCC)
Visual pages and diagrams from the public FCC manual exhibit.
