Plain-English filing summary

What this FCC record tells you

AC-1304 is the device filed under FCC ID A4RAC-1304 by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover power details and setup.

Terms in this filing

FCC ID
A public identifier assigned to a wireless device authorization.
Grantee Code
The manufacturer/applicant portion of an FCC ID.
DTS
FCC equipment class for digital transmission systems.
Part 15C
FCC rules for many unlicensed intentional radiators.
Part 15E
FCC rules often associated with 5 GHz and 6 GHz network devices.
Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RACThe FCC-assigned applicant code at the start of the FCC ID.
Product code-1304The filing-specific product code. It is not always the retail product name.
Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.
FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.
FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.
Application IDesT6JnWpjPw753d3t02/RA==The FCC tracking ID for this application batch.
Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Apr 14, 2017

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

  • Applications: esT6JnWpjPw753d3t02/RA==, +LXufLxypuUvL2XyRf5w4g==, BBRIj4WoWGX1nSCMOQOZ/w==
  • Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device; DSS - spread-spectrum wireless transmitter
  • FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
  • Bands: 5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
  • Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report
SourcesFCC grantFCC exhibit listUser manual
Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment classDTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 4 ranges grouped below
Frequency range2483.5 - 26500 MHz | 2402 - 2403 MHz | 2441 - 2442 MHz | 2479 - 2480 MHz | 2400 - 2483.5 MHz | 2402 - 2480 MHzSource: Test Report p. 53; Test Report p. 28; Test Report p. 29; Test Report p. 36; Test Report p. 37
Maximum conducted output power10.27 dBm | 11 dBm | 30 dBm | 4 dBmTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 6; Test Report p. 23
Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

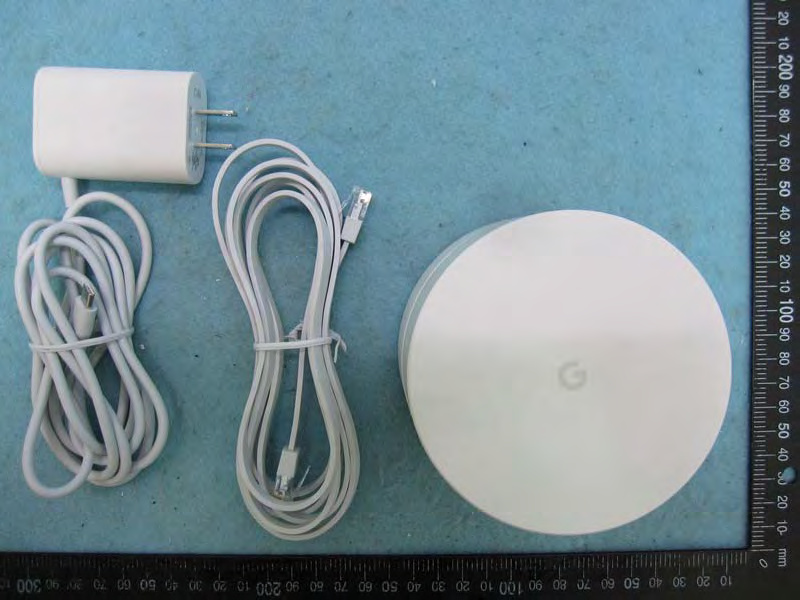

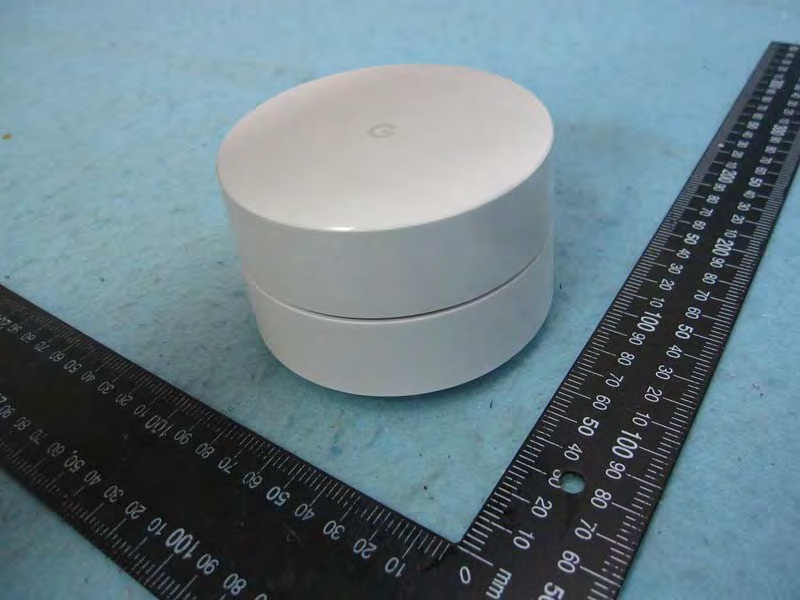

Google AC-1304 external FCC photo from External Photos p. 1
External viewGoogle AC-1304 external FCC photo from External Photos p. 1Source: External Photos p. 1
Google AC-1304 external FCC photo from External Photos p. 1
External viewGoogle AC-1304 external FCC photo from External Photos p. 1Source: External Photos p. 1

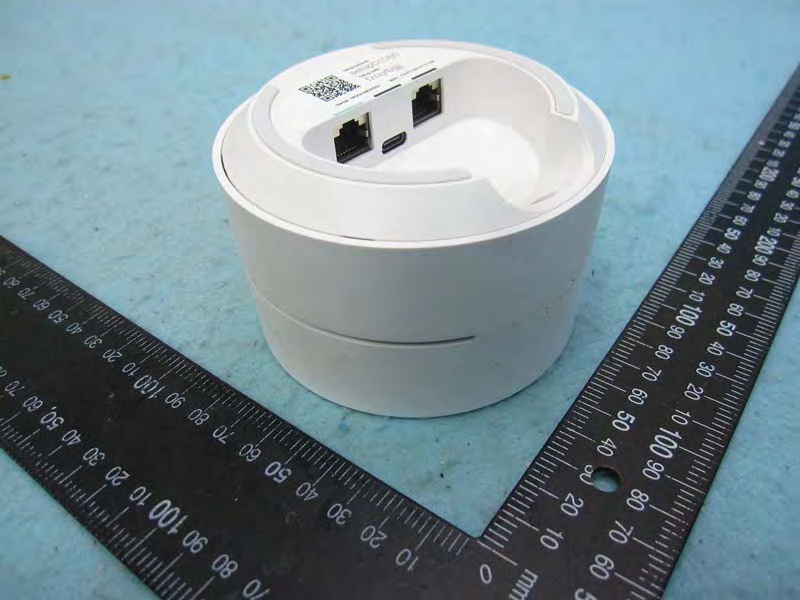

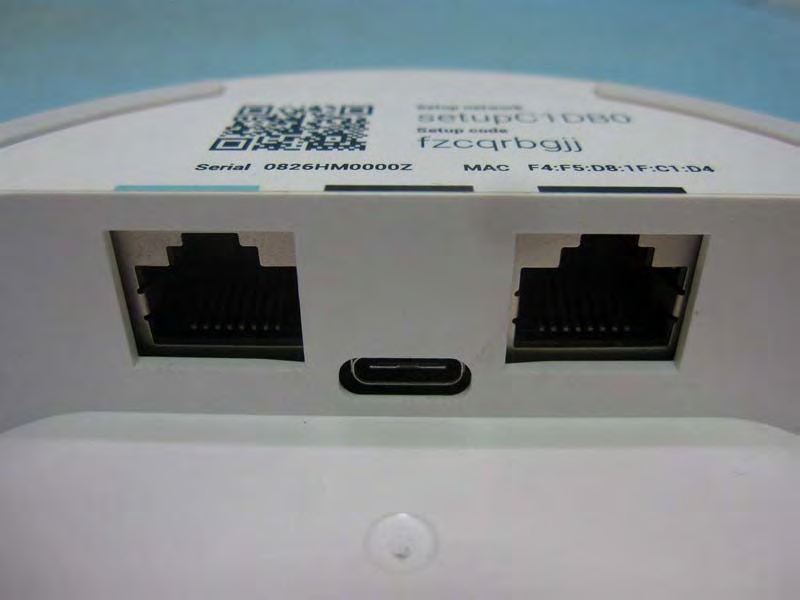

Google AC-1304 external FCC photo from External Photos p. 2
External viewGoogle AC-1304 external FCC photo from External Photos p. 2Source: External Photos p. 2
Google AC-1304 external FCC photo from External Photos p. 2
External viewGoogle AC-1304 external FCC photo from External Photos p. 2Source: External Photos p. 2

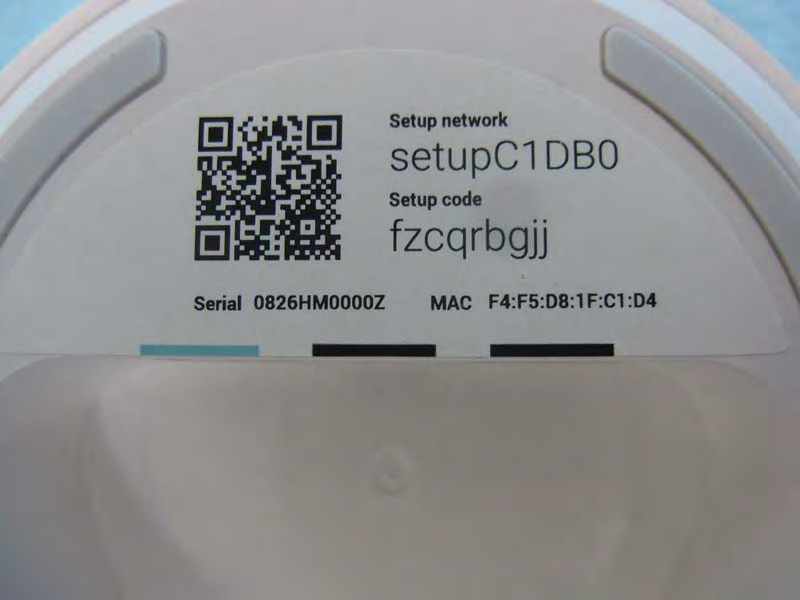

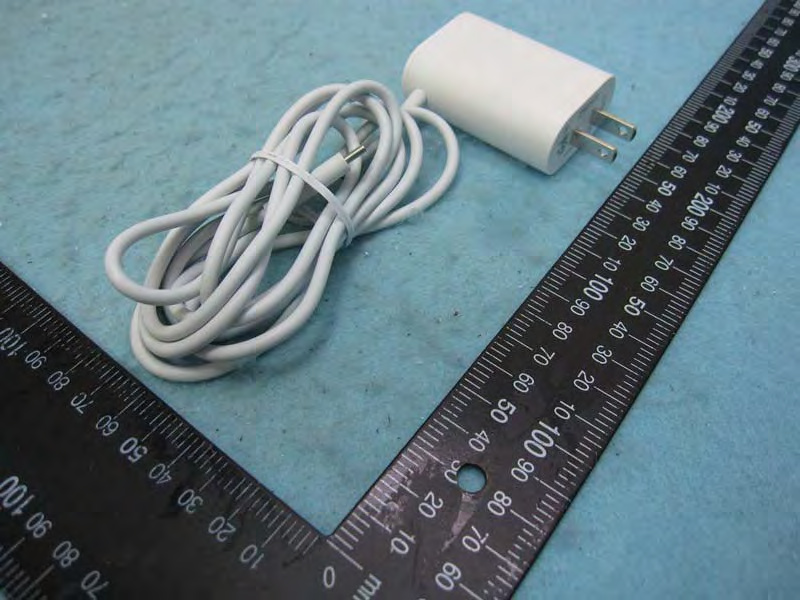

Google AC-1304 external FCC photo from External Photos p. 3
External viewGoogle AC-1304 external FCC photo from External Photos p. 3Source: External Photos p. 3
Google AC-1304 external FCC photo from External Photos p. 3
External viewGoogle AC-1304 external FCC photo from External Photos p. 3Source: External Photos p. 3

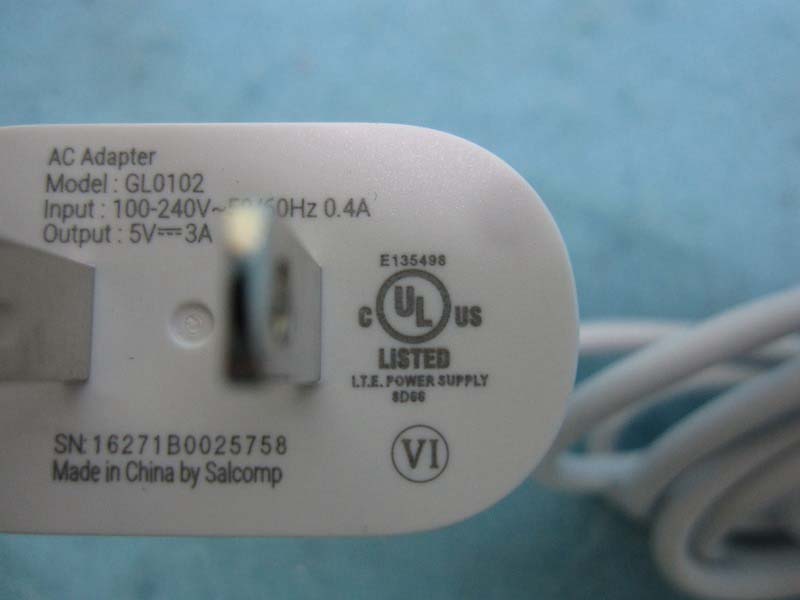

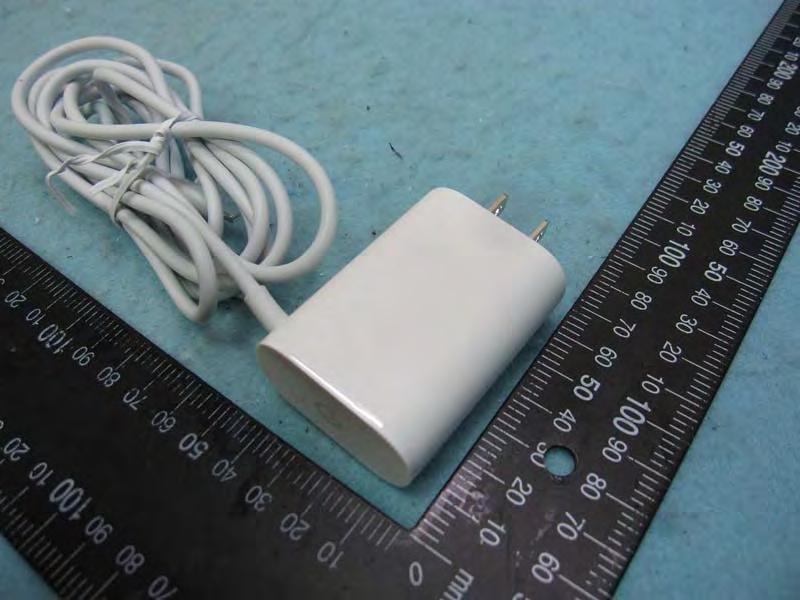

Google AC-1304 external FCC photo from External Photos p. 4
External viewGoogle AC-1304 external FCC photo from External Photos p. 4Source: External Photos p. 4
Google AC-1304 external FCC photo from External Photos p. 4
External viewGoogle AC-1304 external FCC photo from External Photos p. 4Source: External Photos p. 4
Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

LED and status lights

  • The status light pulses blue when the Wifi point is ready for setup.
Manual page 8
"The status light will pulse blue when the Wifi point is ready for setup."
Users Manual
User manual

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual165 KB public file

The public manual includes useful power, and setup details.

Manual at a glance

  • Power and chargingp. 8
  • Step 3: Get the Appp. 9

What power or charging details does the manual include?

  • 1 Power adapter
  • Quick start guide What you need The Google Wifi app on an Android or iOS mobile device:
  • Android 4.0 and up
  • iOS 7 and up A broadband internet connection via Ethernet -- typically through a...
Source: Users Manual, page 8

How do I set up this device?

Download the Google Wifi app for Android 4.0 and up or iOS iOS 7 and up.

Source: Users Manual, page 9
Power and charging
  • 1 Power adapter
  • Quick start guide What you need The Google Wifi app on an Android or iOS mobile device:
  • Android 4.0 and up
  • iOS 7 and up A broadband internet connection via Ethernet -- typically through a...
Source: Users Manual, page 8
Step 3: Get the App

Download the Google Wifi app for Android 4.0 and up or iOS iOS 7 and up.

Source: Users Manual, page 9

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

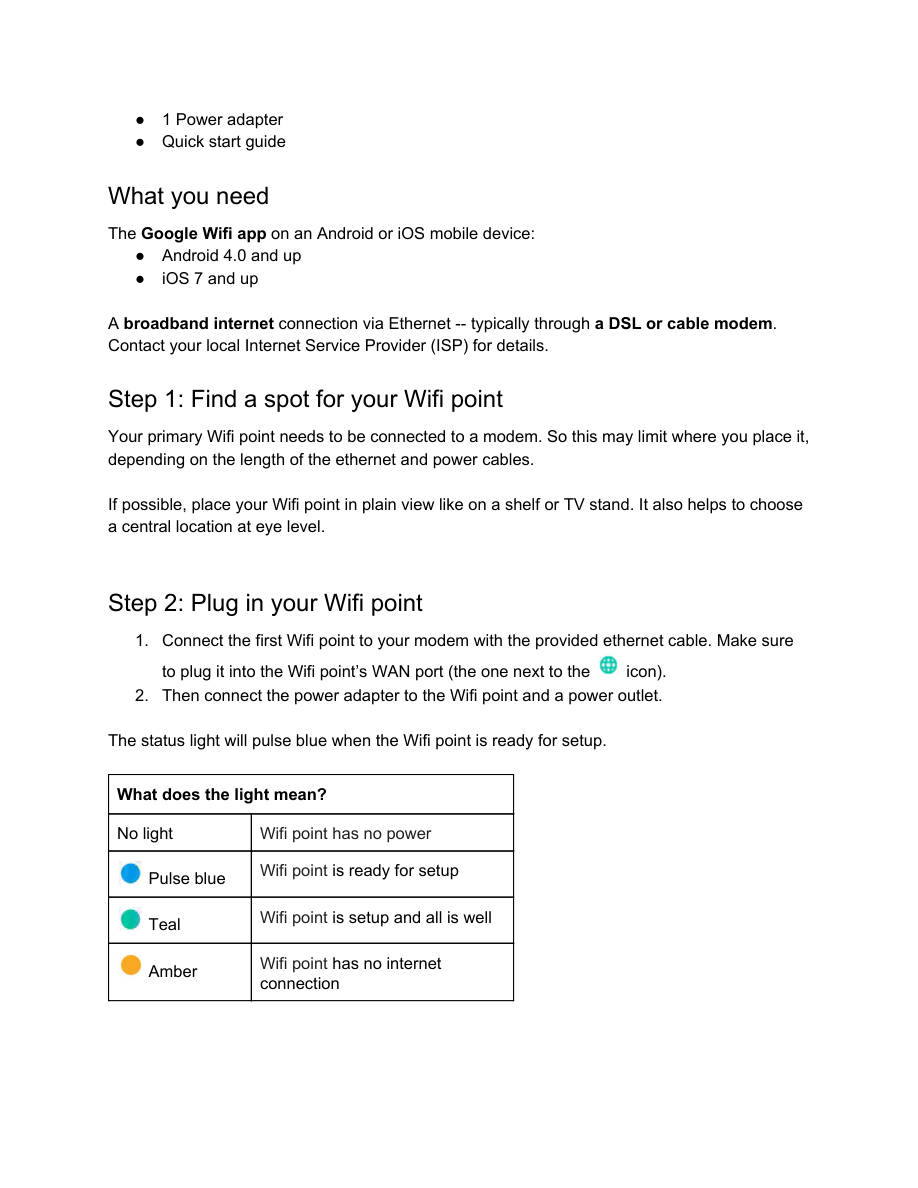

1 Power adapter visual from the manual from the FCC user manual
1 Power adapter visual from the manualSource: Users Manual, page 8
Open FCC filing source

Official FCC documents

Open the original FCC files used to check the details shown here. Badges separate whether a file is public from whether details from that file appear on this page.

FCC grant

Official FCC grant or authorization record.

Public FCC fileUsed on this page
Source

Users Manual (3357296)

Public user manual or setup guide from the FCC filing.

Public FCC fileUsed on this page
FCC type: Users ManualApplication ID: esT6JnWpjPw753d3t02/RA==
Source

Internal Photos (3357294)

Internal product photo exhibit from the FCC filing.

Public FCC fileUsed on this page
FCC type: Internal PhotosApplication ID: esT6JnWpjPw753d3t02/RA==
Source

External Photos (3357293)

External product photo exhibit from the FCC filing.

Public FCC fileUsed on this page
FCC type: External PhotosApplication ID: esT6JnWpjPw753d3t02/RA==
Source

RF Exposure Info (3357268)

RF exposure exhibit from the FCC filing.

Public FCC fileOriginal FCC file
FCC type: RF Exposure InfoApplication ID: +LXufLxypuUvL2XyRf5w4g==
Source

31 additional official FCC documents

Additional FCC exhibits are grouped here by source type instead of repeated as individual rows.

Source index
1 grant record2 manuals or setup guides2 internal photo exhibits2 external photo exhibits2 RF exposure exhibits7 RF report exhibits15 test report exhibits
