FCC ID 2AC7Z-ESPC5WROOMU

Espressif ESP32-C5-WROOM-1U module FCC filing (2AC7Z-ESPC5WROOMU)

Name: Espressif ESP32-C5-WROOM-1U FCC filing dataset
Creator: Espressif Systems (Shanghai) Co., Ltd.

Public FCC record for Espressif ESP32-C5-WROOM-1U (2AC7Z-ESPC5WROOMU), a module filed by Espressif Systems (Shanghai) Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking 2AC7Z brand hub

ManufacturerEspressif Systems (Shanghai) Co., Ltd.

FCC ID2AC7Z-ESPC5WROOMU

Device typemodule

Authorization dateMay 21, 2025

Plain-English filing summary

What this FCC record tells you

ESP32-C5-WROOM-1U is the module filed under FCC ID 2AC7Z-ESPC5WROOMU by Espressif Systems (Shanghai) Co., Ltd.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover power details and setup.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee code2AC7ZThe FCC-assigned applicant code at the start of the FCC ID.

Product code-ESPC5WROOMUThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rulesPart 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDo0LdLUuiSHWEmJSPkPWRGA==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

May 21, 2025

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: Q0B0dOax7KPJp6kq5mV6zQ==, o0LdLUuiSHWEmJSPkPWRGA==
Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 3 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 3 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 7 ranges grouped below
Frequency range	2412 - 2462 MHz \| 5180 - 5240 MHz \| 5260 - 5320 MHz \| 5500 - 5720 MHz \| 5745 - 5825 MHz \| 2402 - 2480 MHz \| 2405 - 2480 MHzSource: RF Exposure Info p. 5
Maximum conducted output power	24 dBmTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 4

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

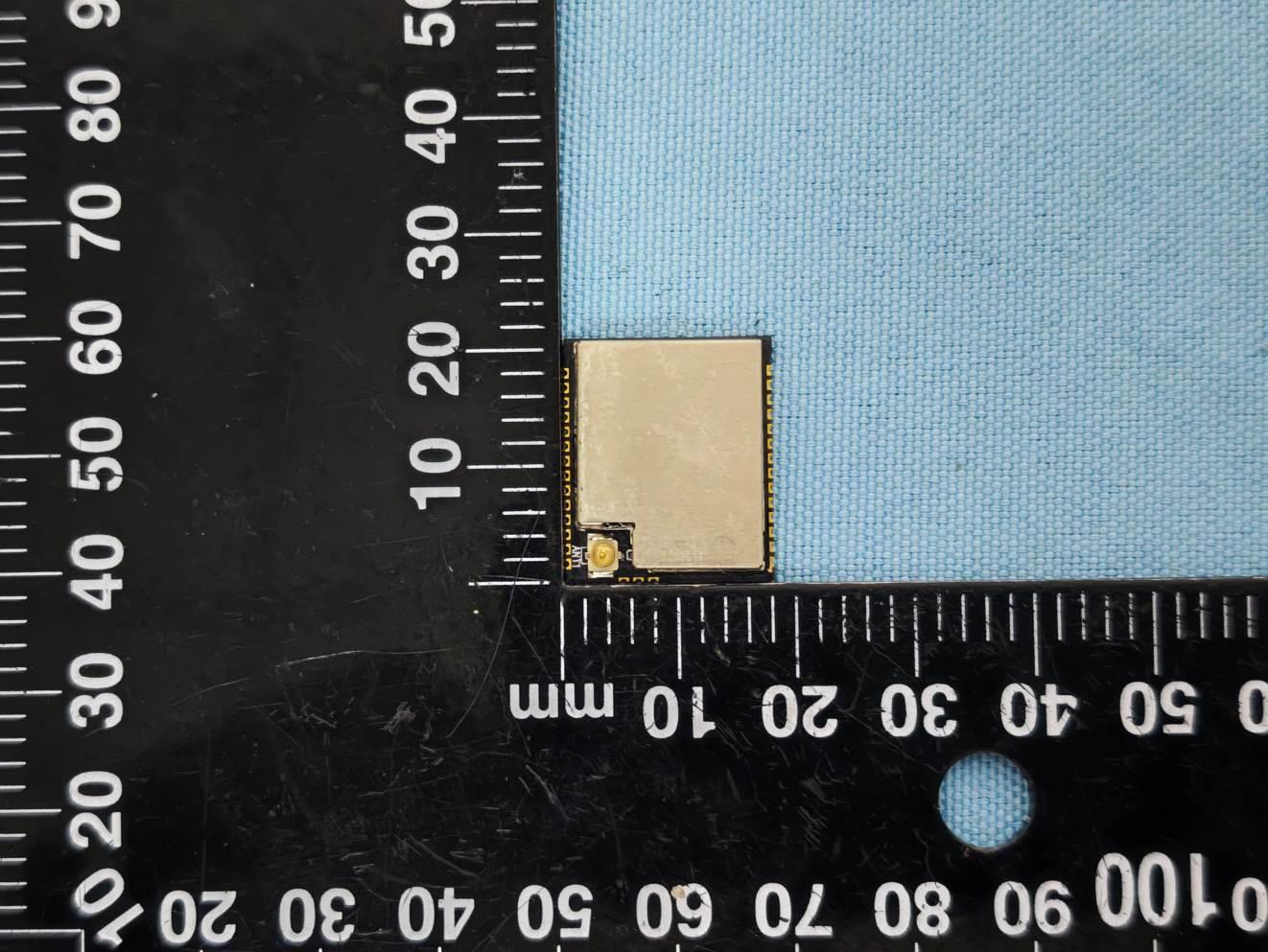

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 1Source: External Photos p. 1

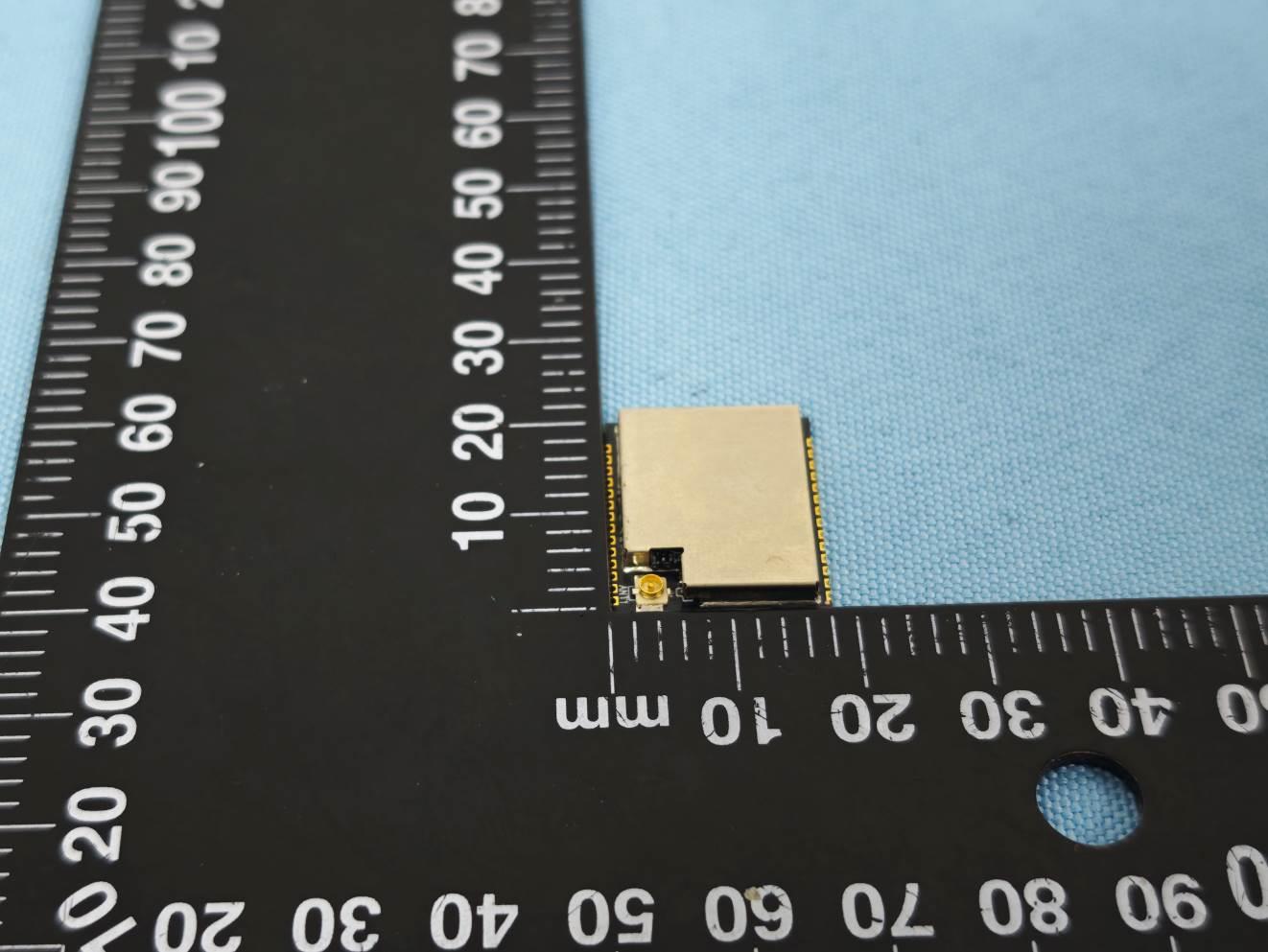

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 2Source: External Photos p. 2

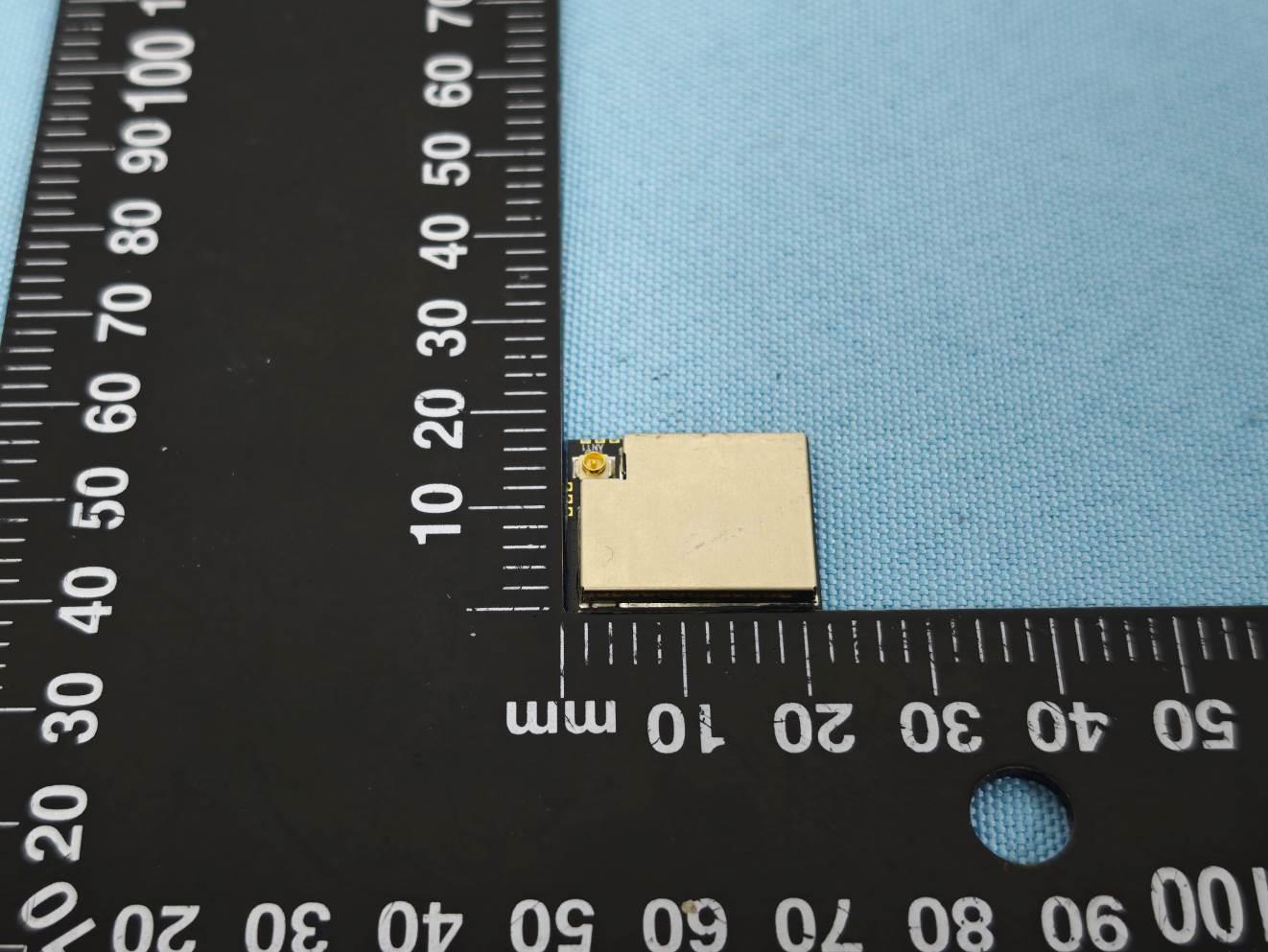

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 3Source: External Photos p. 3

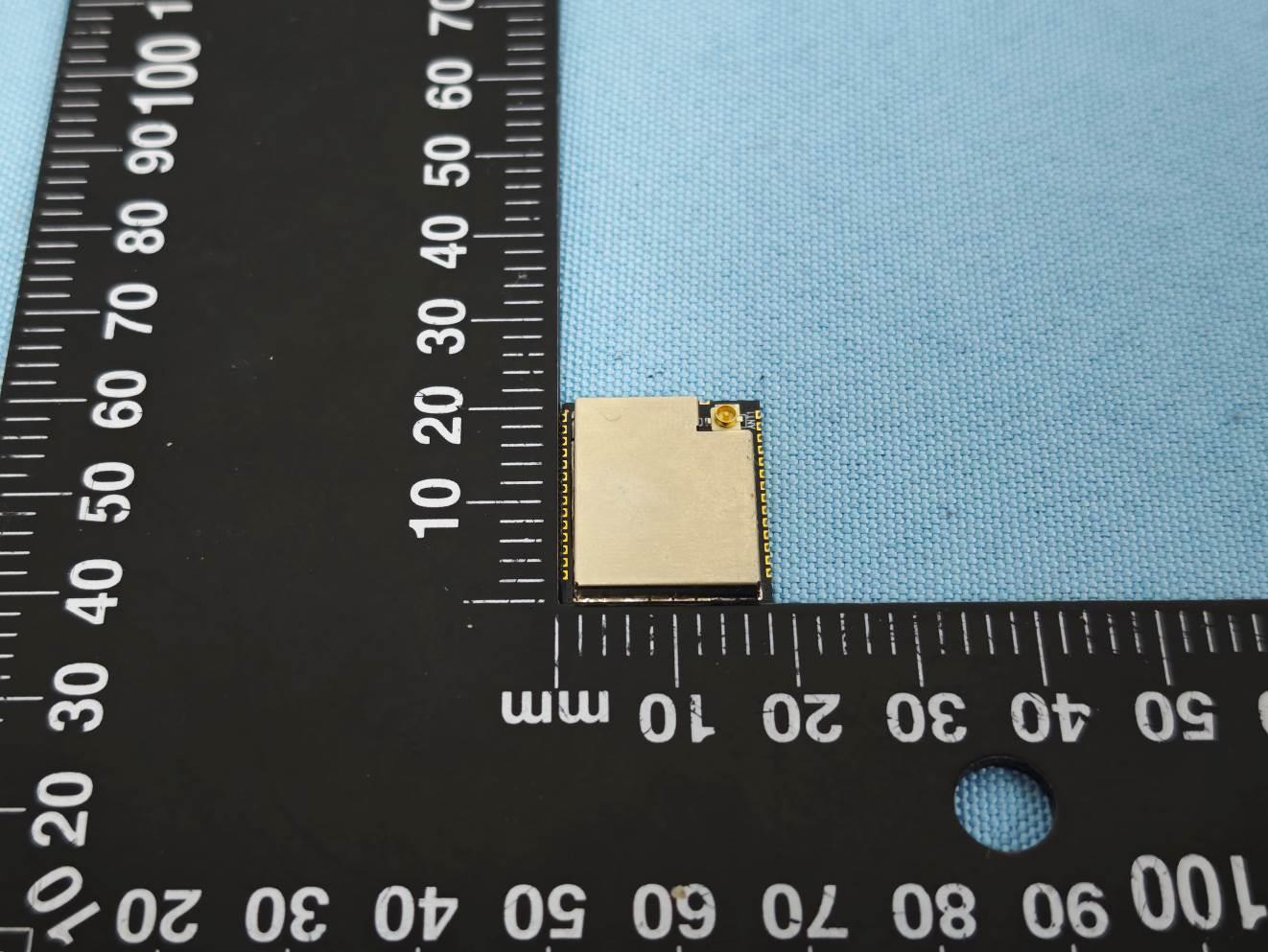

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 4Source: External Photos p. 4

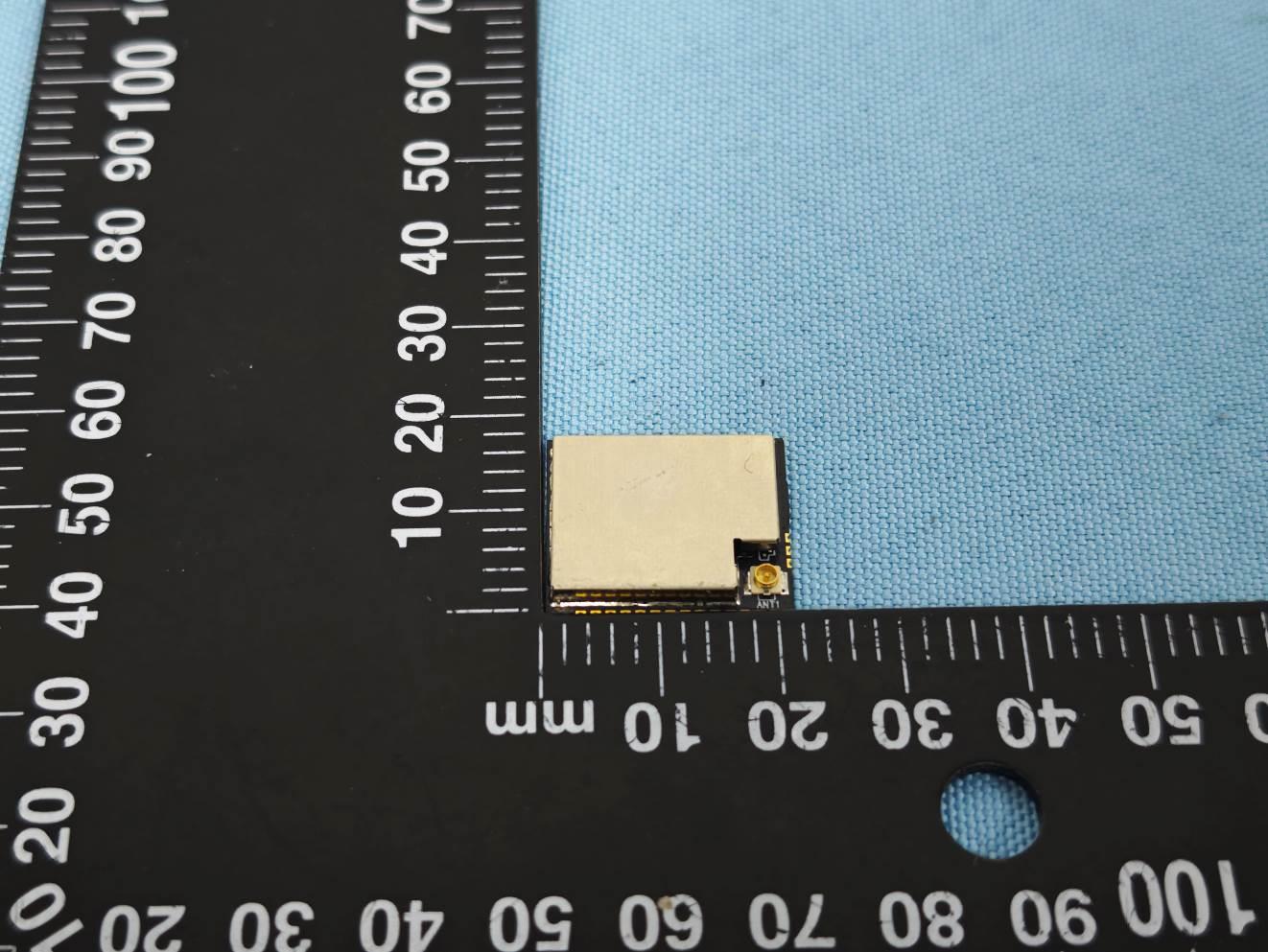

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 5Source: External Photos p. 5

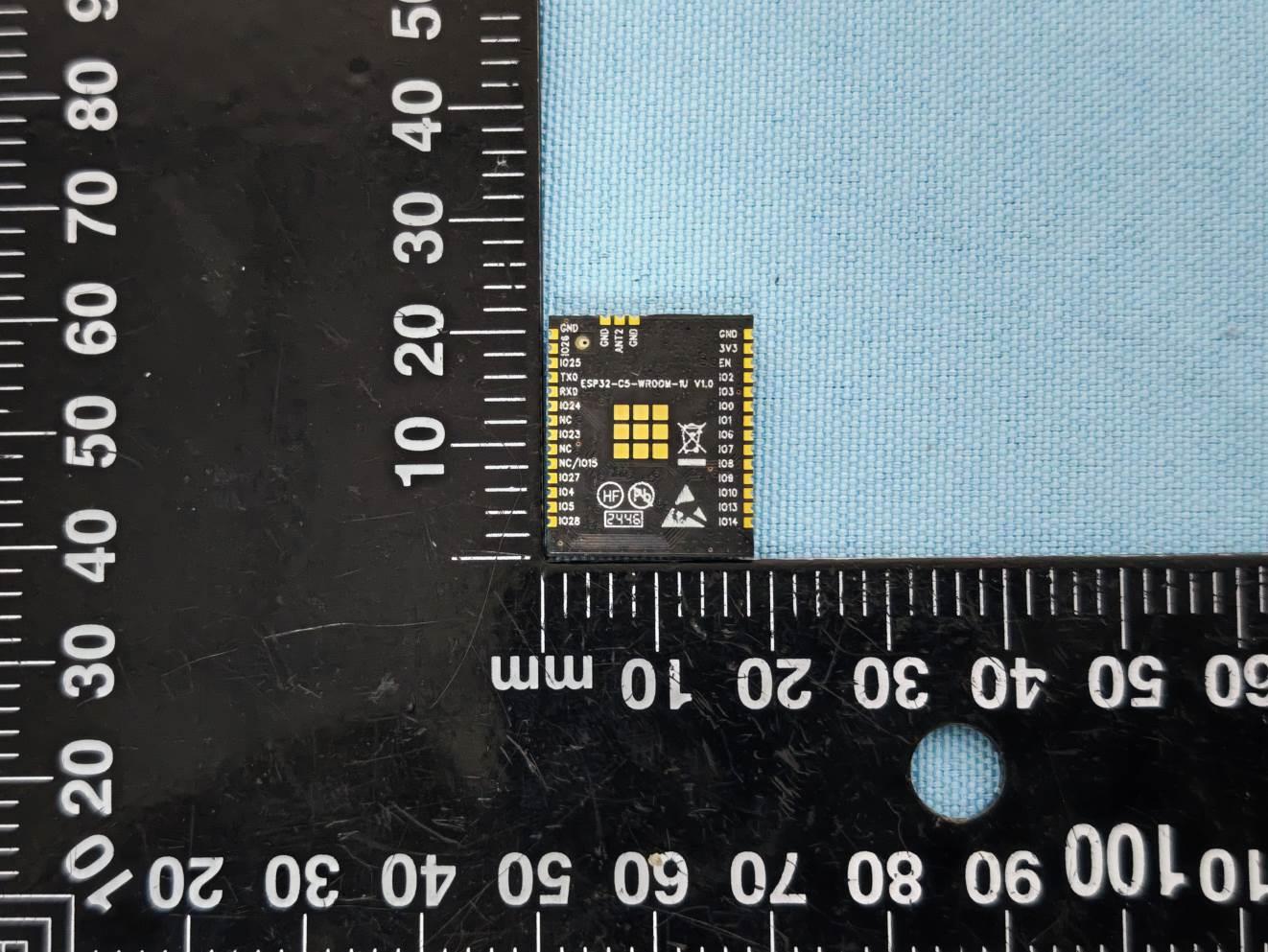

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 6Source: External Photos p. 6

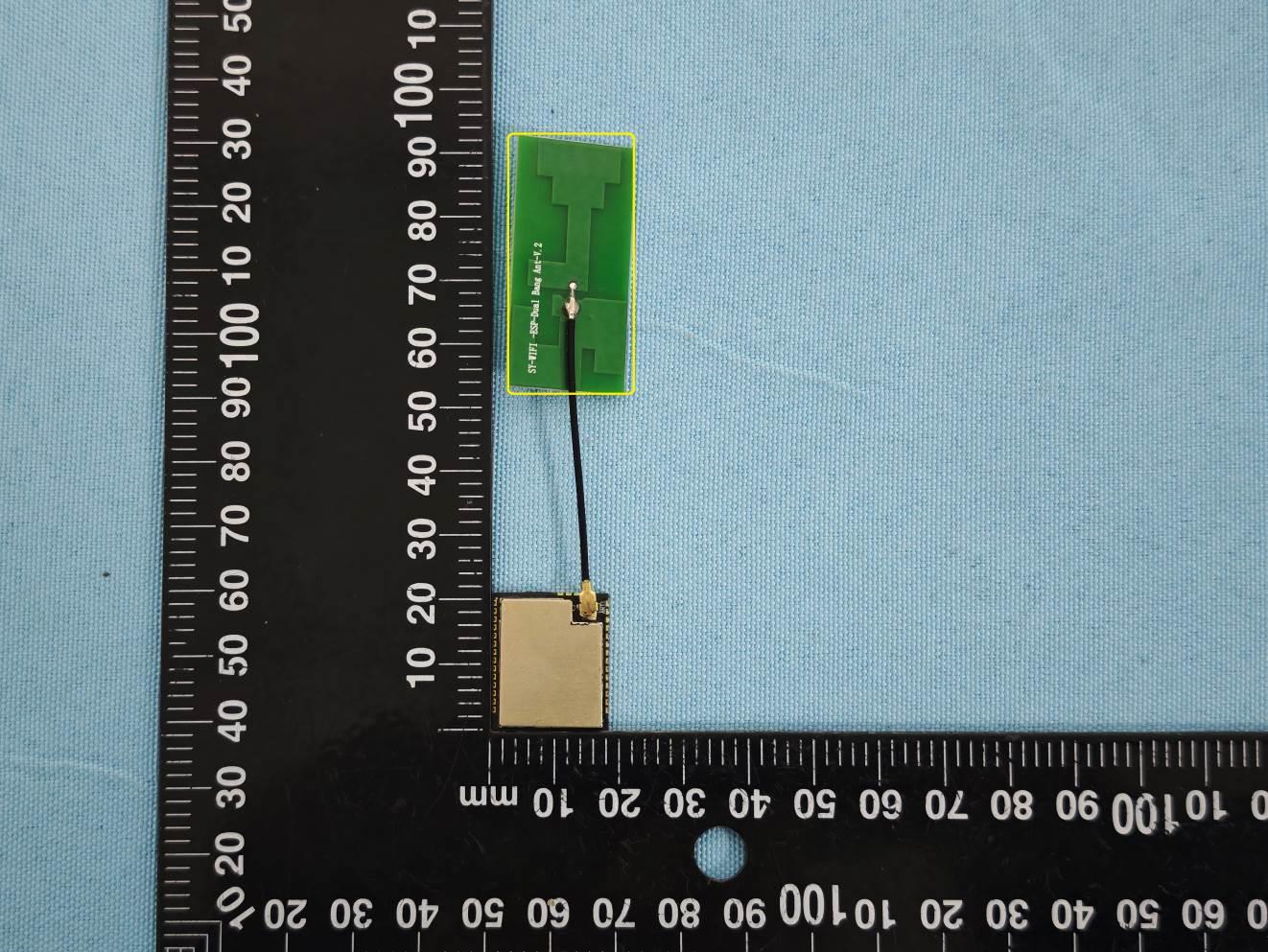

External viewEspressif ESP32-C5-WROOM-1U external FCC photo from External Photos p. 7Source: External Photos p. 7

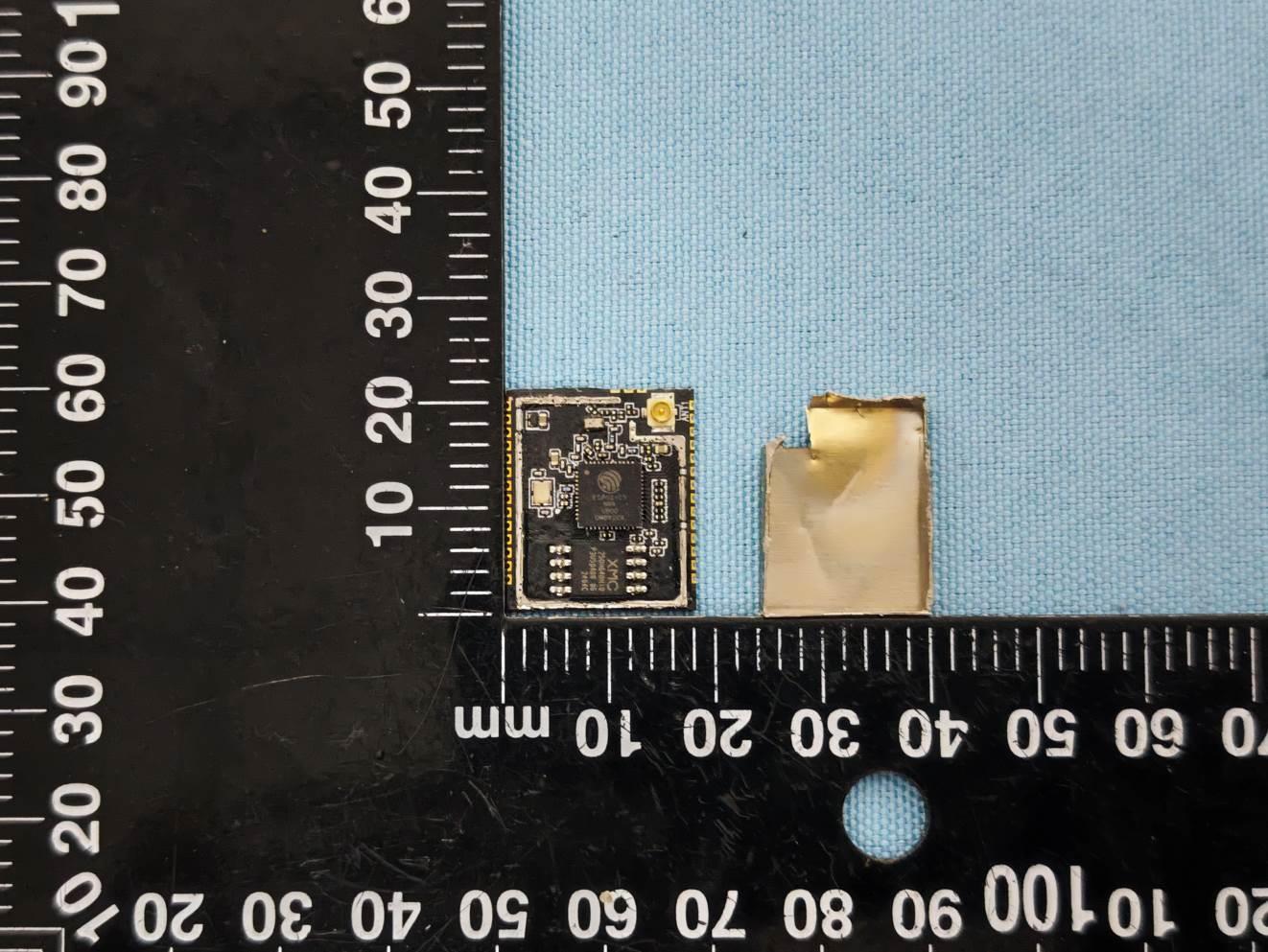

Internal viewEspressif ESP32-C5-WROOM-1U internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual23 pages2.7 MB public file

The public manual includes useful power, and setup details.

What power or charging details does the manual include?

Get Started 3.1 What You Need To develop applications for module you need:

1 x ESP32-C5-WROOM-1U
1 x Espressif RF testing board
1 x USB-to-Serial board
1 x Micro-USB cable
1 x PC running Linux In this user g...

Source: Users Manual, page 7

How do I set up this device?

Source: Users Manual, page 8

Get Started

Get Started 3.1 What You Need To develop applications for module you need:

1 x ESP32-C5-WROOM-1U
1 x Espressif RF testing board
1 x USB-to-Serial board
1 x Micro-USB cable
1 x PC running Linux In this user g...

Source: Users Manual, page 7

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

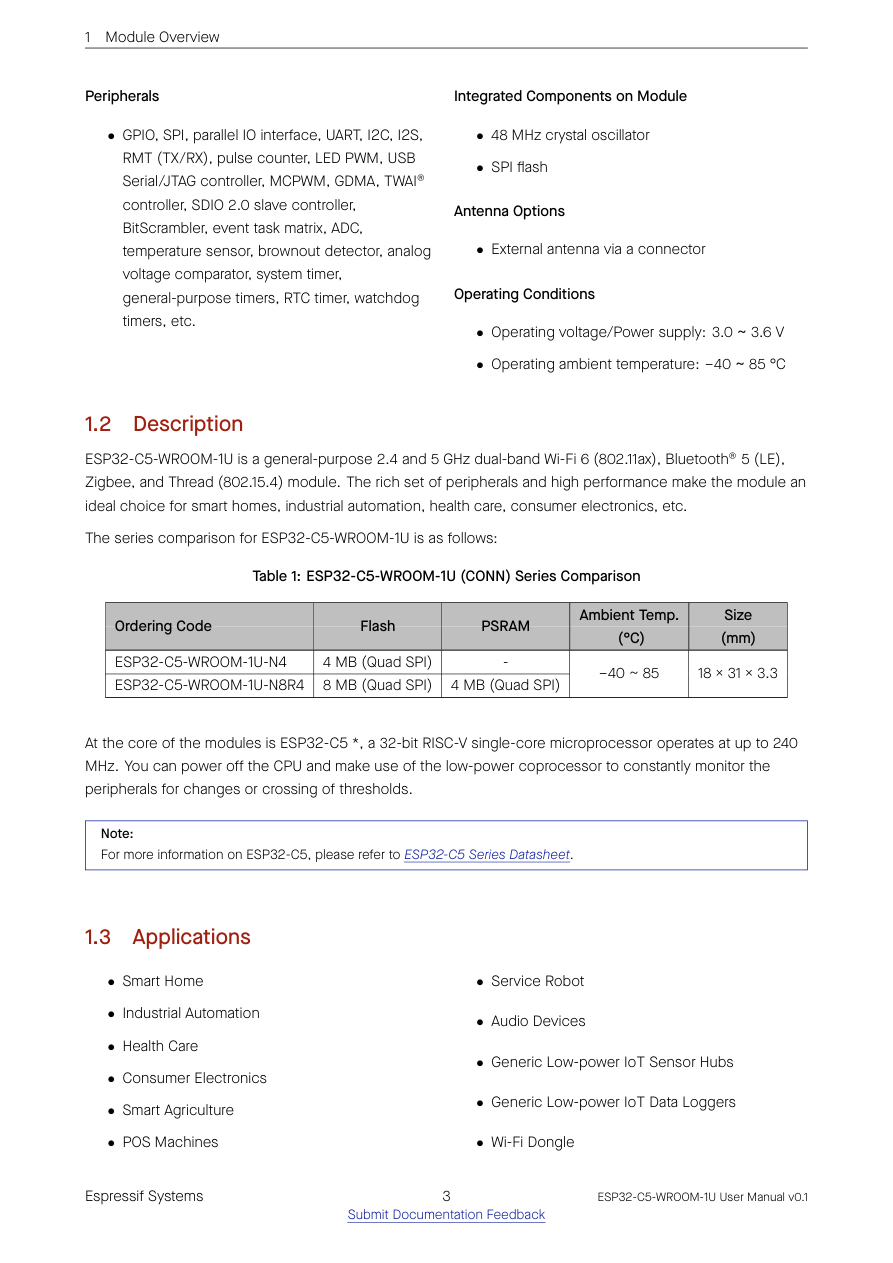

Module Overview visual from the manual from the FCC user manual — Module Overview visual from the manualSource: Users Manual, page 3
