FCC ID SWX-U6EXT

Ubiquiti U6EXT access point FCC filing (SWX-U6EXT)

Name: Ubiquiti U6EXT FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti U6EXT (SWX-U6EXT), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-U6EXT

Device categoryNetworking

Authorization dateJul 30, 2020

Plain-English filing summary

What this FCC record tells you

U6EXT is the device filed under FCC ID SWX-U6EXT by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-U6EXTThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDg7YjGBT4xg1JwInZgsB9ww==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jul 30, 2020

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: DU2qUlQL1aJf4OCVzGK/eg==, g7YjGBT4xg1JwInZgsB9ww==
Equipment classes: NII - Wi-Fi-style wireless device; DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 3 ranges grouped below
Power density	1 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 1

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

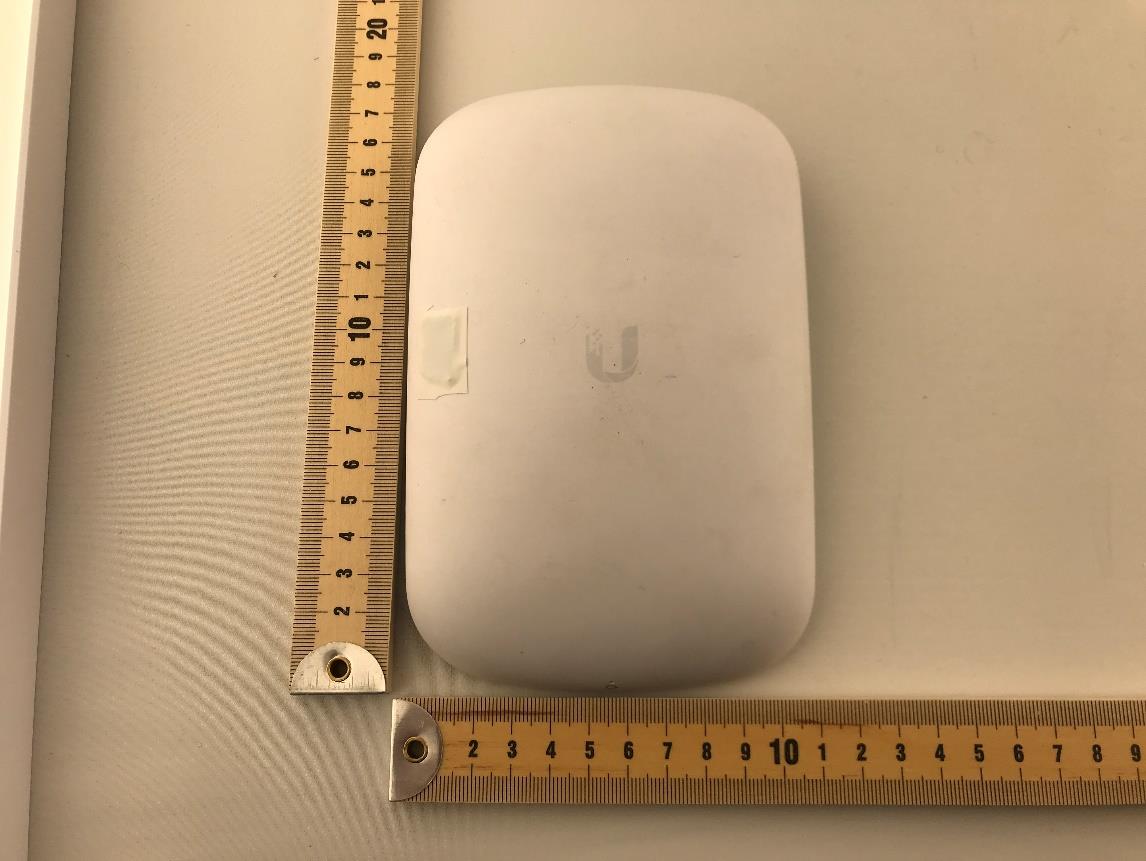

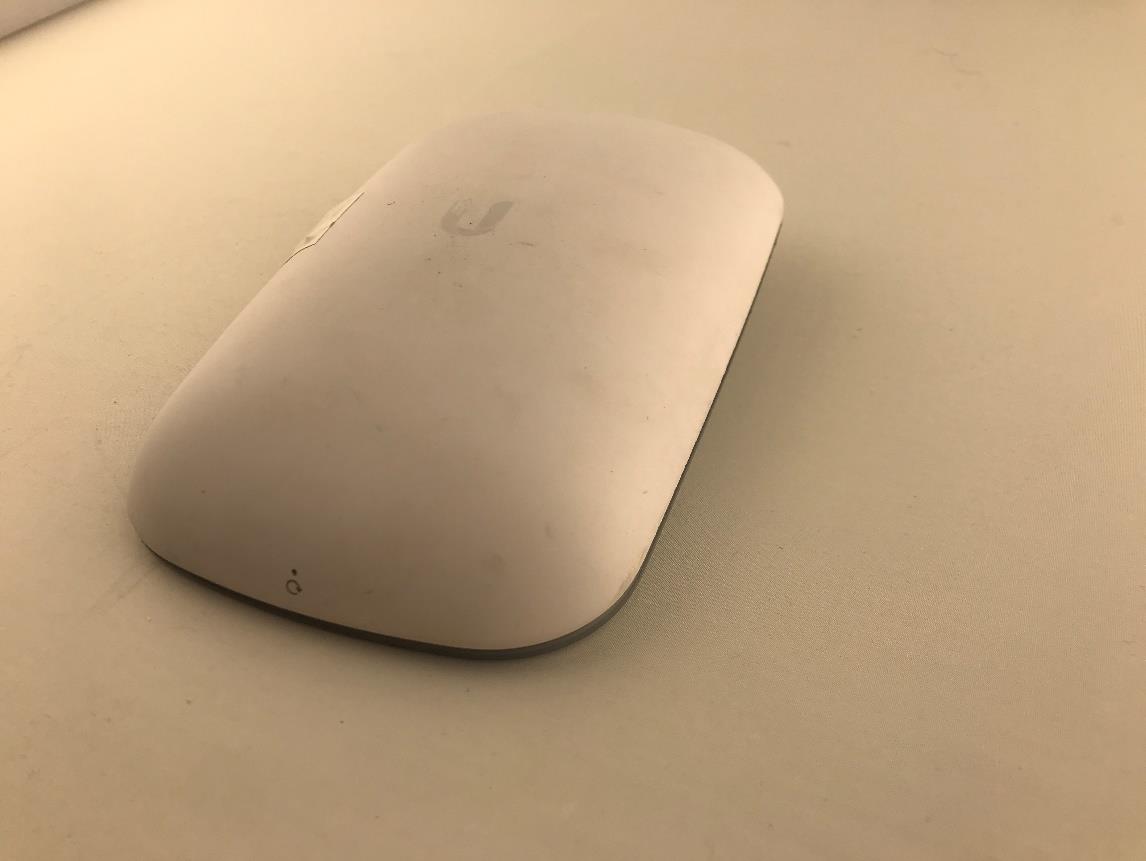

External viewUbiquiti U6EXT external FCC photo from External Photos p. 1Source: External Photos p. 1

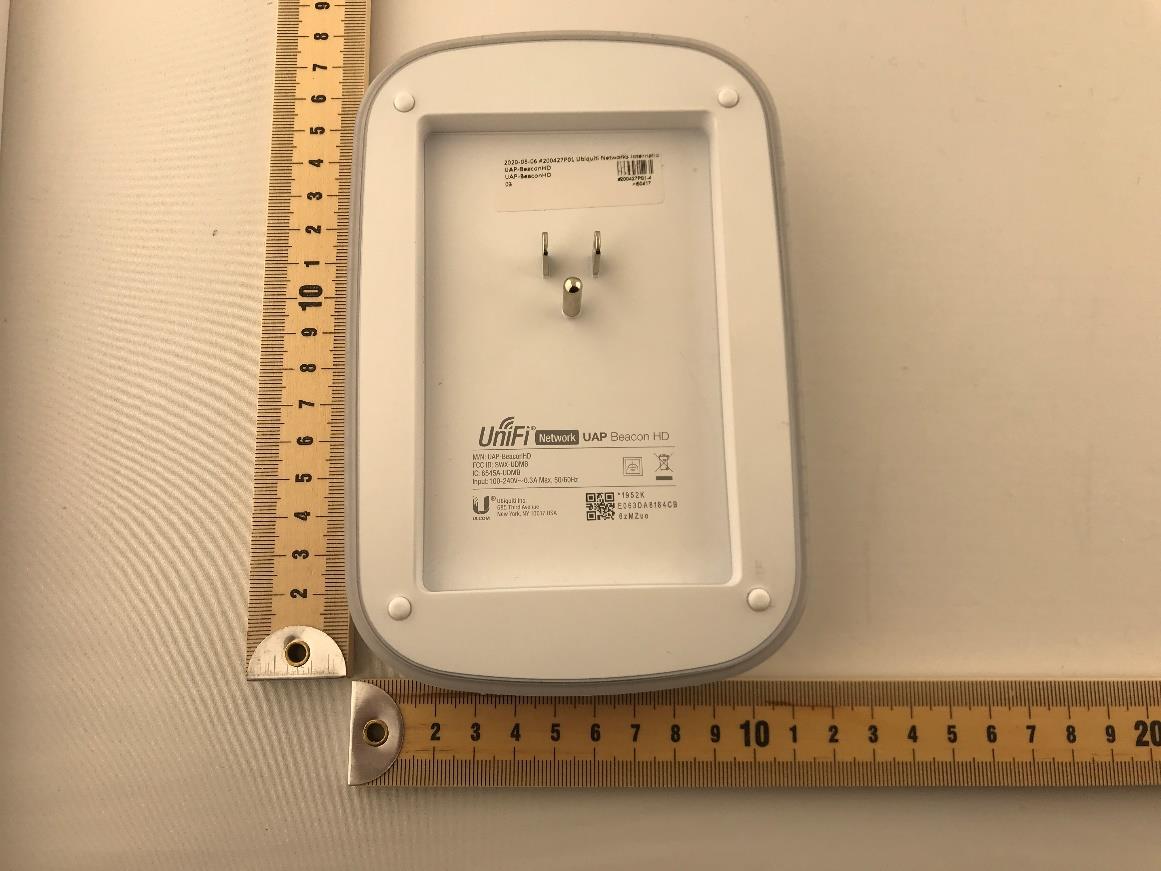

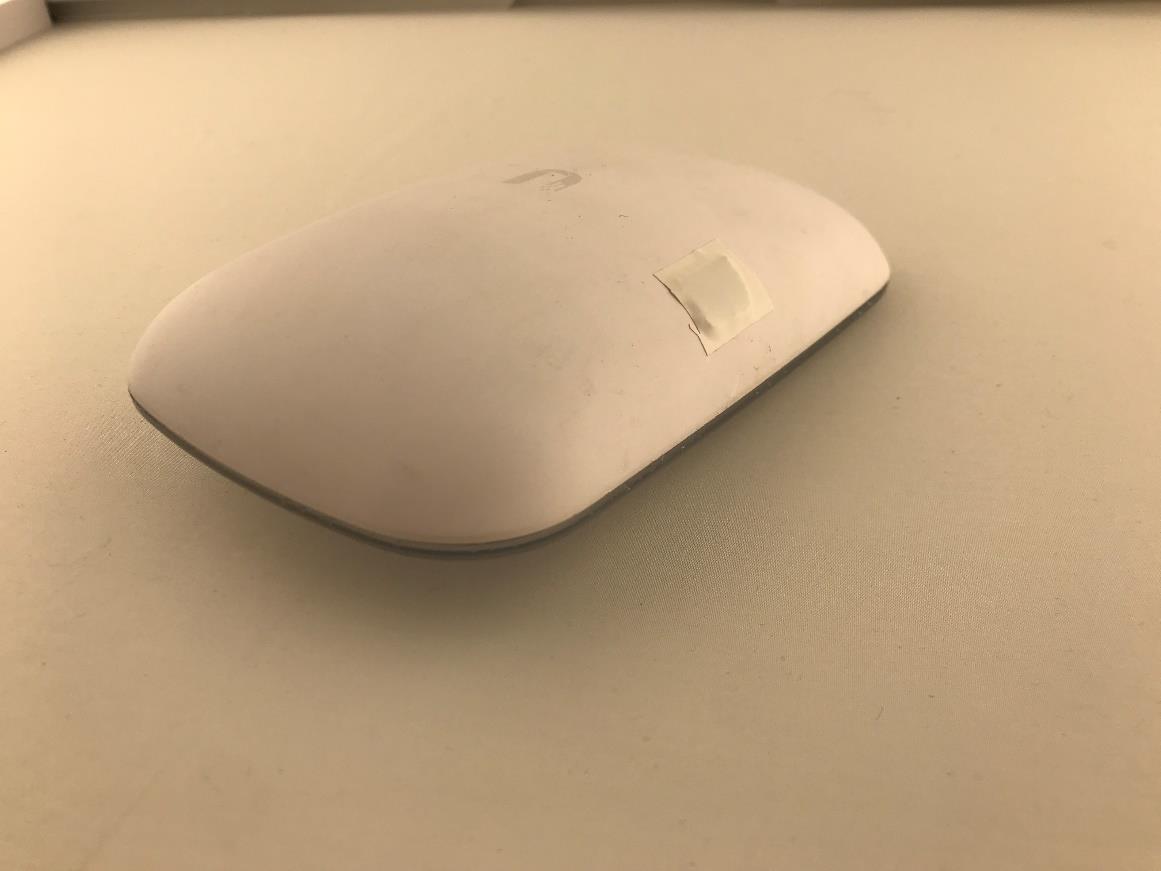

External viewUbiquiti U6EXT external FCC photo from External Photos p. 2Source: External Photos p. 2

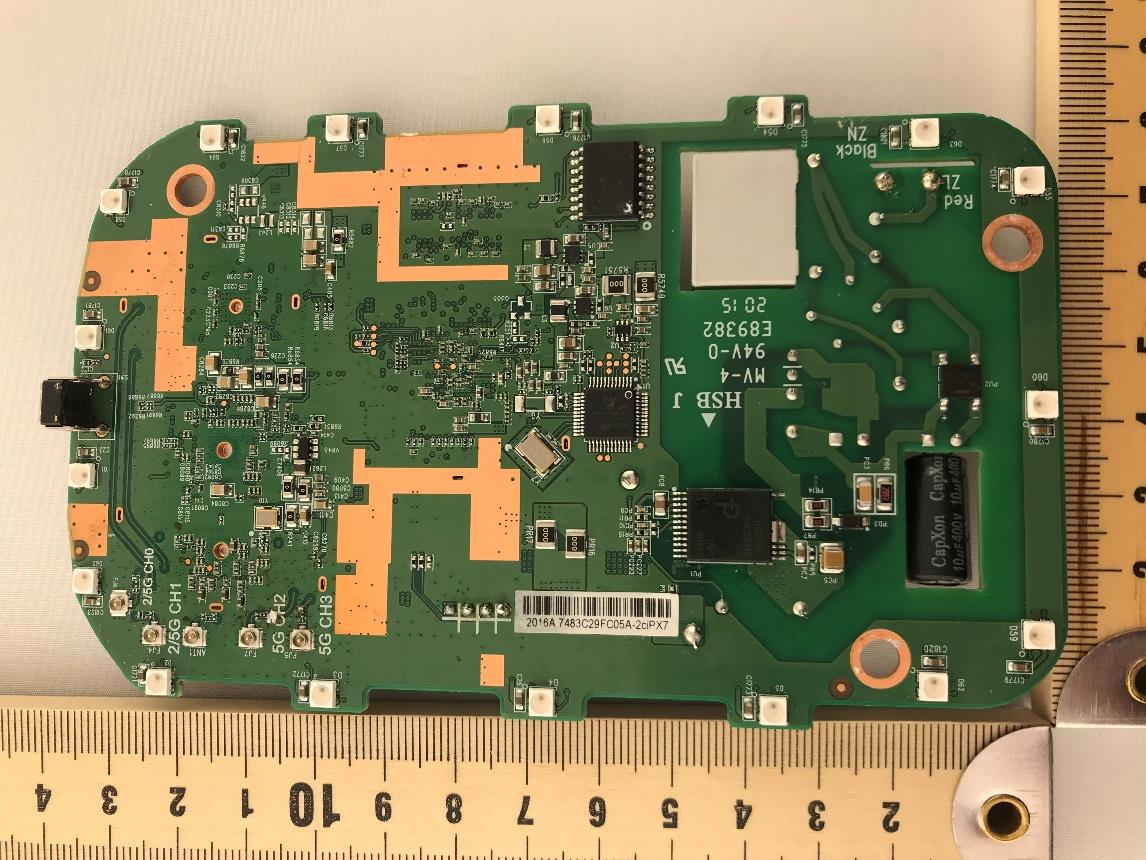

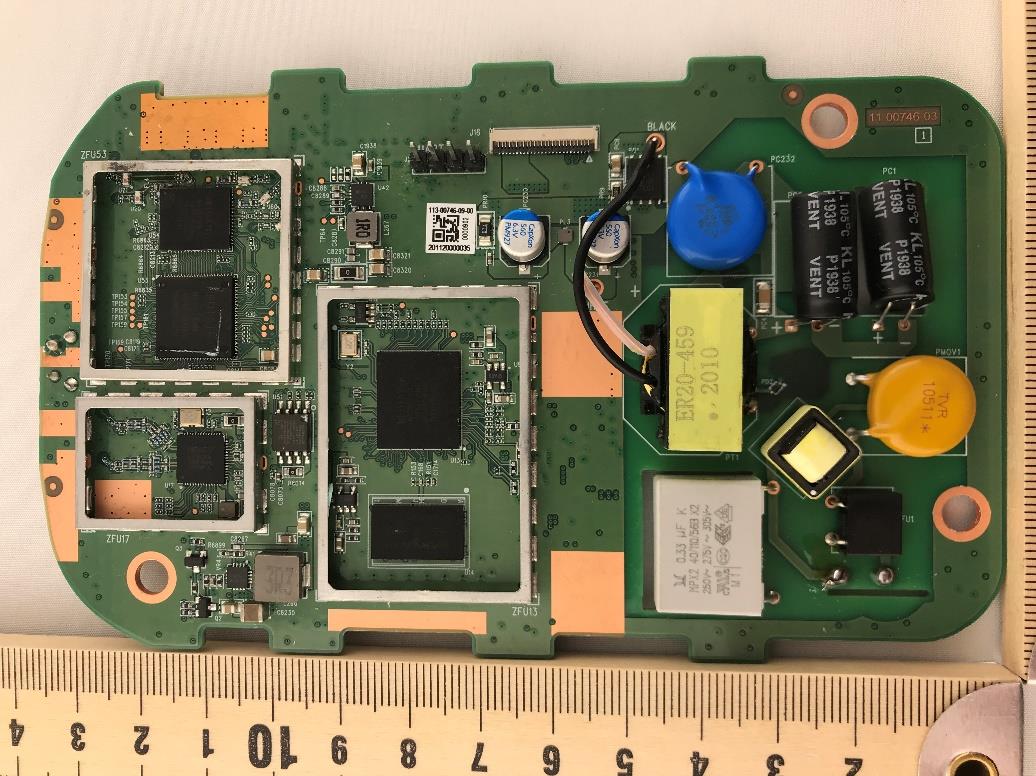

Internal viewUbiquiti U6EXT internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

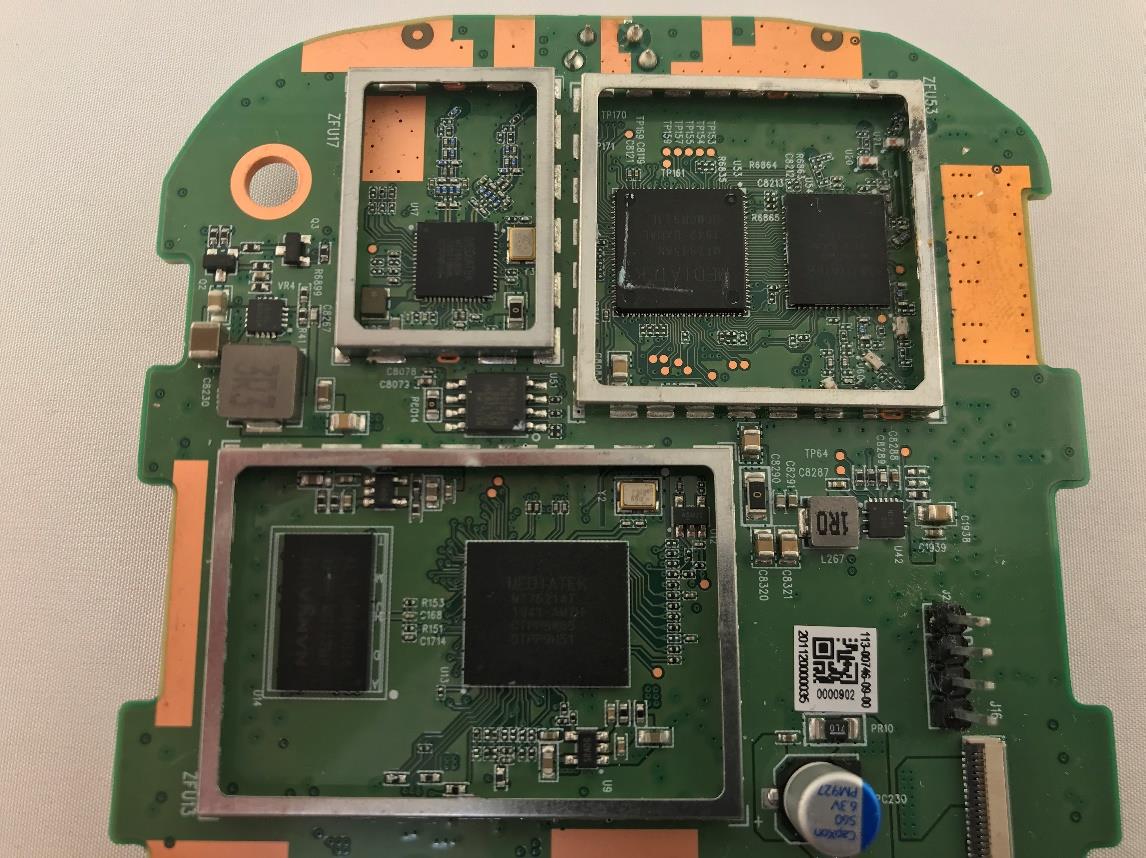

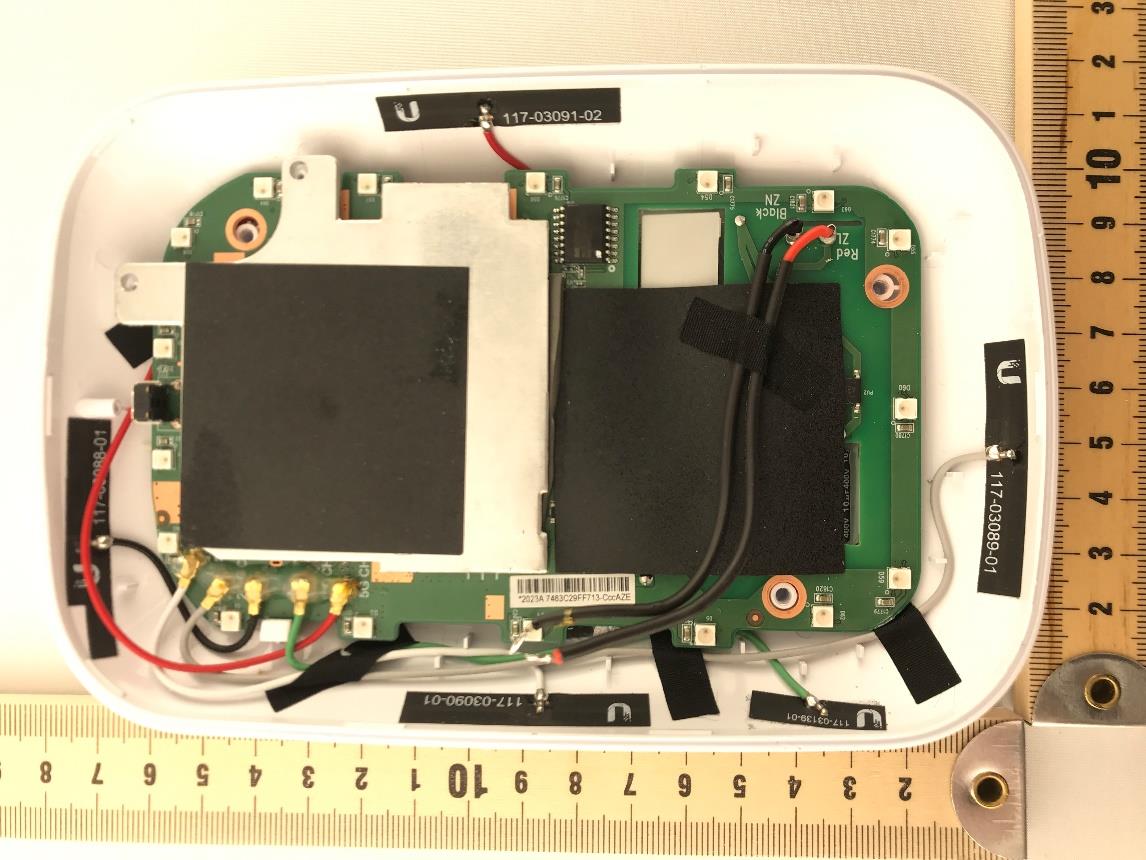

Internal viewUbiquiti U6EXT internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

User manual

The FCC filing includes a public user manual source.

Official FCC source: Users Manual (4833439)1 page1.6 MB public file

Official manual source
The FCC filing includes a 1-page public manual source. The available text is mostly regulatory, safety, or compliance information, so this page links the official file instead of presenting it as setup guidance.
Source: Users Manual (4833439)
