Ubiquiti M11DB FCC filing (SWX-M11DB)

What this FCC record tells you

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Public FCC photos

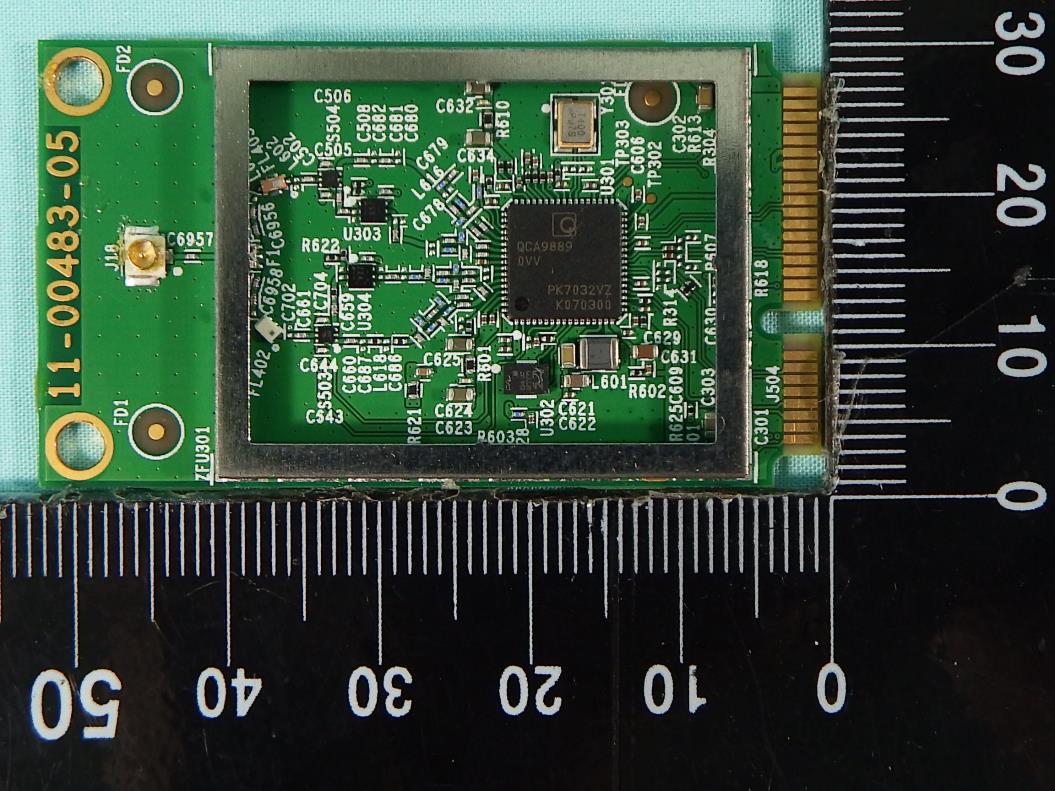

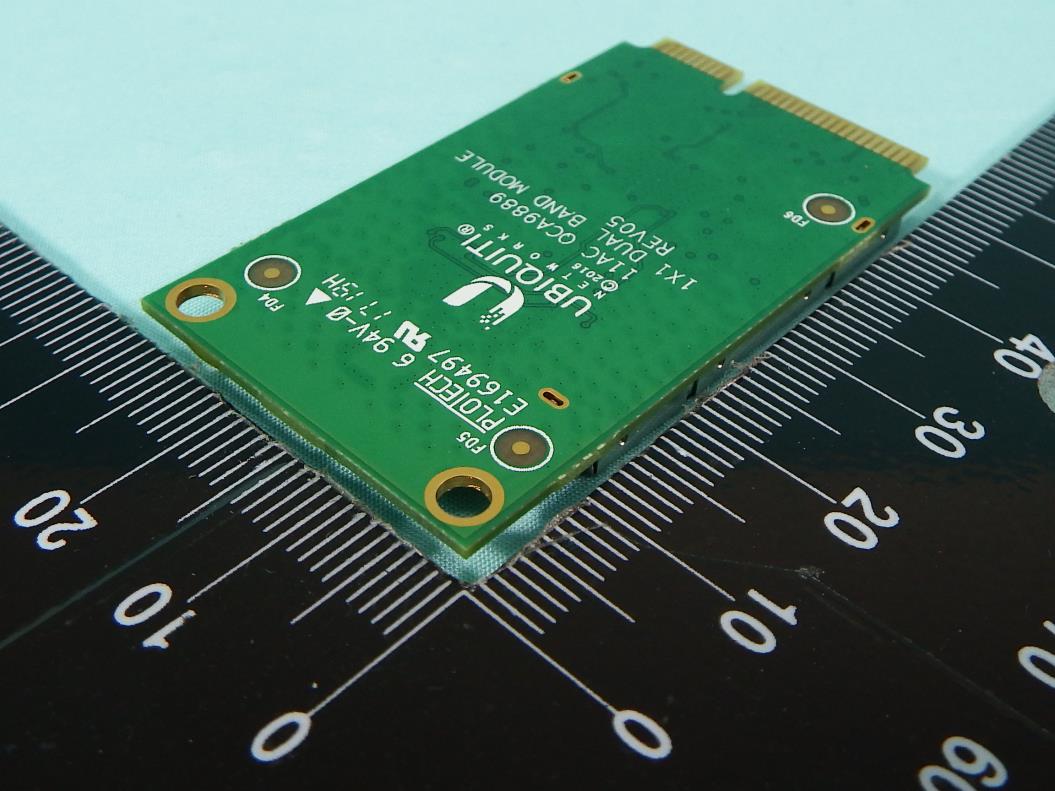

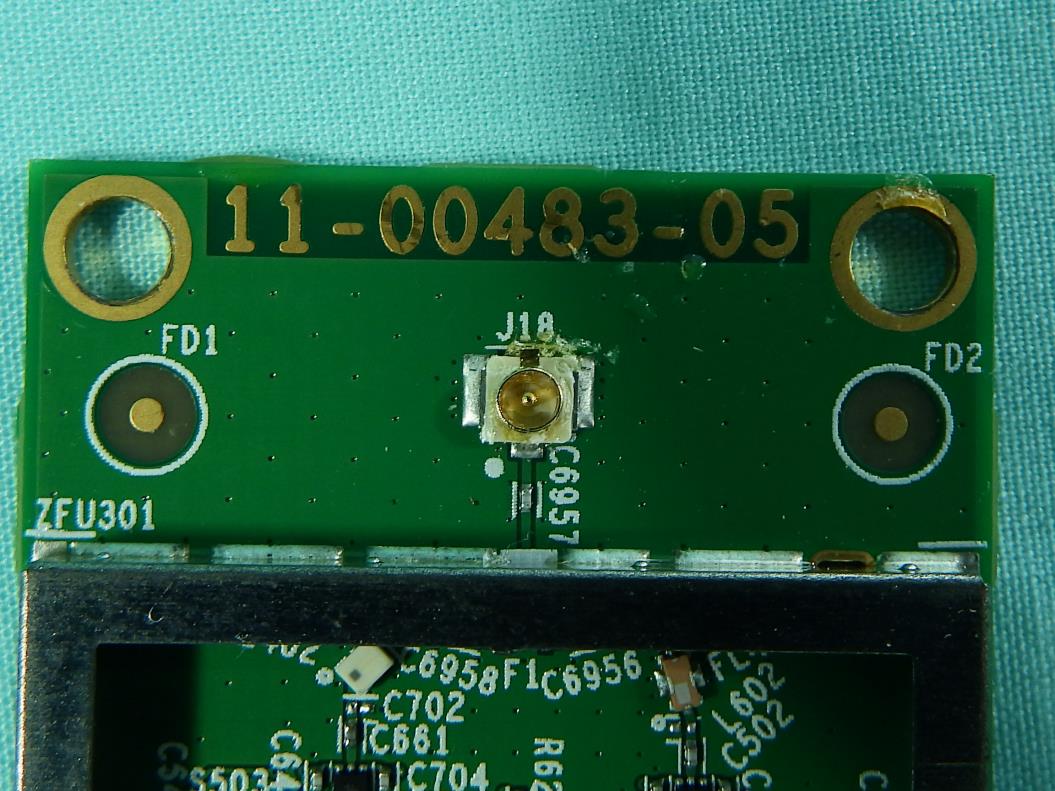

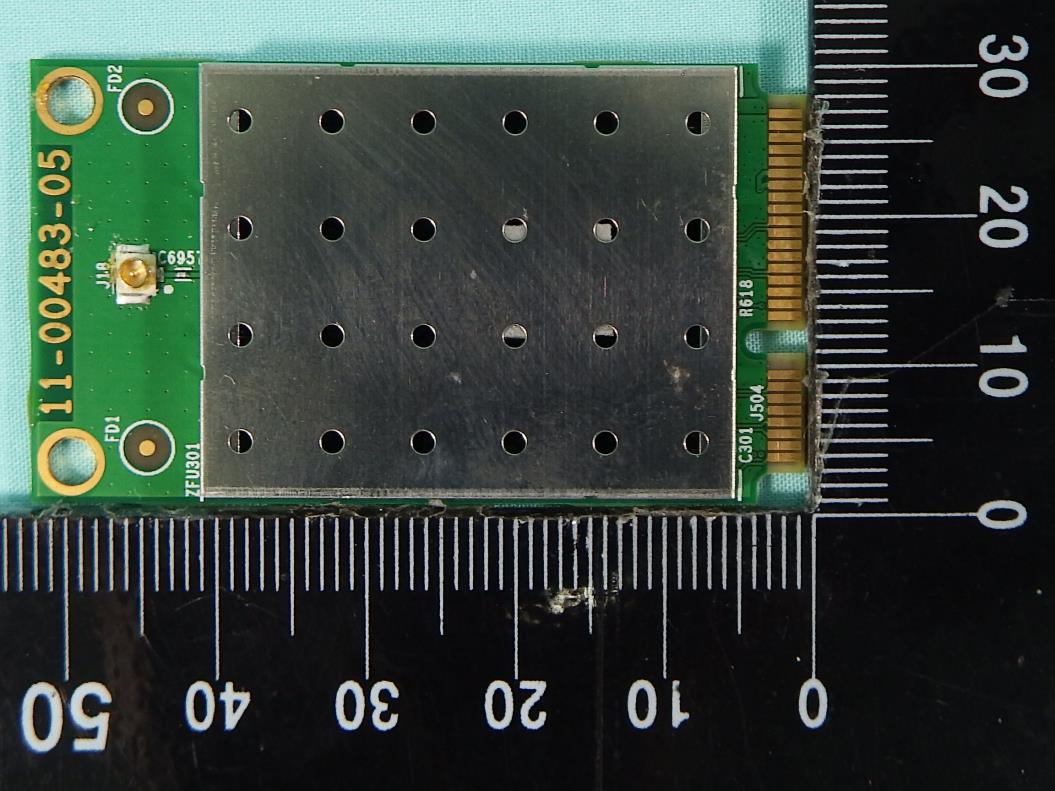

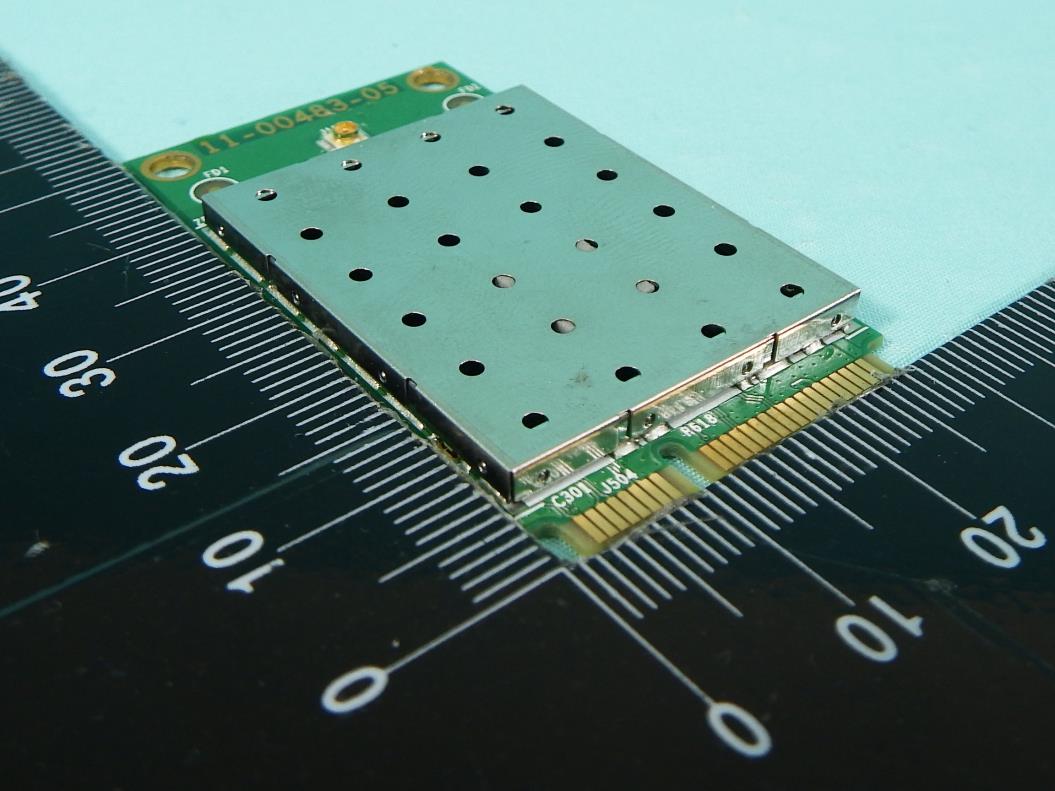

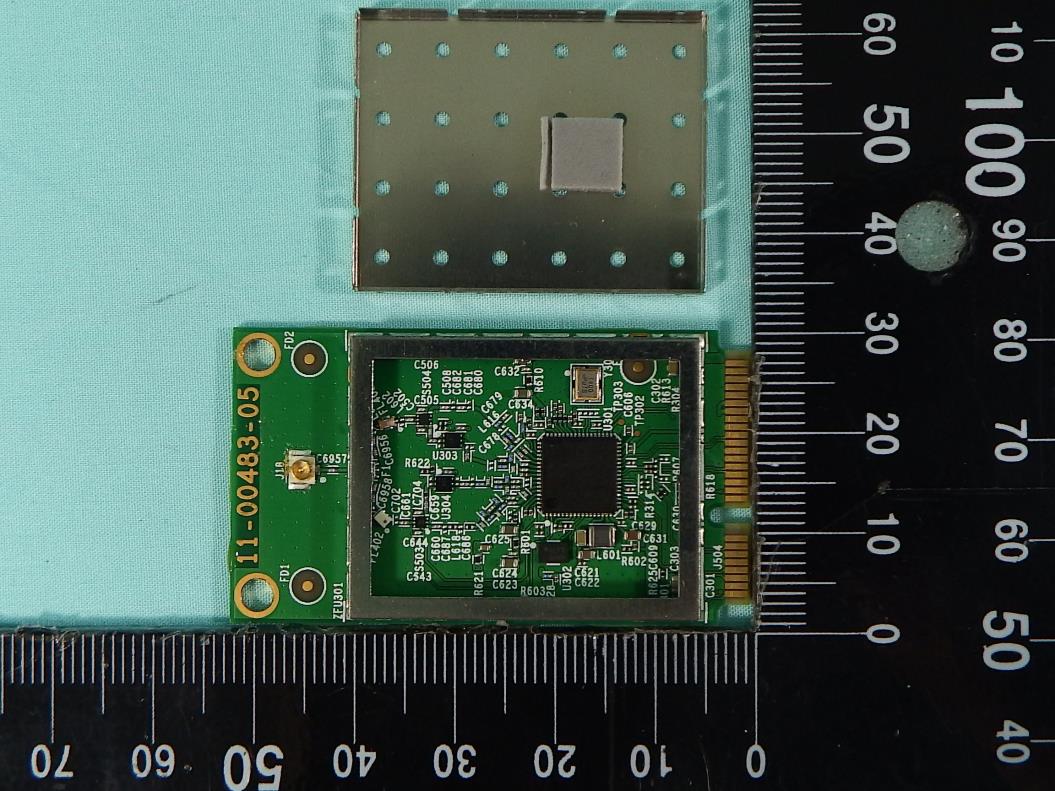

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

• Introduction

  The Dual-Band 1x1 SOC model: 1x1-DB with Qualcomm® VIVETM 802.11ac technology is a highly integrated wire- less local area network (WLAN) system-on-chip (SoC) for 2.4 &5 GHz 802.11ac. The Dual-Band 1x1 SOC

  Source: Users Manual, page 2
• Introduction

  model: 1x1-DB is a synthesizer WLAN radio. It includes a CPU and memory for WLAN media access layer (MAC) and physical layer (PHY) management and provides host offload of other high level networking tasks. It enables high-performance 1x1 MIMO with 1 spatial streams for wireless applications demanding the highest robust link qual- ity and maximum throughput and range. The DualBand 1x1 SOC integrates a multi-protocol MAC, PHY, analog-to- digital/ digital-to-analog converters (ADC/ DAC), 1x1 radio transceivers, and PCIE interface in an all CMOS device for low power consumption and small formfactor applications.

  Source: Users Manual, page 2
• Introduction

  The Dual-Band 1x1 SOC model: 1x1-DB implements half-duplex OFDM, Maximal Likelihood (ML) decoding,

  Source: Users Manual, page 2
• Introduction

  (MRC), Space Time Block Code (STBC), and On-Chip One Time Programmable (OTP) memory to eliminate the need for an external flash and to further reduce the external component count and BOM cost. The Dual-Band 1x1 SOC model: 1x1-DB supports 802.11 wireless MAC protocol, 802.11i security, Wi-Fi offload, error recovery, and 802.11e quality of service (QoS).The Dual-Band 1x1 SOC supports up to one simultaneous spatial streams integrat- ing one Tx and four Rx chains for high throughput and extended coverage. Tx chains combine PHY in-phase (I) and quadrature (Q) signals, convert them to the desired frequency, and drive the RF signal through external power am-

  Source: Users Manual, page 2

• 1X1-2.4G, 1x1-5G Dual-Band 1x1 with 1 SS 802.11ac/a/b/g/n WLAN SoC model: 1x1-DB Device Specification

  Source: Users Manual, page 3

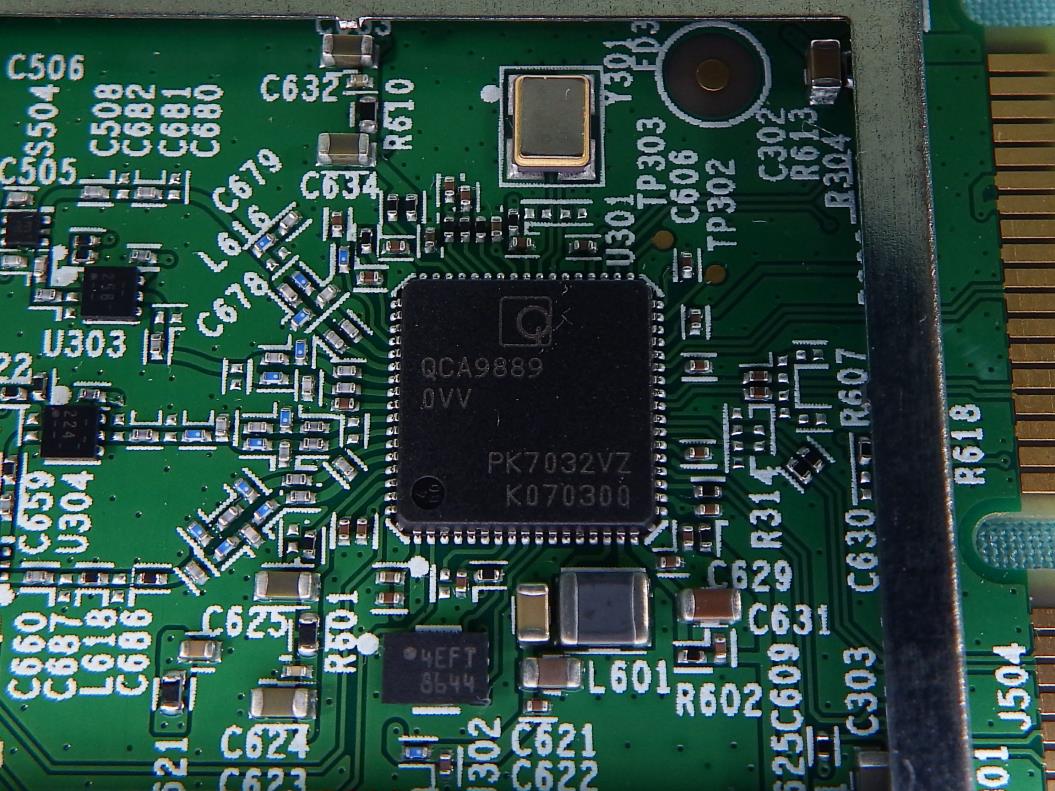

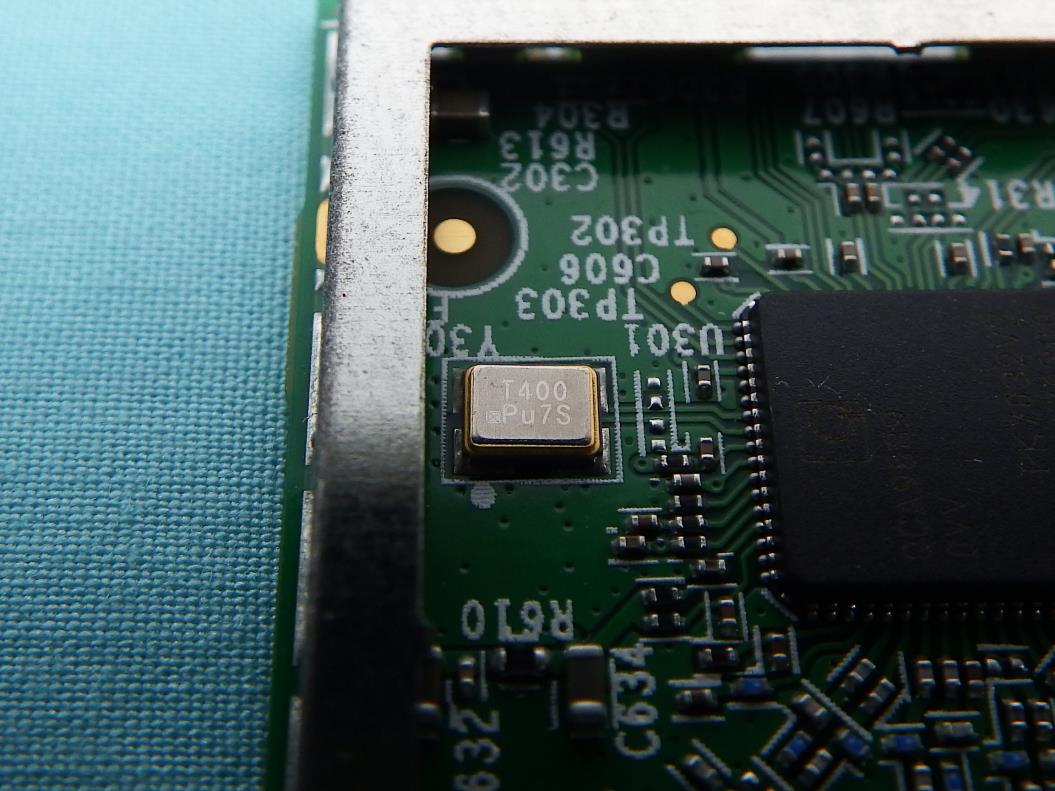

• 1x1 technology improves effective throughput and range over existing 802.11a/b/g/n/ products Support for up to four spatial streams Support for 48-MHz crystal 156-pin, 12 mm x 12 mm DRQFN package Package footprint compatible with QCA9889

  Source: Users Manual, page 3
