FCC ID SWX-E7AD

Ubiquiti E7AD FCC filing (SWX-E7AD)

Name: Ubiquiti E7AD FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti E7AD (SWX-E7AD), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 6 GHz Wi-Fi and 5 GHz Wi-Fi.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-E7AD

Device categoryNetworking

Authorization dateMar 20, 2025

Plain-English filing summary

What this FCC record tells you

E7AD is the device filed under FCC ID SWX-E7AD by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 6 GHz Wi-Fi and 5 GHz Wi-Fi.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-E7ADThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15E - 5 GHz / 6 GHz wireless rulesPart 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDQTMye+YPxedmfKjXcziigw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Mar 20, 2025

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: BdysQ6ZsnsQc2NeGMFW9hg==, QTMye+YPxedmfKjXcziigw==
Equipment classes: 15E - 6 GHz Standard Power Access Point; NII - Wi-Fi-style wireless device
FCC rules: Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 6 GHz Wi-Fi: 2 ranges; 5 GHz Wi-Fi: 4 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	6 GHz Wi-Fi: 2 ranges; 5 GHz Wi-Fi: 4 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 6 ranges grouped below
Power density	1 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info (8083677) p. 1

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

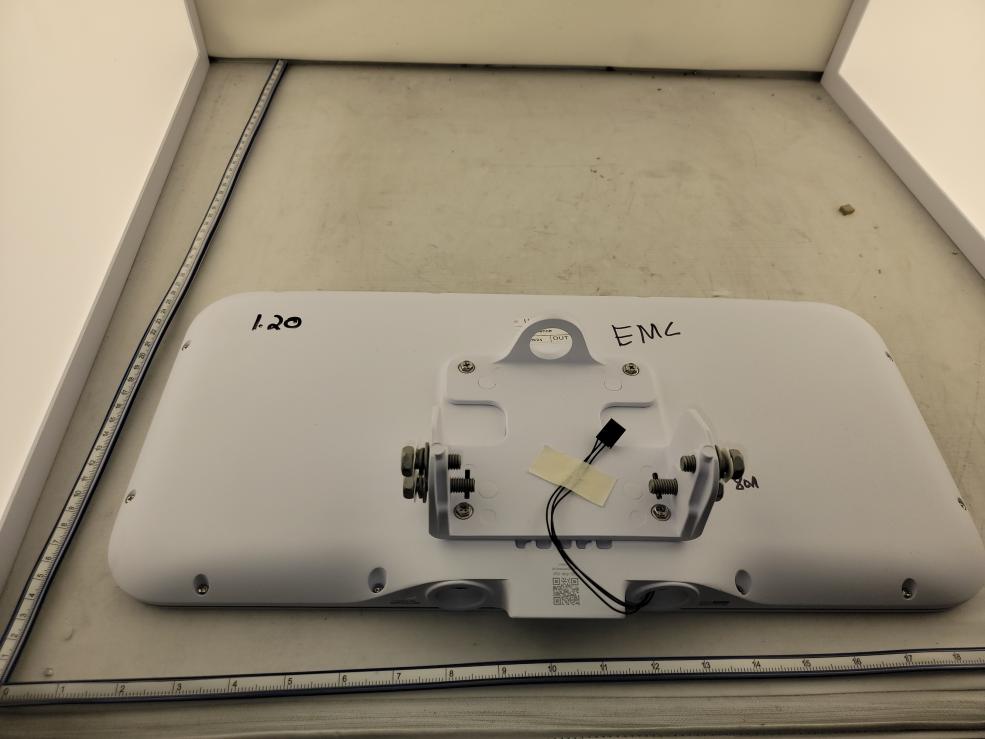

External viewUbiquiti E7AD external FCC photo from External Photos p. 1Source: External Photos p. 1

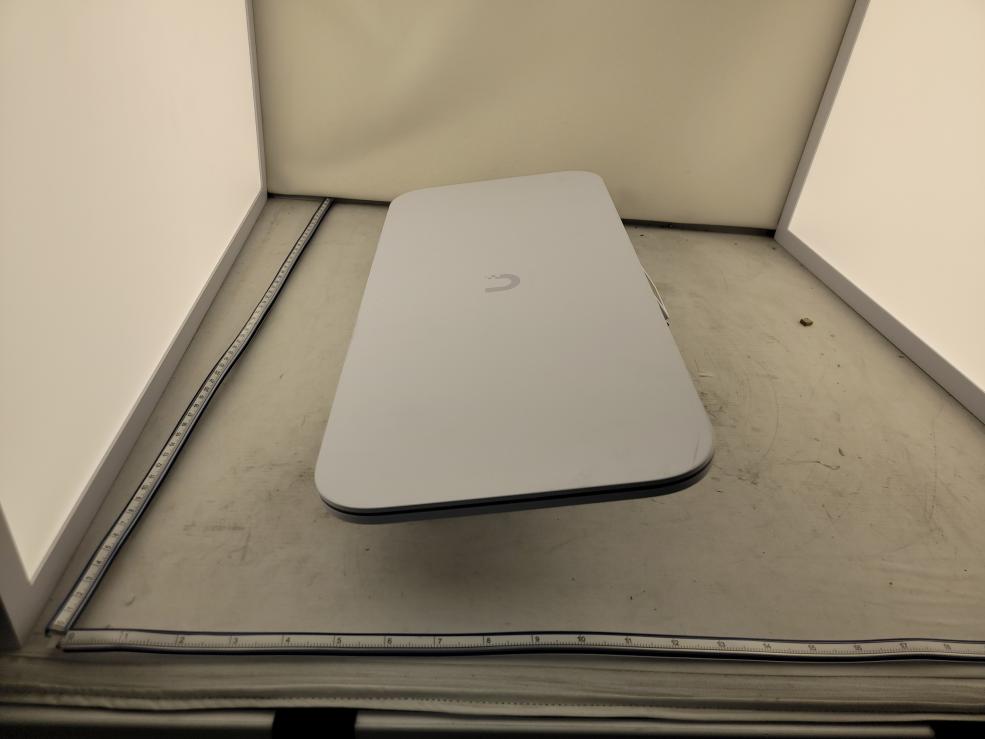

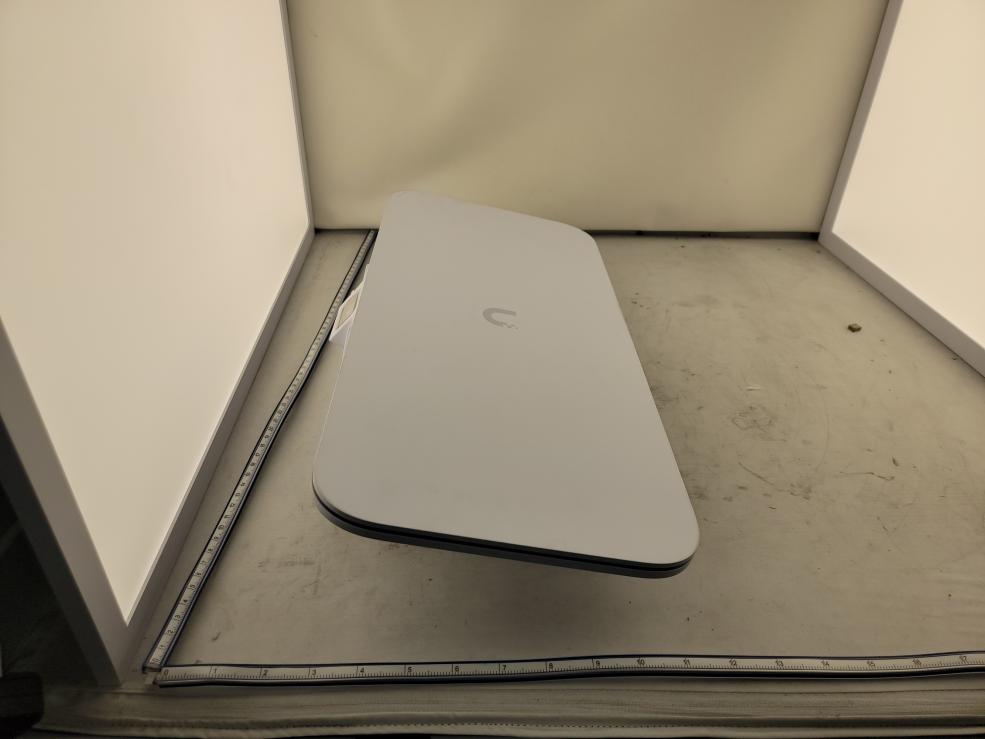

External viewUbiquiti E7AD external FCC photo from External Photos p. 2Source: External Photos p. 2

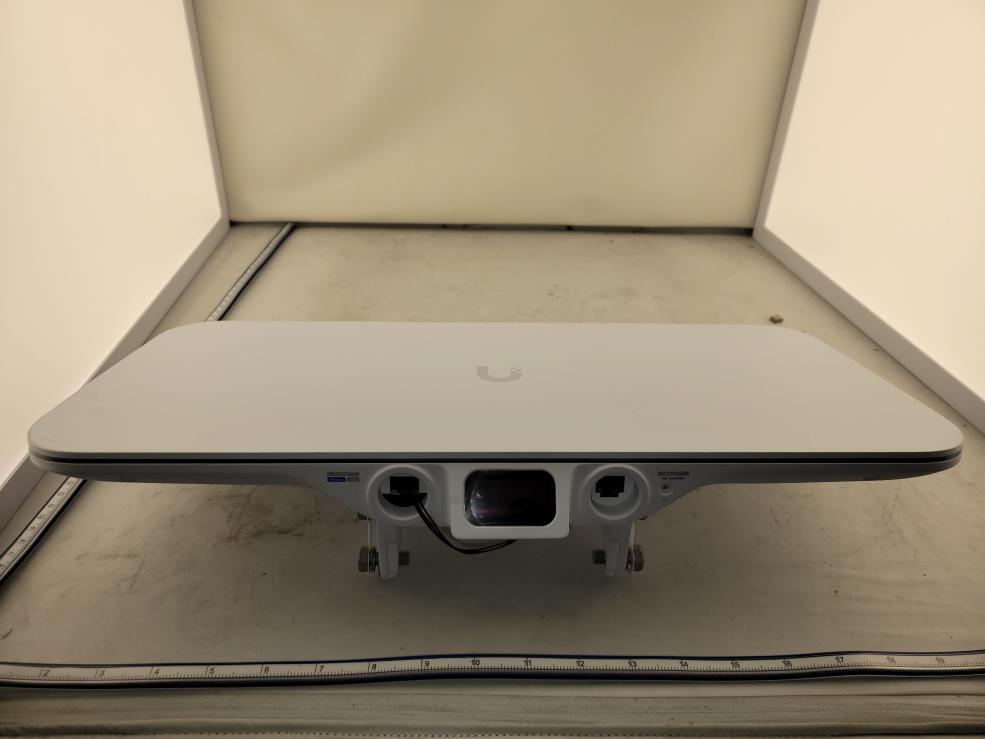

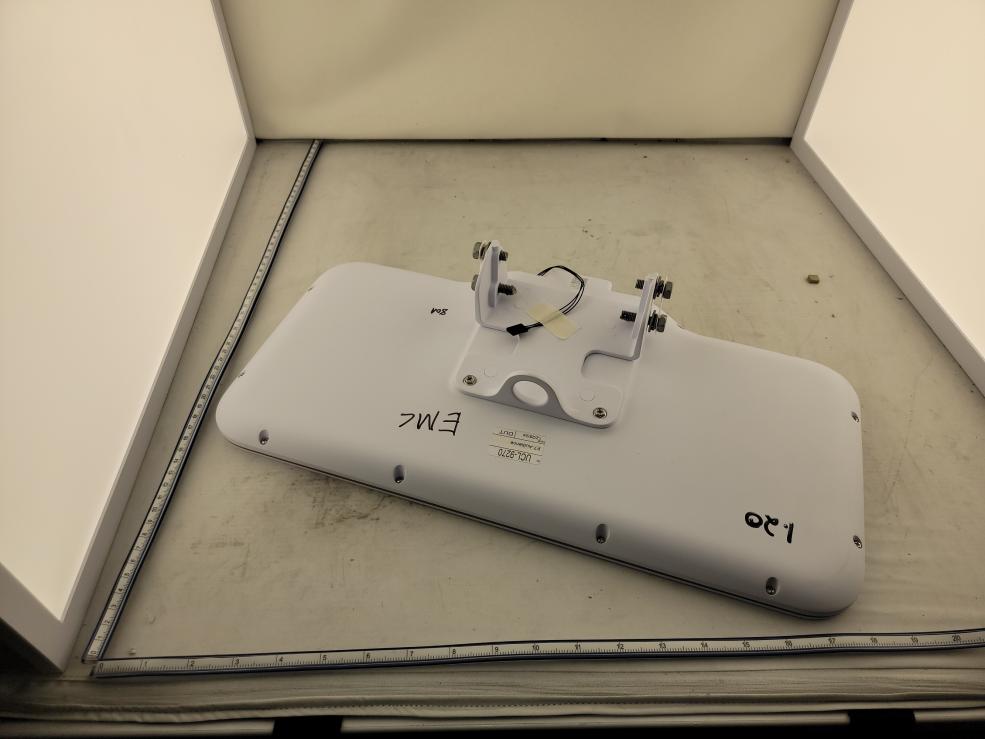

External viewUbiquiti E7AD external FCC photo from External Photos p. 3Source: External Photos p. 3

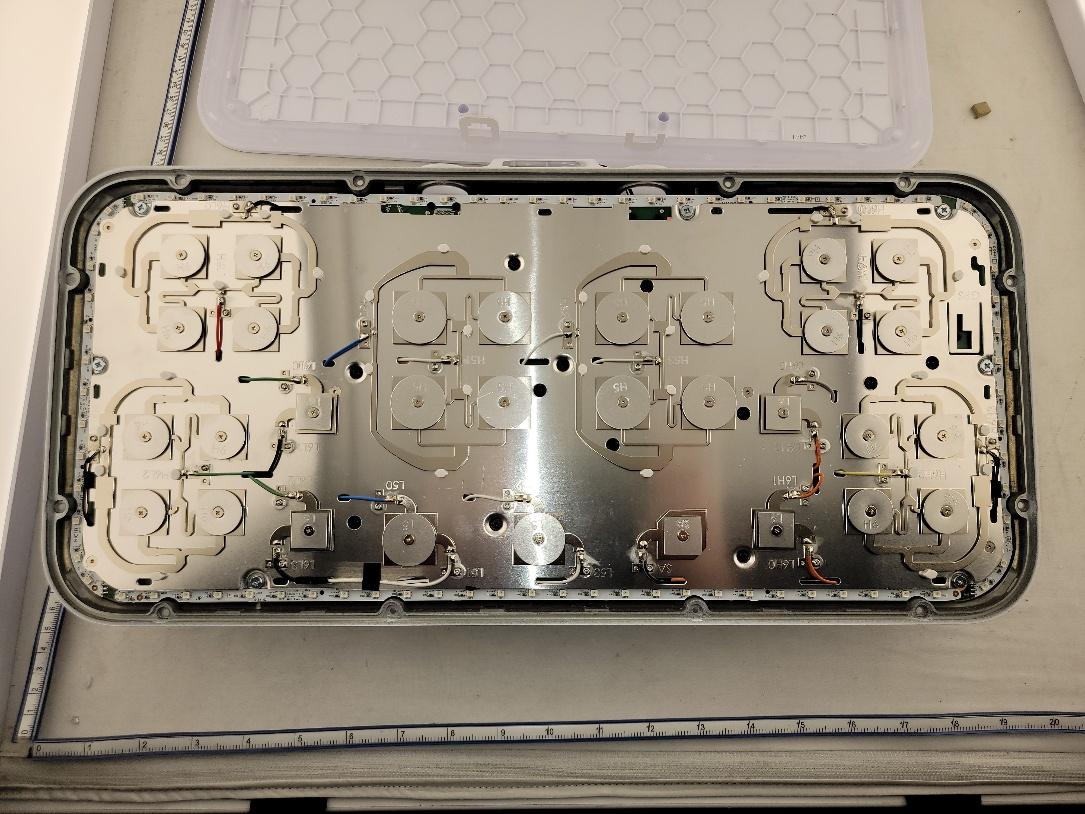

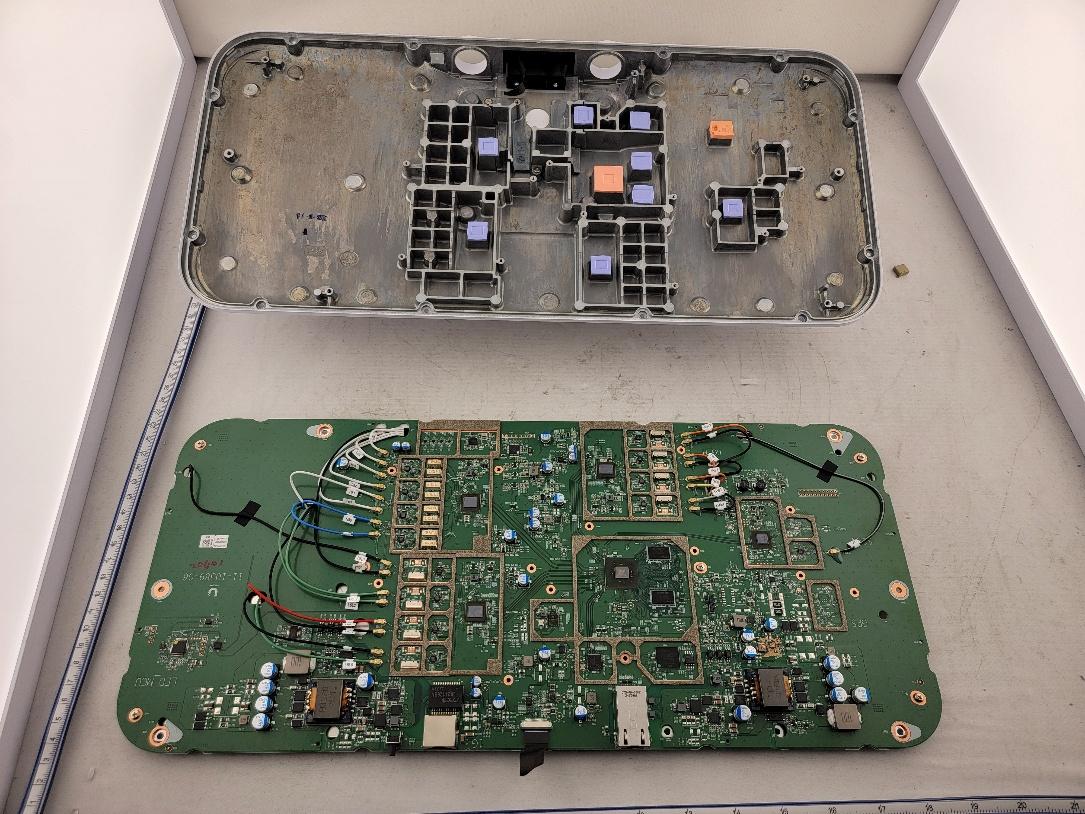

Internal viewUbiquiti E7AD internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

Official FCC source: Users Manual5 pages253 KB public file

The following are setup screen shots that the installer of the Ubiquiti E7-Audience would take.
Source: Users Manual, page 1
From the Quick Install Guide (QIG) the installer would click on the link for an Android or other device.
Source: Users Manual, page 1
Under setting screen, the installer would select the “Radios” link and this screen pops up
Source: Users Manual, page 4

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

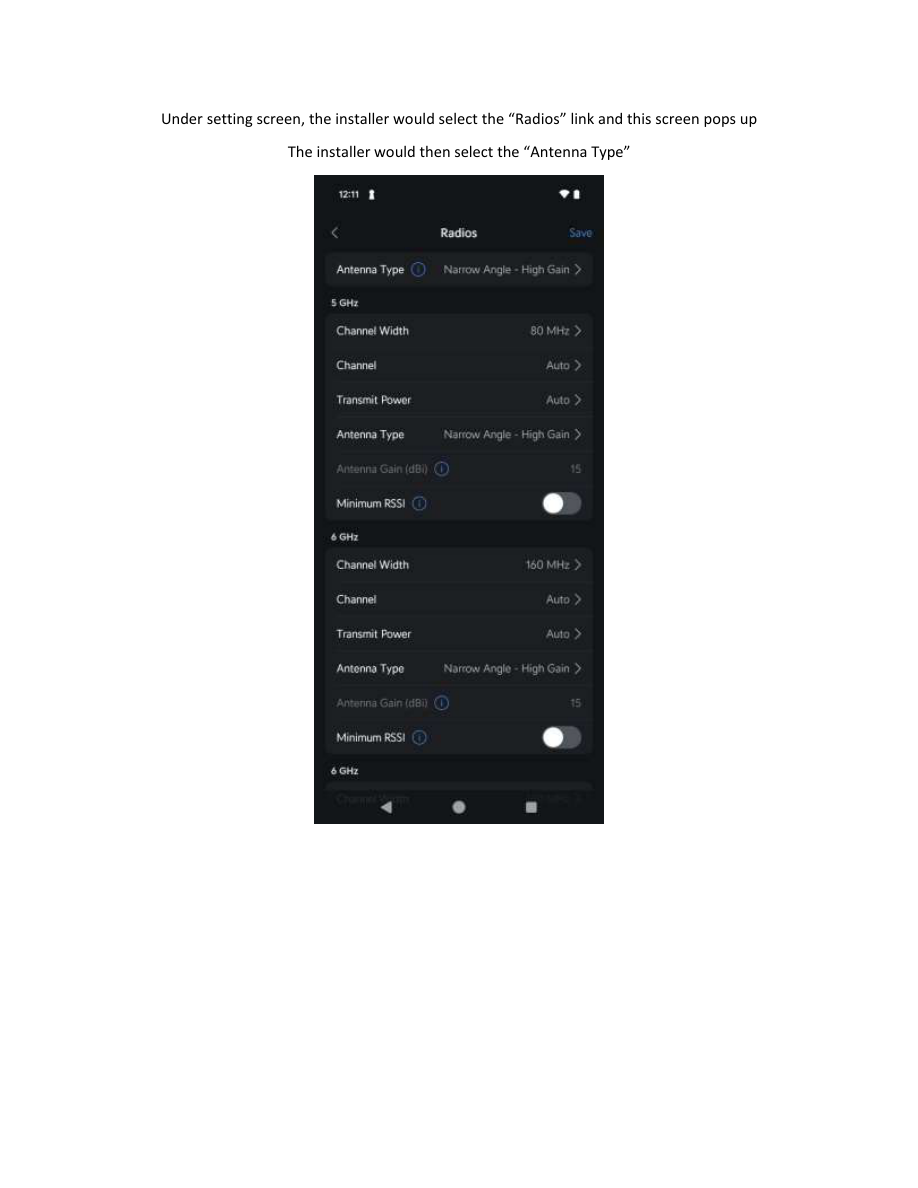

The installer would then select the “Antenna Type” visual from the manual from the FCC user manual — The installer would then select the “Antenna Type” visual from the manualSource: Users Manual, page 4
