FCC ID SWX-AFR

Ubiquiti AFR FCC filing (SWX-AFR)

Name: Ubiquiti AFR FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti AFR (SWX-AFR), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-AFR

Device categoryNetworking

Authorization dateJun 20, 2016

Plain-English filing summary

What this FCC record tells you

AFR is the device filed under FCC ID SWX-AFR by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover setup, status lights, and button controls.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-AFRThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDUtqujZc+G6Hx76H5VD+a3g==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jun 20, 2016

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: UtqujZc+G6Hx76H5VD+a3g==, Z7SGo7ZDNfmGw4guegaPdw==, LS9i4woMbi1hprRSqKOo3A==
Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 4 ranges grouped below
Frequency range	2400 - 2483.5 MHz \| 5150 - 5250 MHz \| 5725 - 5850 MHz \| 2412 - 2462 MHz \| 2422 - 2452 MHzSource: RF Exposure Info (3028164) p. 1; Test Report (3028165) p. 6
Maximum conducted output power	27.47 dBm \| 1.0 mWTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: RF Exposure Info (3028164) p. 2
Power density	5 mW/cm2 \| 1 mW/cm2 \| 1.0 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info (3028164) p. 1; RF Exposure Info (3028164) p. 2

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

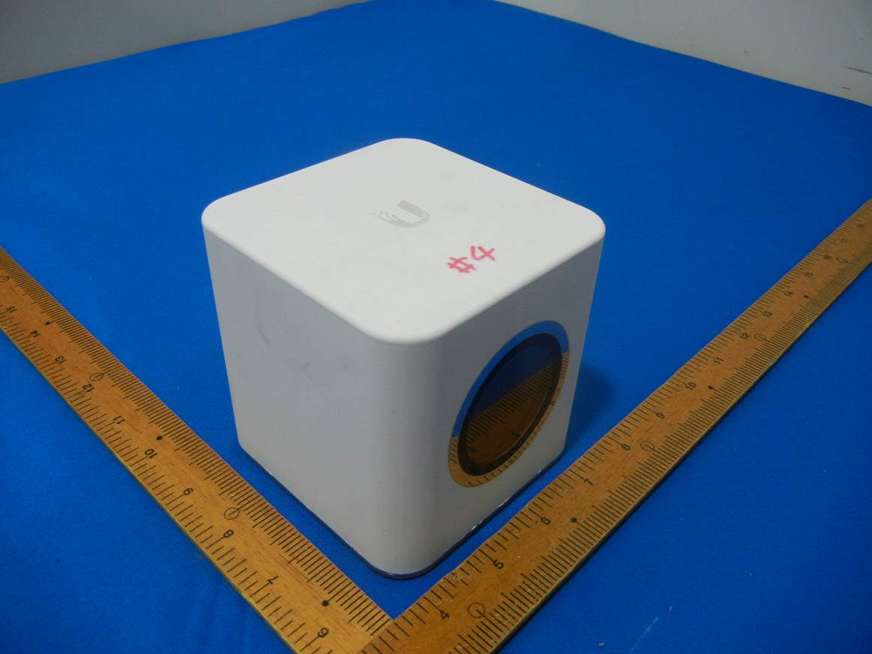

External viewUbiquiti AFR external FCC photo from External Photos p. 1Source: External Photos p. 1

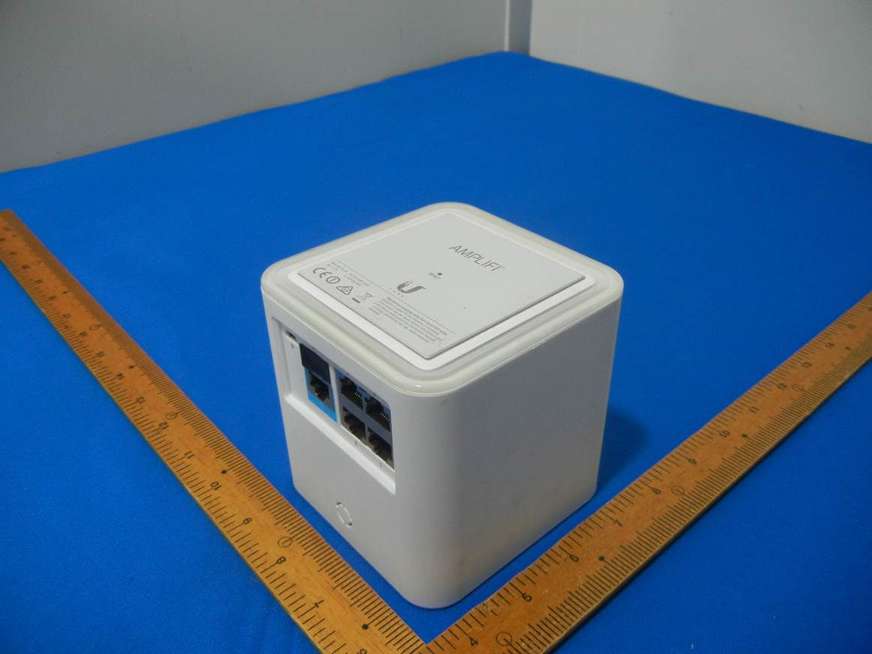

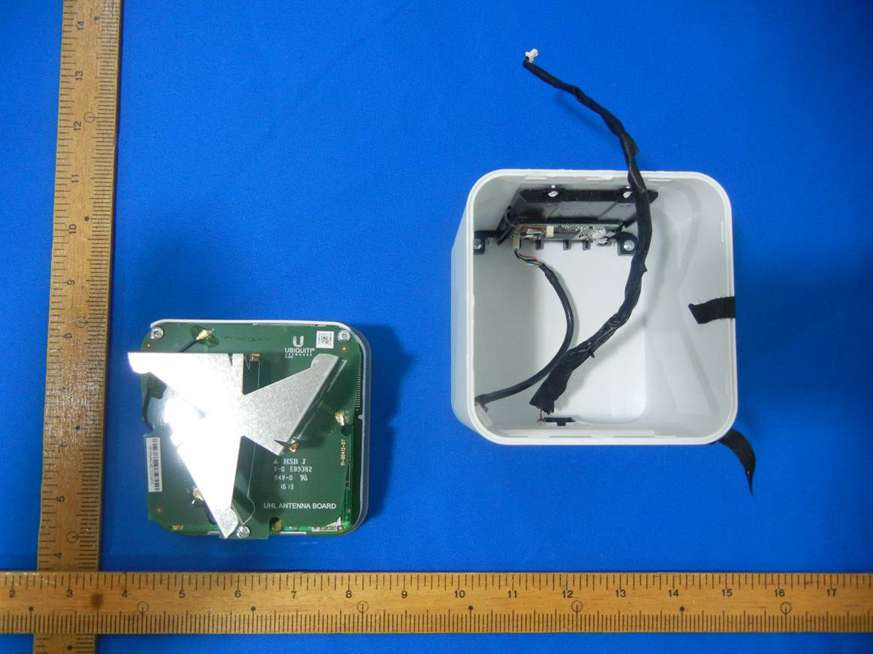

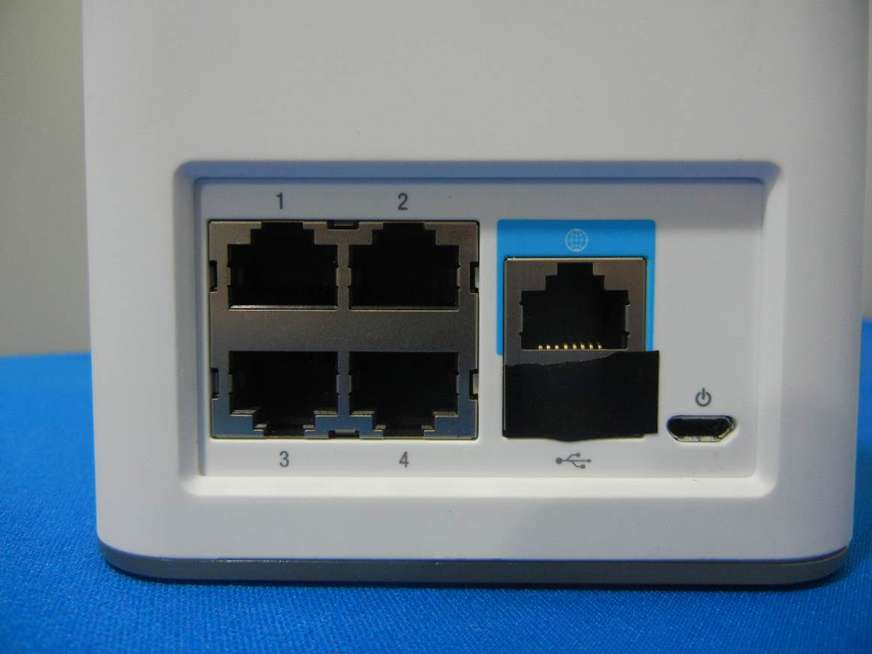

Internal viewUbiquiti AFR internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

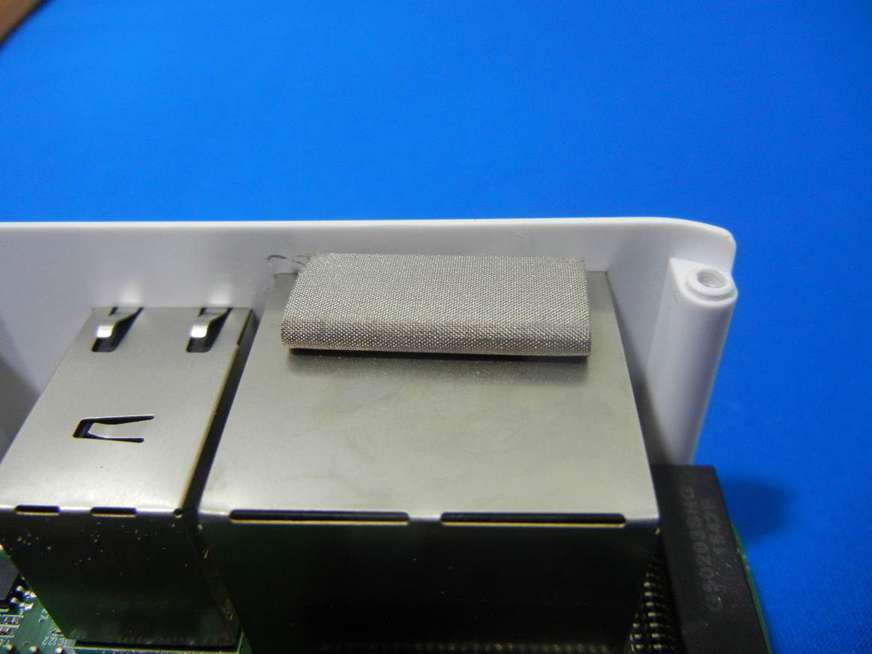

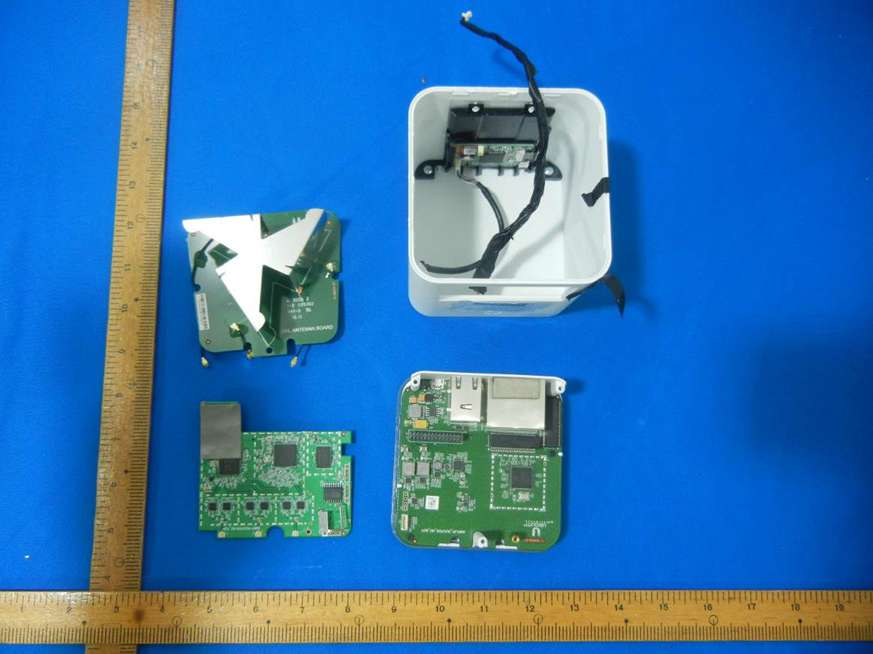

Internal viewUbiquiti AFR internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

LED and status lights

The bottom of the AmpliFi Router features an LED with a brightness setting configurable in the AmpliFi app. By default, the LED is fully lit when configured and ready for use.

Manual page 5

"The bottom of the AmpliFi Router features an LED with a brightness setting configurable in the AmpliFi app. By default, the LED is fully lit when configured and ready for use."

Users Manual

Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual32 pages5.8 MB public file

The public manual includes useful setup, status-light, button and port, and power details.

Manual at a glance

Router Backp. 6
Power and chargingp. 12
Power and chargingp. 13
Power and chargingp. 16
Resetting to Factory Defaultsp. 19

How do I set up this device?

Thank you for purchasing the AmpliFi™ HD Home Wi-Fi System.

Source: Users Manual, page 3

What do the status lights mean?

Router Front Remove the electrostatic sticker from the front of the AmpliFi Router.

Source: Users Manual, page 5

What buttons or ports does the manual describe?

1-4 Four Gigabit Ethernet ports available to connect 10/100/1000 Mbps wired network devices to the Internet.

Source: Users Manual, page 6

What power or charging details does the manual include?

Connect the Power Adapter to a power outlet.

Source: Users Manual, page 12

Getting Started

Thank you for purchasing the AmpliFi™ HD Home Wi-Fi System.

Source: Users Manual, page 3

Hardware Overview

Router Front Remove the electrostatic sticker from the front of the AmpliFi Router.

Source: Users Manual, page 5

Router Back

1-4 Four Gigabit Ethernet ports available to connect 10/100/1000 Mbps wired network devices to the Internet.

Source: Users Manual, page 6

Power and charging

Connect the Power Adapter to a power outlet.

Source: Users Manual, page 12

Power and charging

Power on your broadband modem.

Source: Users Manual, page 13

Power and charging

Plug the Mesh Point into a power outlet.

Source: Users Manual, page 16

Resetting to Factory Defaults

If the AmpliFi Router administration password is lost, factory default settings can be restored by using an object such as a straightened paper clip or pin to press the Reset located on the bottom of the AmpliFi Route...

Source: Users Manual, page 19

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

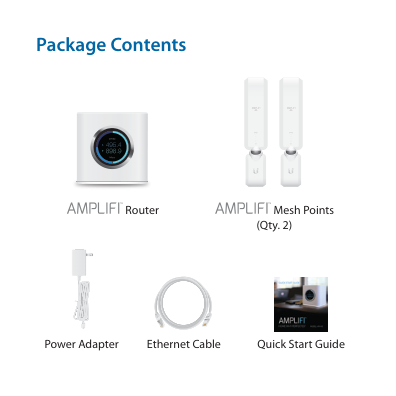

Package Contents visual from the manual from the FCC user manual — Package Contents visual from the manualSource: Users Manual, page 4
