Ubiquiti AFPHD FCC filing (SWX-AFPHD)

Name: Ubiquiti AFPHD FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti AFPHD (SWX-AFPHD), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-AFPHD

Device categoryNetworking

Authorization dateJul 28, 2016

Plain-English filing summary

What this FCC record tells you

AFPHD is the device filed under FCC ID SWX-AFPHD by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover status lights.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-AFPHDThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDI0e0PEfat+yeL7kZE8L/Fw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jul 28, 2016

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: I0e0PEfat+yeL7kZE8L/Fw==, TxZKrZSken2yxbCiGx1u4Q==, dxgMgOXC8+7Hug6q0FxXzA==
Equipment classes: DTS - digital wireless transmitter; NII - Wi-Fi-style wireless device; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 2 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 4 ranges grouped below
Frequency range	2412 - 2462 MHz \| 5180 - 5240 MHz \| 5745 - 5825 MHz \| 2402 - 2480 MHzSource: RF Exposure Info p. 4
Maximum conducted output power	30 dBm \| -0.27 dBmTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 4; Test Report p. 5

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

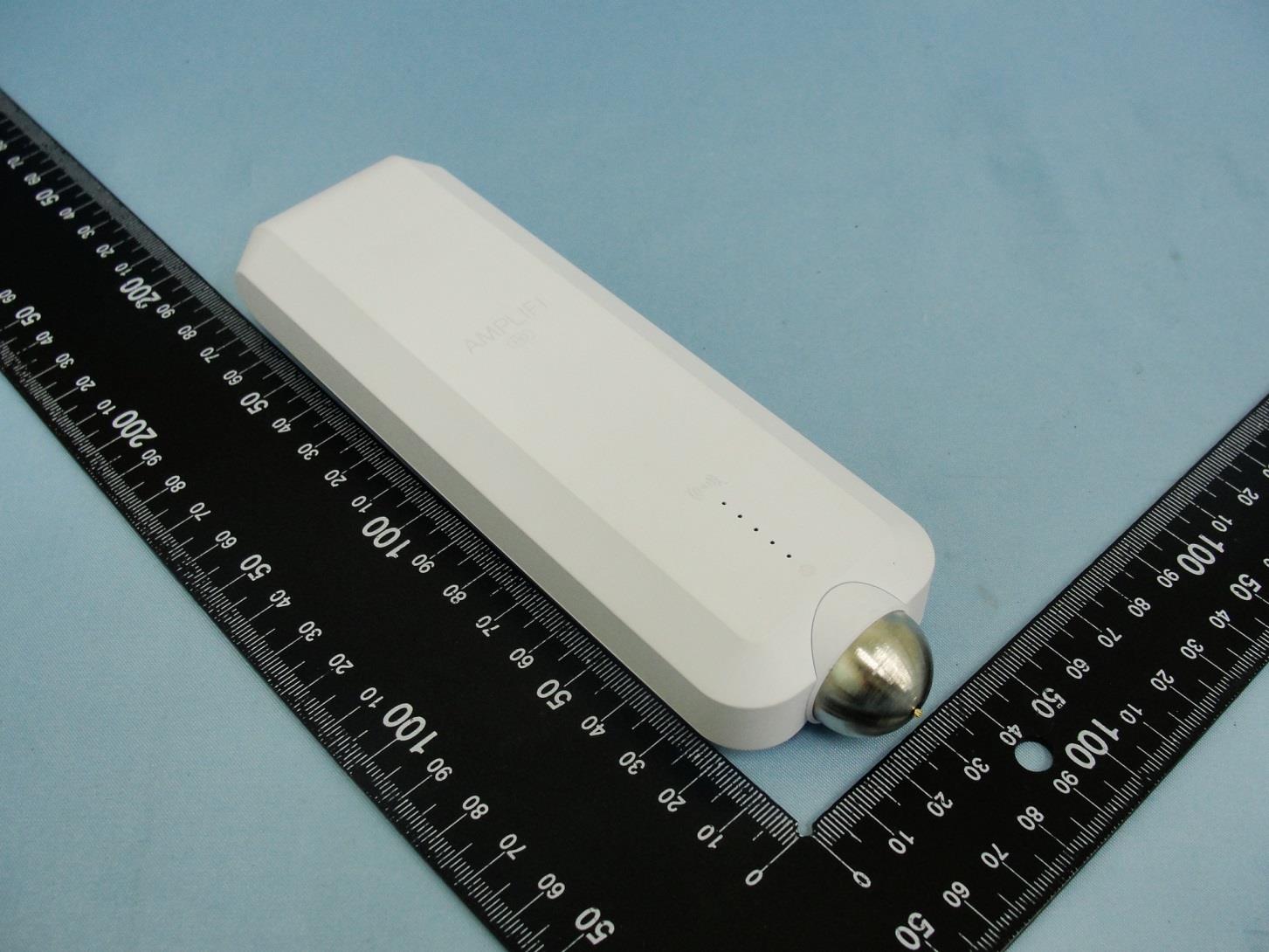

External viewUbiquiti AFPHD external FCC photo from External Photos p. 1Source: External Photos p. 1

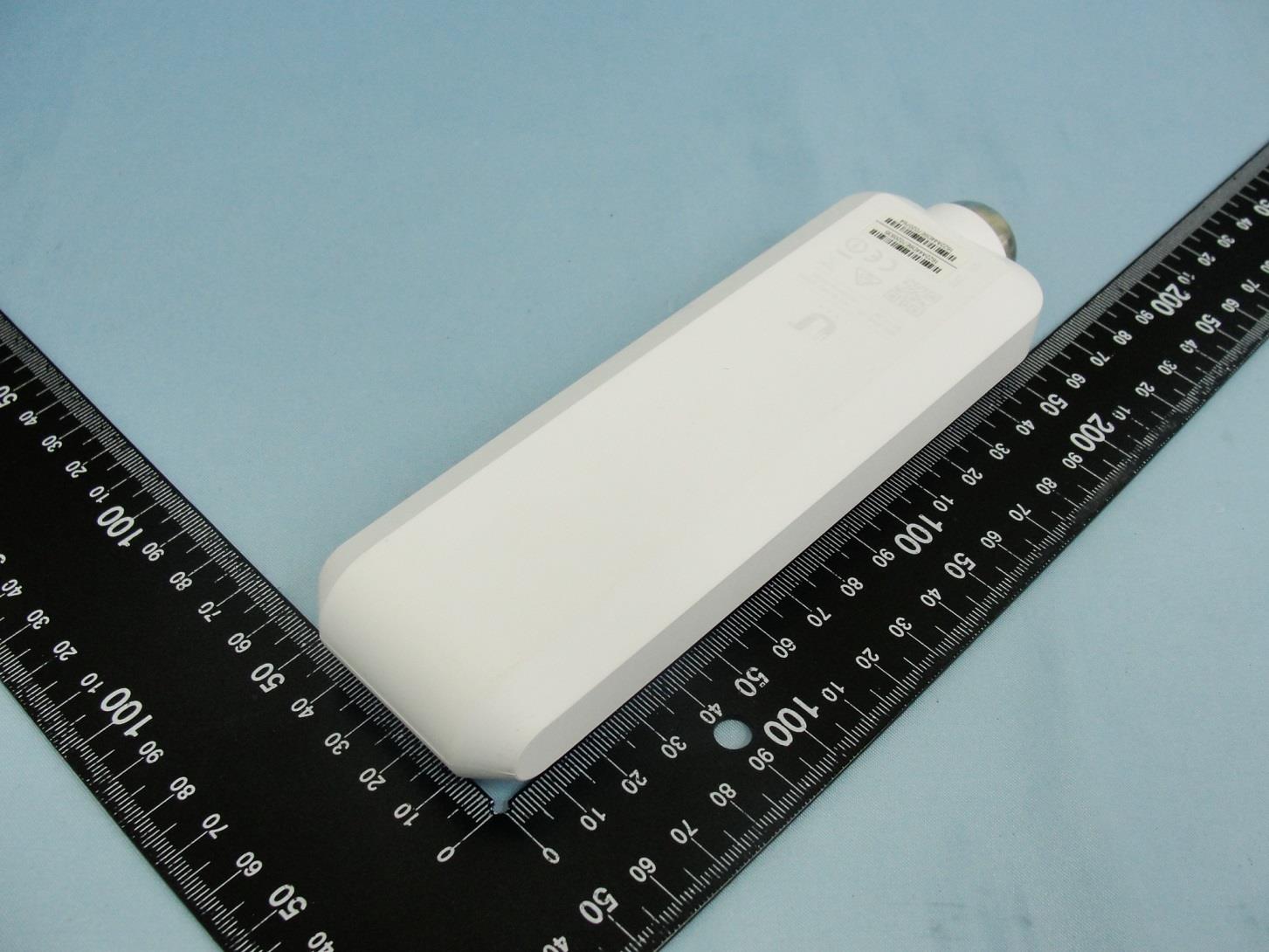

External viewUbiquiti AFPHD external FCC photo from External Photos p. 2Source: External Photos p. 2

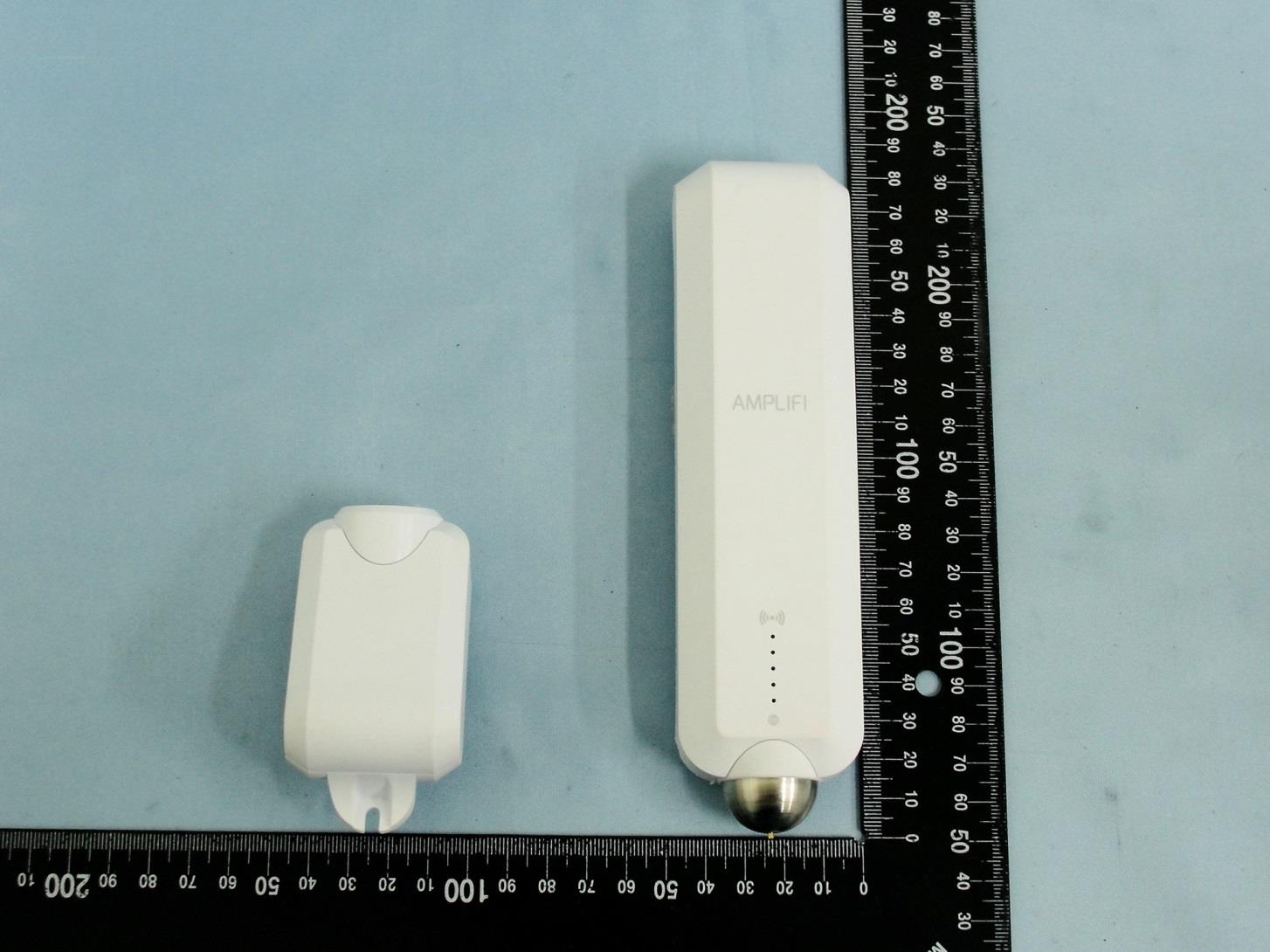

External viewUbiquiti AFPHD external FCC photo from External Photos p. 4Source: External Photos p. 4

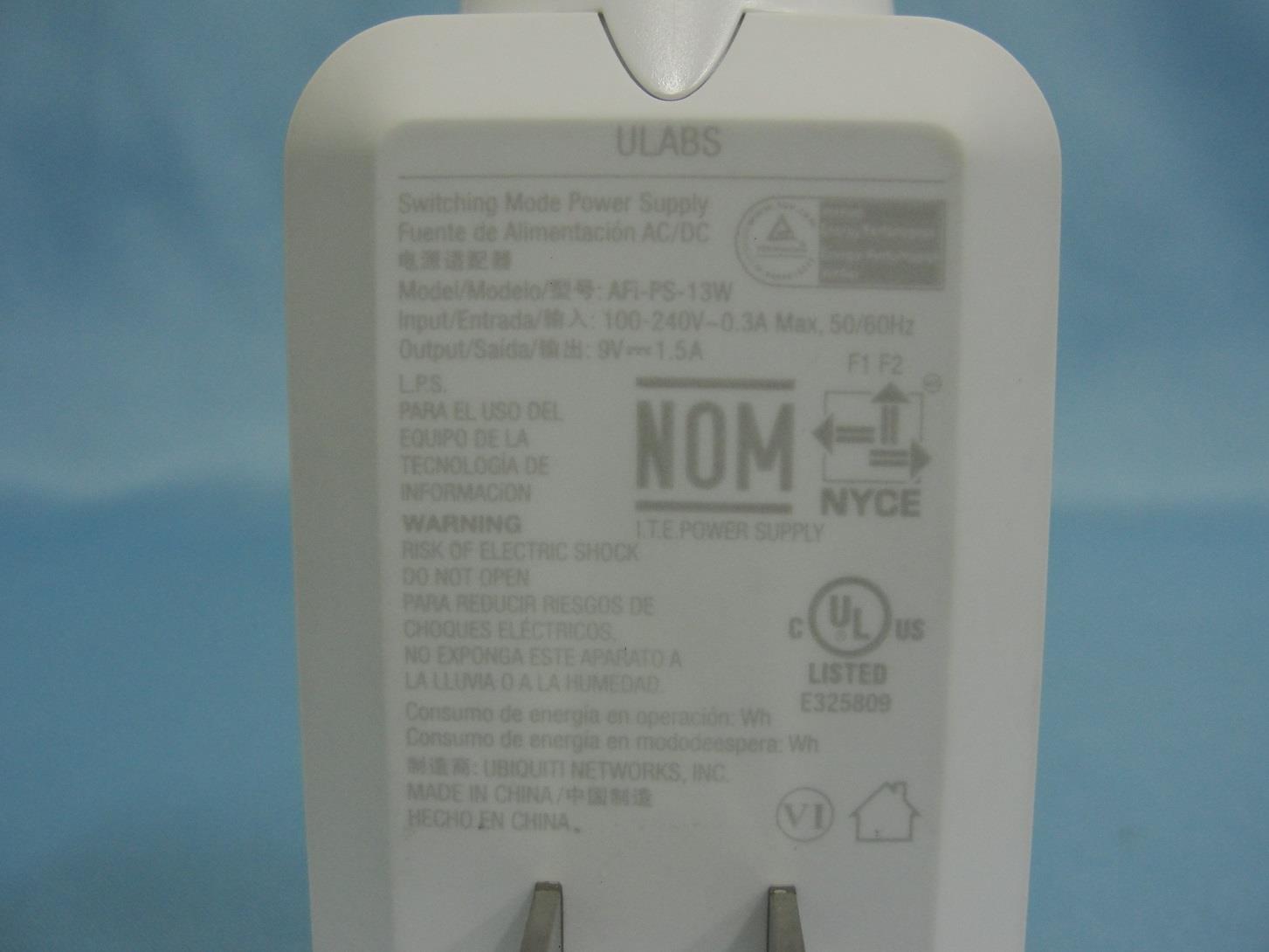

External viewUbiquiti AFPHD external FCC photo from External Photos p. 5Source: External Photos p. 5

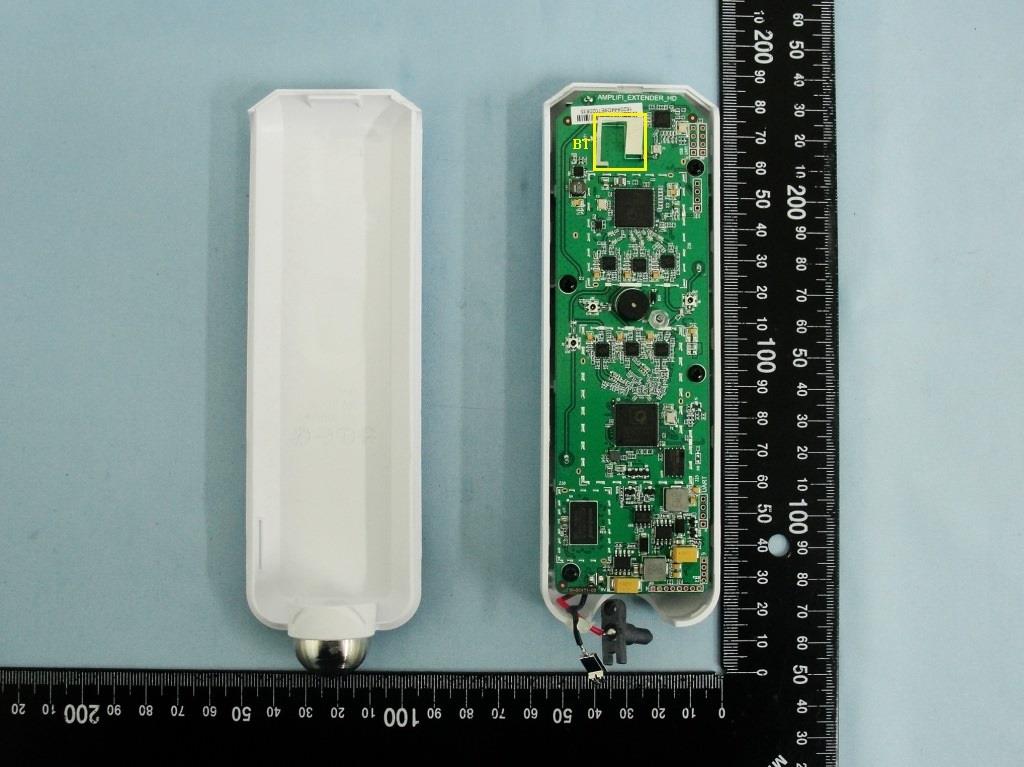

Internal viewUbiquiti AFPHD internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

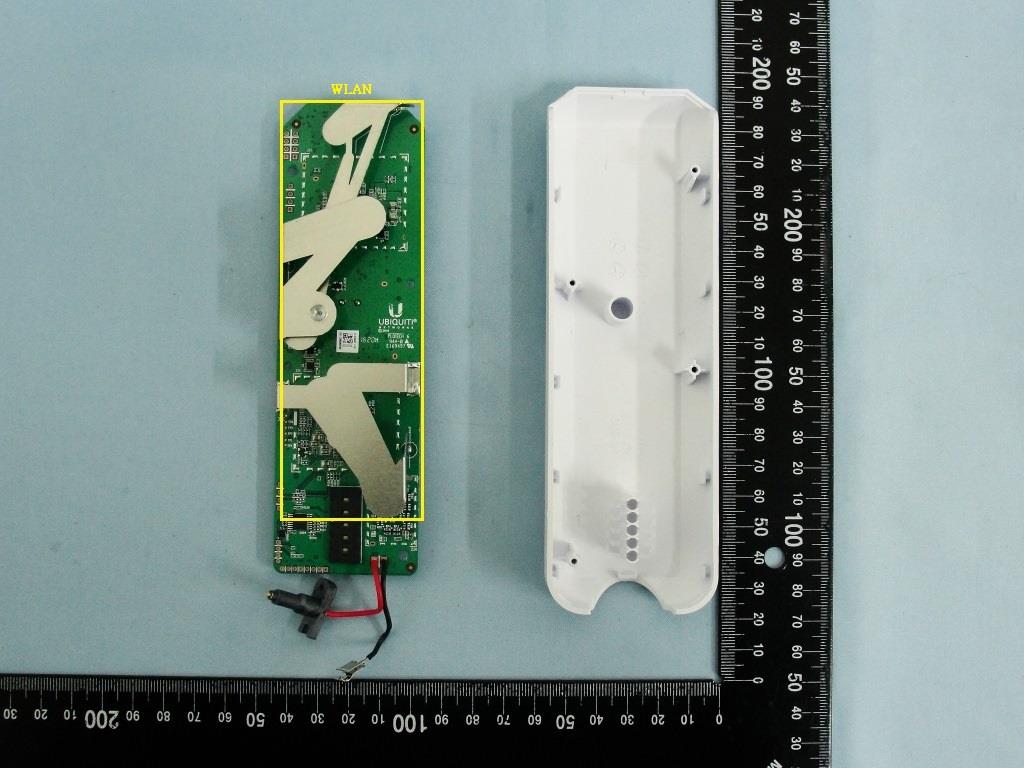

Internal viewUbiquiti AFPHD internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

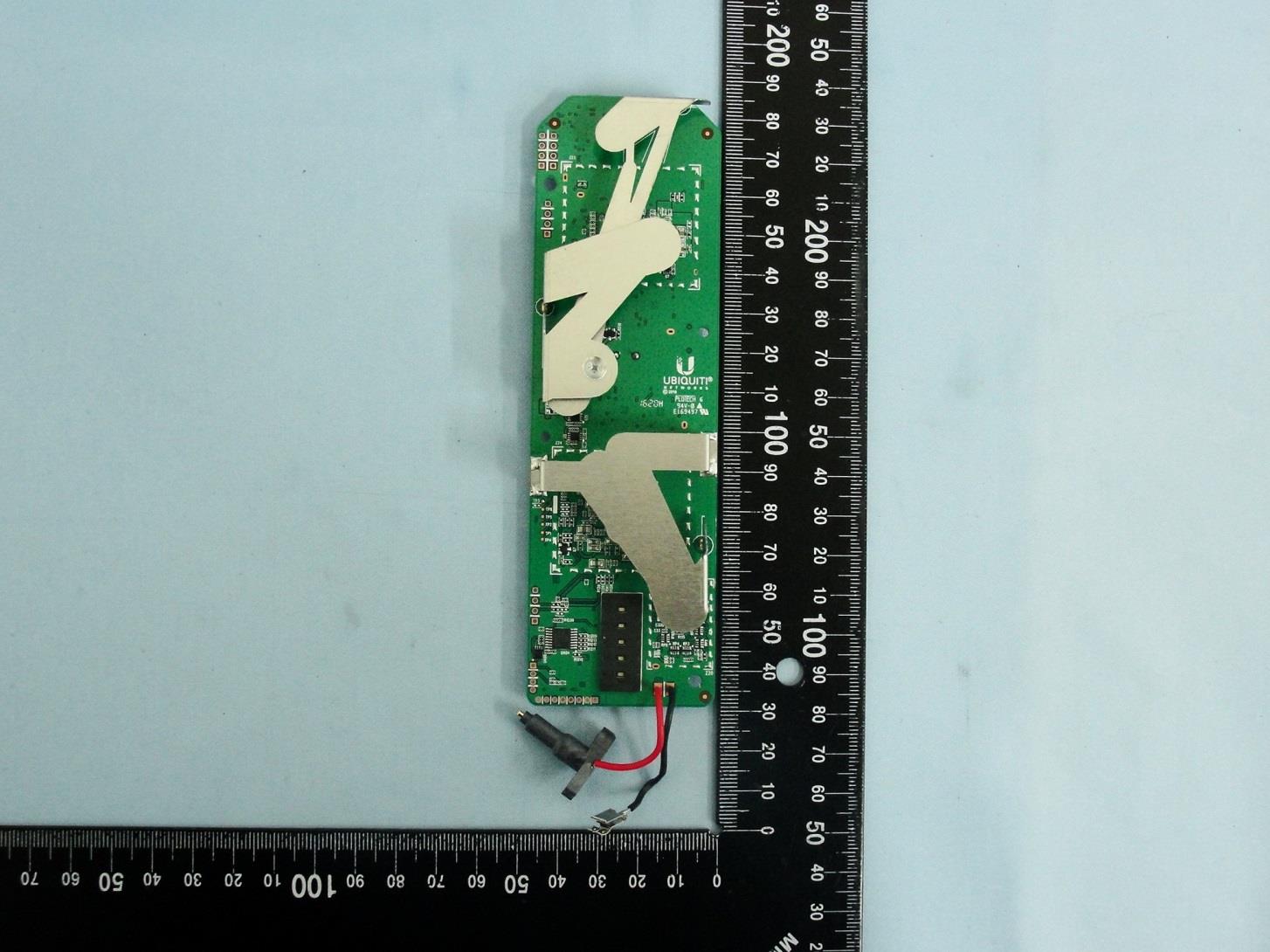

Internal viewUbiquiti AFPHD internal FCC photo from Internal Photos p. 3Source: Internal Photos p. 3

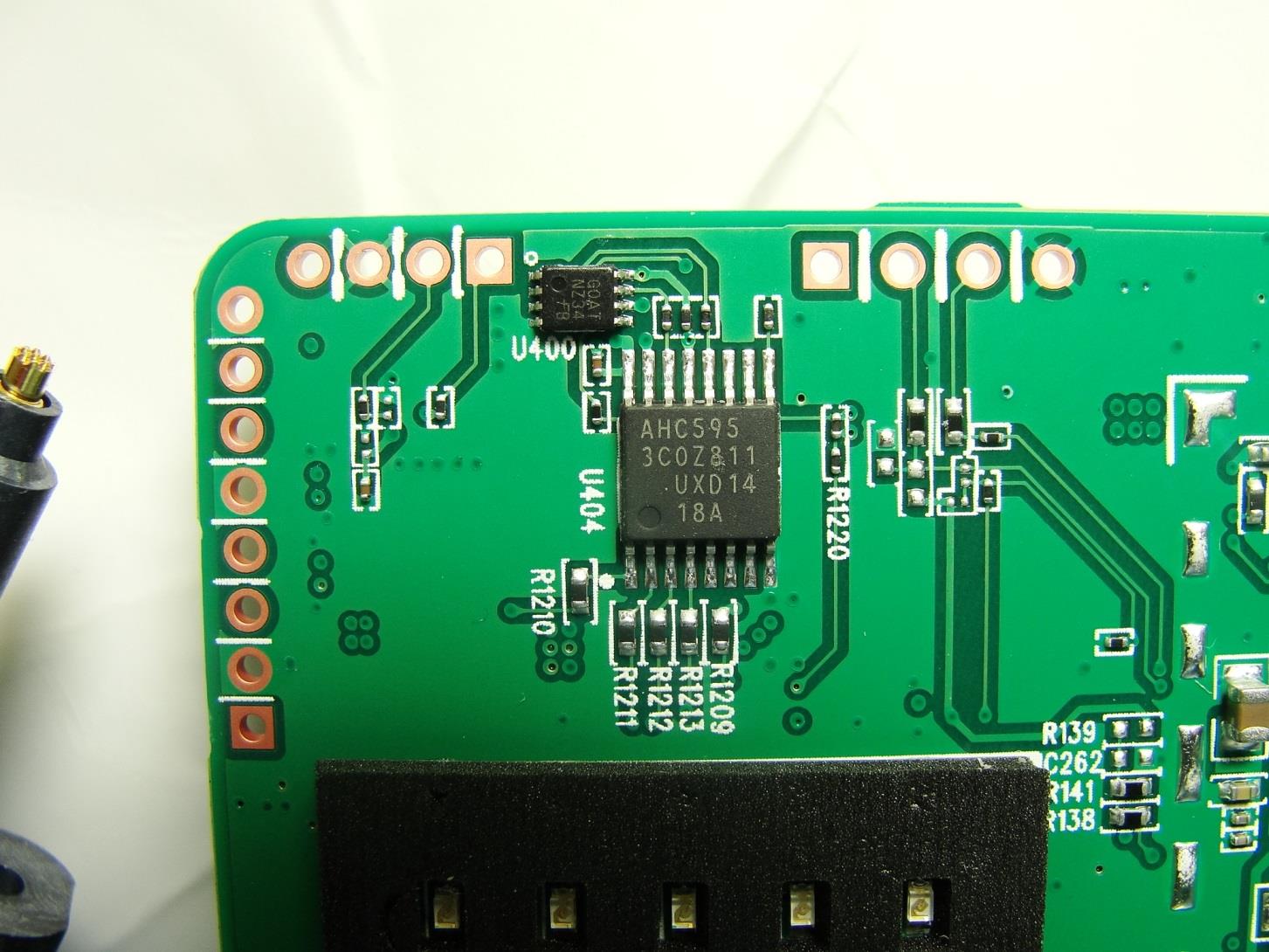

Internal viewUbiquiti AFPHD internal FCC photo from Internal Photos p. 4Source: Internal Photos p. 4

Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

LED and status lights

Resetting to Factory Defaults Factory default settings can be restored by using an object such as a straightened paper clip or pin to press the Mesh Point Reset for approximately 10 seconds until the LED turns off.

Manual page 9

"Resetting to Factory Defaults Factory default settings can be restored by using an object such as a straightened paper clip or pin to press the Mesh Point Reset for approximately 10 seconds until the LED turns off."

Users Manual

Manually approved source-backed quick troubleshooting on 2026-05-02 after reviewing remaining held snippets; rejected garbled, legal/RF-exposure, and truncated weak rows.

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual3.2 MB public file

The public manual includes useful status-light details.

Manual at a glance

Resetting to Factory Defaultsp. 9

What do the status lights mean?

Factory default settings can be restored by using an object such as a straightened paper clip or pin to press the Mesh Point Reset for approximately 10 seconds until the LED turns off.

Source: Users Manual, page 9

Resetting to Factory Defaults

Factory default settings can be restored by using an object such as a straightened paper clip or pin to press the Mesh Point Reset for approximately 10 seconds until the LED turns off.

Source: Users Manual, page 9
