Public FCC record for Ubiquiti AFAP (SWX-AFAP), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.
AFAP is the device filed under FCC ID SWX-AFAP by Ubiquiti Inc.
Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.
The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.
Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.
The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.
Manual excerpts cover button controls and power details.
Raw application fields from the FCC record, shown separately from the plain-English summary.
A quick read on what each public FCC application changed or confirmed, with source links attached.
This FCC application appears to be a permitted change to an already-authorized device, with the matching grant and public exhibits grouped together.
2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Class II Permissive Change rows.
2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.
This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.
This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.
| FCC equipment class | DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing. |
|---|---|
| FCC rule parts | Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents. |
| Frequency bands | 5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 5 ranges grouped below |
| Frequency range | 2412 - 2462 MHz | 5150 - 5250 MHz | 5250 - 5350 MHz | 5470 - 5725 MHz | 5725 - 5850 MHz | 2402 - 2480 MHz | 2422 - 2452 MHzSource: RF Exposure Info p. 1; Test Report p. 7 |
| Maximum conducted output power | 11 dBm | 30 dBm | 1.0 mWTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 16; RF Exposure Info p. 1 |

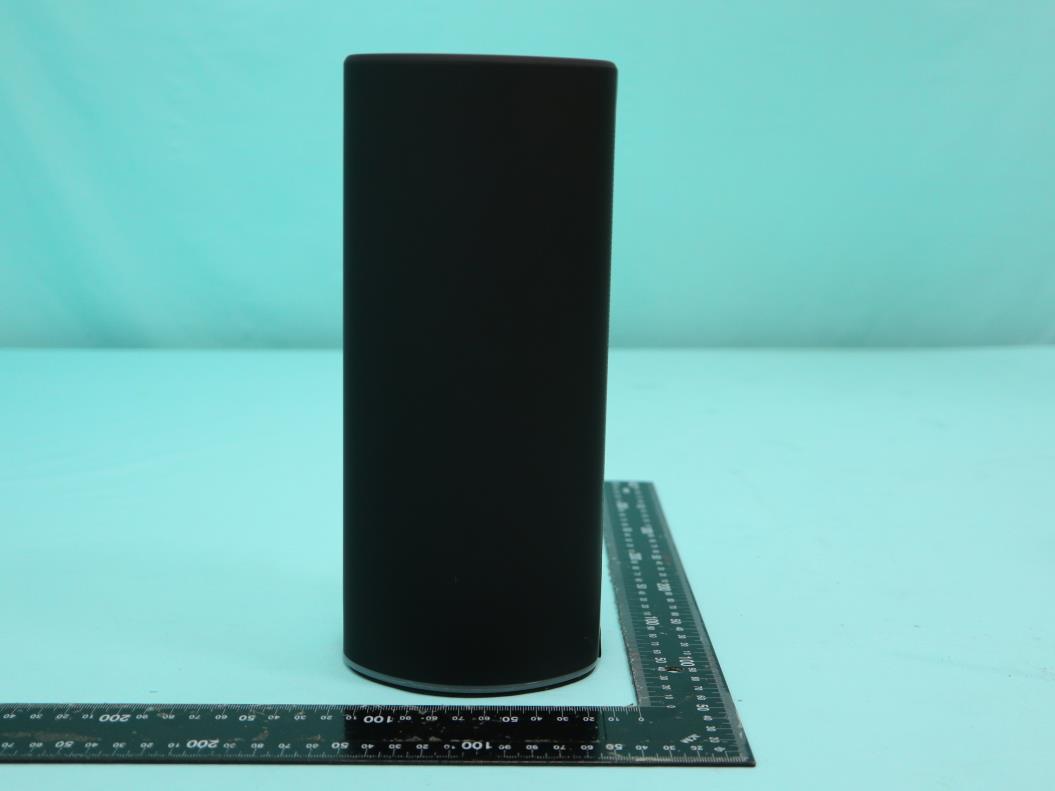

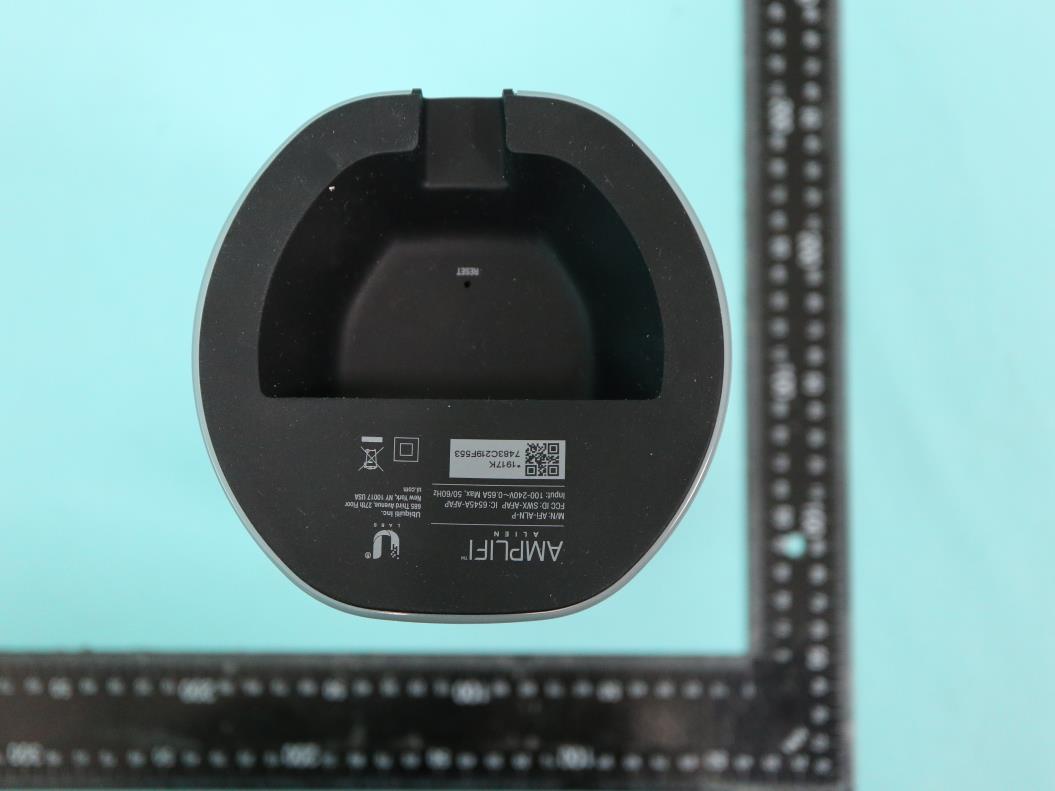

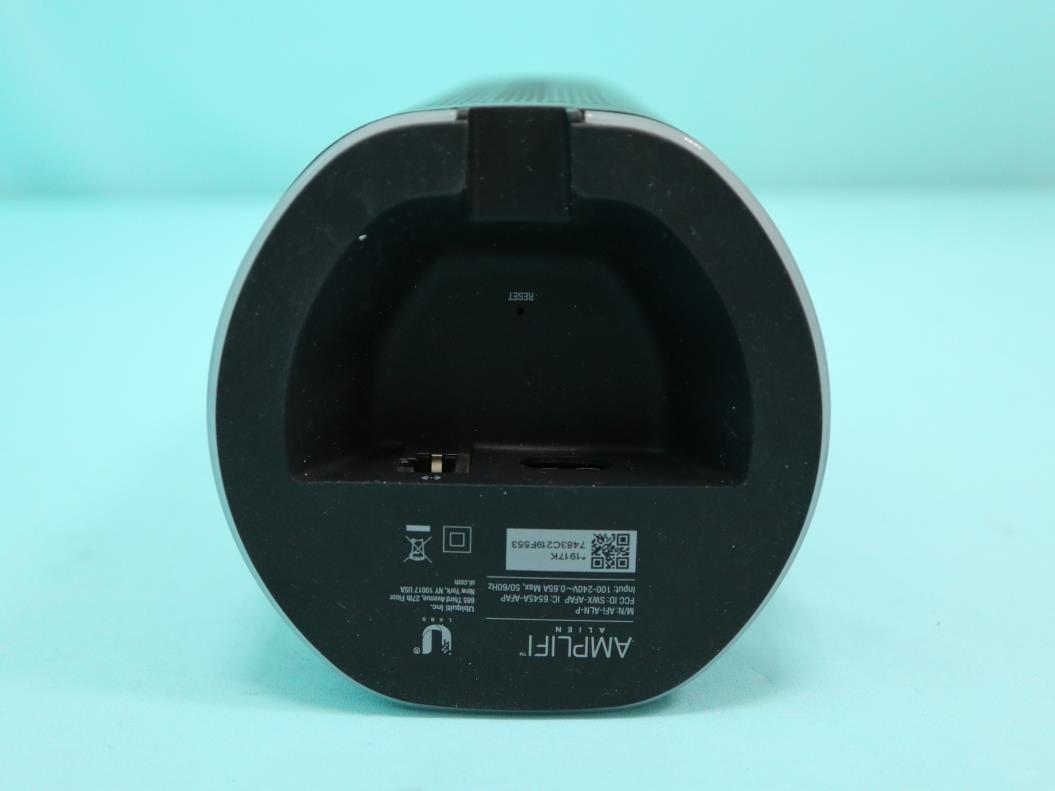

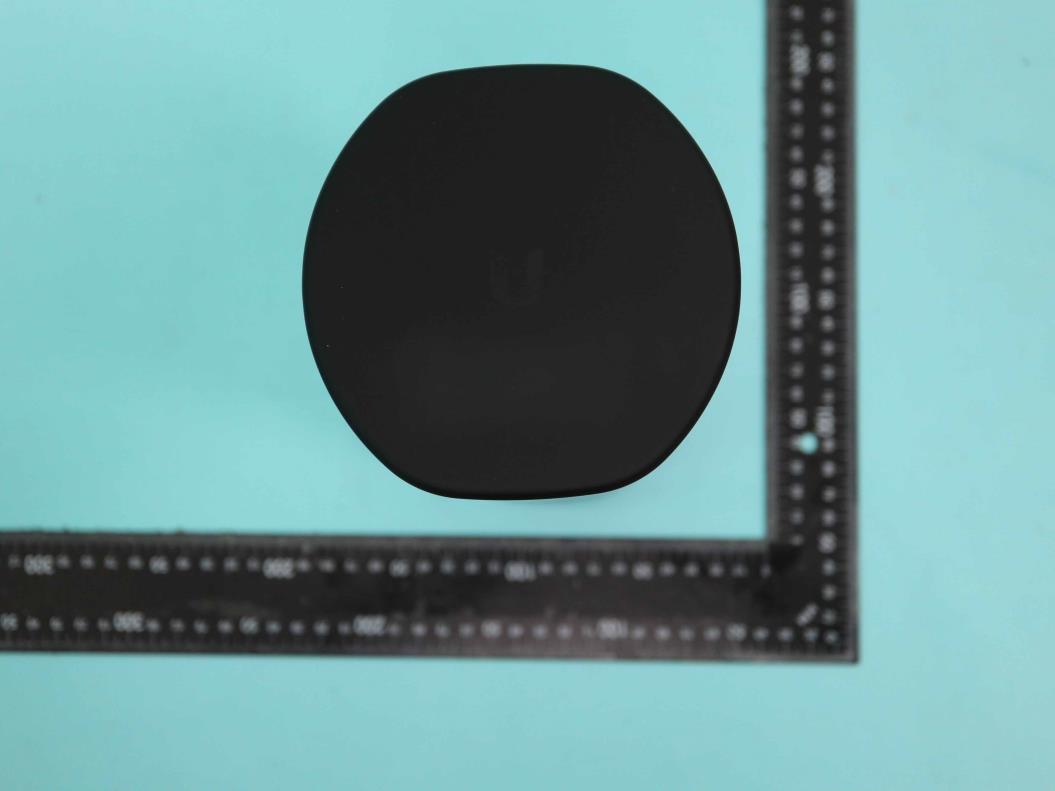

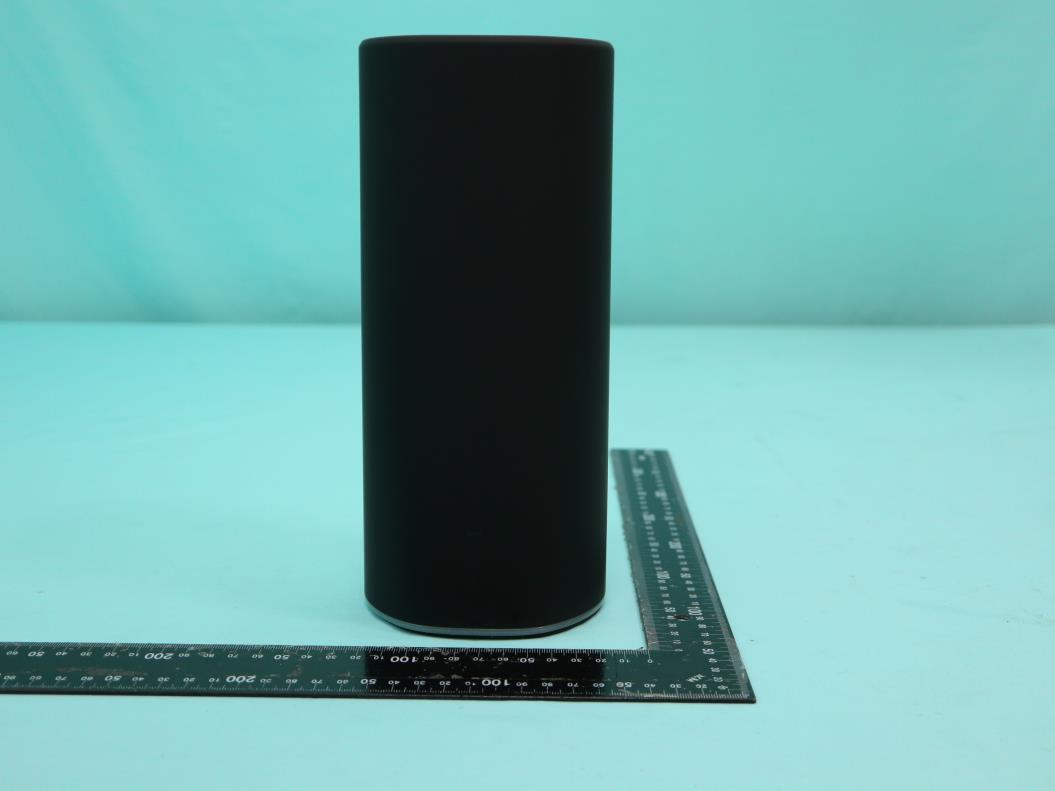

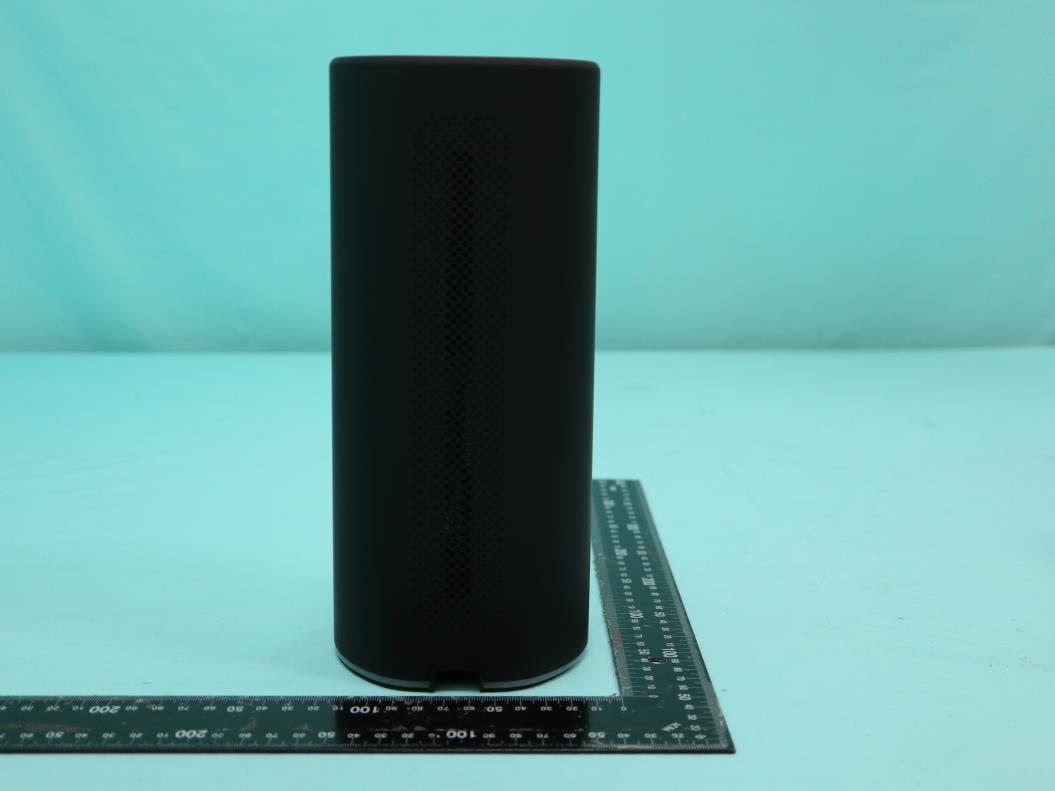

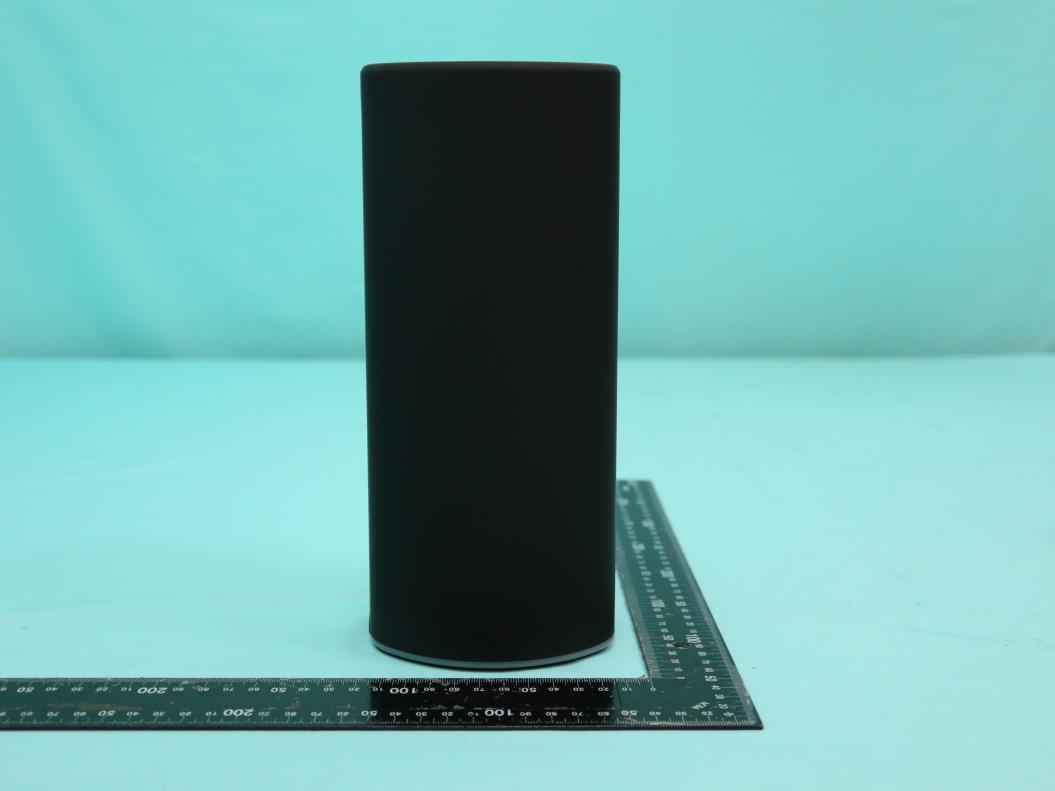

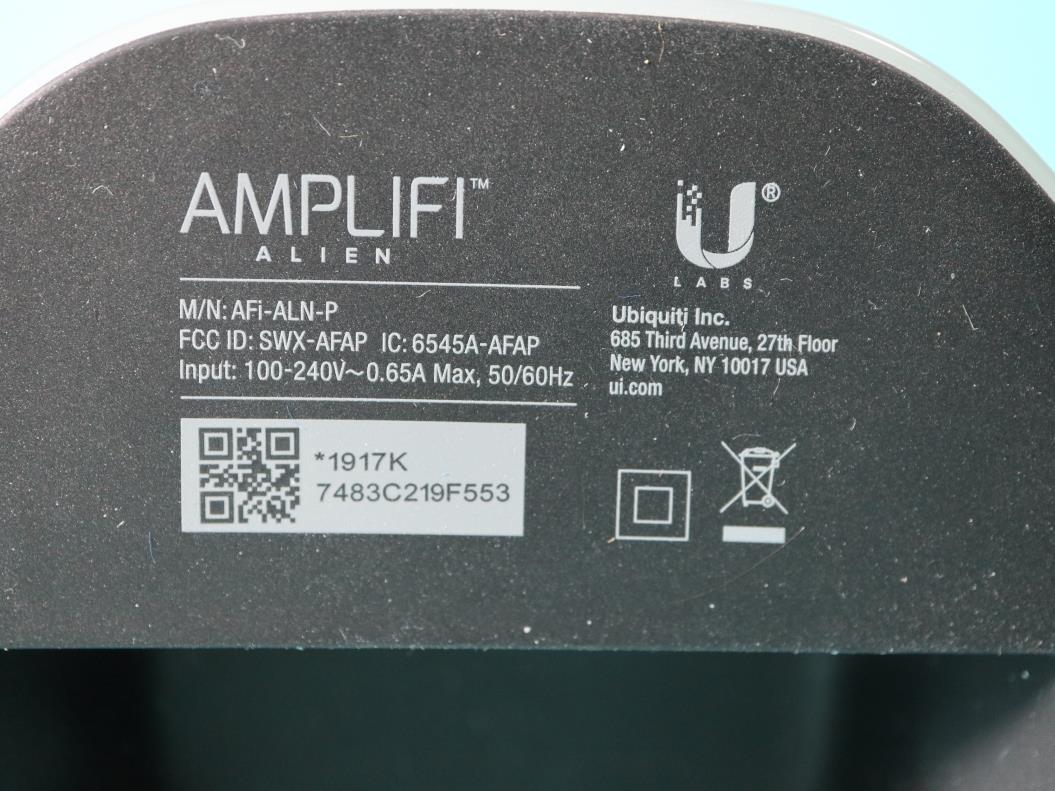

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.
Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.
Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.
Searchable manual text plus skimmable details from the public FCC user manual.
The public manual includes useful button and port, and power details.
2019/11/6 AFi-ALN Quick Start Guide https://dl.ui.com/qsg/TeamReview/Test/AFi-ALN/AFi-ALN_EN.html 2/17 Touchscreen Display Adjustable LED Ethernet Ports WAN Port Power Port Signal LEDs The front of the AmpliFi Router...
2019/11/6 AFi-ALN Quick Start Guide https://dl.ui.com/qsg/TeamReview/Test/AFi-ALN/AFi-ALN_EN.html 14/17 ESD/EMP Protection ± 24kV Air/Contact Buttons Reset Antennas (2) Internal Dual-Band Metal Stamp with 12 Polarity...
2019/11/6 AFi-ALN Quick Start Guide https://dl.ui.com/qsg/TeamReview/Test/AFi-ALN/AFi-ALN_EN.html 2/17 Touchscreen Display Adjustable LED Ethernet Ports WAN Port Power Port Signal LEDs The front of the AmpliFi Router...
2019/11/6 AFi-ALN Quick Start Guide https://dl.ui.com/qsg/TeamReview/Test/AFi-ALN/AFi-ALN_EN.html 3/17 Adjustable LED Ethernet Port Power Port The Signal LEDs will reflect signal strength once the MeshPoint is connect...
2019/11/6 AFi-ALN Quick Start Guide https://dl.ui.com/qsg/TeamReview/Test/AFi-ALN/AFi-ALN_EN.html 14/17 ESD/EMP Protection ± 24kV Air/Contact Buttons Reset Antennas (2) Internal Dual-Band Metal Stamp with 12 Polarity...
