FCC ID SWX-AF5LTU

Ubiquiti AF5LTU FCC filing (SWX-AF5LTU)

Name: Ubiquiti AF5LTU FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti AF5LTU (SWX-AF5LTU), a digital transmission system device filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-AF5LTU

Device categoryNetworking

Authorization dateFeb 26, 2018

Plain-English filing summary

What this FCC record tells you

AF5LTU is the device filed under FCC ID SWX-AF5LTU by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi and 2.4 GHz Wi-Fi / Bluetooth.

Manual excerpts cover button controls and status lights.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-AF5LTUThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDSS - spread-spectrum wireless transmitterIn plain English, this covers a spread-spectrum wireless transmitter.

FCC rule partsPart 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios.

Application IDcJALJatLWyNysQho6u8mLA==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Feb 26, 2018

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: xtoFidRK/UJpPxIqE5Rofw==, cJALJatLWyNysQho6u8mLA==
Equipment classes: NII - Wi-Fi-style wireless device; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 5 ranges grouped below
Power density	1 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 1

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

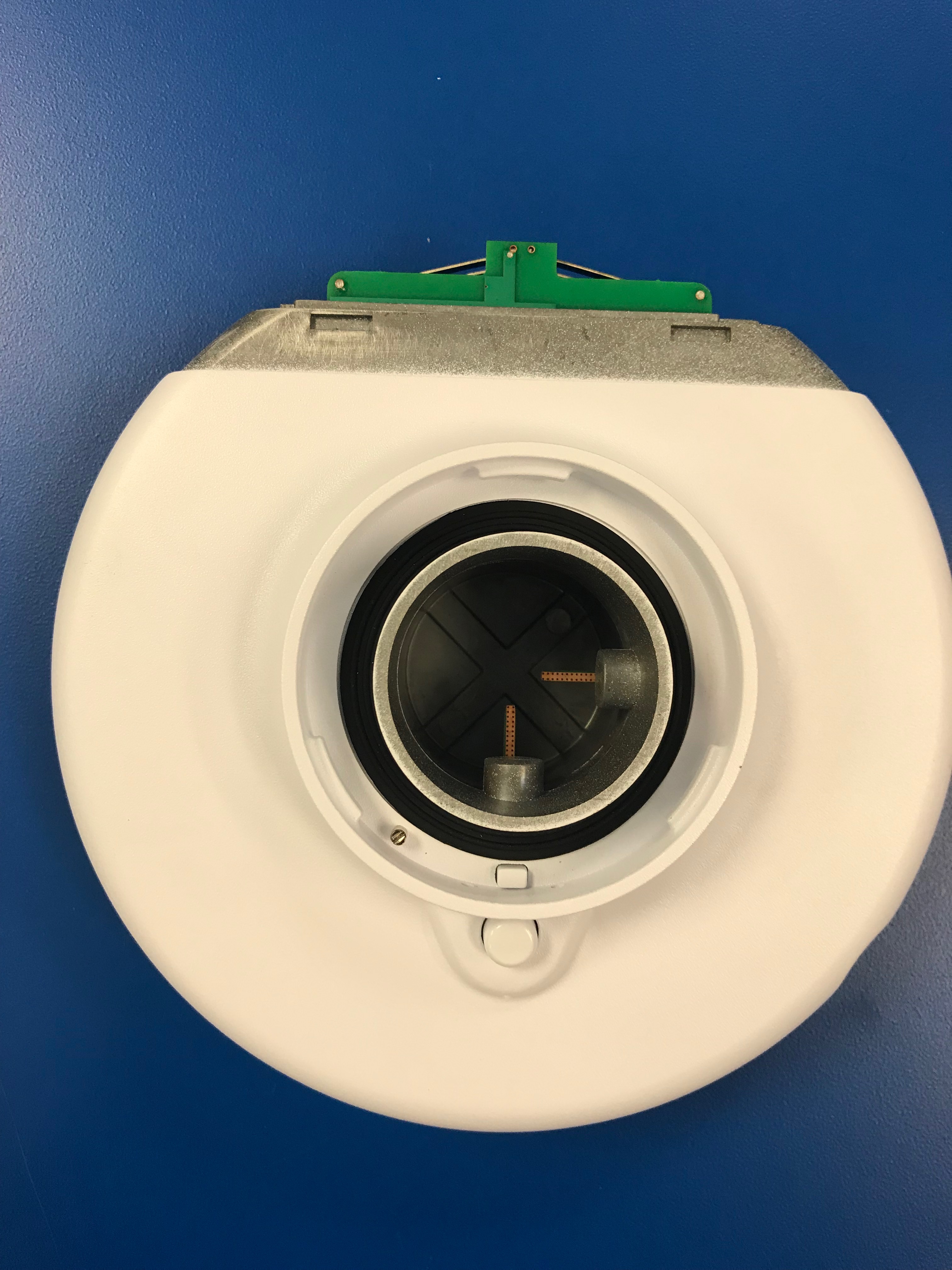

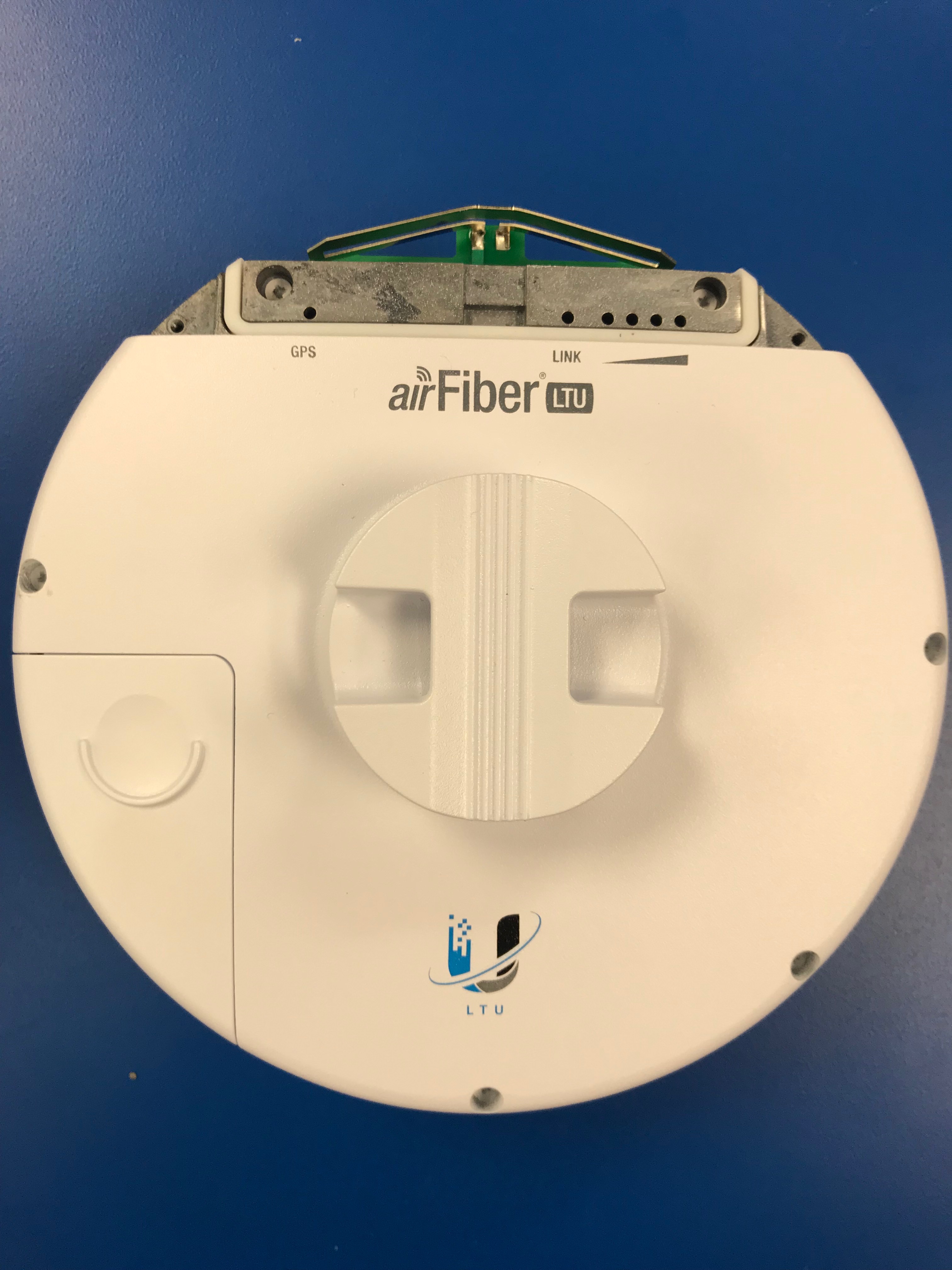

External viewUbiquiti AF5LTU external FCC photo from External Photos p. 1Source: External Photos p. 1

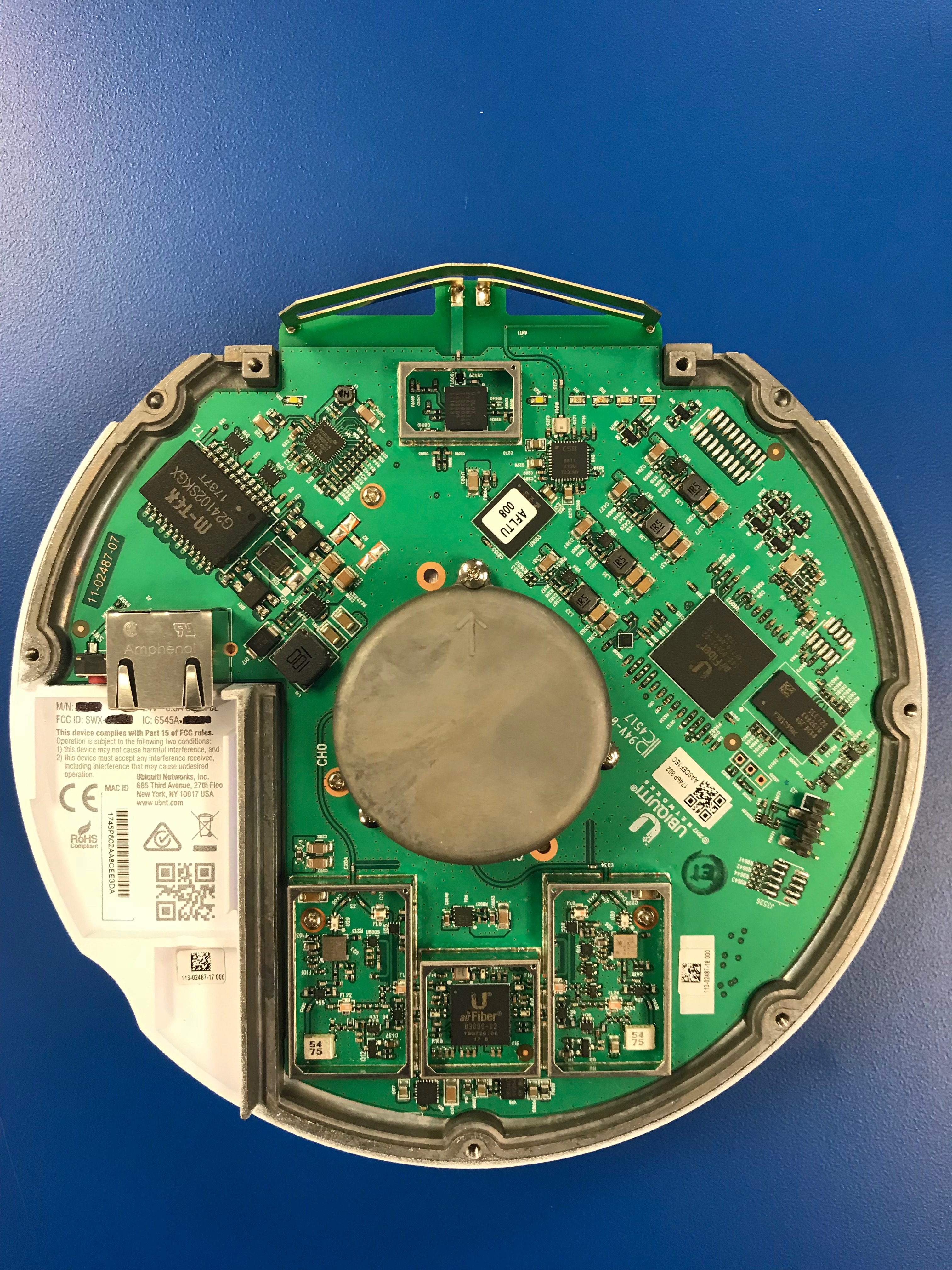

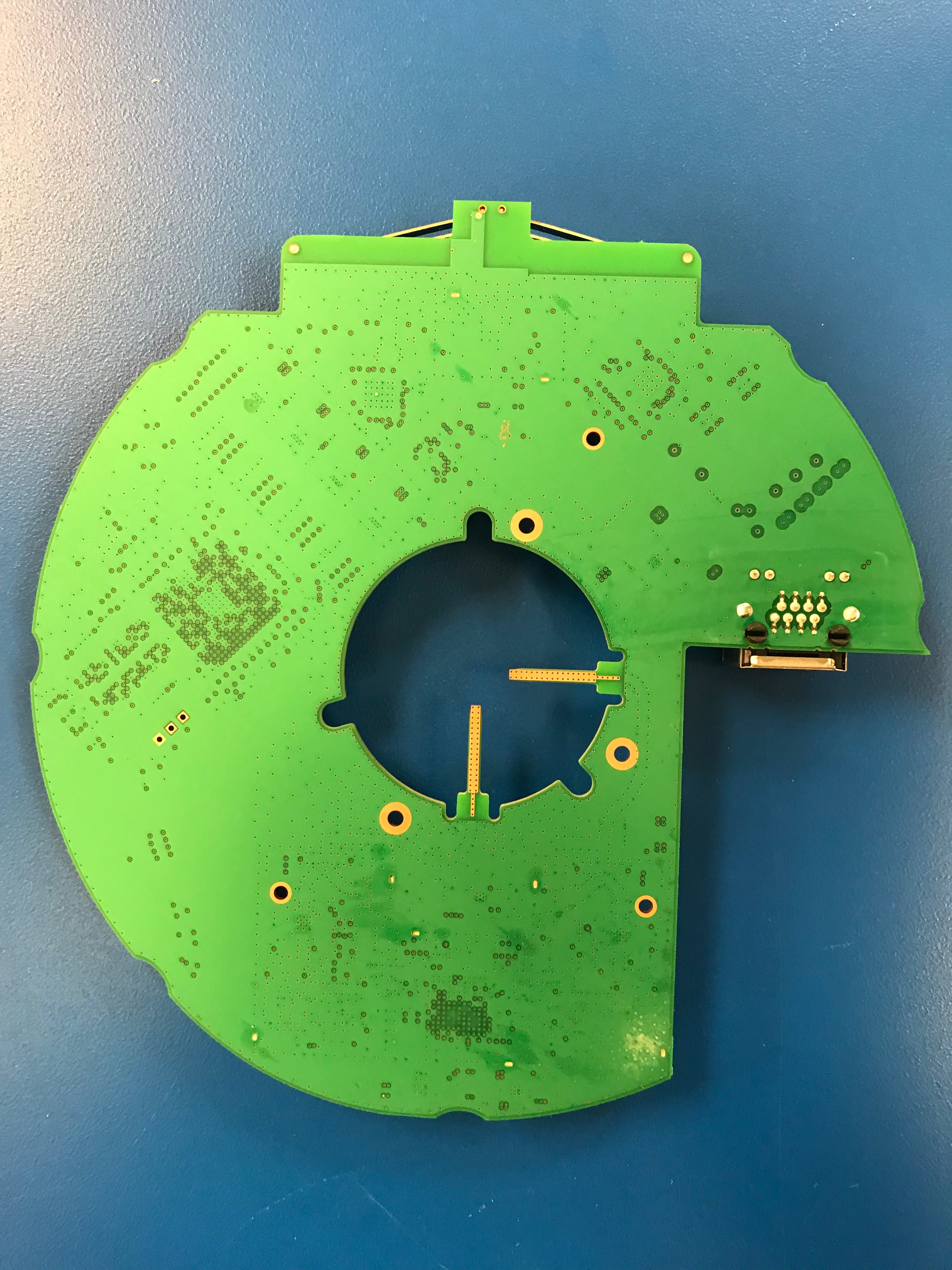

Internal viewUbiquiti AF5LTU internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

Manual shortcuts

Quick troubleshooting

Setup, reset, and status notes from the public manual. Use the official source document for full instructions and safety context.

Public manual

Factory reset

Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on.

Manual page 3

"Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the device is already powered on."

LED and status lights

LEDs Ethernet Activity Ethernet Link GPS Signal LINK Signal 1-4 These LEDs light the following colors when on: • Signal 1 LED will light red when on.

Manual page 4

"LEDs Ethernet Activity Ethernet Link GPS Signal LINK Signal 1-4 These LEDs light the following colors when on: • Signal 1 LED will light red when on."

Users Manual

Batch-approved public quick troubleshooting on 2026-05-02 after stricter OCR/source-evidence gate; only high-confidence passed rows with source-backed useful instructions were approved.

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual32 pages4.3 MB public file

The public manual includes useful button and port, status-light, and troubleshooting details.

What buttons or ports does the manual describe?

Reset Button Ethernet Port Ethernet Port This PoE port is used for handling all user traffic and powering the device.

Source: Users Manual, page 3

What do the status lights mean?

Ethernet Activity Ethernet Link GPS Signal LINK Signal 1-4 These LEDs light the following colors when on:

Signal 1 LED will light red when on.

Source: Users Manual, page 4

What troubleshooting step does the manual include?

Source: Users Manual, page 11

Hardware Overview

Reset Button Ethernet Port Ethernet Port This PoE port is used for handling all user traffic and powering the device.

Source: Users Manual, page 3

LEDs

Ethernet Activity Ethernet Link GPS Signal LINK Signal 1-4 These LEDs light the following colors when on:

Signal 1 LED will light red when on.

Source: Users Manual, page 4

airFiber Configuration

The instructions in this section explain how to access the airFiber Configuration Interface and configure the following settings:

Wireless Mode Configure one AF‑LTU as the AP and the other as the CPE.

Source: Users Manual, page 10

Manual diagrams

Visual pages and diagrams from the public FCC manual exhibit.

1 visuals

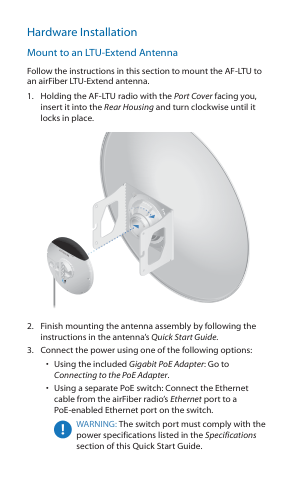

Hardware Installation visual from the manual from the FCC user manual — Hardware Installation visual from the manualSource: Users Manual, page 14
