FCC ID SWX-ACBLOCO

Ubiquiti airCube loco access point FCC filing (SWX-ACBLOCO)

Name: Ubiquiti airCube loco FCC filing dataset
Creator: Ubiquiti Inc.

Public FCC record for Ubiquiti airCube loco (SWX-ACBLOCO), an access point filed by Ubiquiti Inc. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth.

Networking SWX brand hub

ManufacturerUbiquiti Inc.

FCC IDSWX-ACBLOCO

Device typeaccess point

Authorization dateDec 1, 2017

Plain-English filing summary

What this FCC record tells you

airCube loco is the access point filed under FCC ID SWX-ACBLOCO by Ubiquiti Inc.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual setup and troubleshooting notes.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSWXThe FCC-assigned applicant code at the start of the FCC ID.

Product code-ACBLOCOThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15B - unintentional radiator rules; Part 15C - low-power wireless rulesPart 15B covers unintentional radio noise from digital electronics, not a radio transmitter by itself. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDM3X6BNKhEZHLirw8Lsqykg==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Dec 1, 2017

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: qZbMGUNpsy79AZGeG5qs1Q==, M3X6BNKhEZHLirw8Lsqykg==
Equipment class: DTS - digital wireless transmitter
FCC rules: Part 15B - unintentional radiator rules; Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15B - unintentional radiator rules; Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 1 range grouped below
Frequency range	2412 - 2462 MHzSource: RF Exposure Info p. 5
Power density	2 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: Test Report p. 53

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

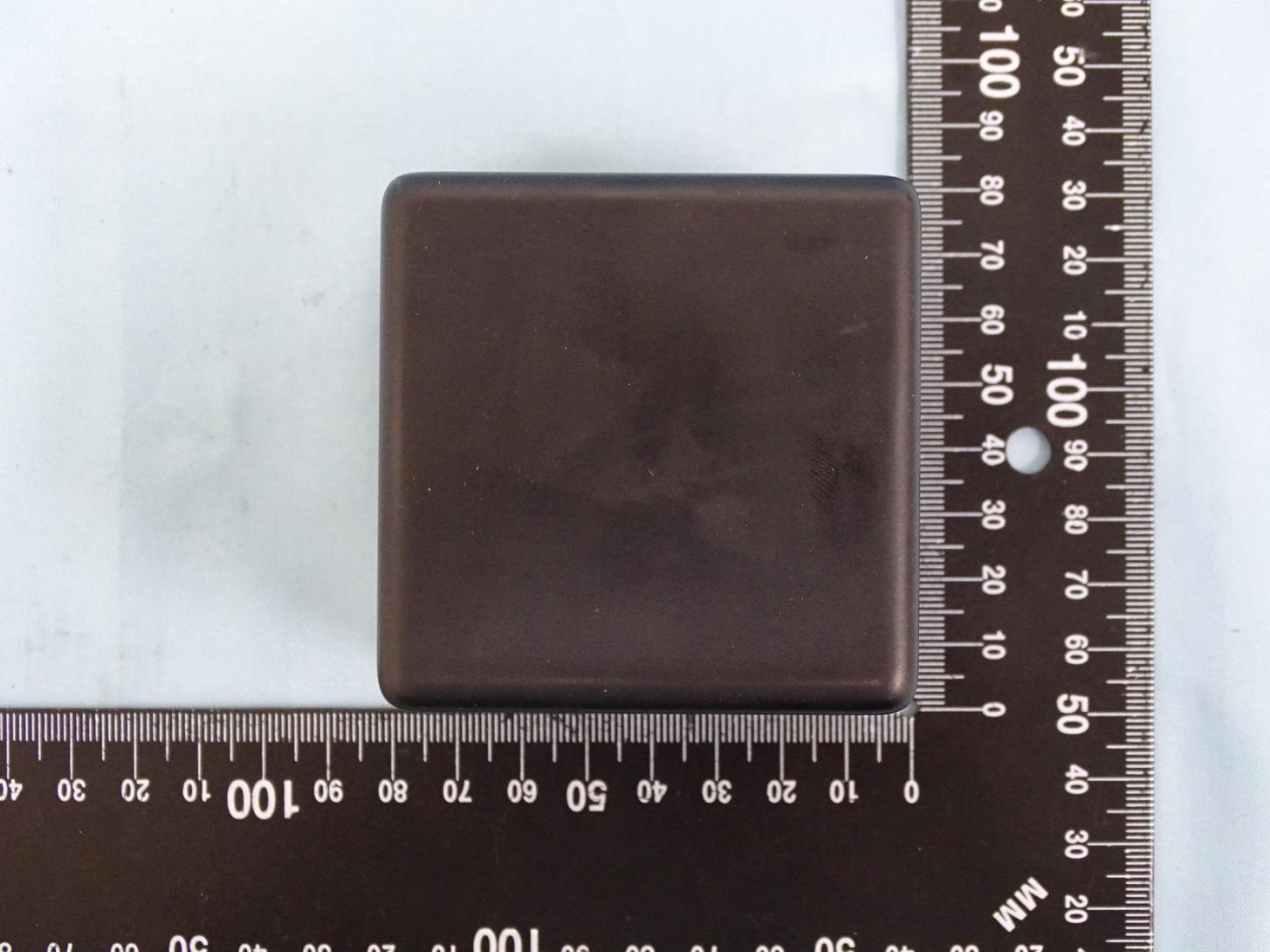

External viewUbiquiti airCube loco external FCC photo from External Photos p. 1Source: External Photos p. 1

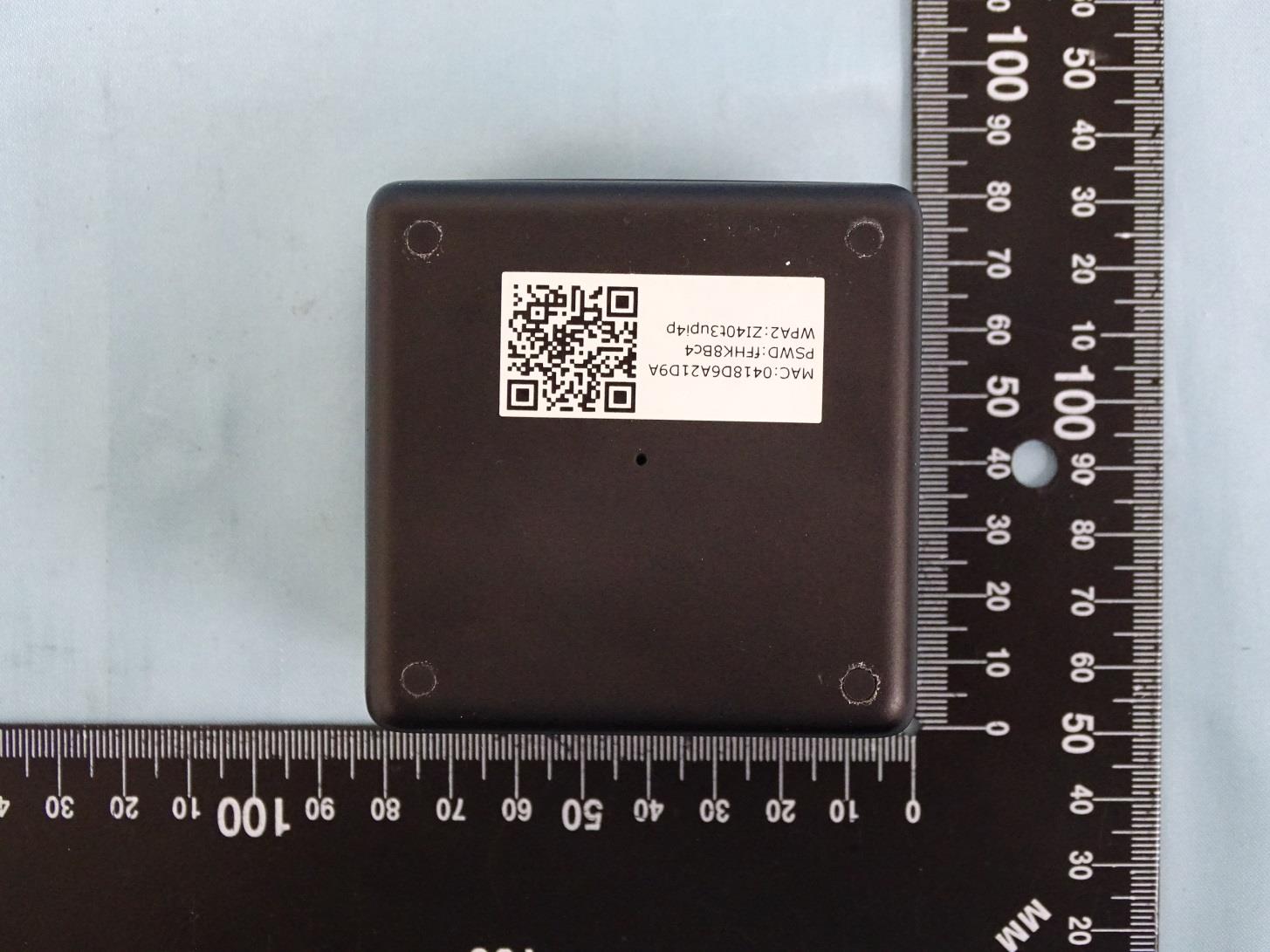

External viewUbiquiti airCube loco external FCC photo from External Photos p. 2Source: External Photos p. 2

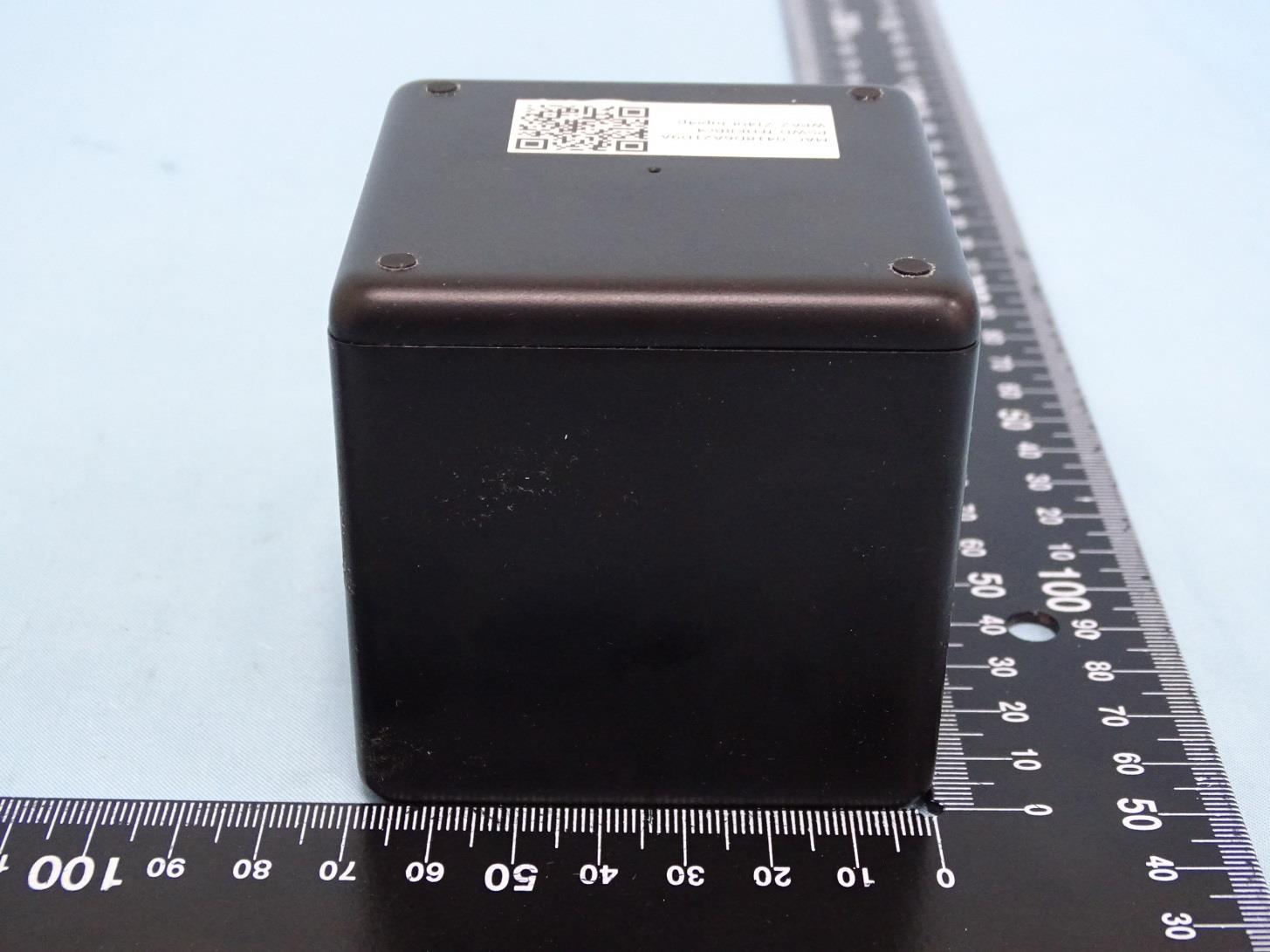

External viewUbiquiti airCube loco external FCC photo from External Photos p. 3Source: External Photos p. 3

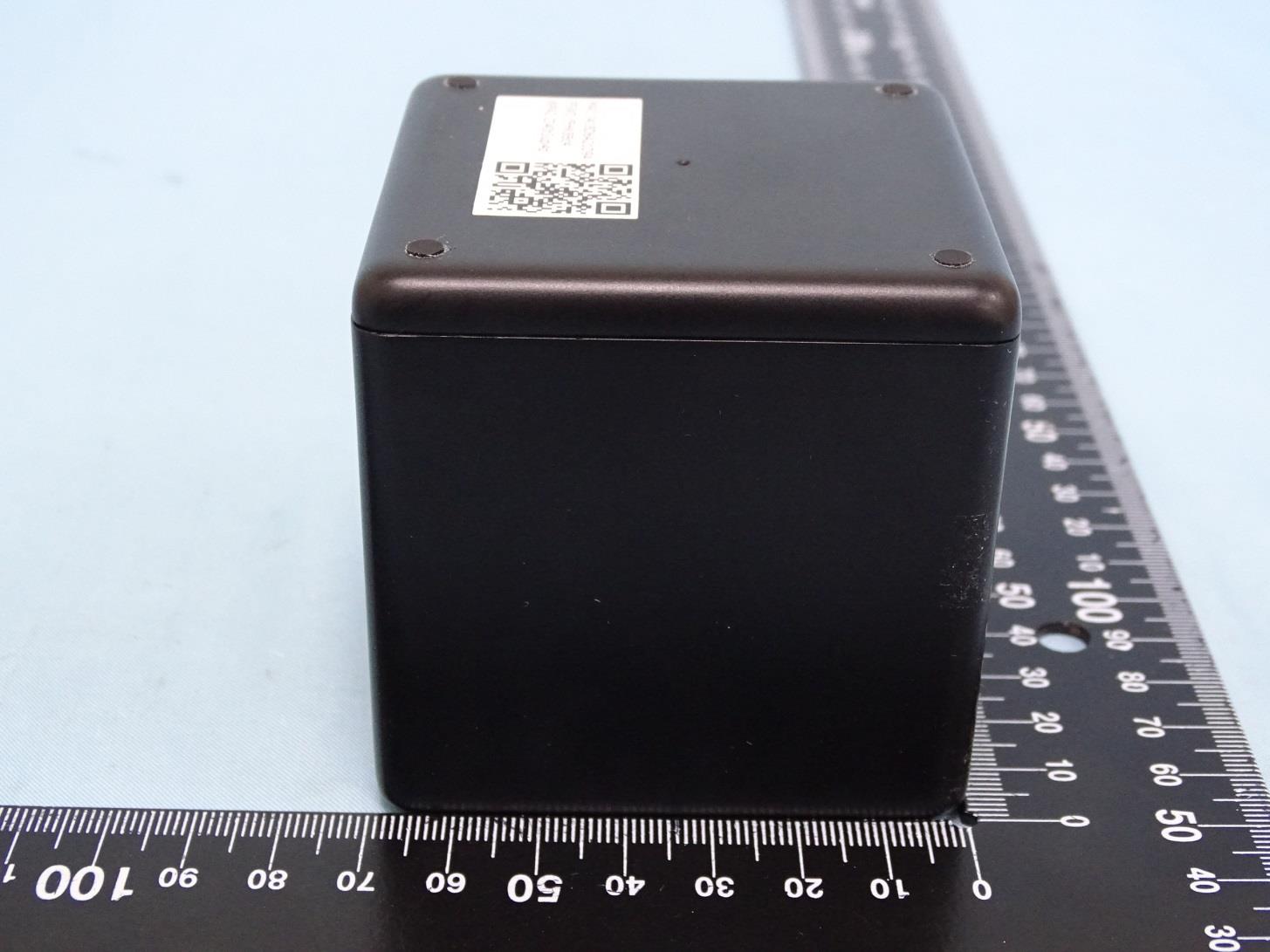

External viewUbiquiti airCube loco external FCC photo from External Photos p. 4Source: External Photos p. 4

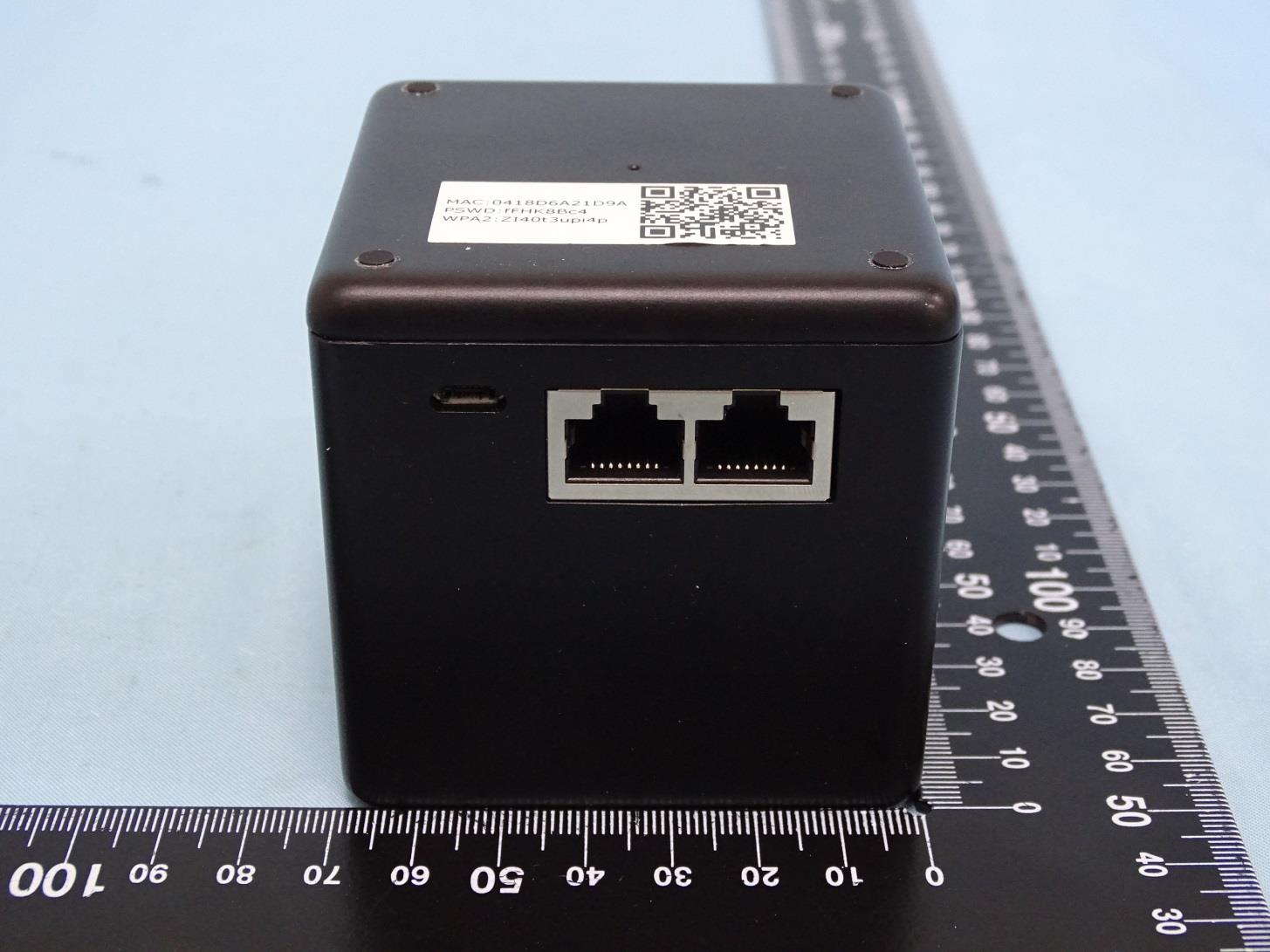

External viewUbiquiti airCube loco external FCC photo from External Photos p. 5Source: External Photos p. 5

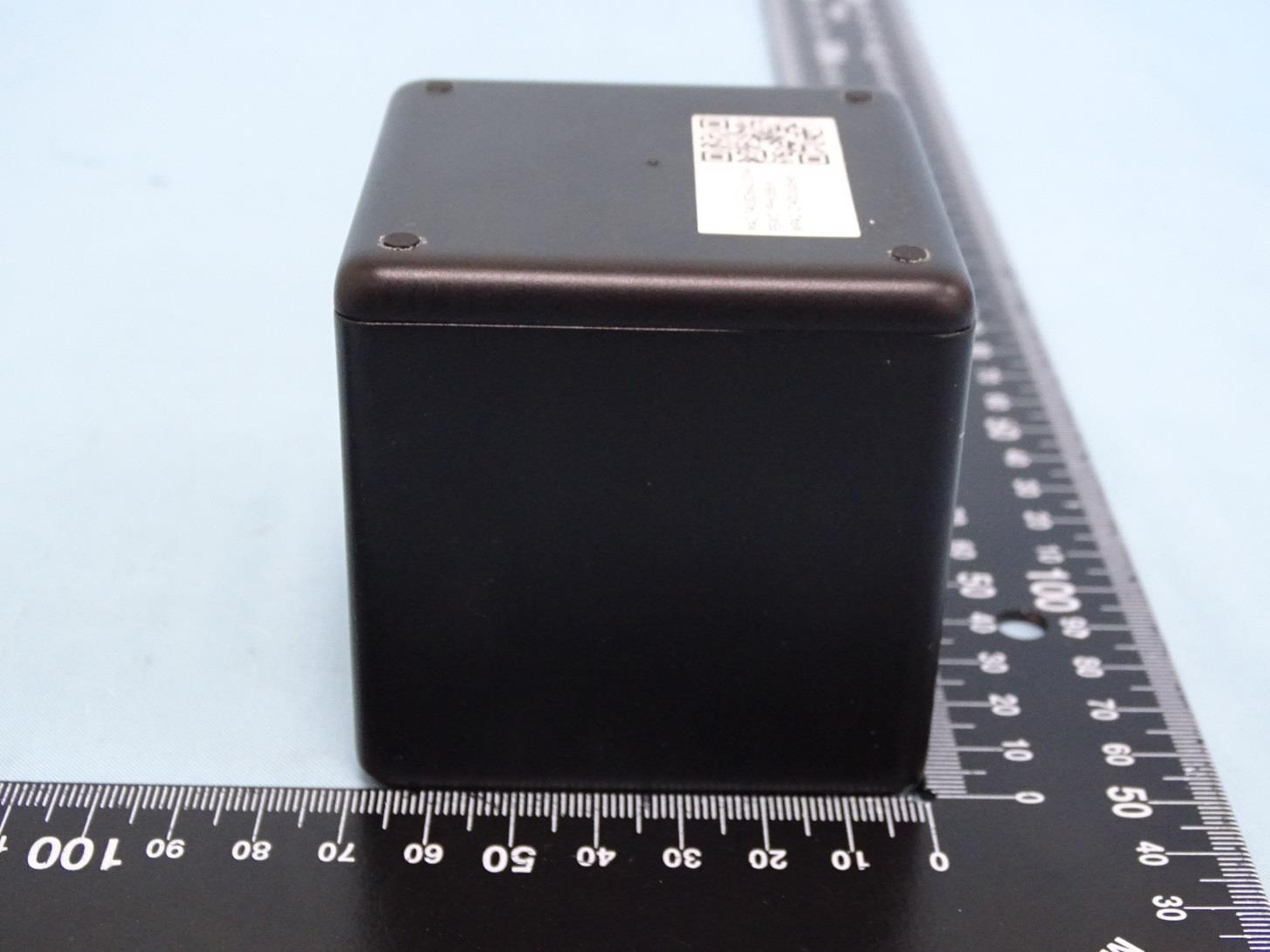

External viewUbiquiti airCube loco external FCC photo from External Photos p. 6Source: External Photos p. 6

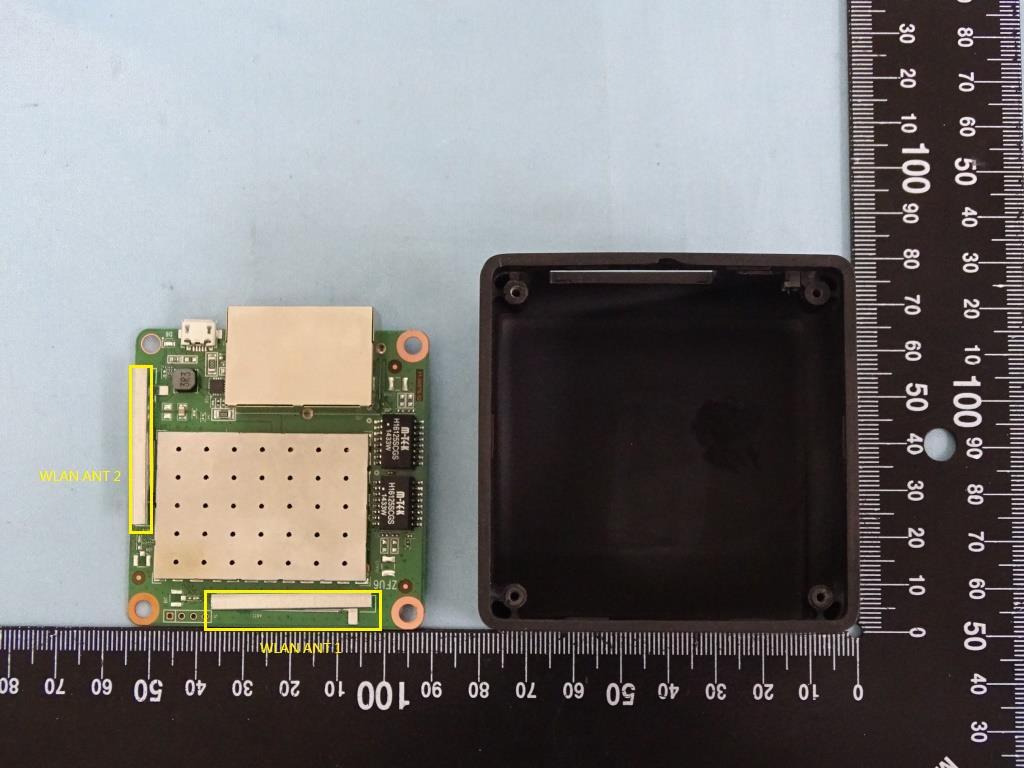

Internal viewUbiquiti airCube loco internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

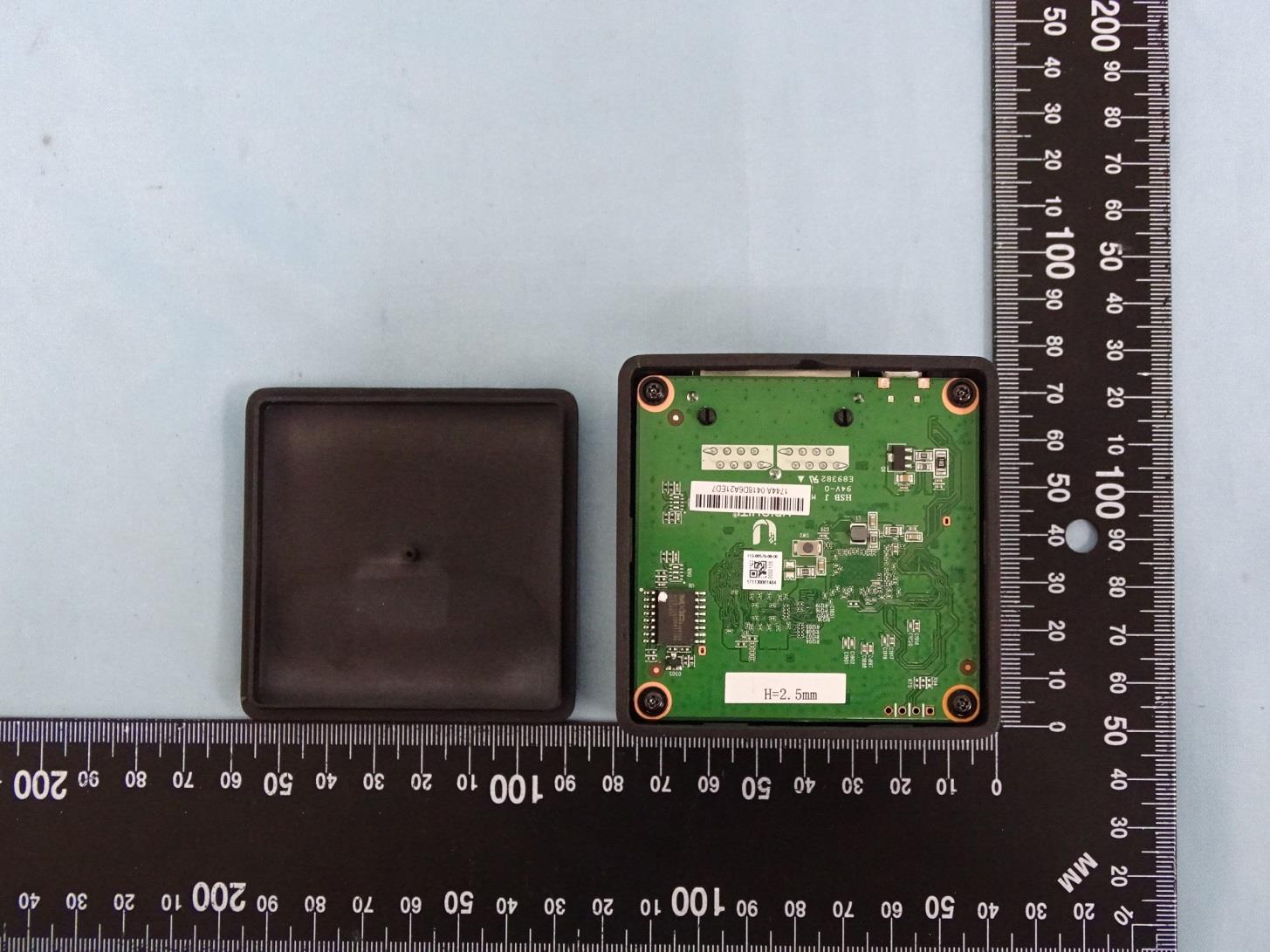

Internal viewUbiquiti airCube loco internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

Official FCC source: Users Manual1.5 MB public file

The 10/100 Ethernet RJ45 port connects to an
The Power Port can be used to power the airCube.
Source: Users Manual, page 3
The power adapter (not included) must be 5V with
a Micro USB connector.
Source: Users Manual, page 3
Hardware Installation
1. Connect one end of an Ethernet cable to the WAN Port on the back of the airCube. Connect the other end of the Ethernet cable to your airMAX CPE.
Source: Users Manual, page 4
2. Connect a 5V Micro USB adapter (not included) to
the Power Port and the other end of the adapter to a power outlet.
Source: Users Manual, page 5
Use the UNMS™ (Ubiquiti® Network Management System)
app to install and configure the airCube.
Source: Users Manual, page 6
UNMS App
1. Download and install the UNMS app from the App Store (iOS) or Google Play™ (Android).
Source: Users Manual, page 6
