FCC ID SS3-WM332A1702

DJI WM332A1702 drone FCC filing (SS3-WM332A1702)

Name: DJI WM332A1702 FCC filing dataset
Creator: SZ DJI Technology Co., Ltd.

Public FCC record for DJI WM332A1702 (SS3-WM332A1702), a digital transmission system device filed by SZ DJI Technology Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth and 0.9 GHz bands.

Drones SS3 brand hub

ManufacturerSZ DJI Technology Co., Ltd.

FCC IDSS3-WM332A1702

Device categoryDrones

Authorization dateApr 12, 2017

Plain-English filing summary

What this FCC record tells you

WM332A1702 is the device filed under FCC ID SS3-WM332A1702 by SZ DJI Technology Co., Ltd.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth and 0.9 GHz bands.

Manual excerpts cover power details and button controls.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeSS3The FCC-assigned applicant code at the start of the FCC ID.

Product code-WM332A1702The filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDSS - spread-spectrum wireless transmitterIn plain English, this covers a spread-spectrum wireless transmitter.

FCC rule partsPart 15C - low-power wireless rulesPart 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters.

Application IDUM/KTs+r9NWsmbanc+Erxw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Apr 12, 2017

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: UM/KTs+r9NWsmbanc+Erxw==, iJFsJNISx7jf9gTotxaIIw==
Equipment classes: DSS - spread-spectrum wireless transmitter; DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 1 range; 0.9 GHz bands: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 1 range; 0.9 GHz bands: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 2 ranges grouped below
Frequency range	2406.5 - 2476.5 MHz \| 915.94 - 925.74 MHz \| 900 - 930 MHz \| 216 - 960 MHzSource: RF Exposure Info (3354551) p. 4; Test Report (3354550) p. 33; Test Report (3354550) p. 34
Power density	1 mW/cm2RF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info (3354551) p. 6

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

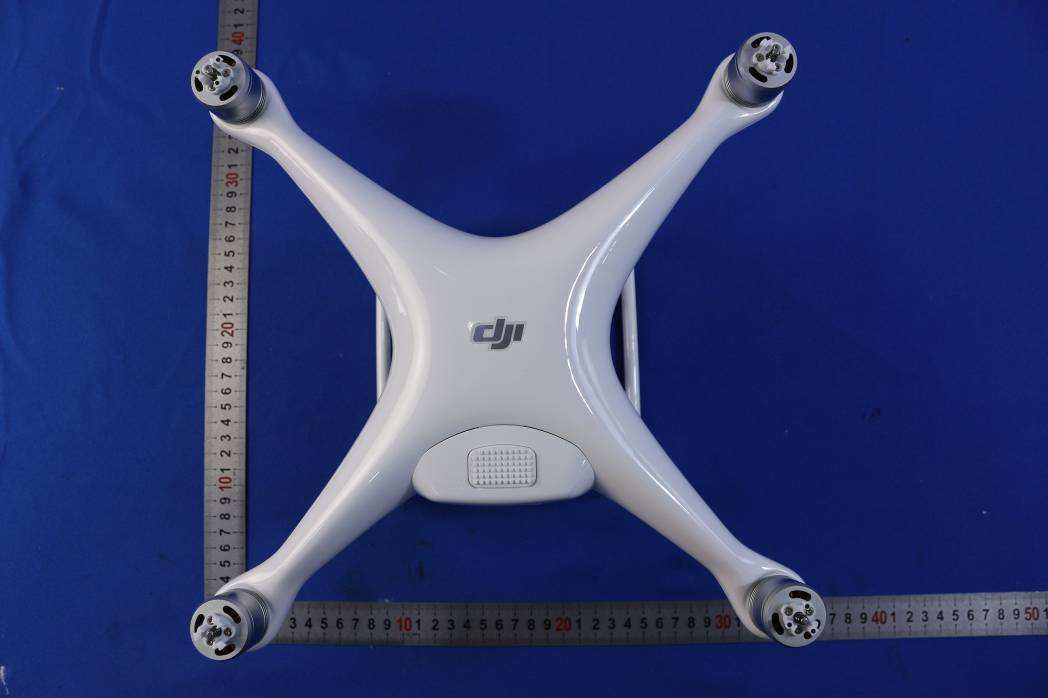

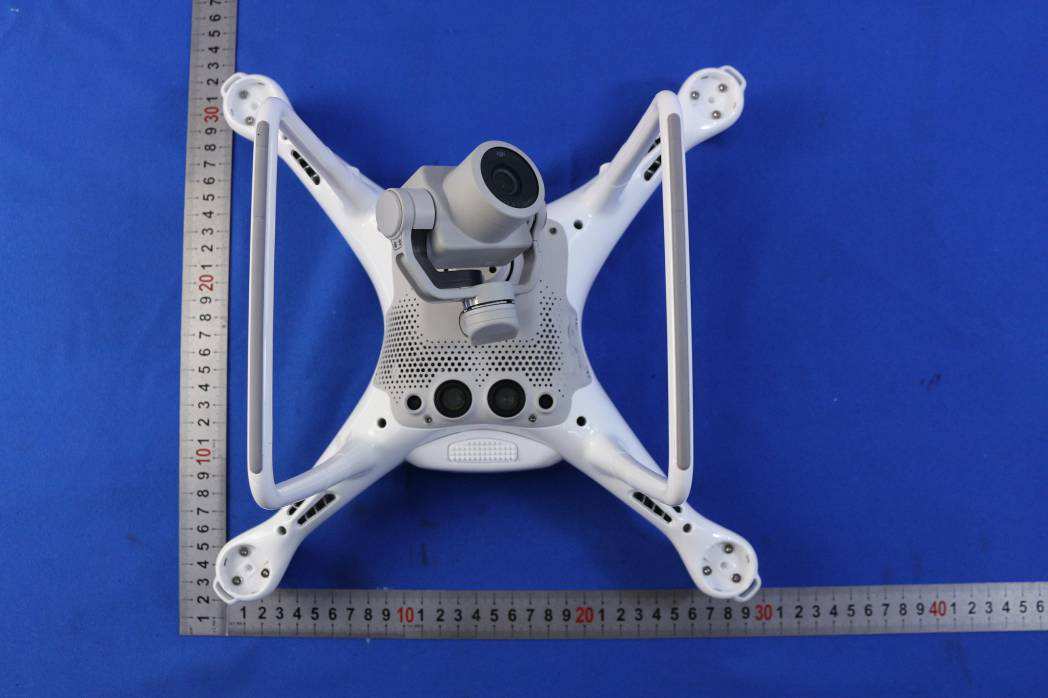

External viewDJI WM332A1702 external FCC photo from External Photos p. 1Source: External Photos p. 1

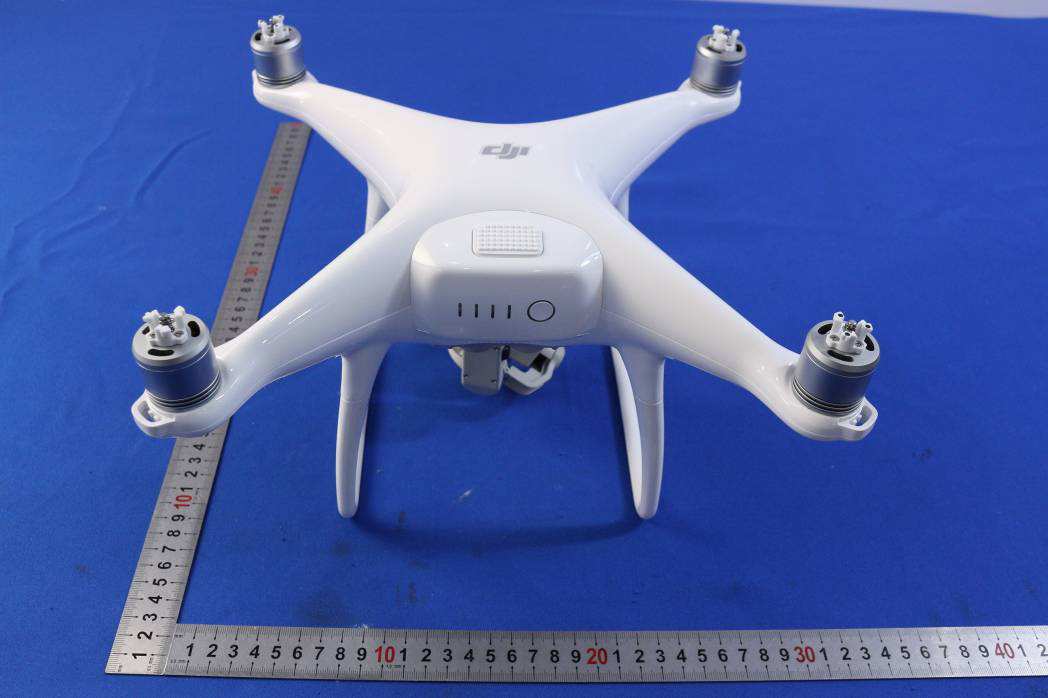

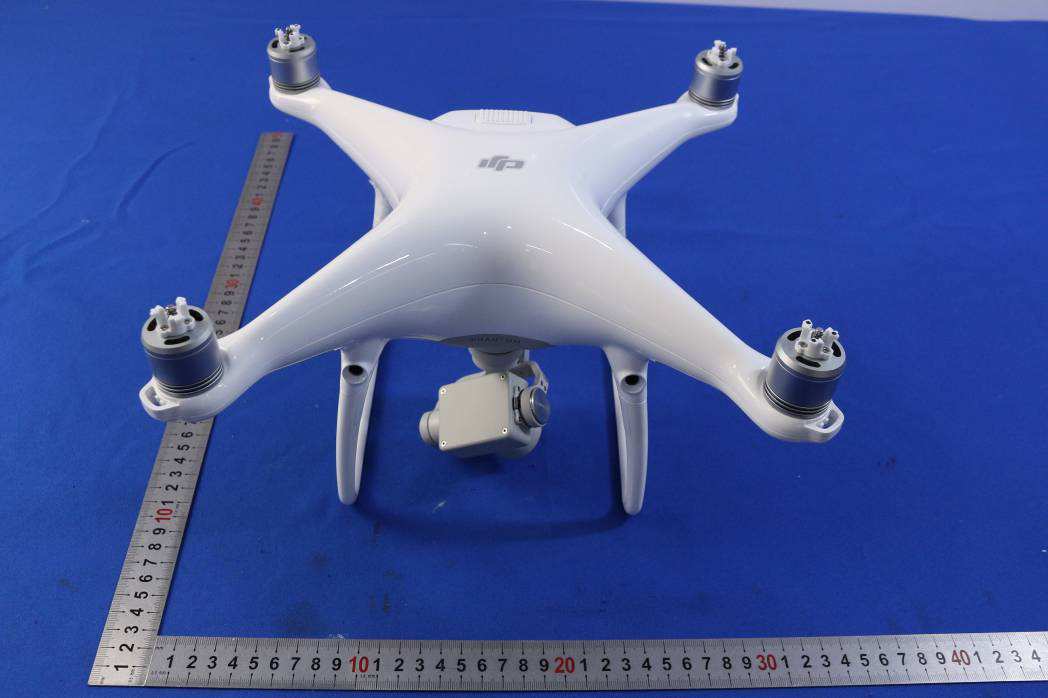

External viewDJI WM332A1702 external FCC photo from External Photos p. 2Source: External Photos p. 2

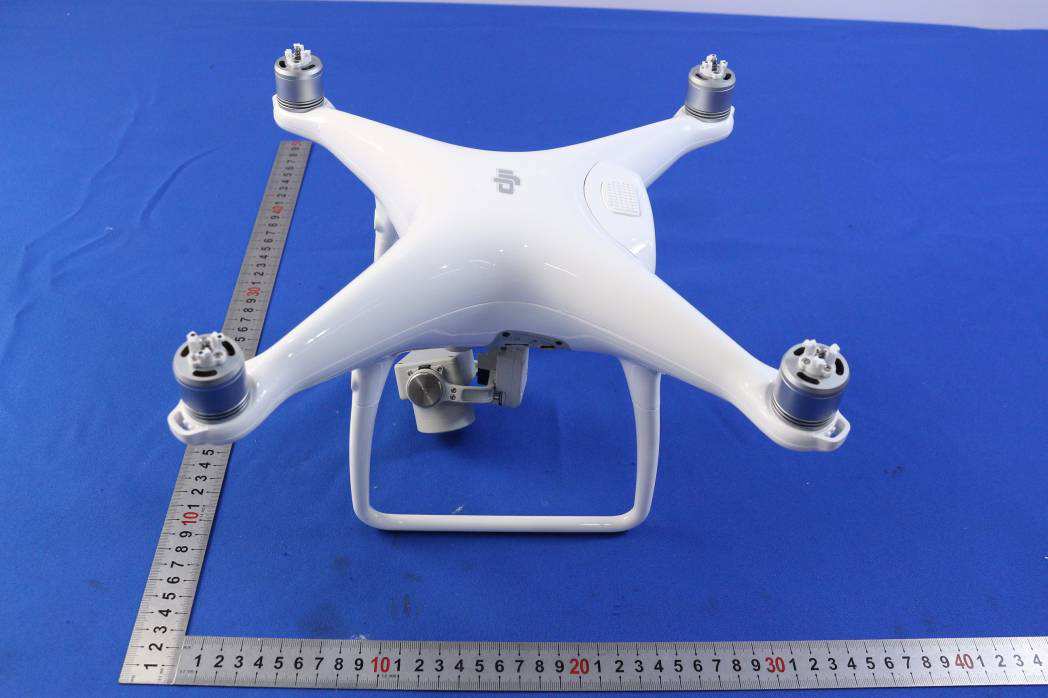

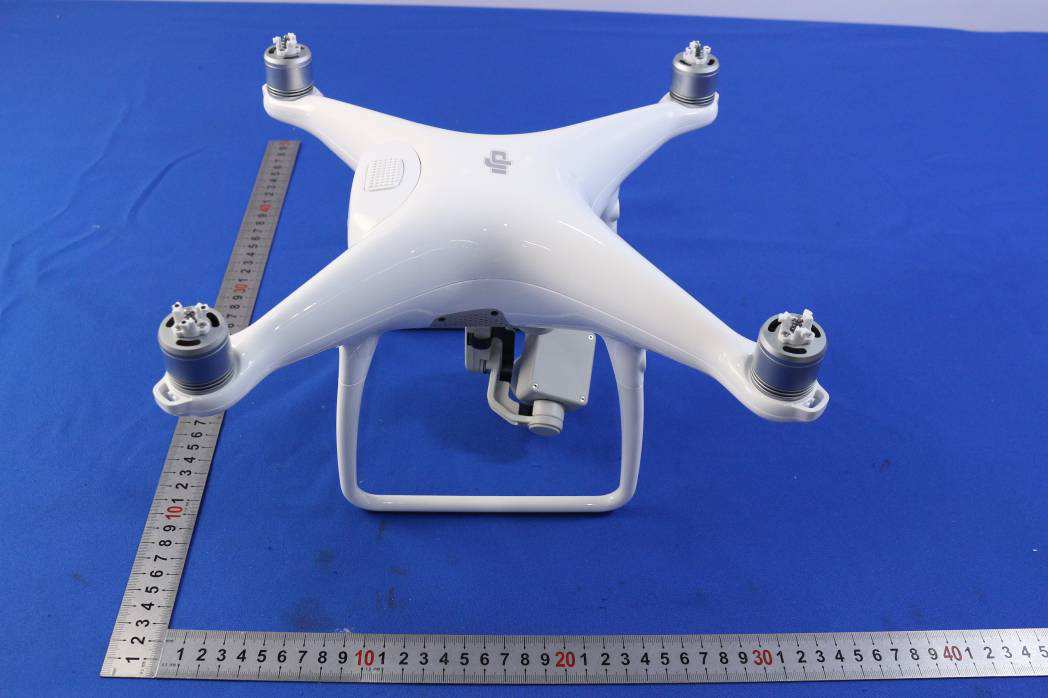

External viewDJI WM332A1702 external FCC photo from External Photos p. 3Source: External Photos p. 3

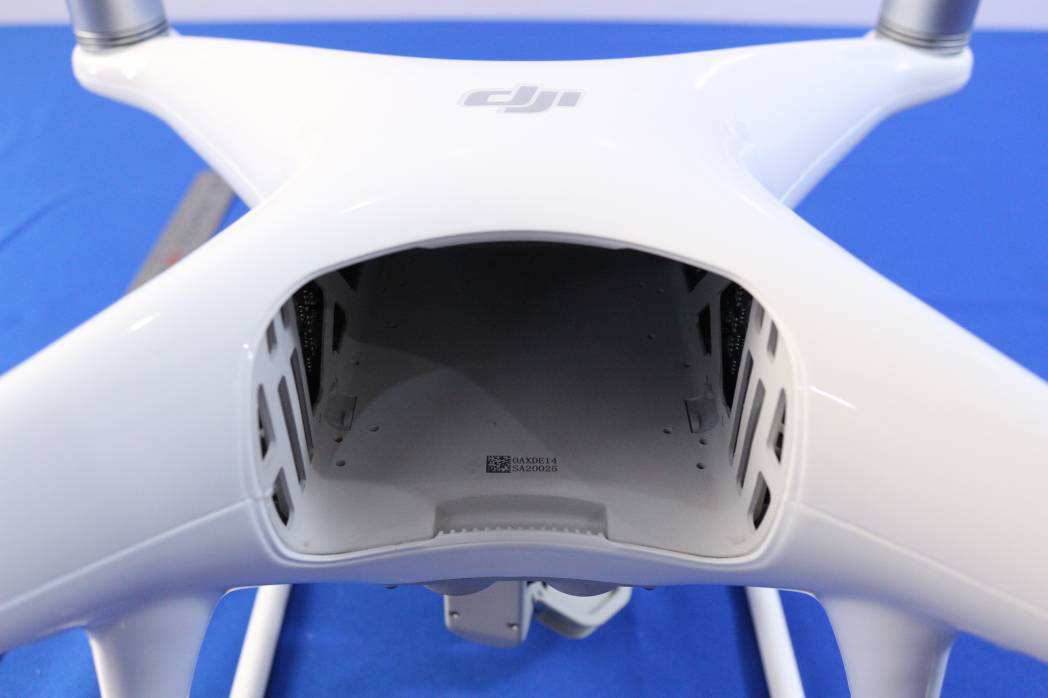

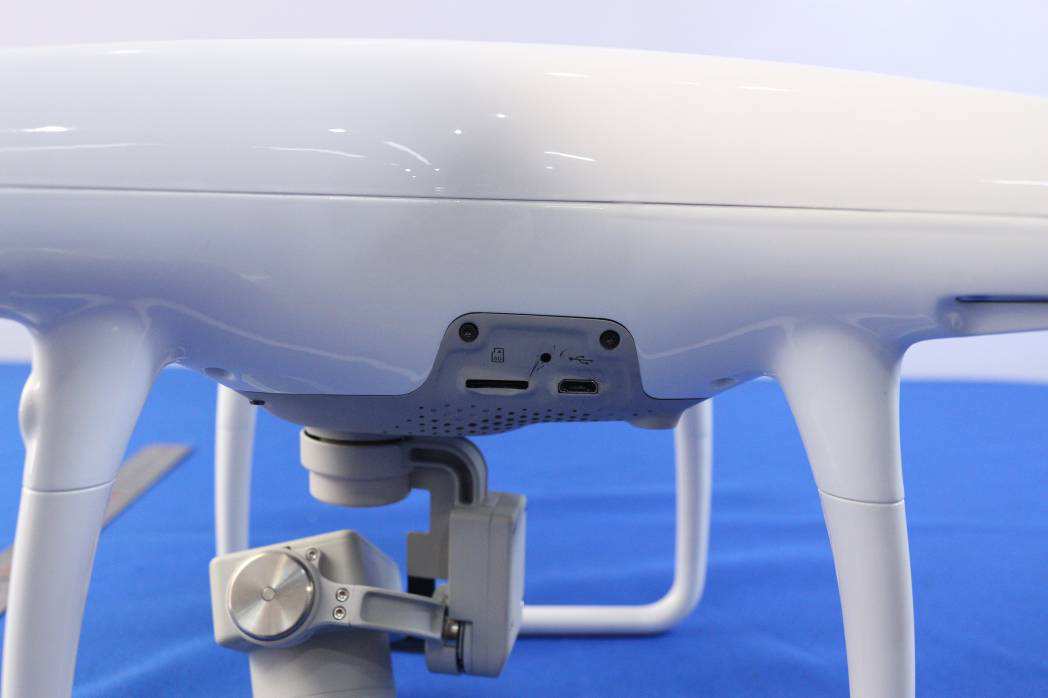

External viewDJI WM332A1702 external FCC photo from External Photos p. 4Source: External Photos p. 4

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual8 pages4.7 MB public file

The public manual includes useful power, and button and port details.

What power or charging details does the manual include?

Using Phantom 4 Advanced 1.

Source: Users Manual, page 5

What buttons or ports does the manual describe?

Check that the propellers are secure before each flight.

Source: Users Manual, page 6

Check that the propellers are secure before each flight.

Source: Users Manual, page 6
