FCC ID A4R-GGH2X

Google GGH2X FCC filing (A4R-GGH2X)

Name: Google GGH2X FCC filing dataset
Creator: Google LLC

Public FCC record for Google GGH2X (A4R-GGH2X), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, 3.5/3.8 GHz bands, and 2.3 GHz bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-GGH2X

Device categoryPhones & Computers

Authorization dateJul 12, 2024

Plain-English filing summary

What this FCC record tells you

GGH2X is the device filed under FCC ID A4R-GGH2X by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual setup and troubleshooting notes.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, 3.5/3.8 GHz bands, and 2.3 GHz bands.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
RF Exposure: Evaluation of human exposure to radiofrequency energy.
SAR: Specific Absorption Rate, a measure used in RF exposure evaluation.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeGGH2XThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDSS - spread-spectrum wireless transmitterIn plain English, this covers a spread-spectrum wireless transmitter.

FCC rule partsPart 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 22H is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization.

Application IDRSes4oFeFOnKgXDtR/mg6g==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jul 12, 2024

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: BR0un5qQd+c7p8E7uBNQyg==, RSes4oFeFOnKgXDtR/mg6g==
Equipment classes: PCS - Licensed Transmitter held to ear; DSS - spread-spectrum wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90
Bands: 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 48 ranges; 3.5/3.8 GHz bands: 9 ranges; 2.3 GHz bands: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90The rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 48 ranges; 3.5/3.8 GHz bands: 9 ranges; 2.3 GHz bands: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 61 ranges grouped below
SAR	0.0892 W/kg \| 0.382 W/kg \| 0.113 W/kg \| 1.45 W/kg \| 1.2 W/kgRF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 24; RF Exposure Info p. 215; RF Exposure Info p. 8

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

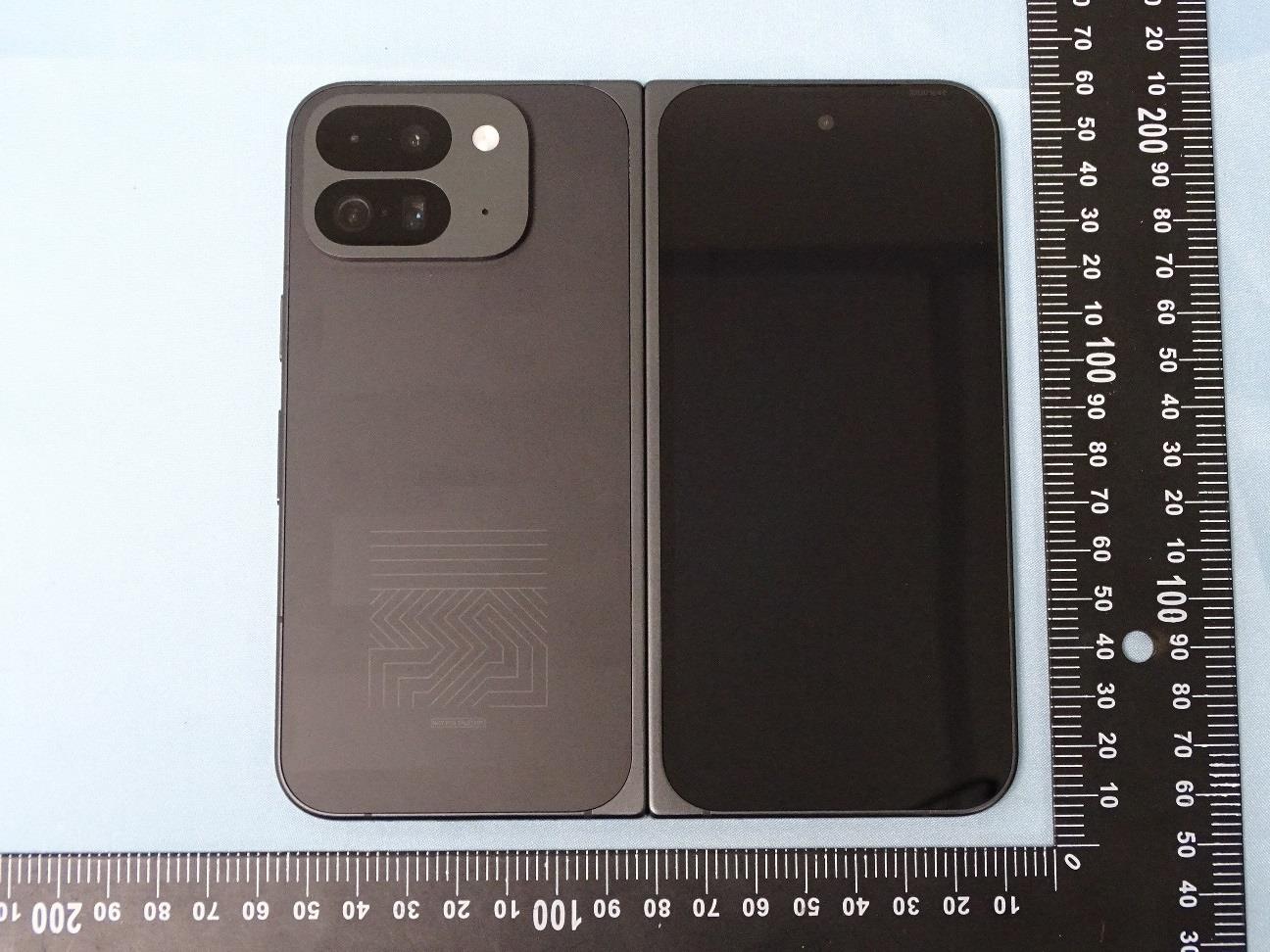

External viewGoogle GGH2X external FCC photo from External Photos p. 1Source: External Photos p. 1

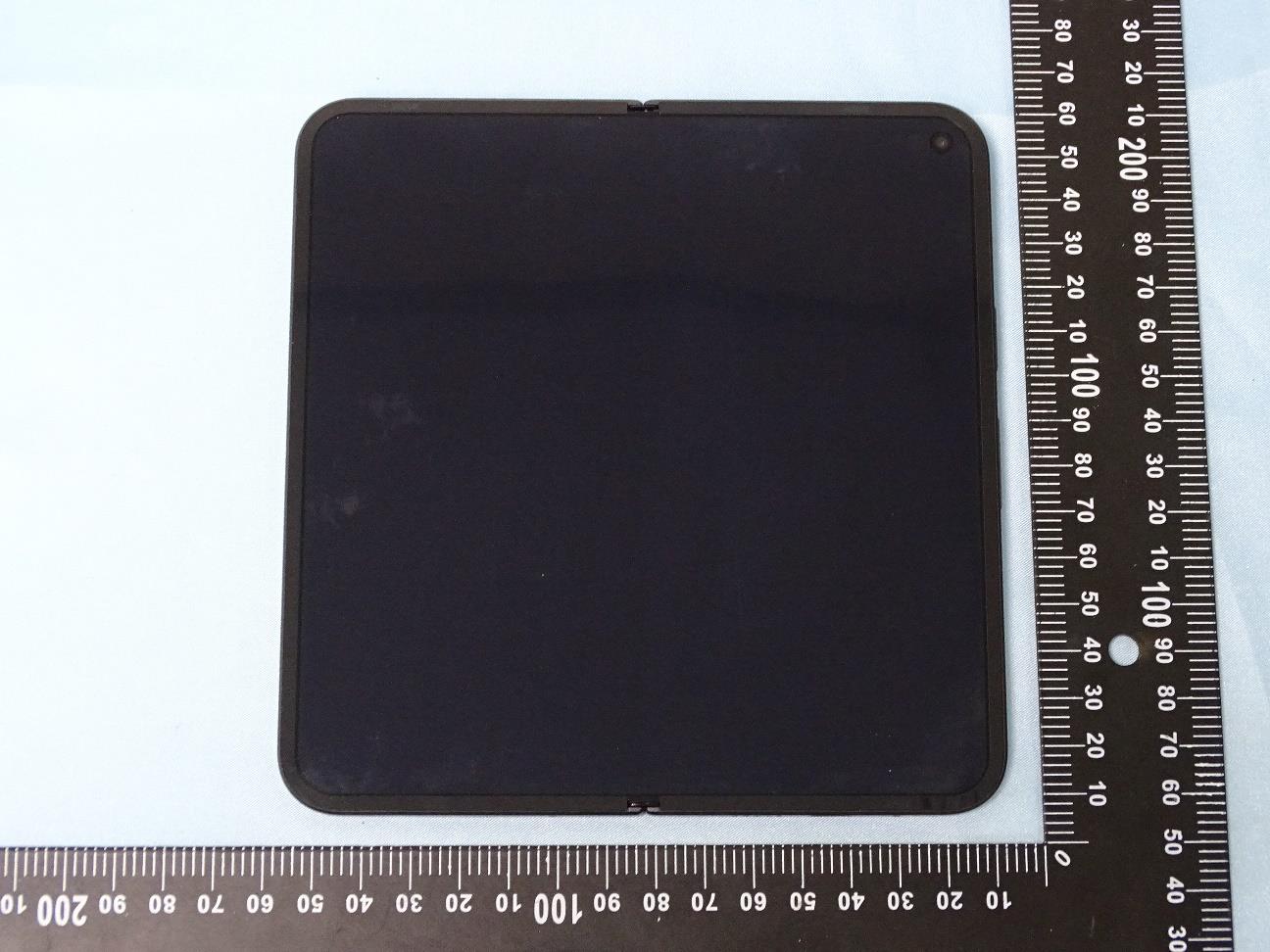

External viewGoogle GGH2X external FCC photo from External Photos p. 2Source: External Photos p. 2

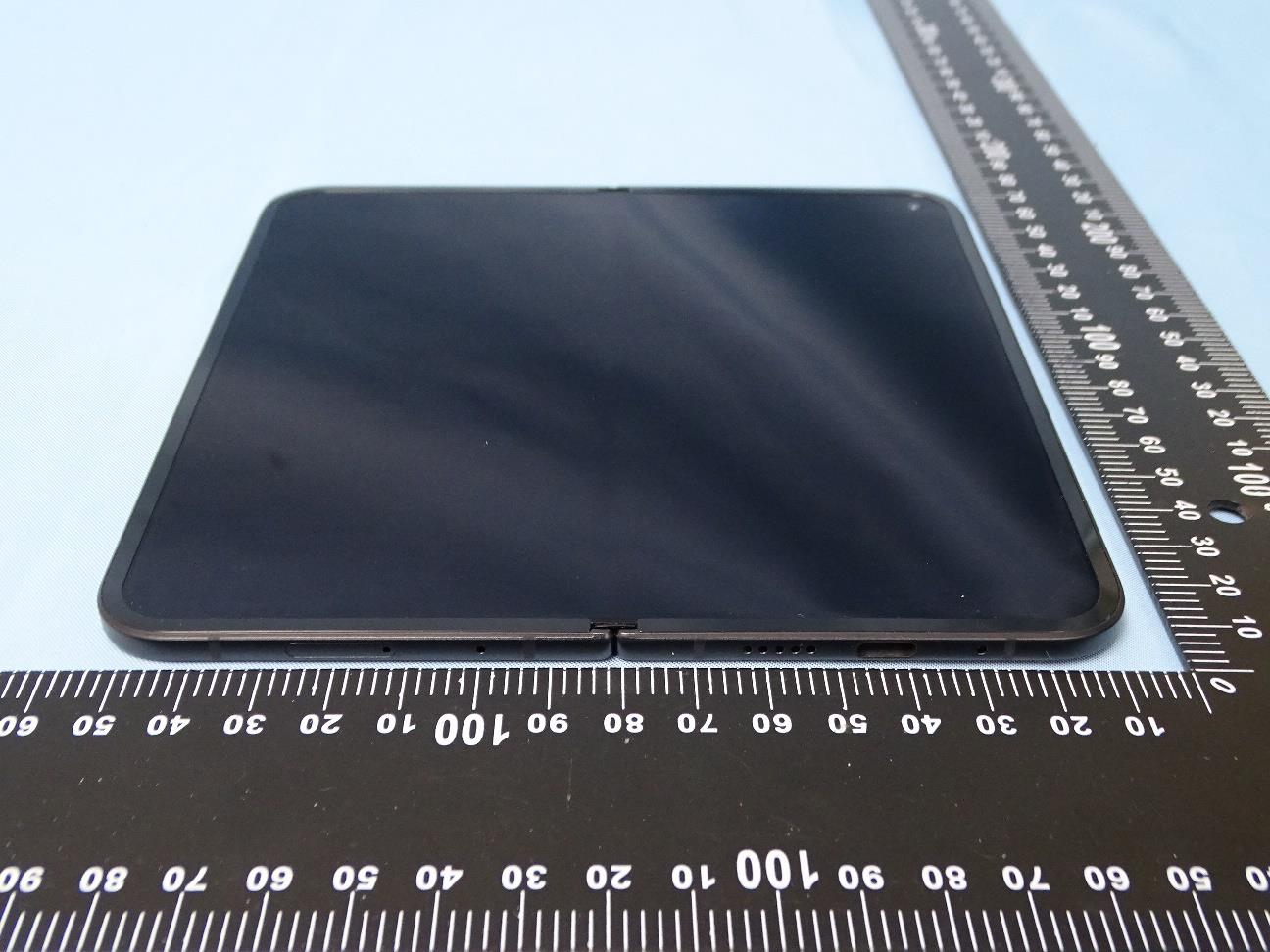

External viewGoogle GGH2X external FCC photo from External Photos p. 3Source: External Photos p. 3

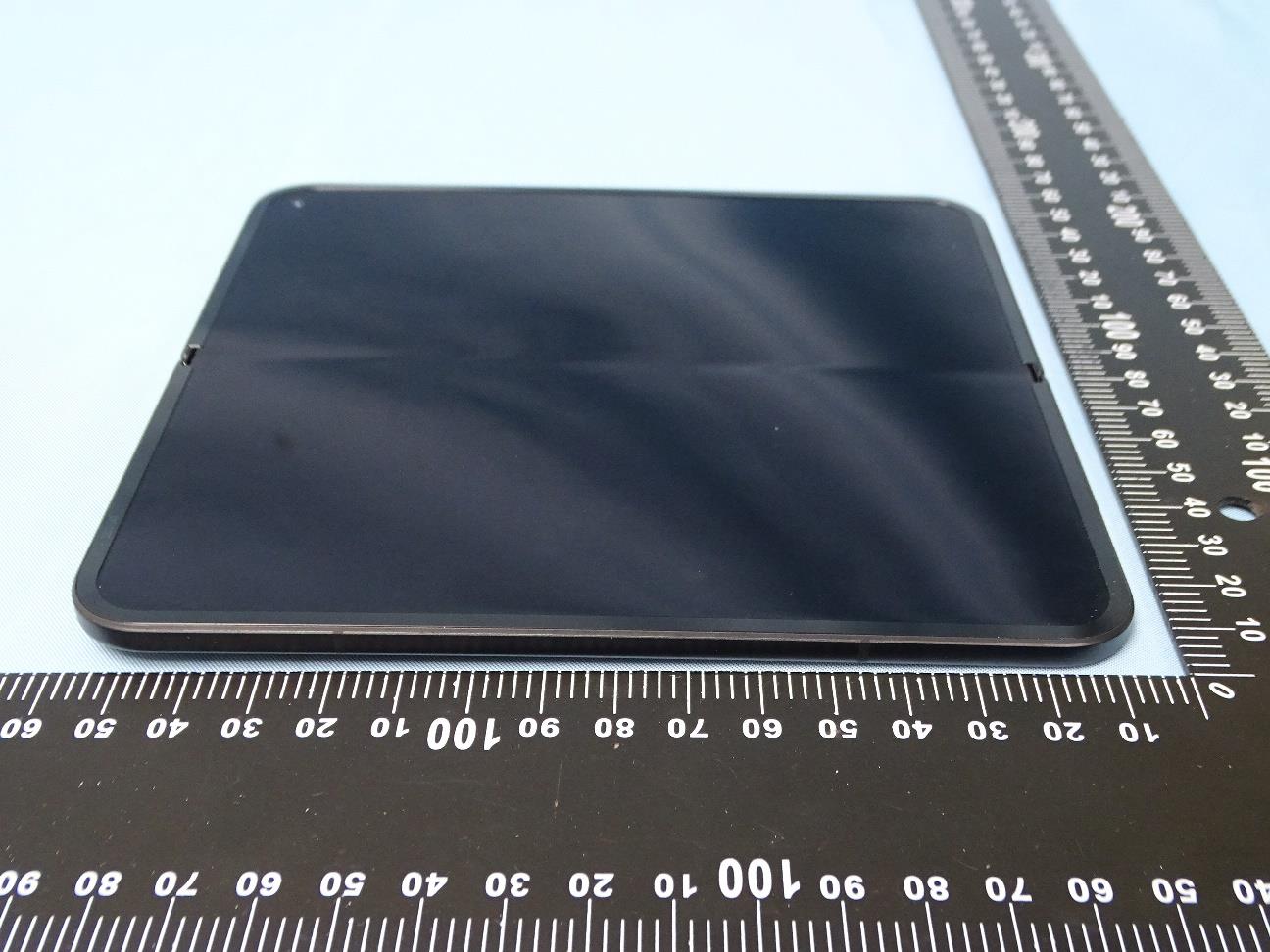

External viewGoogle GGH2X external FCC photo from External Photos p. 4Source: External Photos p. 4

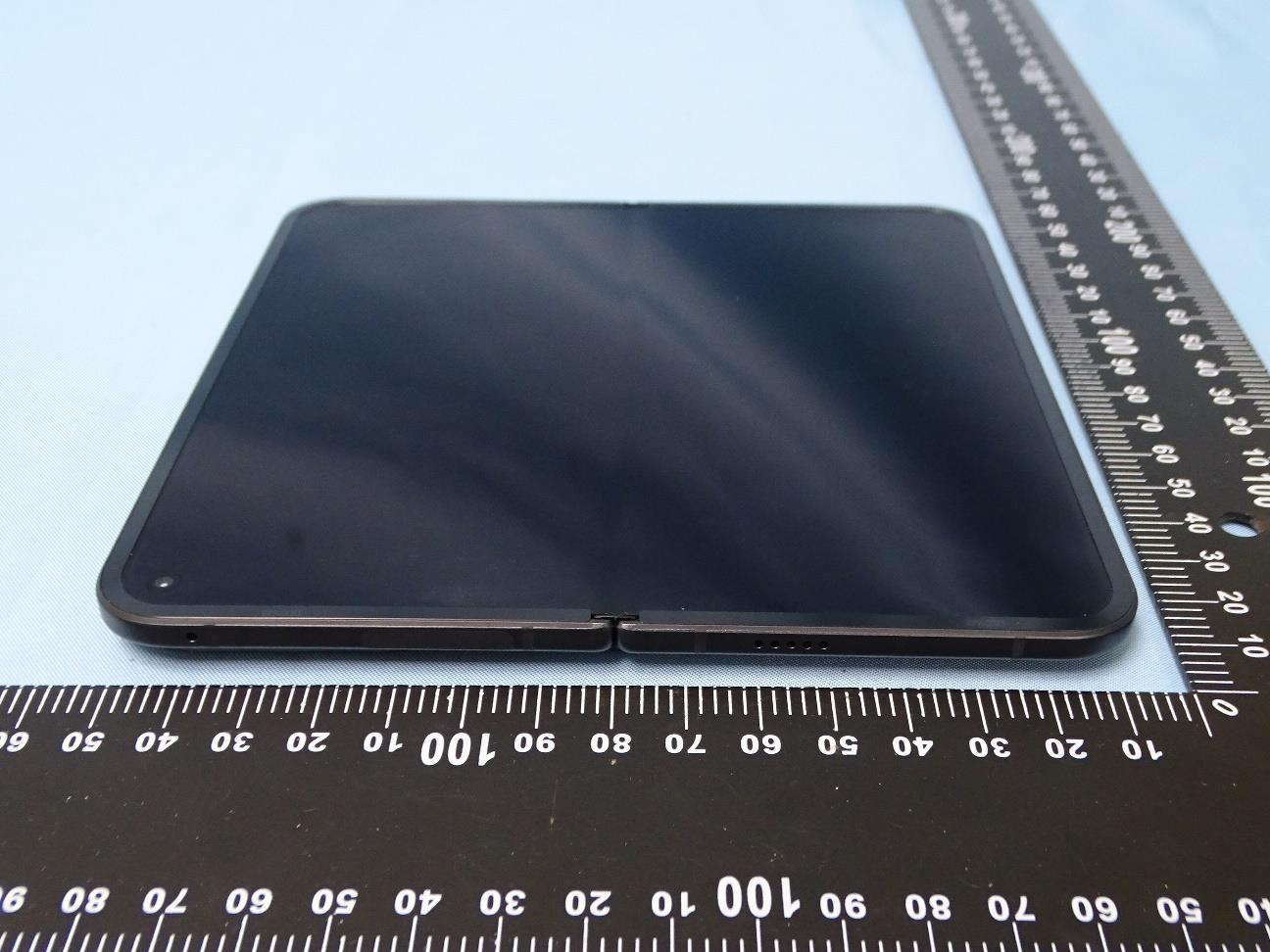

External viewGoogle GGH2X external FCC photo from External Photos p. 5Source: External Photos p. 5

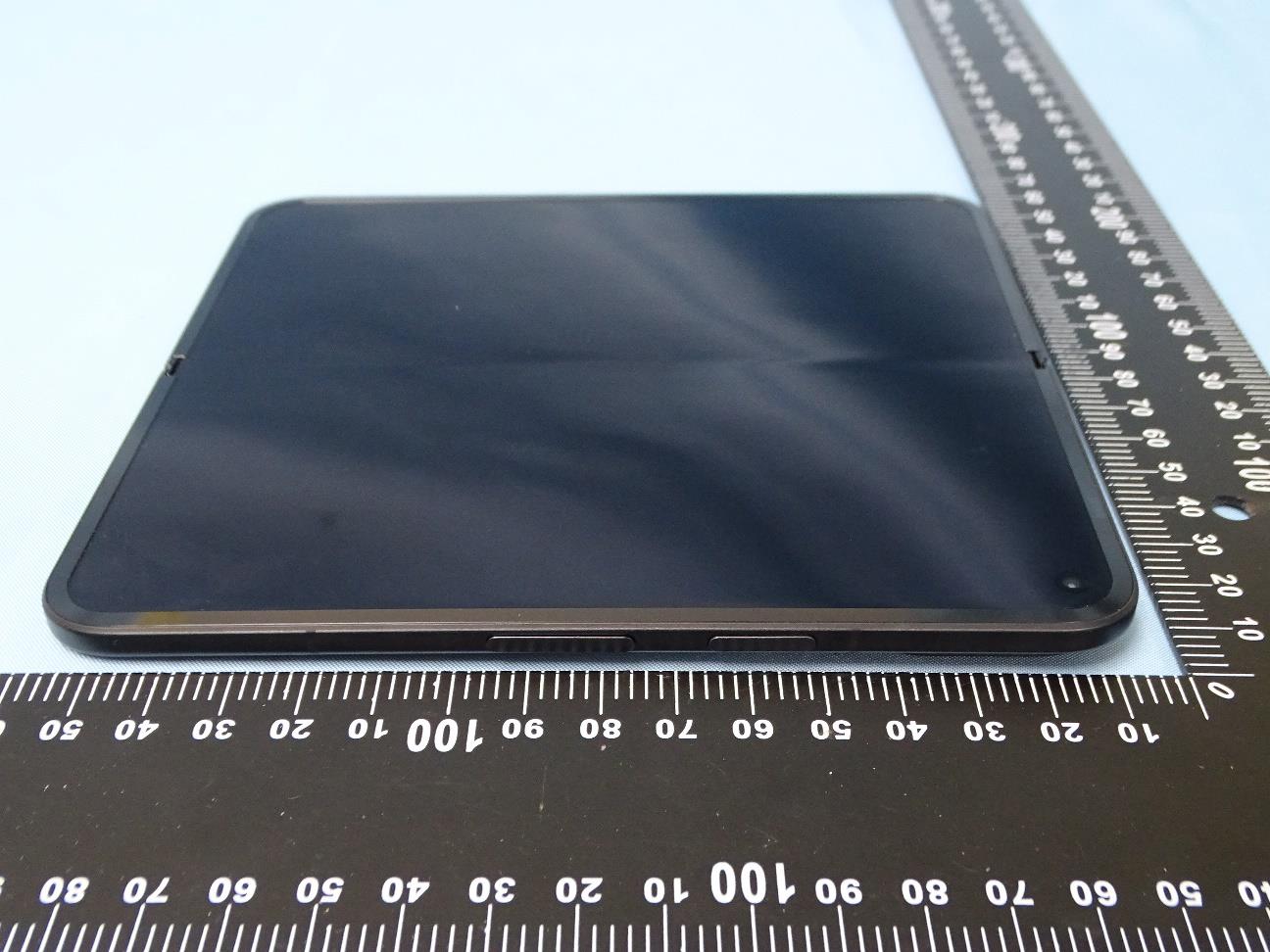

External viewGoogle GGH2X external FCC photo from External Photos p. 6Source: External Photos p. 6

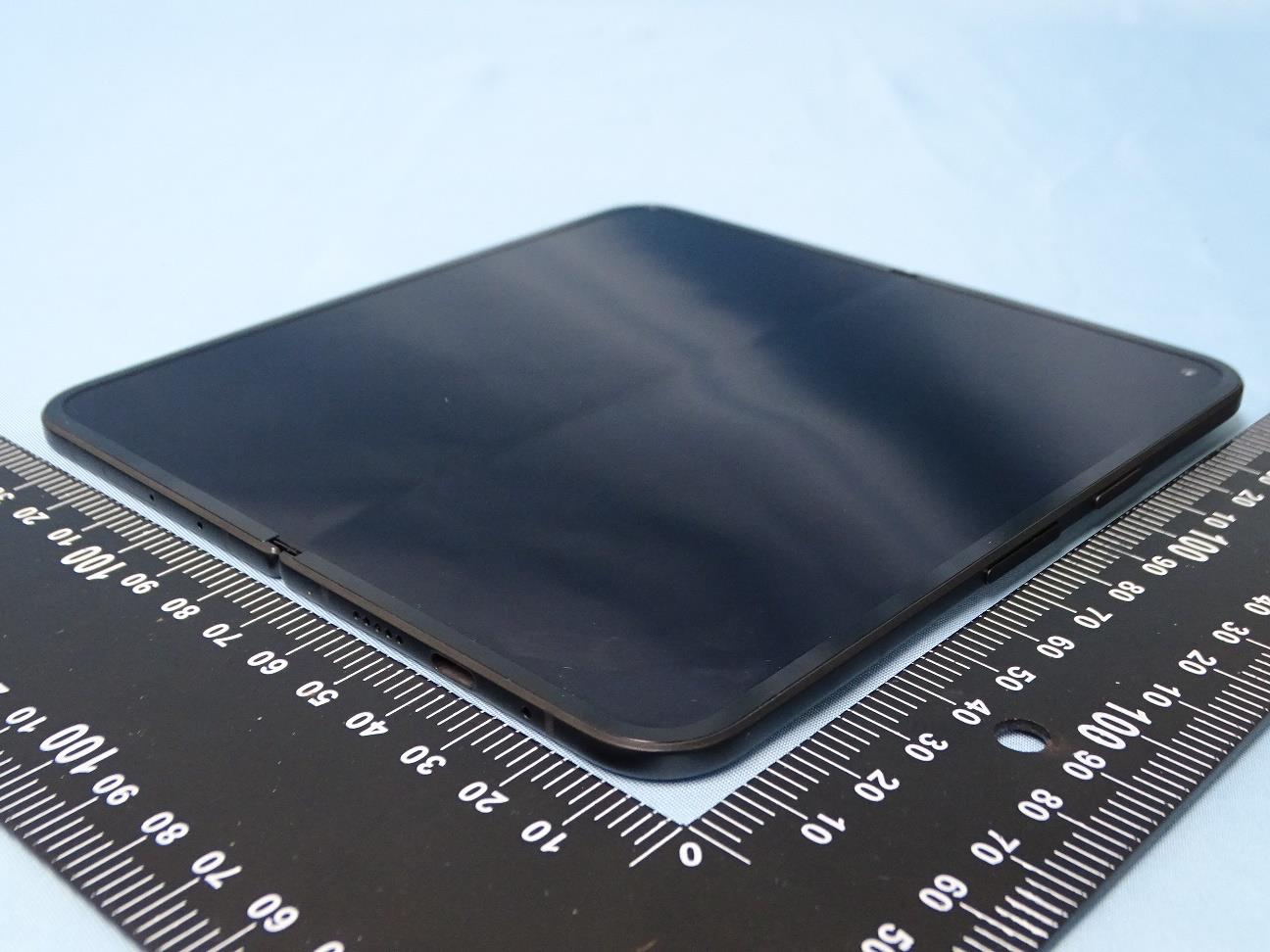

External viewGoogle GGH2X external FCC photo from External Photos p. 7Source: External Photos p. 7

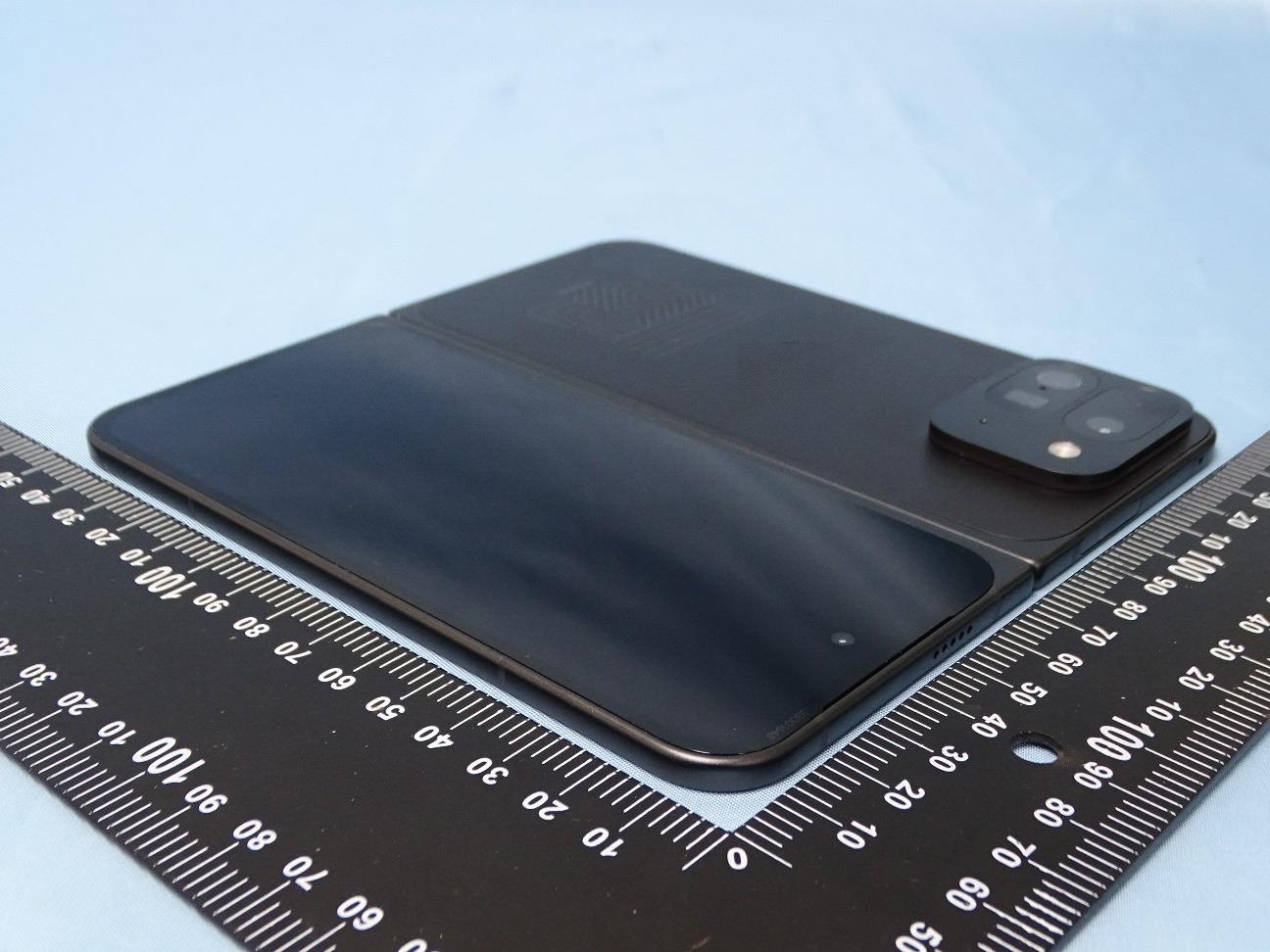

External viewGoogle GGH2X external FCC photo from External Photos p. 8Source: External Photos p. 8

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

Official FCC source: Users Manual (7357384)5 pages376 KB public file

EMC COMPLIANCE STATEMENT
Your phone may be charged with a compatible Qi-compliant or compatible Google approved wireless charger. Do not place other metallic or magnetic objects between the wireless charger and your phone, as this could cause heating of the other object or cause your device not to charge properly.
Source: Users Manual (7357384), page 2
RADIO FREQUENCY INTERFERENCE
Observe rules that prohibit the use of wireless technology (e.g. cellular or Wi-Fi). Your device is designed to comply with regulations governing radio frequency emissions but use of wireless devices can negatively affect other electronic equipment. For example, while ﬂying in an aircraft or immediately before boarding, use your wireless device only according to instructions provided by the airline. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. You may be able to use your device in airplane mode.
Source: Users Manual (7357384), page 3
RADIO FREQUENCY INTERFERENCE
When the use of Ultra Wideband is prohibited in your region, such as while in an aircraft, Ultra Wideband can be turned off by turning on Airplane mode. Turn on Airplane mode by going to Quick Settings > Tap Airplane mode. Airplane mode can also be turned on in Settings > Network & internet > toggle Airplane mode. In the US, UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or a satellite is prohibited.
Source: Users Manual (7357384), page 3
Operation of transmitters in the 5.925-7.125 GHz band is prohibited for
Source: Users Manual (7357384), page 4
The table below shows the wireless technologies (including
Channels partially or entirely above 6 GHz are not subject to testing.
Source: Users Manual (7357384), page 5
Turn on Airplane mode by going to Quick Settings > Tap Airplane mode.
Source: Users Manual (7357384), page 5
