FCC ID A4R-G9S9B

Google G9S9B FCC filing (A4R-G9S9B)

Name: Google G9S9B FCC filing dataset
Creator: Google LLC

Public FCC record for Google G9S9B (A4R-G9S9B), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, and other FCC-listed bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G9S9B

Device categoryPhones & Computers

Authorization dateMar 17, 2023

Plain-English filing summary

What this FCC record tells you

G9S9B is the device filed under FCC ID A4R-G9S9B by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual setup and troubleshooting notes.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, and other FCC-listed bands.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.
RF Exposure: Evaluation of human exposure to radiofrequency energy.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG9S9BThe filing-specific product code. It is not always the retail product name.

Application purposeClass II Permissive ChangeShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rules; Part 22H; Part 22H, 25; Part 24E; Part 24E, 25; Part 27; Part 25, 90; Part 90; Part 25, 27Part 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 22H is one of the FCC rule sections cited for this authorization. Part 22H, 25 is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 24E, 25 is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 25, 90 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization. Part 25, 27 is one of the FCC rule sections cited for this authorization.

Application IDKTcyNwsHpuvYpOlPMyvZNw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Oct 11, 2024

Class II Permissive Change

FCC application

This FCC application appears to be a permitted change to an already-authorized device, with the matching grant and public exhibits grouped together.

Application ID: hMiD7KGqYbkVM9o1JwhpWg==
Equipment class: PCS - Licensed Transmitter held to ear
FCC rules: Part 22H; Part 22H, 25; Part 24E; Part 24E, 25; Part 27; Part 25, 90; Part 90; Part 25, 27
Bands: Cellular and licensed bands: 49 ranges; 3.5/3.8 GHz bands: 3 ranges; 2.3 GHz bands: 2 ranges
Public exhibits: RF exposure, RF test report

SourcesFCC grant FCC exhibit list RF exposure

Mar 17, 2023

Class II Permissive Change

FCC application

This FCC application appears to be a permitted change to an already-authorized device, with the matching grant and public exhibits grouped together.

Application ID: KTcyNwsHpuvYpOlPMyvZNw==
Equipment class: NII - Wi-Fi-style wireless device
FCC rules: Part 15E - 5 GHz / 6 GHz wireless rules
Bands: 5 GHz Wi-Fi: 5 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Sep 20, 2021

Original Equipment

FCC application

This FCC application appears to be the original authorization package for the device, with the matching grant and public exhibits grouped together.

Application ID: MjXxcjs6f2kiFrdls0HBqg==
Equipment class: DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rules; Part 22H; Part 22H, 25; Part 24E; Part 24E, 25; Part 27; Part 25, 90; Part 90; Part 25, 27The rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 5 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 49 ranges; 3.5/3.8 GHz bands: 3 ranges; 2.3 GHz bands: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 61 ranges grouped below
Frequency range	824.2 - 848.8 MHz \| 1850.2 - 1909.8 MHz \| 1850 - 1910 MHz \| 1710 - 1755 MHz \| 824 - 849 MHz \| 2500 - 2570 MHz \| 699 - 716 MHz \| 777 - 787 MHz \| 788 - 798 MHz \| 704 - 716 MHzSource: RF Exposure Info p. 5

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

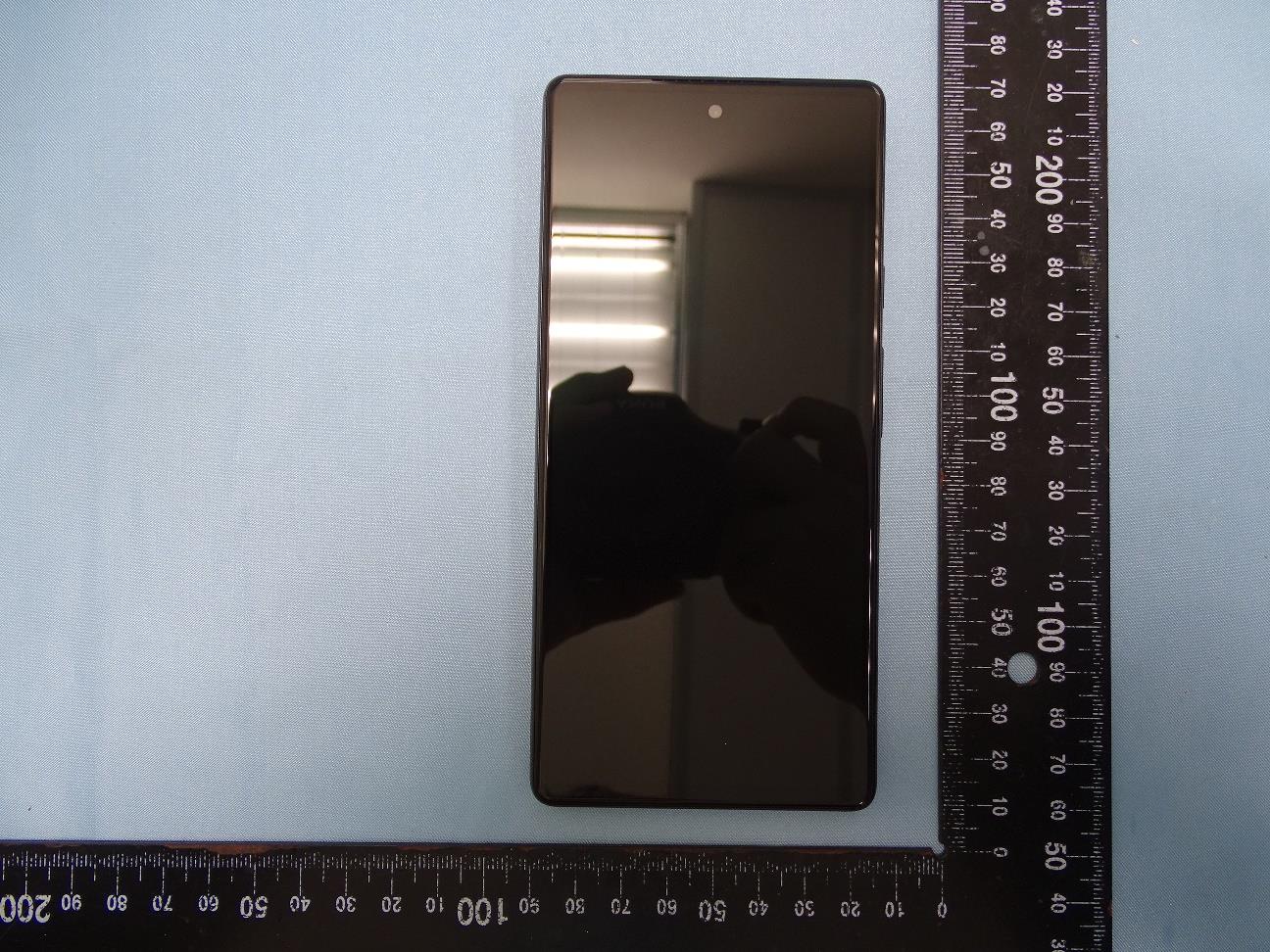

External viewGoogle G9S9B external FCC photo from External Photos p. 1Source: External Photos p. 1

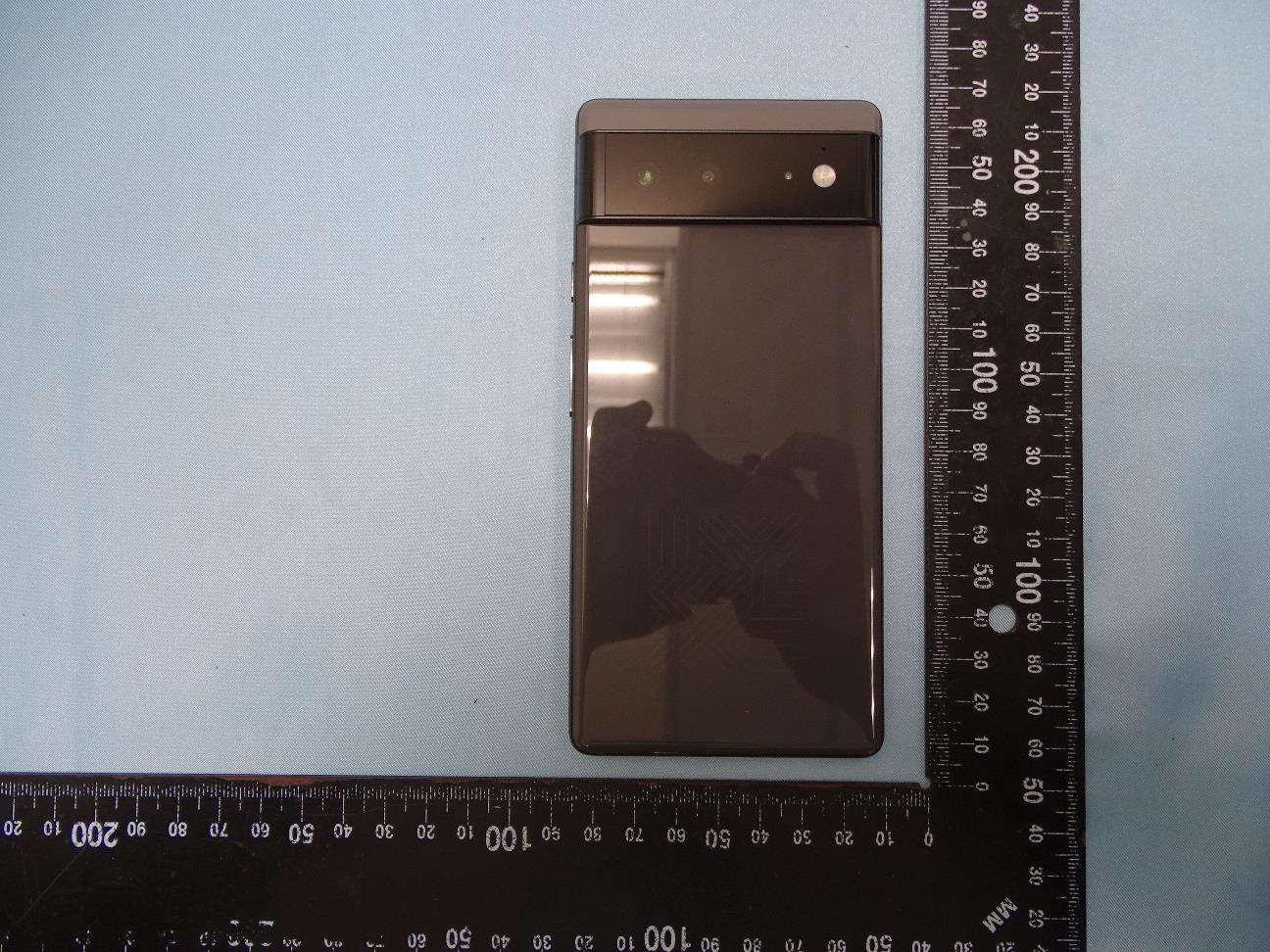

External viewGoogle G9S9B external FCC photo from External Photos p. 2Source: External Photos p. 2

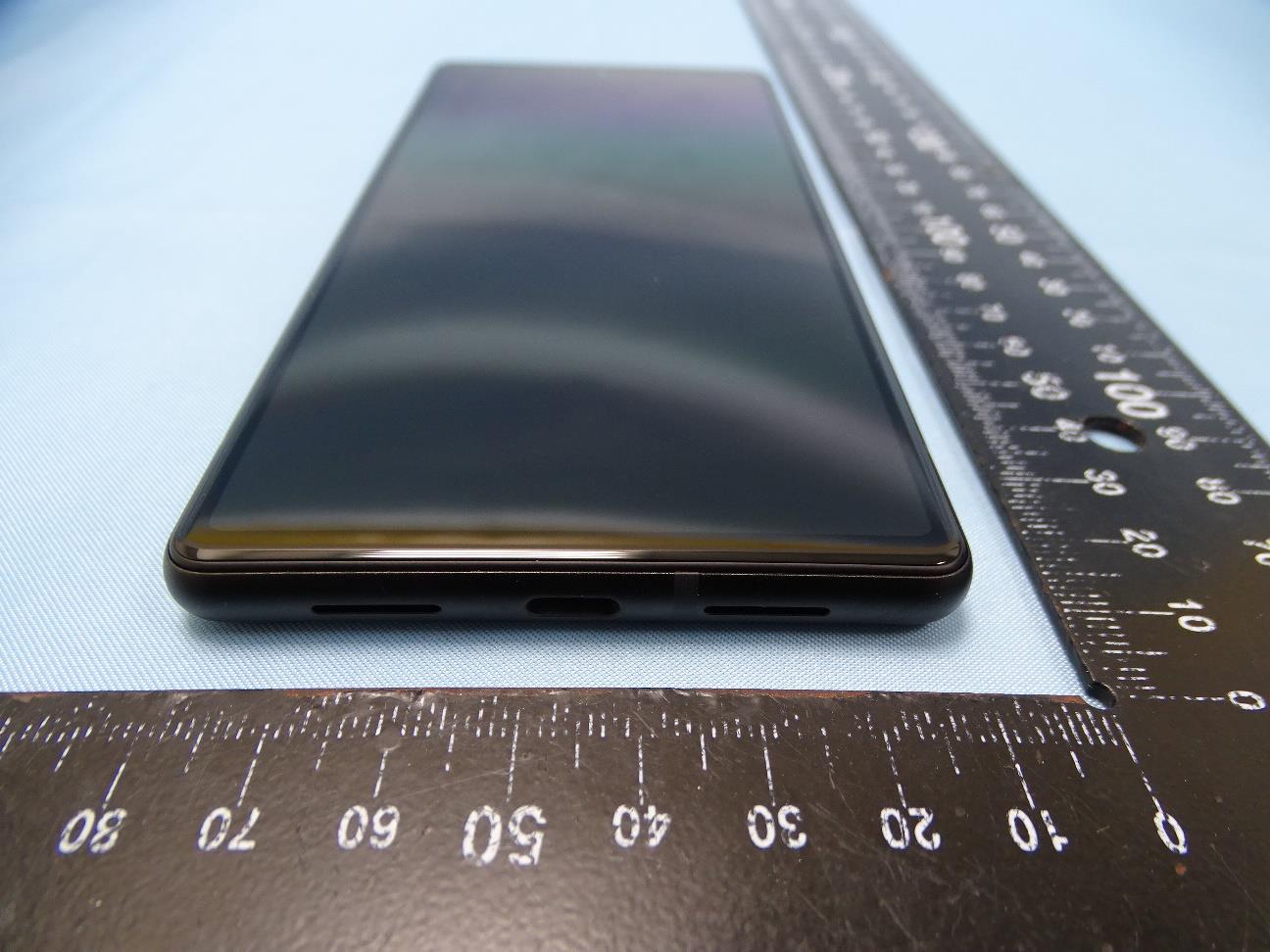

External viewGoogle G9S9B external FCC photo from External Photos p. 3Source: External Photos p. 3

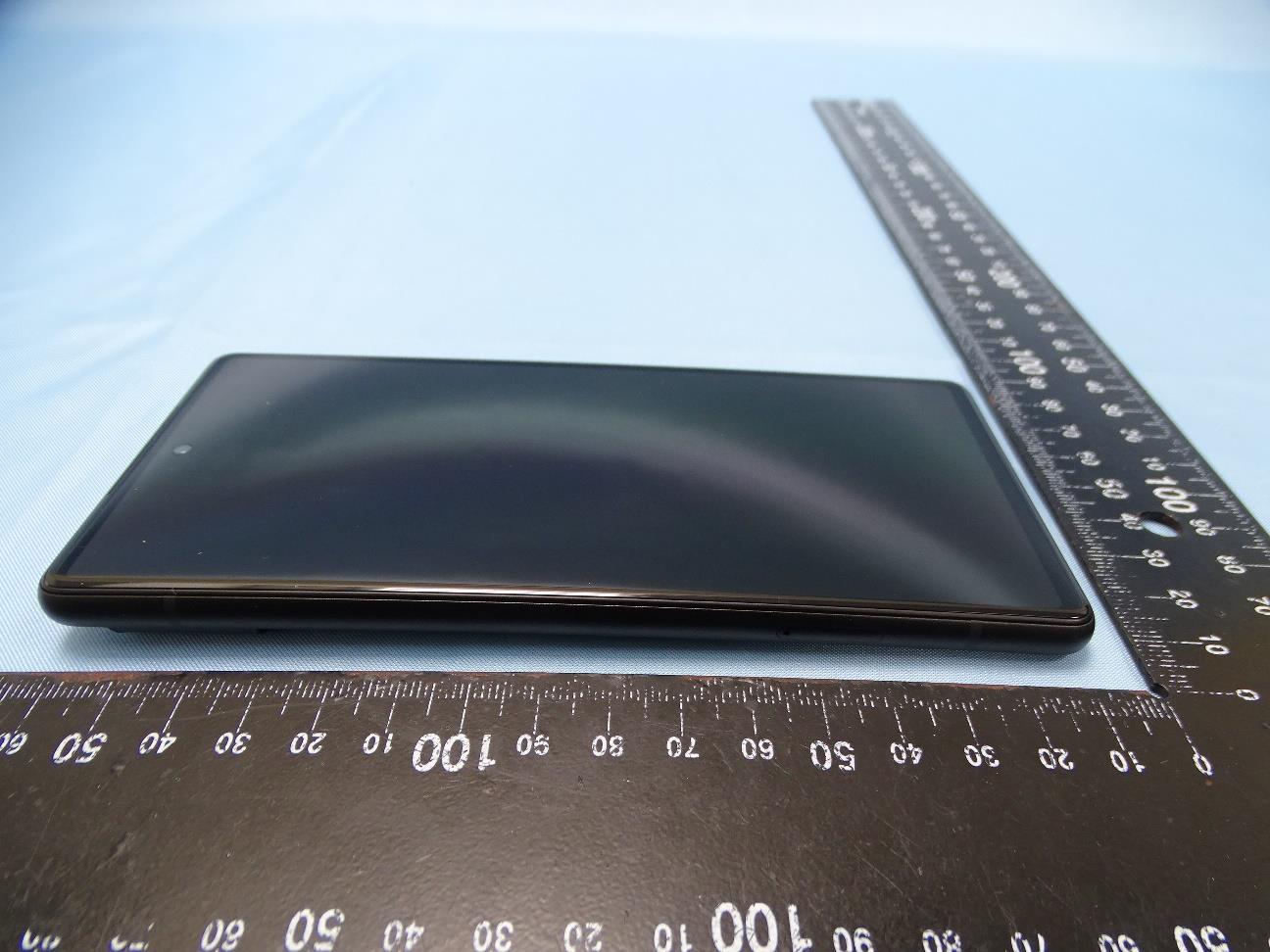

External viewGoogle G9S9B external FCC photo from External Photos p. 4Source: External Photos p. 4

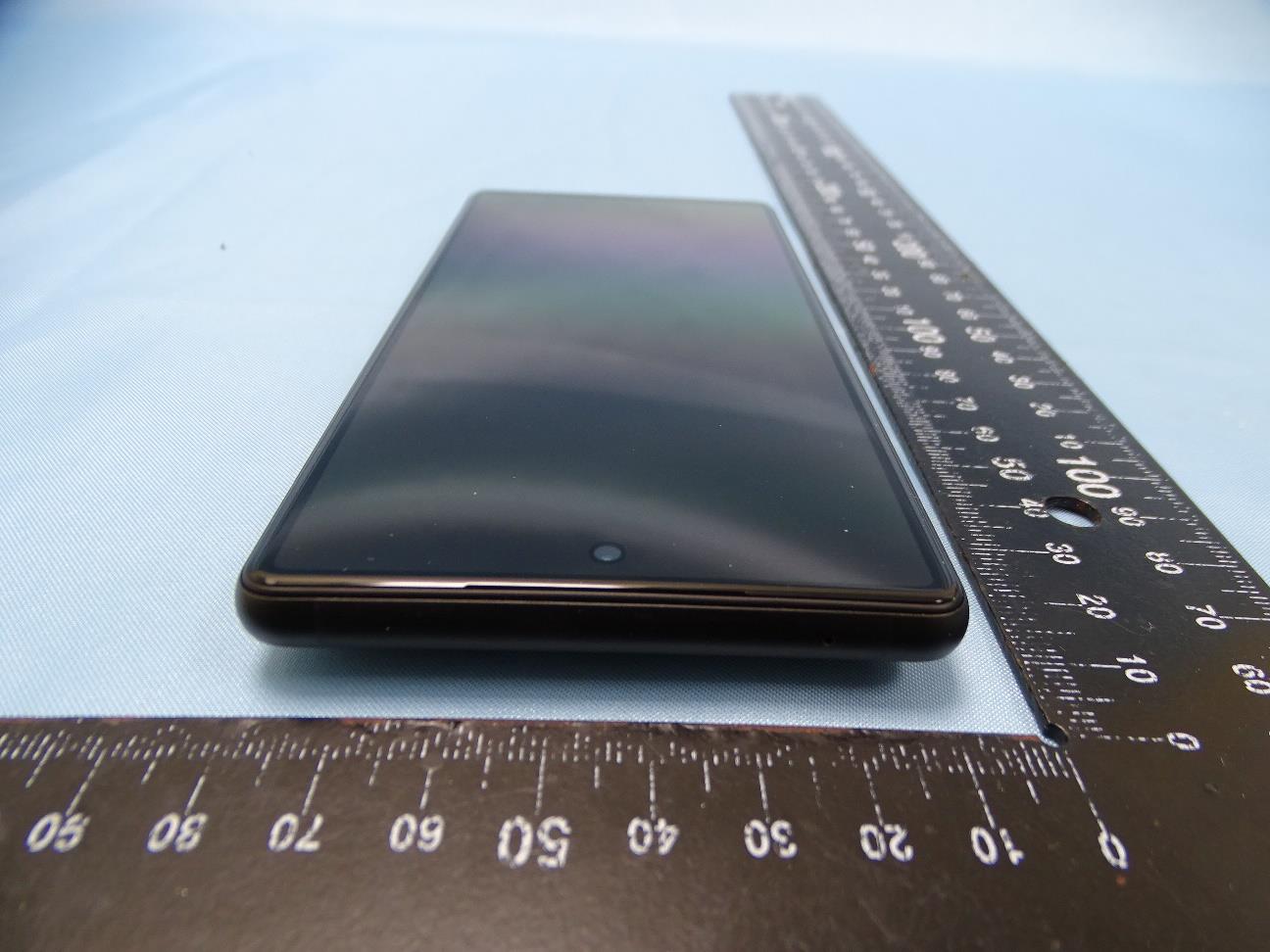

External viewGoogle G9S9B external FCC photo from External Photos p. 5Source: External Photos p. 5

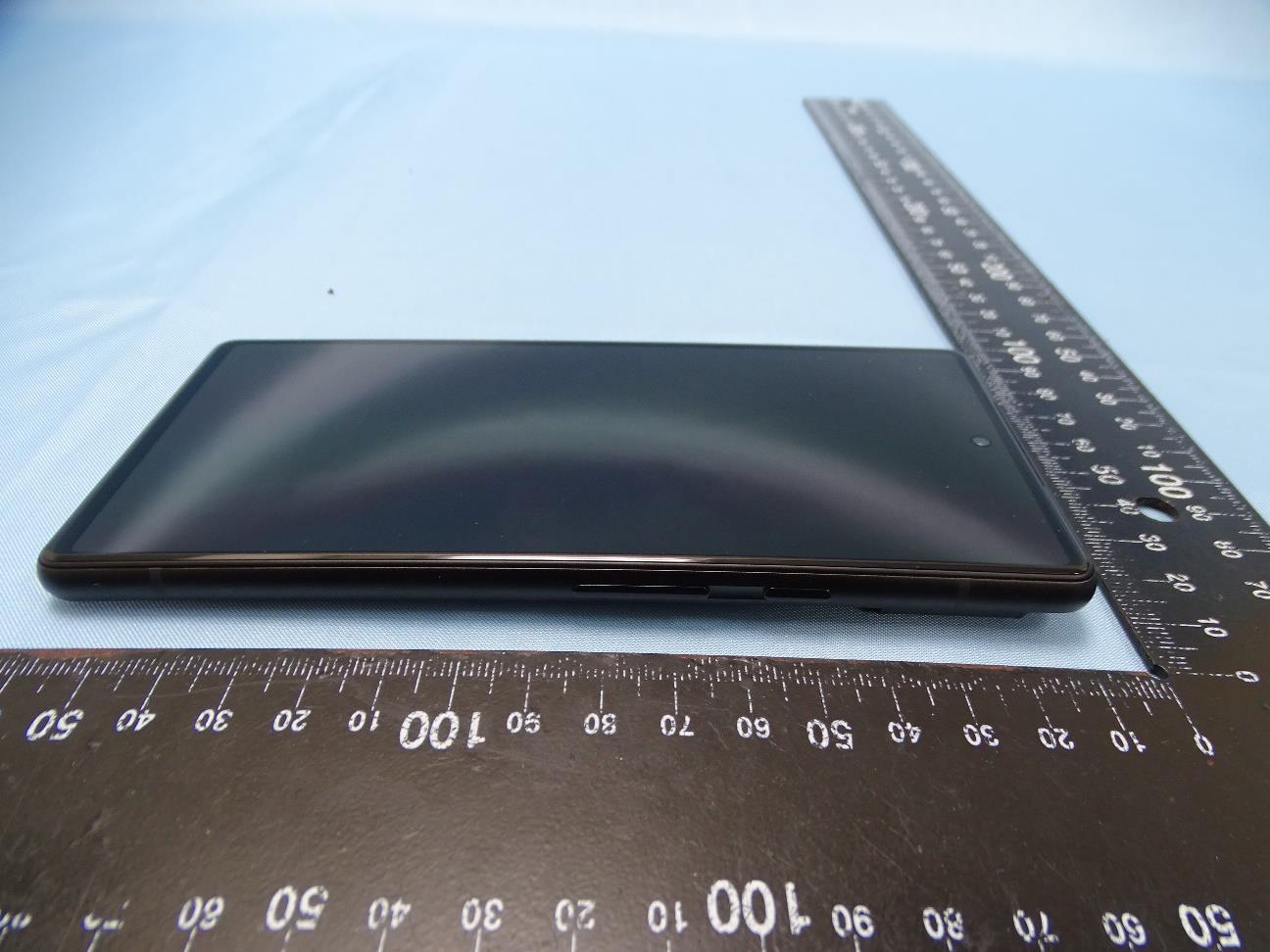

External viewGoogle G9S9B external FCC photo from External Photos p. 6Source: External Photos p. 6

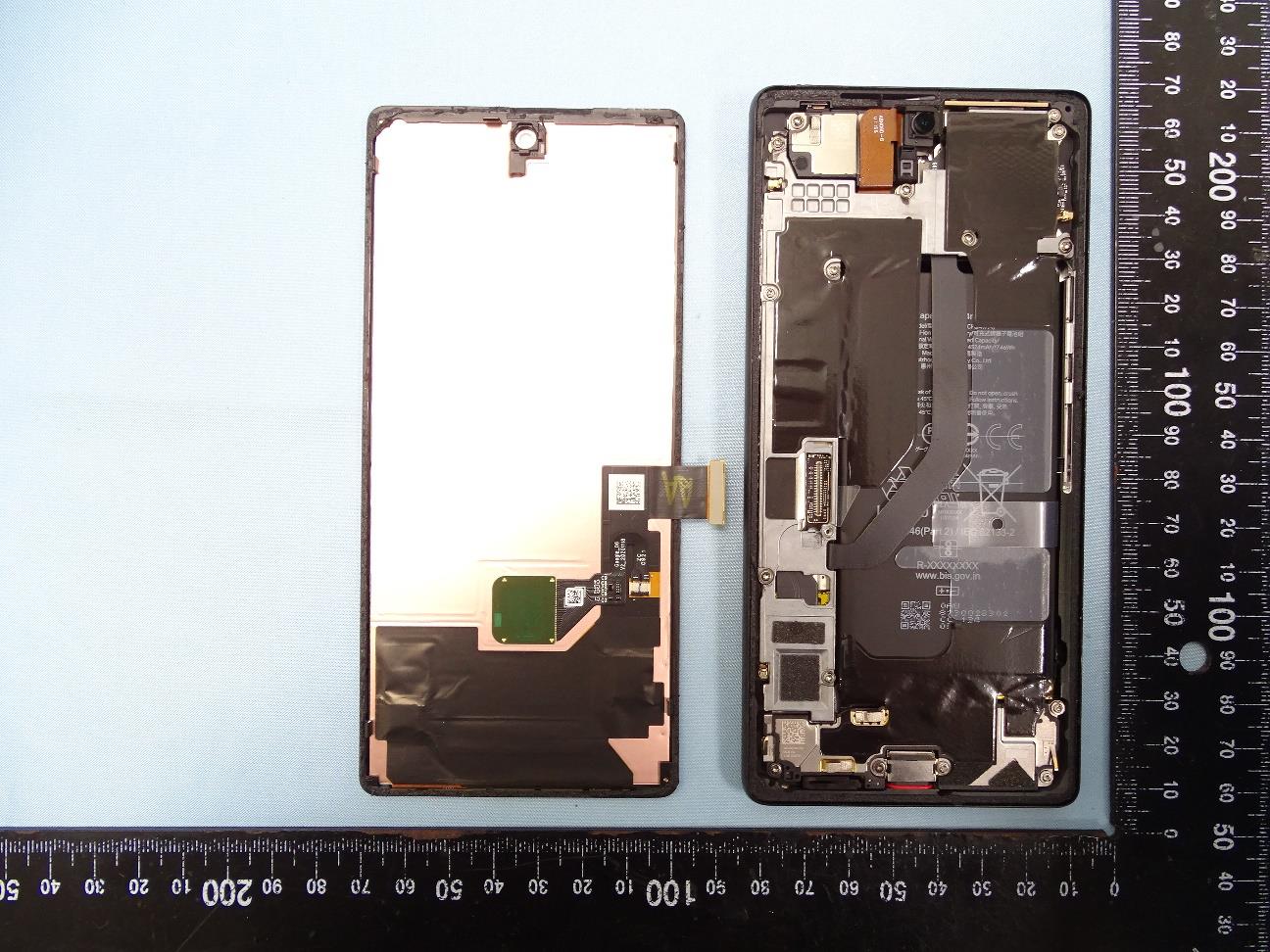

Internal viewGoogle G9S9B internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

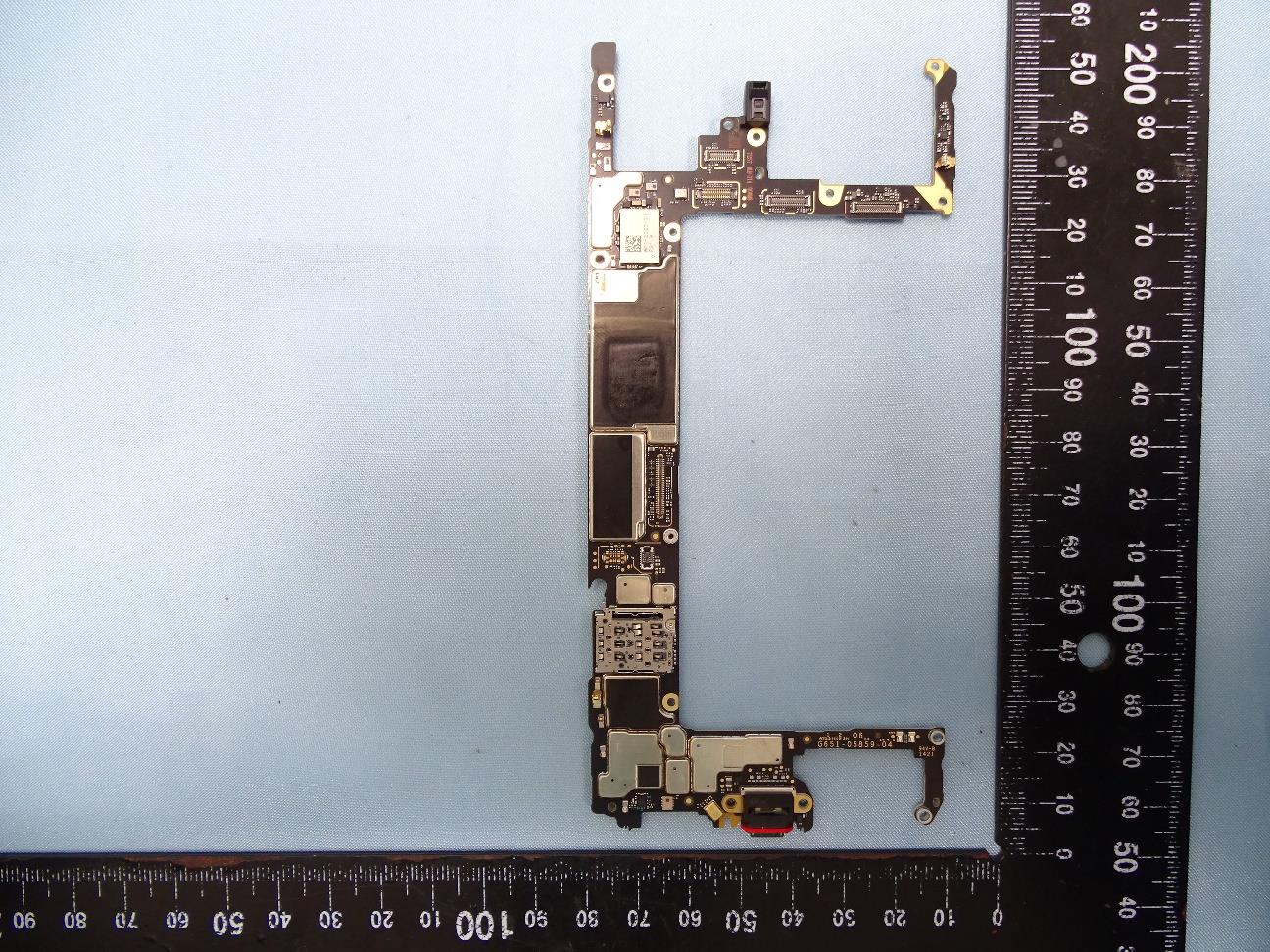

Internal viewGoogle G9S9B internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual excerpts

Readable manual highlights

Highlights from the public manual exhibit.

Official FCC source: Users Manual4 pages149 KB public file

Manual note
Do not place other metallic or magnetic objects between the wireless charger and your phone, as this could cause heating of the other object or cause your device not to charge properly.
Source: Users Manual

Open FCC filing source

Official FCC documents

Open the original FCC files used to check the details shown here. Badges separate whether a file is public from whether details from that file appear on this page.
