FCC ID A4R-G8HHN

Google Pixel smartphone FCC filing (A4R-G8HHN)

Name: Google Pixel FCC filing dataset
Creator: Google LLC

Public FCC record for Google Pixel (A4R-G8HHN), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers cellular and licensed bands, 3.5/3.8 GHz bands, 2.3 GHz bands, and 3.6 GHz bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G8HHN

Device categoryPhones & Computers

Authorization dateMar 18, 2024

Plain-English filing summary

What this FCC record tells you

G8HHN is the device filed under FCC ID A4R-G8HHN by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes cellular and licensed bands, 3.5/3.8 GHz bands, 2.3 GHz bands, and 3.6 GHz bands.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
RF Exposure: Evaluation of human exposure to radiofrequency energy.
SAR: Specific Absorption Rate, a measure used in RF exposure evaluation.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG8HHNThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classPCS - Citizens Band End User Devices

FCC rule partsPart 96; Part 22H; Part 24E; Part 27; Part 90Part 96 is one of the FCC rule sections cited for this authorization. Part 22H is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization.

Application IDkMUIQwY6pl0XvrPad/gehA==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Mar 18, 2024

Original Equipment

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: bOLX2LDXqeI9vbx3QpoyGw==, kMUIQwY6pl0XvrPad/gehA==
Equipment class: PCS - Licensed Transmitter held to ear
FCC rules: Part 22H; Part 24E; Part 27; Part 90; Part 96
Bands: Cellular and licensed bands: 47 ranges; 3.5/3.8 GHz bands: 5 ranges; 2.3 GHz bands: 1 range; 3.6 GHz bands: 5 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 96; Part 22H; Part 24E; Part 27; Part 90The rule sections cited by the grant or test documents.
Frequency bands	Cellular and licensed bands: 47 ranges; 3.5/3.8 GHz bands: 5 ranges; 2.3 GHz bands: 1 range; 3.6 GHz bands: 5 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 58 ranges grouped below
SAR	1.6 W/kgRF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 2

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

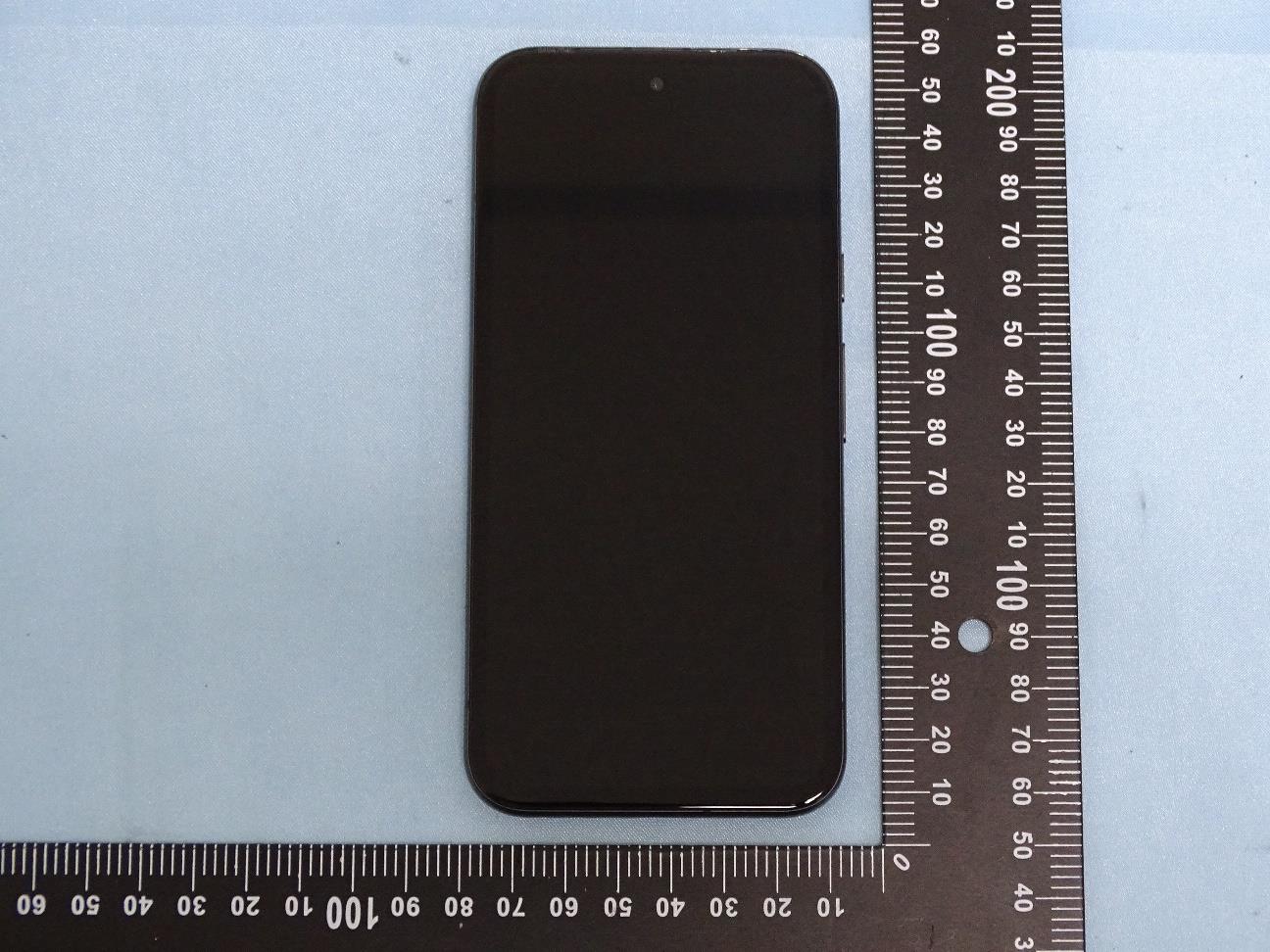

External viewGoogle Pixel external FCC photo from External Photos p. 1Source: External Photos p. 1

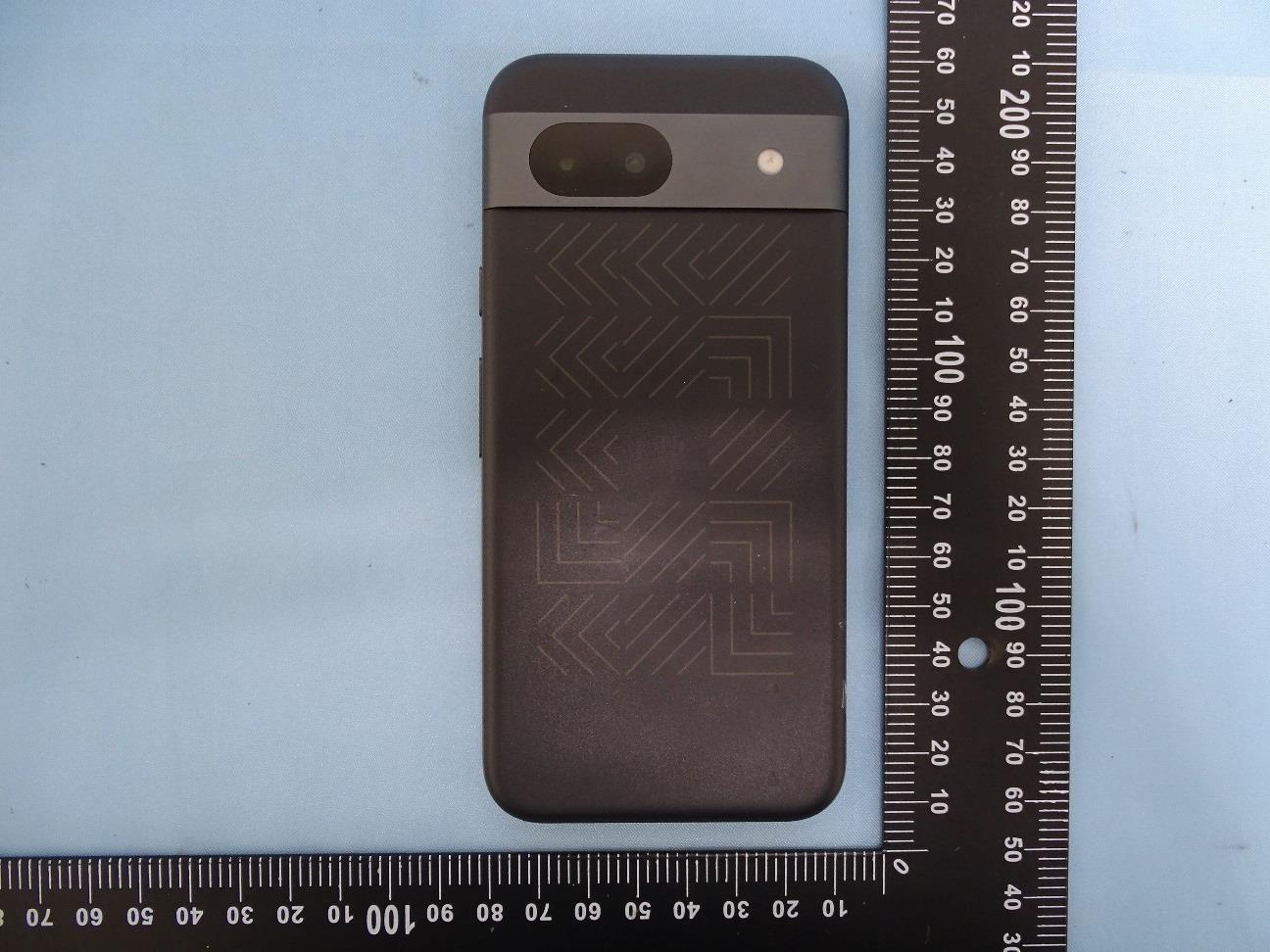

External viewGoogle Pixel external FCC photo from External Photos p. 2Source: External Photos p. 2

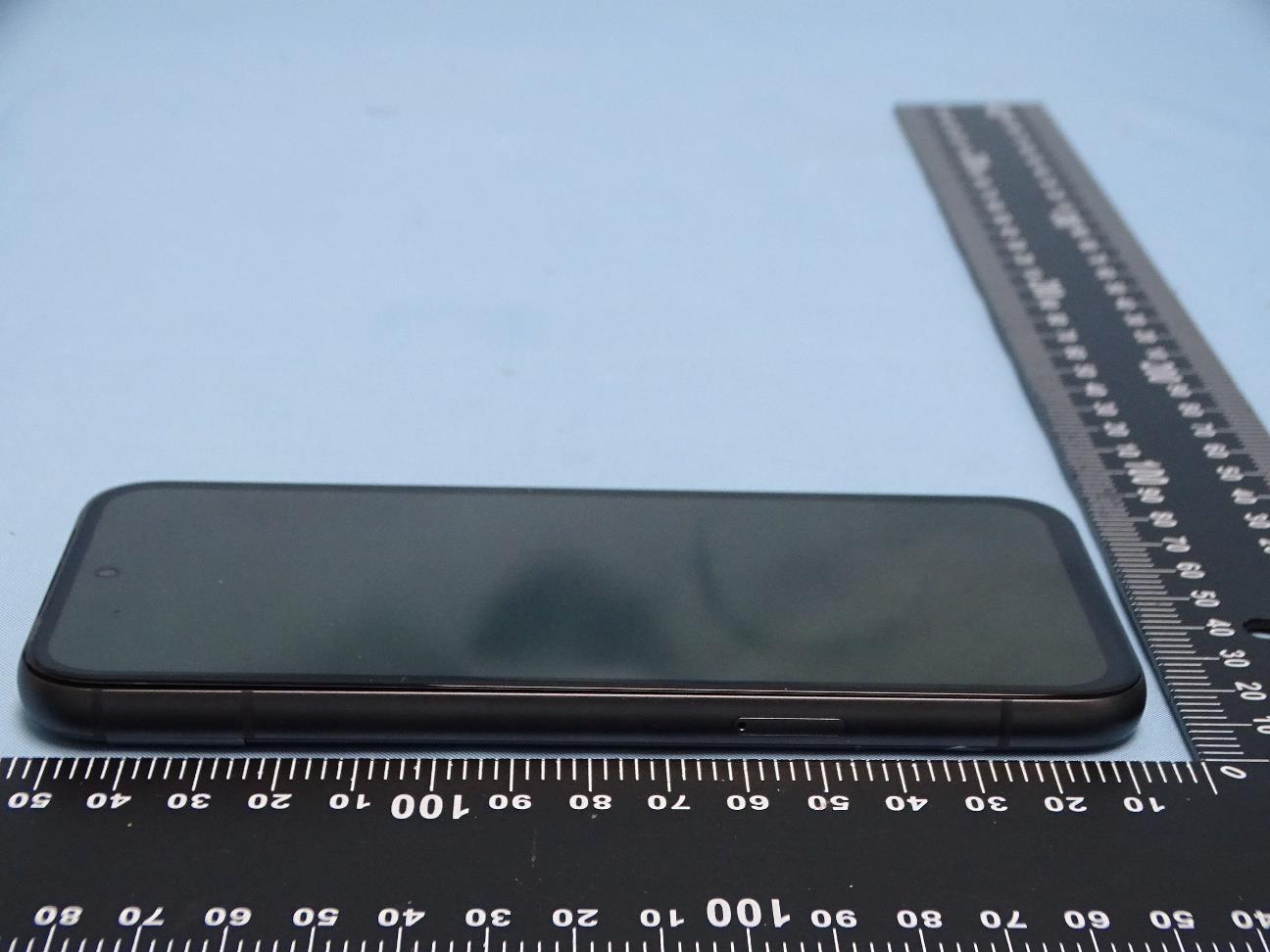

External viewGoogle Pixel external FCC photo from External Photos p. 3Source: External Photos p. 3

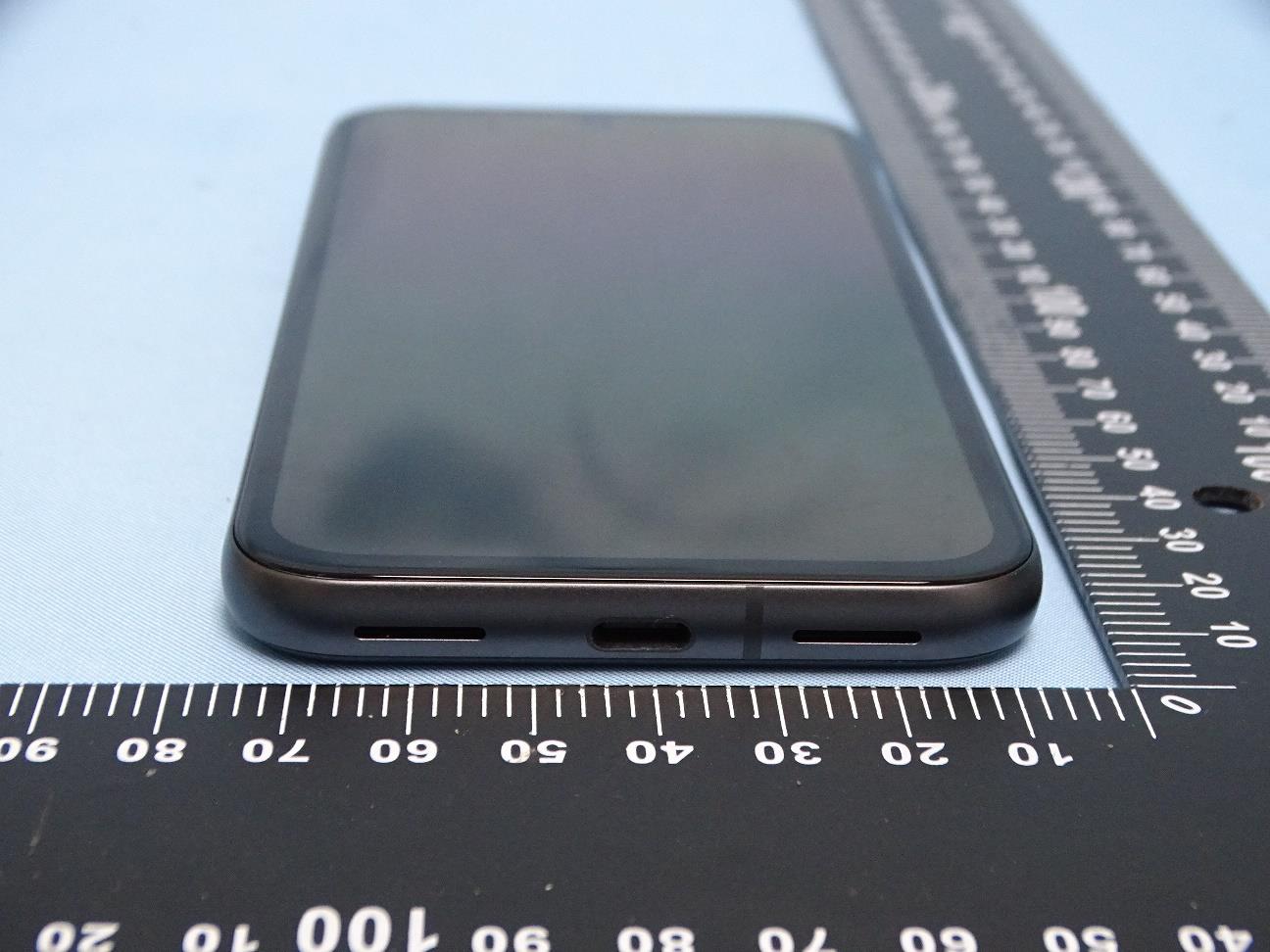

External viewGoogle Pixel external FCC photo from External Photos p. 4Source: External Photos p. 4

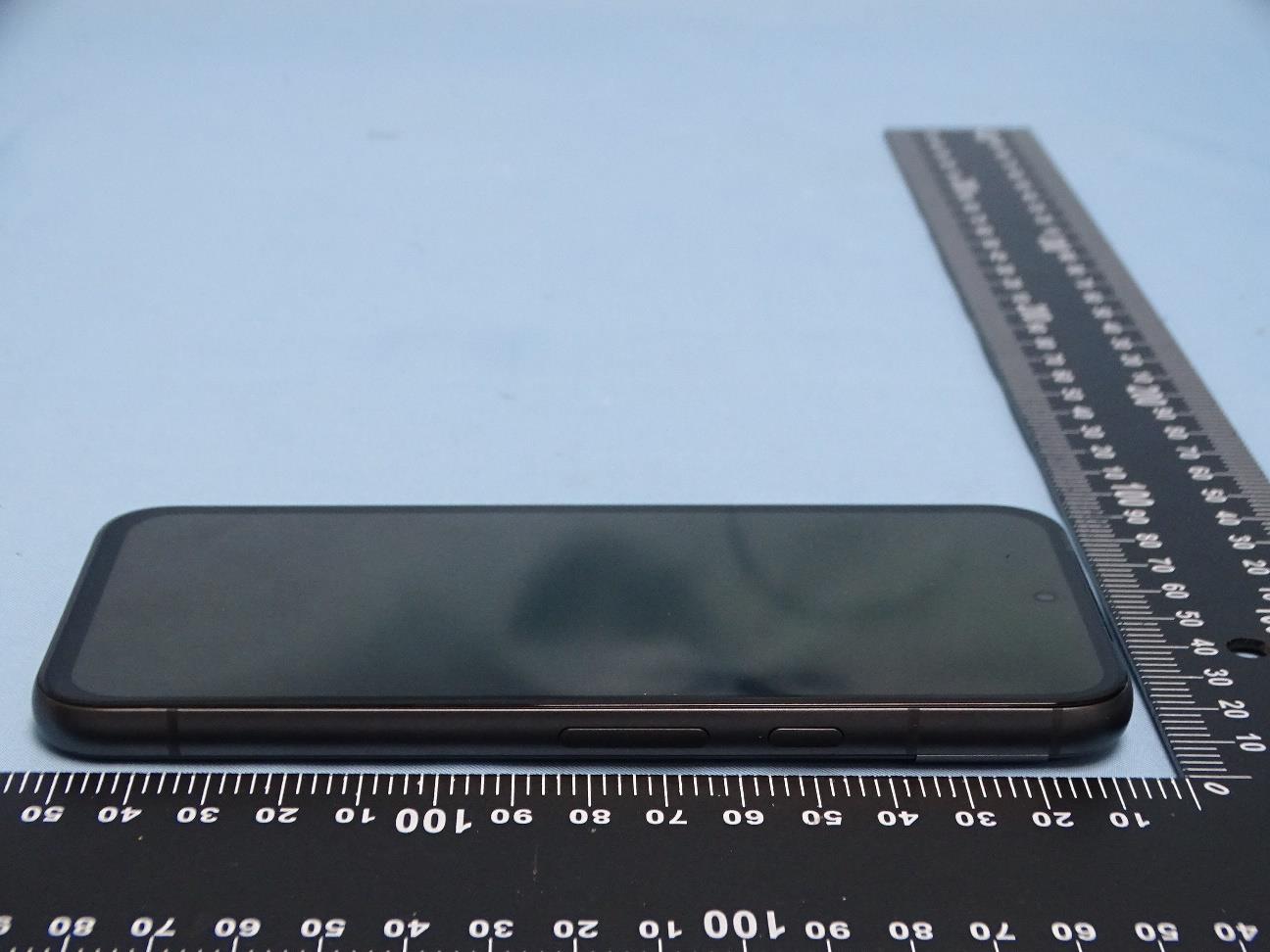

External viewGoogle Pixel external FCC photo from External Photos p. 5Source: External Photos p. 5

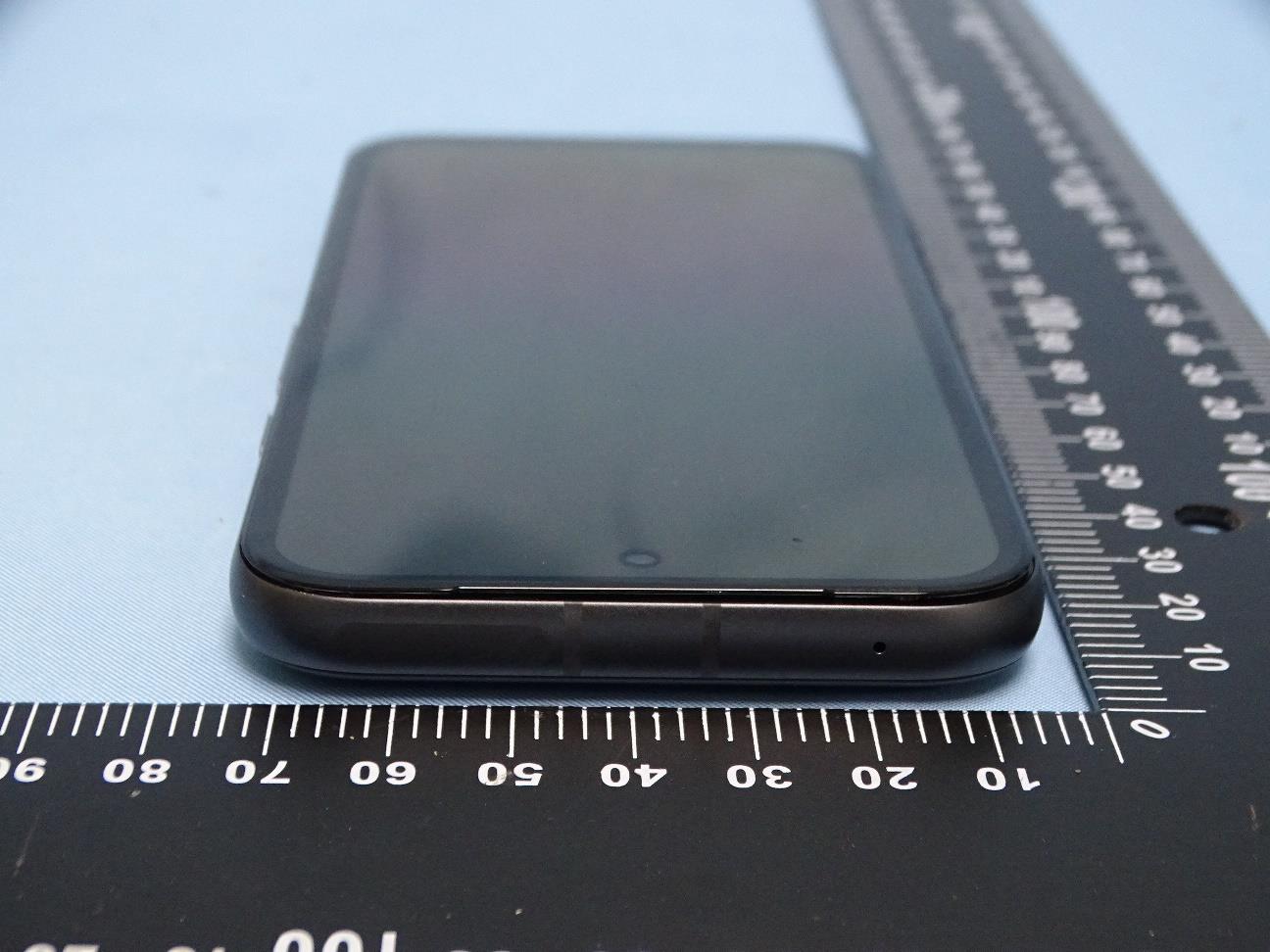

External viewGoogle Pixel external FCC photo from External Photos p. 6Source: External Photos p. 6

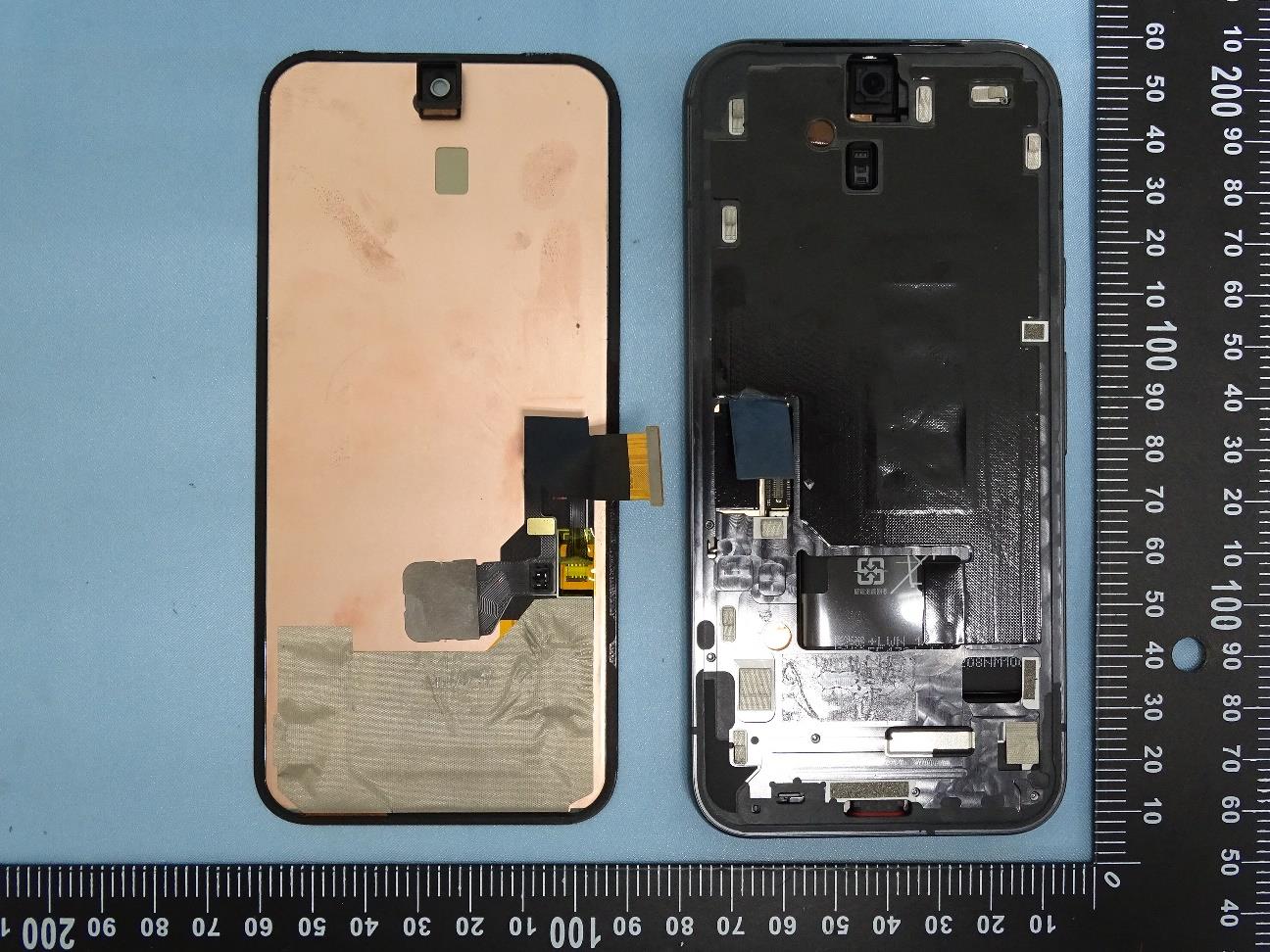

Internal viewGoogle Pixel internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

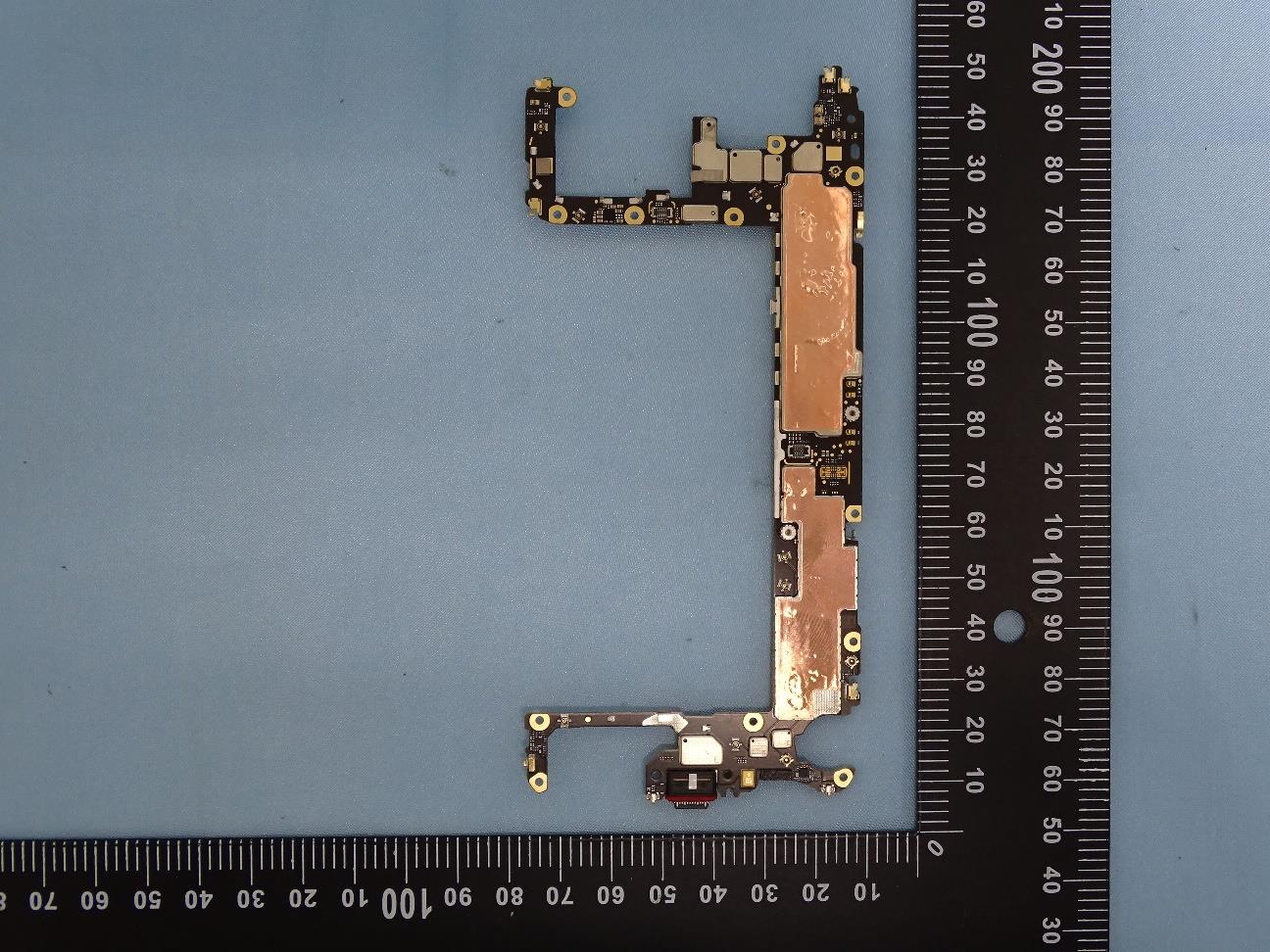

Internal viewGoogle Pixel internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual excerpts

Readable manual highlights

Highlights from the public manual exhibit.

Official FCC source: Users Manual (6984255)5 pages98 KB public file

Manual setup path
Set up your Pixel phone You can move what's on your current phone to your Pixel phone, or set up your Pixel phone as a new device by viiting g.co/pixel/help
Source: Users Manual (6984255)
