FCC ID A4R-G025J

Google G025J FCC filing (A4R-G025J)

Name: Google G025J FCC filing dataset
Creator: Google LLC

Public FCC record for Google G025J (A4R-G025J), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, and 2.3 GHz bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G025J

Device categoryPhones & Computers

Authorization dateJun 25, 2020

Plain-English filing summary

What this FCC record tells you

G025J is the device filed under FCC ID A4R-G025J by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 5 GHz Wi-Fi, 2.4 GHz Wi-Fi / Bluetooth, cellular and licensed bands, and 2.3 GHz bands.

Manual excerpts cover button controls.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
Part 15E: FCC rules often associated with 5 GHz and 6 GHz network devices.
RF Exposure: Evaluation of human exposure to radiofrequency energy.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG025JThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classNII - Wi-Fi-style wireless deviceIn plain English, this usually points to 5 GHz or 6 GHz Wi-Fi-style network radios.

FCC rule partsPart 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90; Part 24DPart 15E is commonly used for 5 GHz and 6 GHz Wi-Fi or network radios. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 22H is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization. Part 24D is one of the FCC rule sections cited for this authorization.

Application IDu77Epsngb8M3jsg7Dty3EA==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Jun 25, 2020

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: NPvWCXizhy7qID3evmg5ew==, u77Epsngb8M3jsg7Dty3EA==, HzEQhRHZ1aAFZFOaP+fr9w==
Equipment classes: PCS - Licensed Transmitter held to ear; NII - Wi-Fi-style wireless device; DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules; Part 15E - 5 GHz / 6 GHz wireless rules; Part 22H; Part 24D; Part 24E; Part 27; Part 90
Bands: 5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 37 ranges; 2.3 GHz bands: 1 range
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15E - 5 GHz / 6 GHz wireless rules; Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90; Part 24DThe rule sections cited by the grant or test documents.
Frequency bands	5 GHz Wi-Fi: 4 ranges; 2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 37 ranges; 2.3 GHz bands: 1 rangeThe radio ranges the FCC filing lists for the device.Source: FCC grant; 44 ranges grouped below
Frequency range	824.2 - 848.8 MHz \| 1850.2 - 1909.8 MHz \| 1852.4 - 1907.6 MHz \| 1712.4 - 1752.6 MHz \| 826.4 - 846.6 MHz \| 824.7 - 848.31 MHz \| 1851.25 - 1908.75 MHz \| 817.9 - 823.1 MHz \| 1850.7 - 1909.3 MHz \| 1710.7 - 1754.3 MHzSource: RF Exposure Info p. 5

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

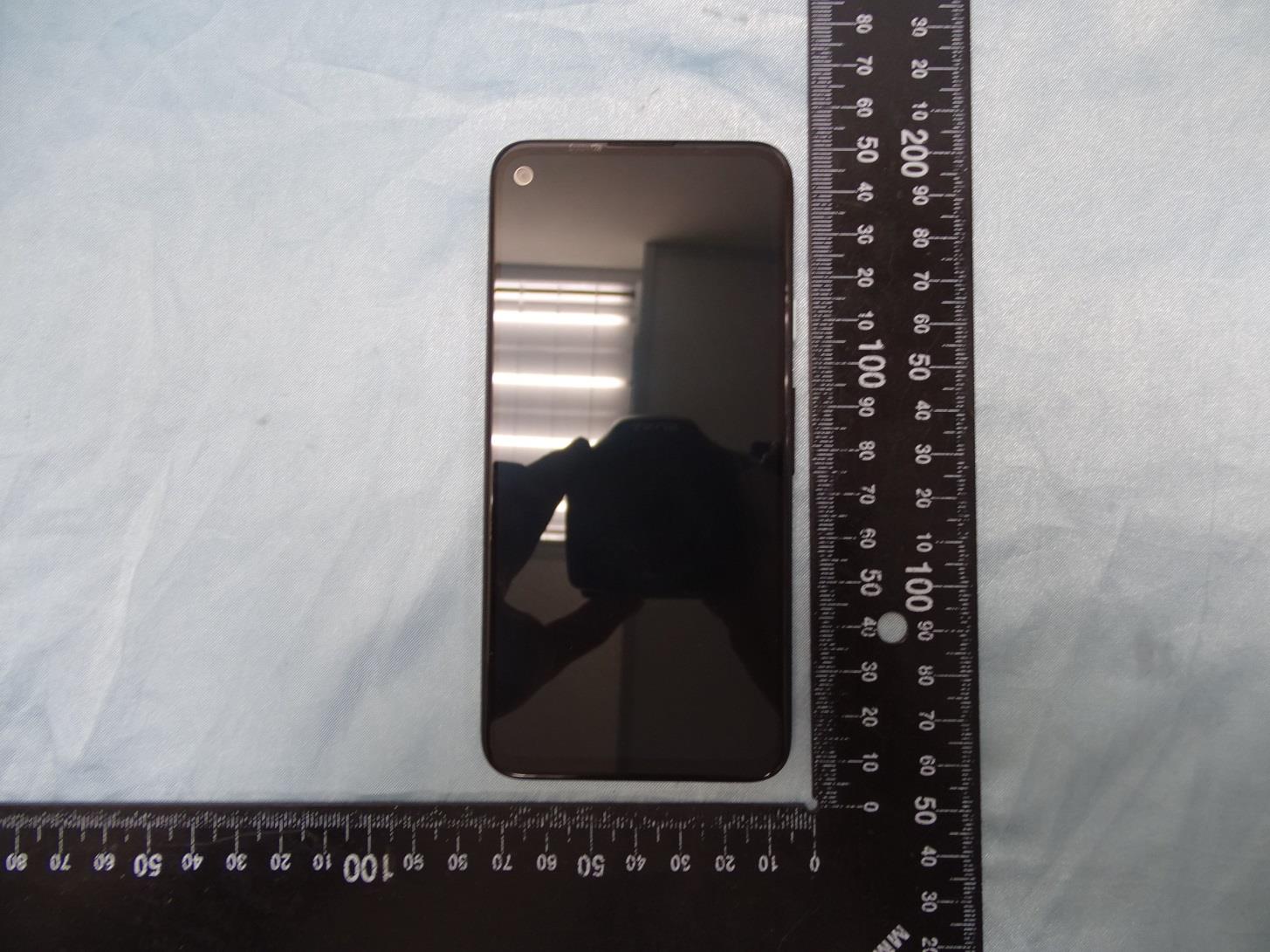

External viewGoogle G025J external FCC photo from External Photos p. 1Source: External Photos p. 1

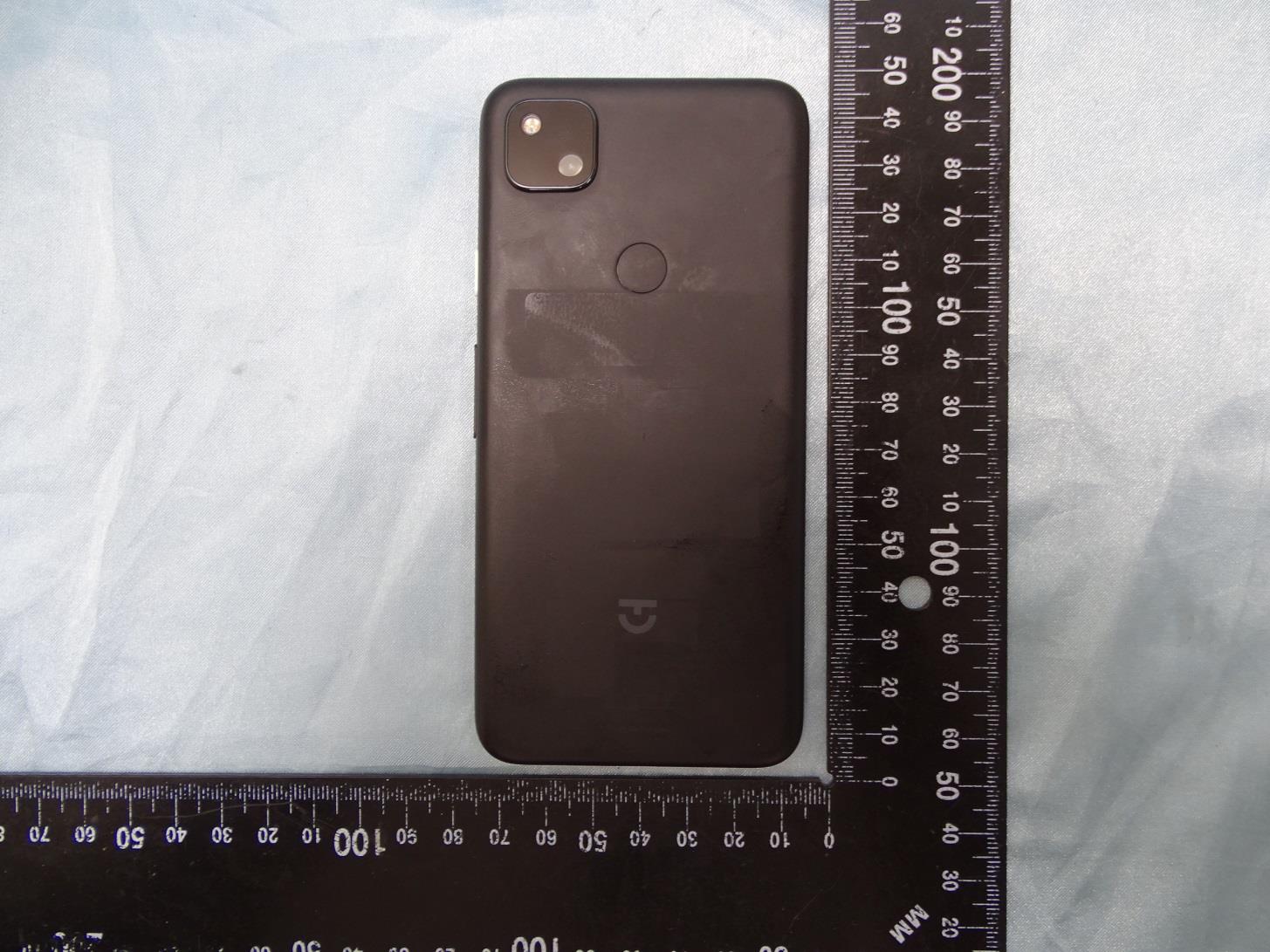

External viewGoogle G025J external FCC photo from External Photos p. 2Source: External Photos p. 2

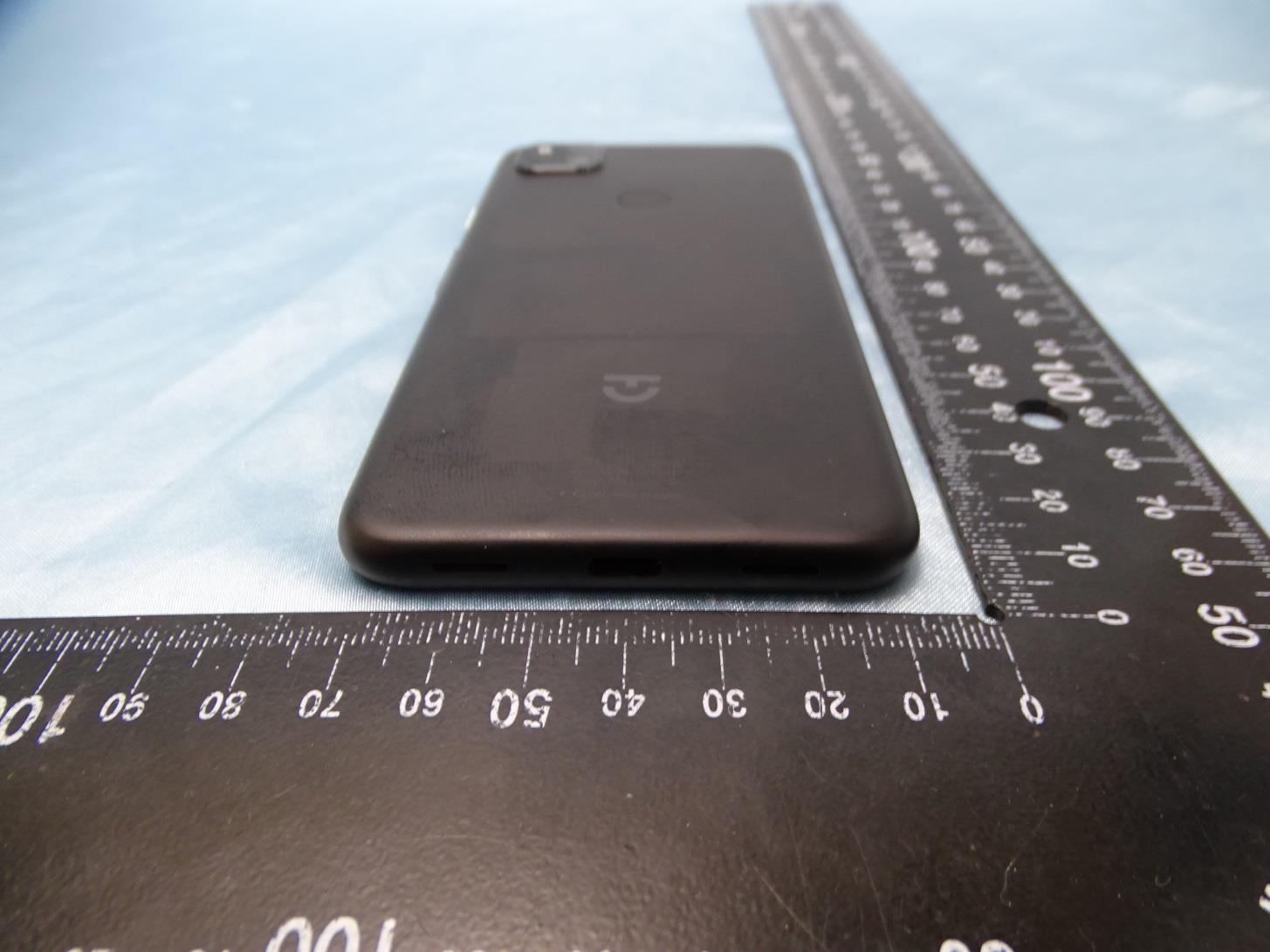

External viewGoogle G025J external FCC photo from External Photos p. 3Source: External Photos p. 3

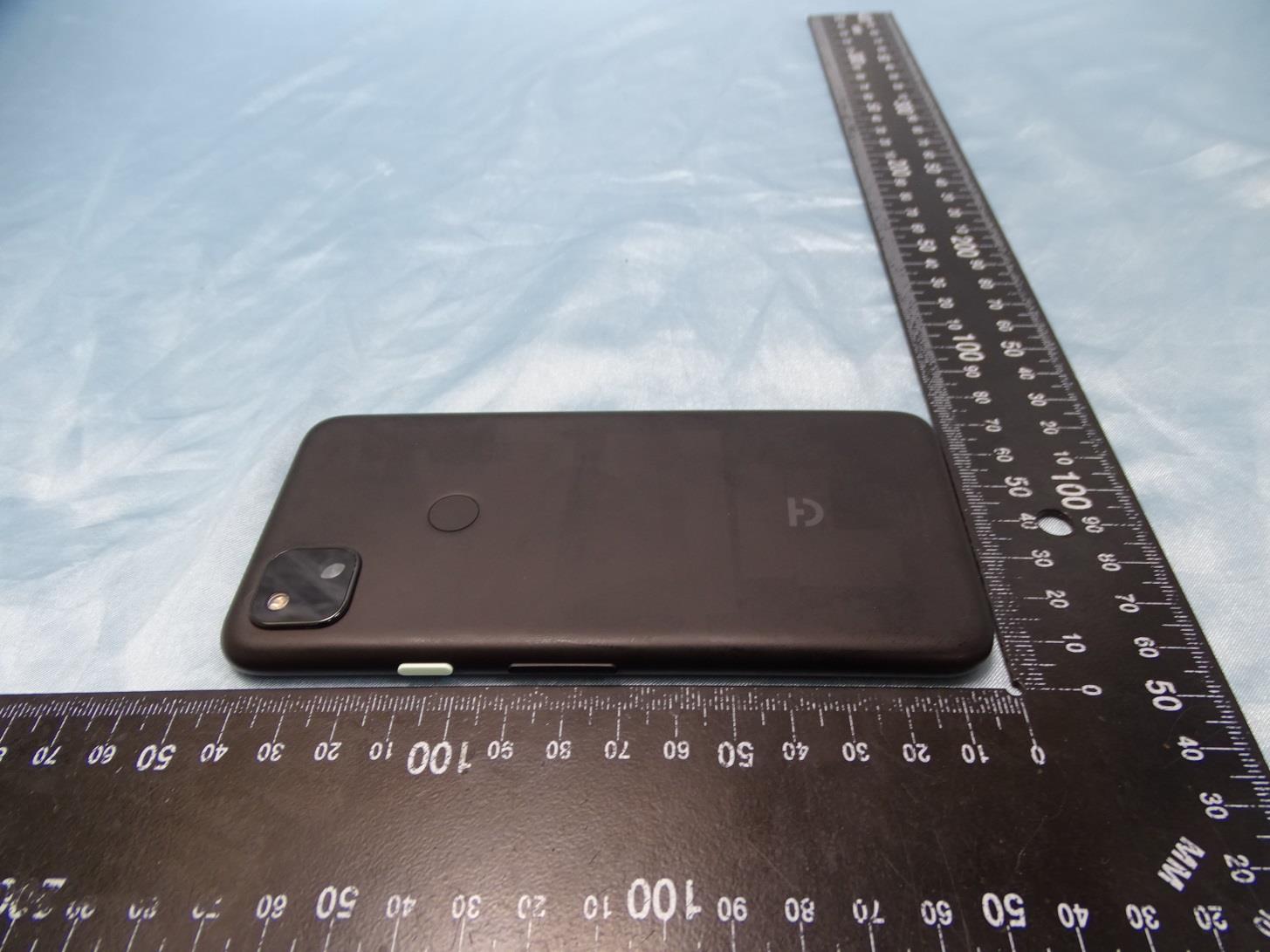

External viewGoogle G025J external FCC photo from External Photos p. 4Source: External Photos p. 4

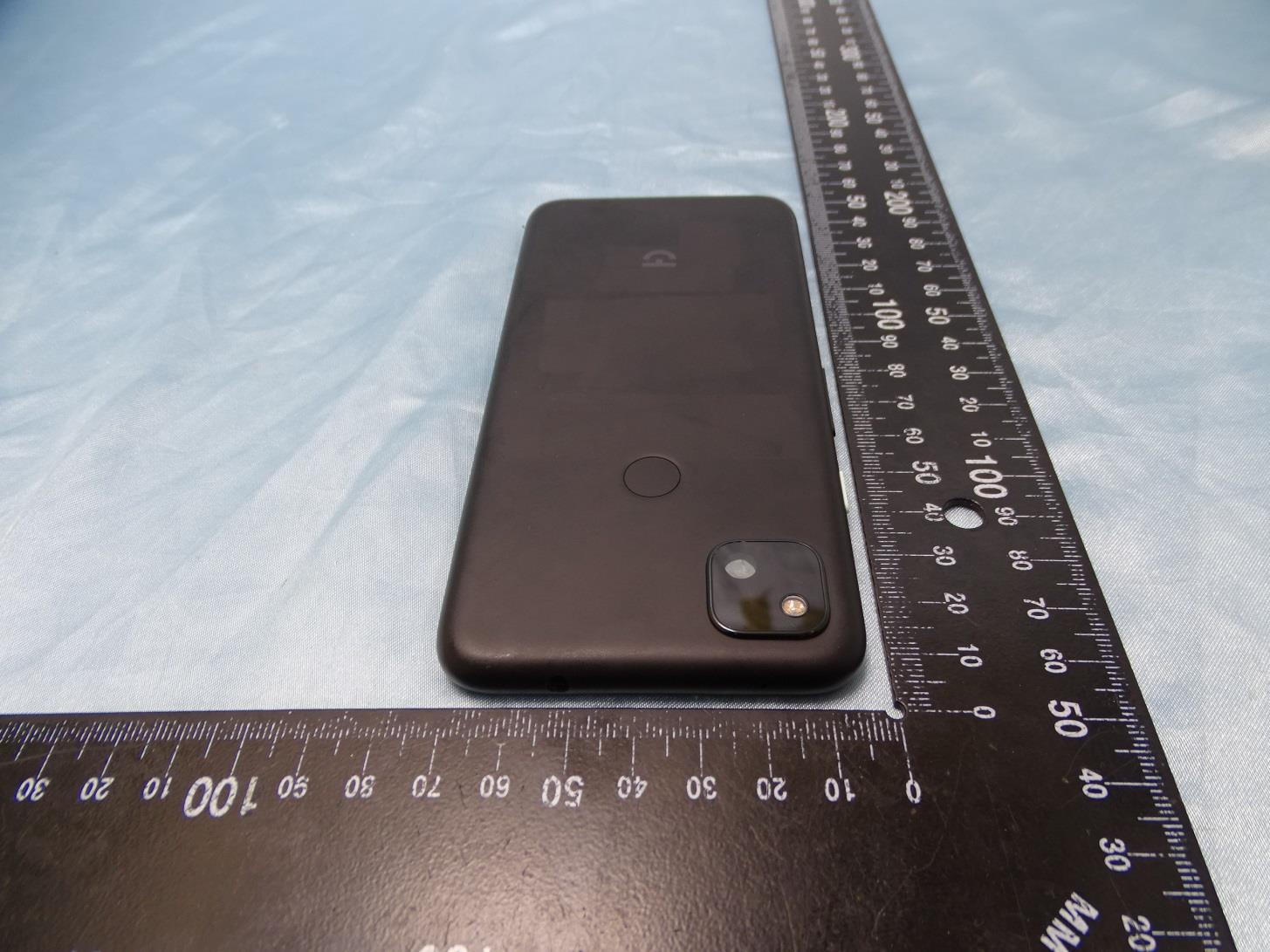

External viewGoogle G025J external FCC photo from External Photos p. 5Source: External Photos p. 5

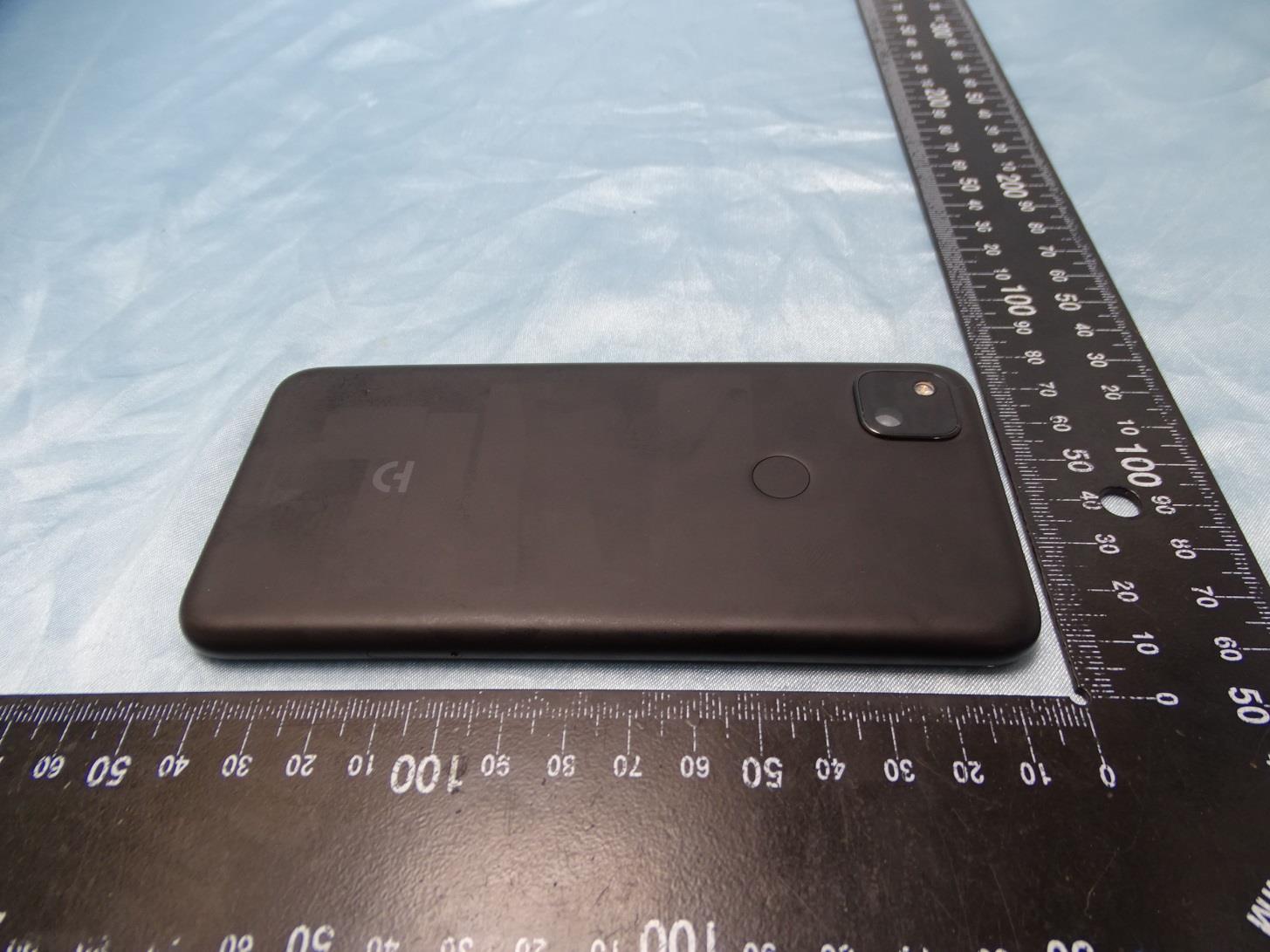

External viewGoogle G025J external FCC photo from External Photos p. 6Source: External Photos p. 6

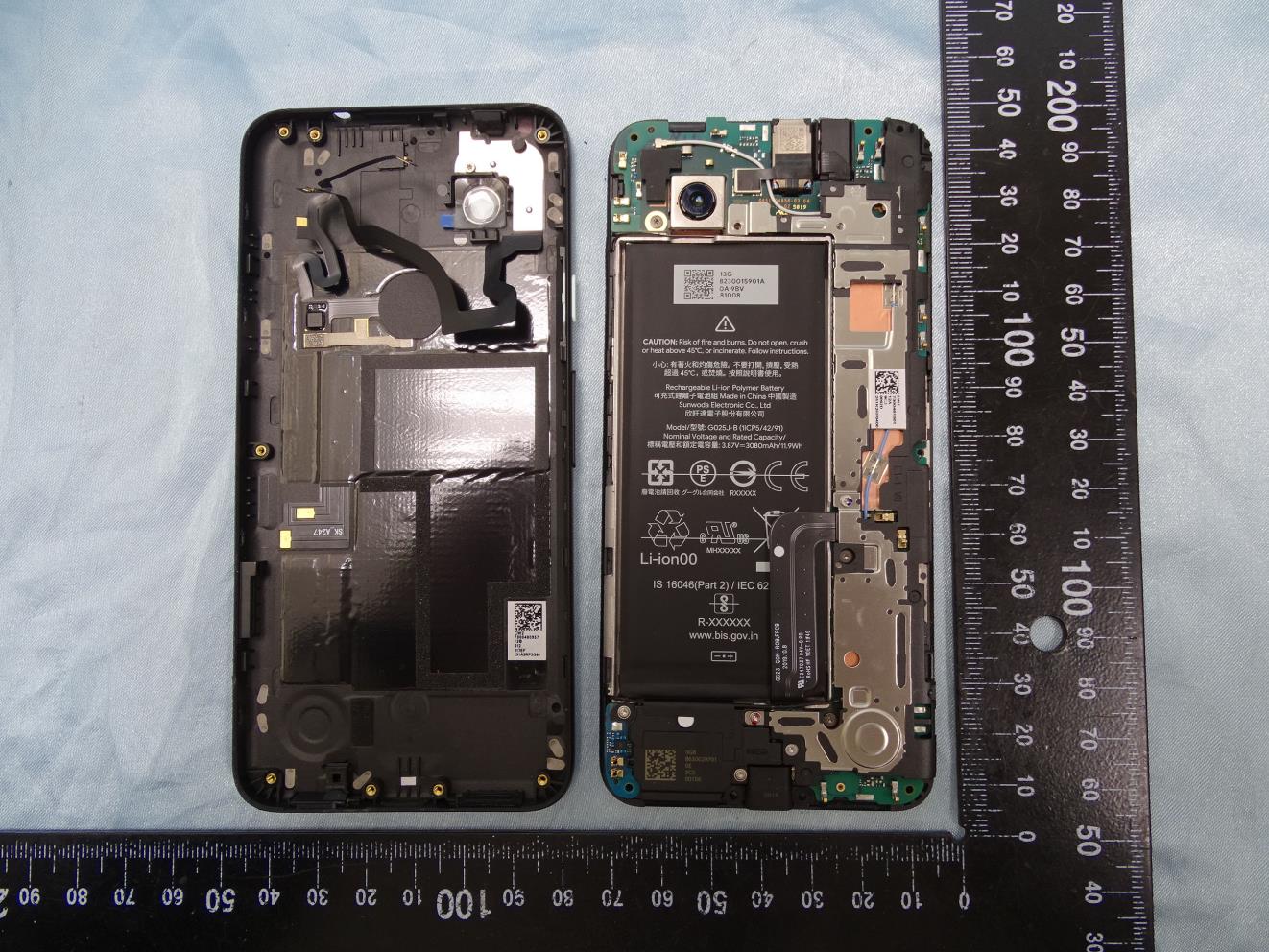

Internal viewGoogle G025J internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

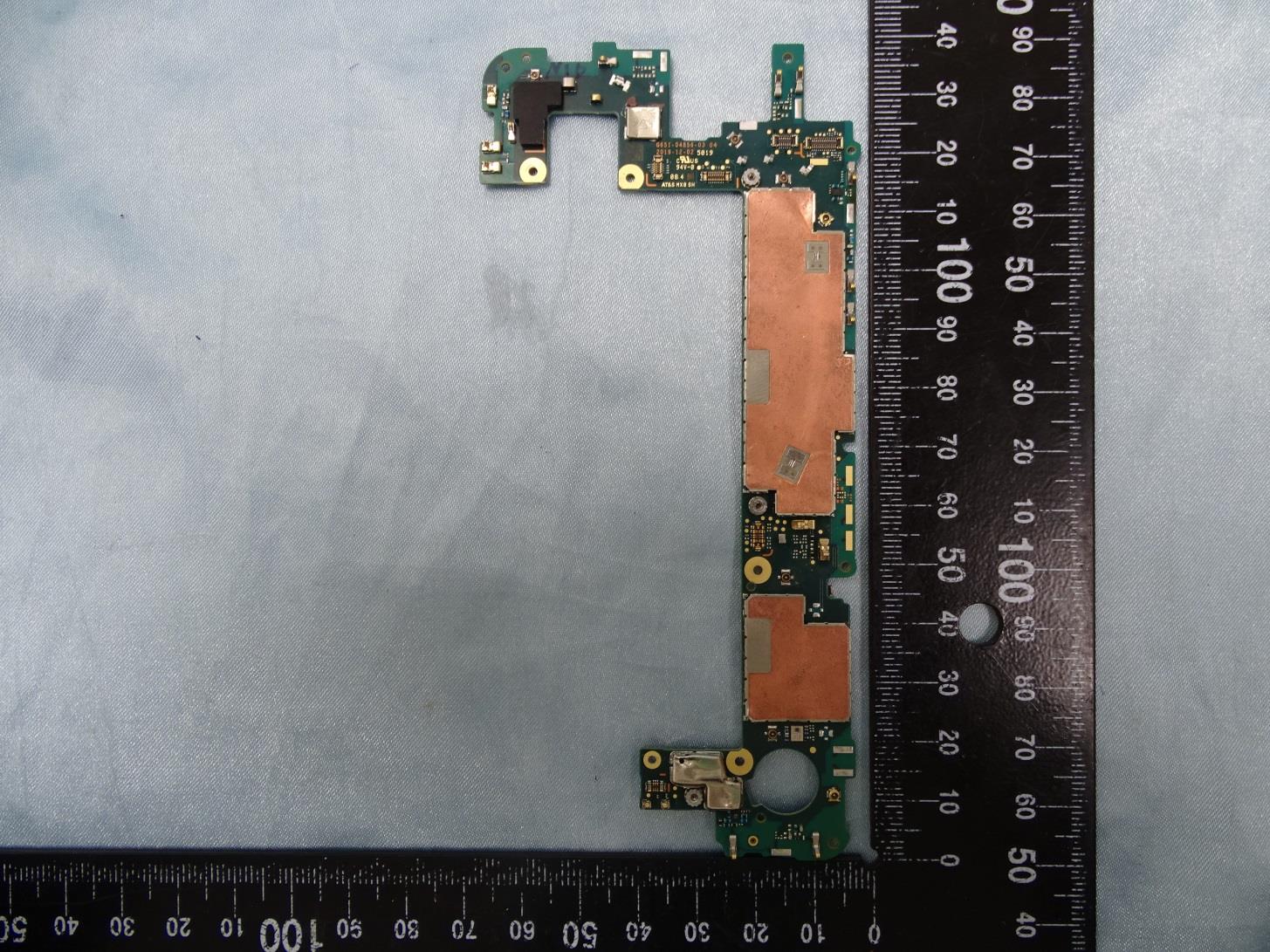

Internal viewGoogle G025J internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

User manual

Searchable manual text plus skimmable details from the public FCC user manual.

Official FCC source: Users Manual (4802936)2 pages129 KB public file

The public manual includes useful button and port details.

What buttons or ports does the manual describe?

Press and hold the power button for 5 seconds to turn on your phone Follow the on-screen steps to set up your phone Set up your new Pixel Meet your new Pixel Power button Pixel Old phone’s cable Old phone Quick Switch...

Source: Users Manual (4802936), page 1

English

Source: Users Manual (4802936), page 1
