FCC ID A4R-G020J

Google Pixel smartphone FCC filing (A4R-G020J)

Name: Google Pixel FCC filing dataset
Creator: Google LLC

Public FCC record for Google Pixel (A4R-G020J), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 6 GHz Wi-Fi, cellular and licensed bands, NFC / short-range, and other FCC-listed bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G020J

Device categoryPhones & Computers

Authorization dateSep 3, 2019

Plain-English filing summary

What this FCC record tells you

G020J is the device filed under FCC ID A4R-G020J by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 6 GHz Wi-Fi, cellular and licensed bands, NFC / short-range, and other FCC-listed bands.

Manual excerpts cover setup and power details.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
RF Exposure: Evaluation of human exposure to radiofrequency energy.
SAR: Specific Absorption Rate, a measure used in RF exposure evaluation.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG020JThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classPCS - Citizens Band End User Devices

FCC rule partsPart 96; Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90Part 96 is one of the FCC rule sections cited for this authorization. Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 22H is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization.

Application ID0FIQOqzFWykUKL22blBzuQ==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Sep 3, 2019

Original Equipment

3 FCC applications

3 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Original Equipment rows.

Applications: HEbFv+E16k7pfrYw1ua/zw==, 0FIQOqzFWykUKL22blBzuQ==, TJmAdmk4jqc2NCs078qjGg==
Equipment class: PCS - Licensed Transmitter held to ear
FCC rules: Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90; Part 96
Bands: 6 GHz Wi-Fi: 1 range; Cellular and licensed bands: 32 ranges; NFC / short-range: 1 range; 2.3 GHz bands: 1 range; 3.6 GHz bands: 3 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 96; Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90The rule sections cited by the grant or test documents.
Frequency bands	6 GHz Wi-Fi: 1 range; Cellular and licensed bands: 32 ranges; NFC / short-range: 1 range; 2.3 GHz bands: 1 range; 3.6 GHz bands: 3 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 38 ranges grouped below
Frequency range	824.2 - 848.8 MHz \| 1850.2 - 1909.8 MHz \| 1852.4 - 1907.6 MHz \| 1712.4 - 1752.6 MHz \| 826.4 - 846.6 MHz \| 824.7 - 848.31 MHz \| 1851.25 - 1908.75 MHz \| 817.9 - 823.1 MHz \| 1850.7 - 1909.3 MHz \| 1710.7 - 1754.3 MHzSource: RF Exposure Info p. 4

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

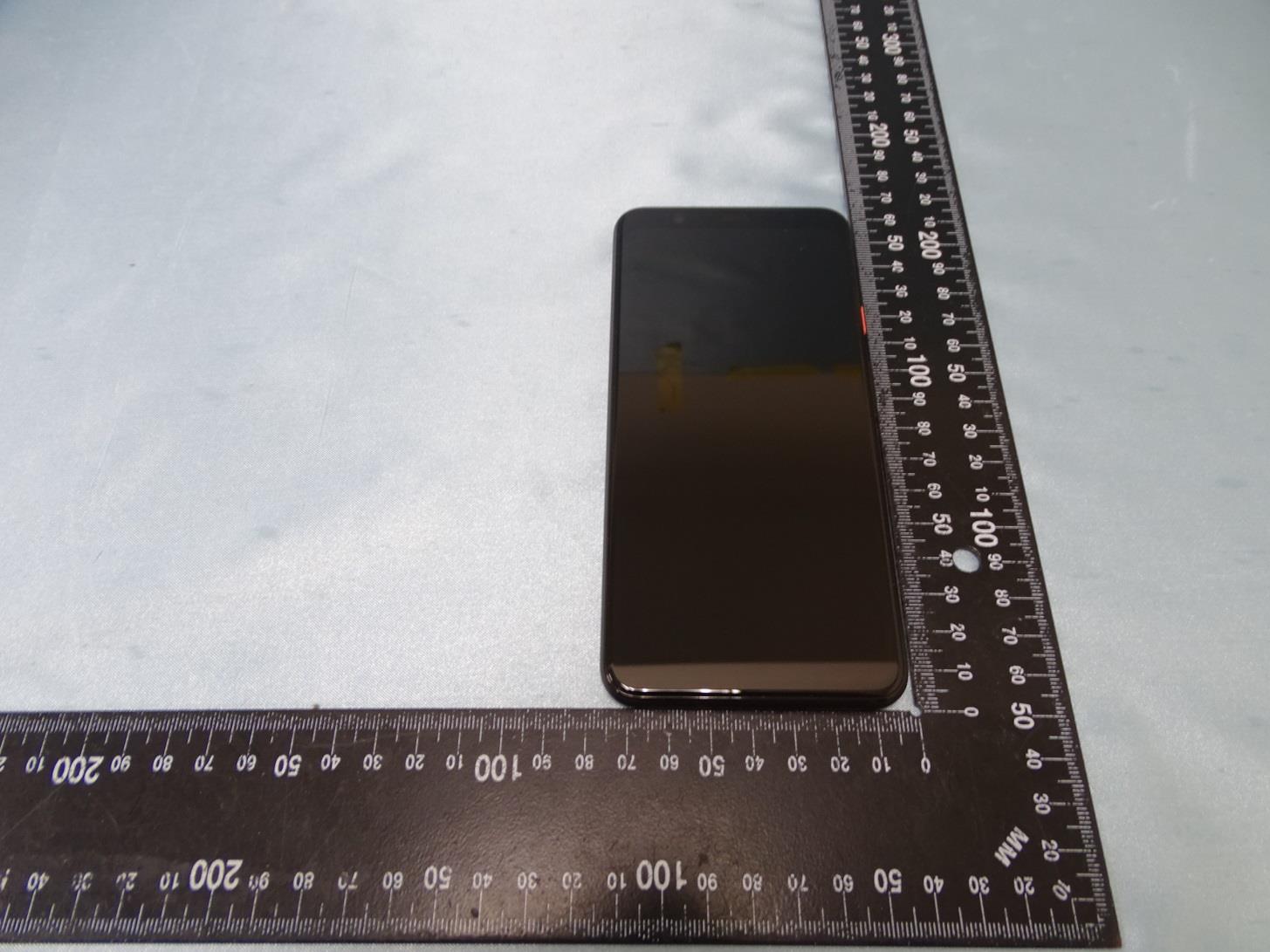

External viewGoogle Pixel external FCC photo from External Photos p. 1Source: External Photos p. 1

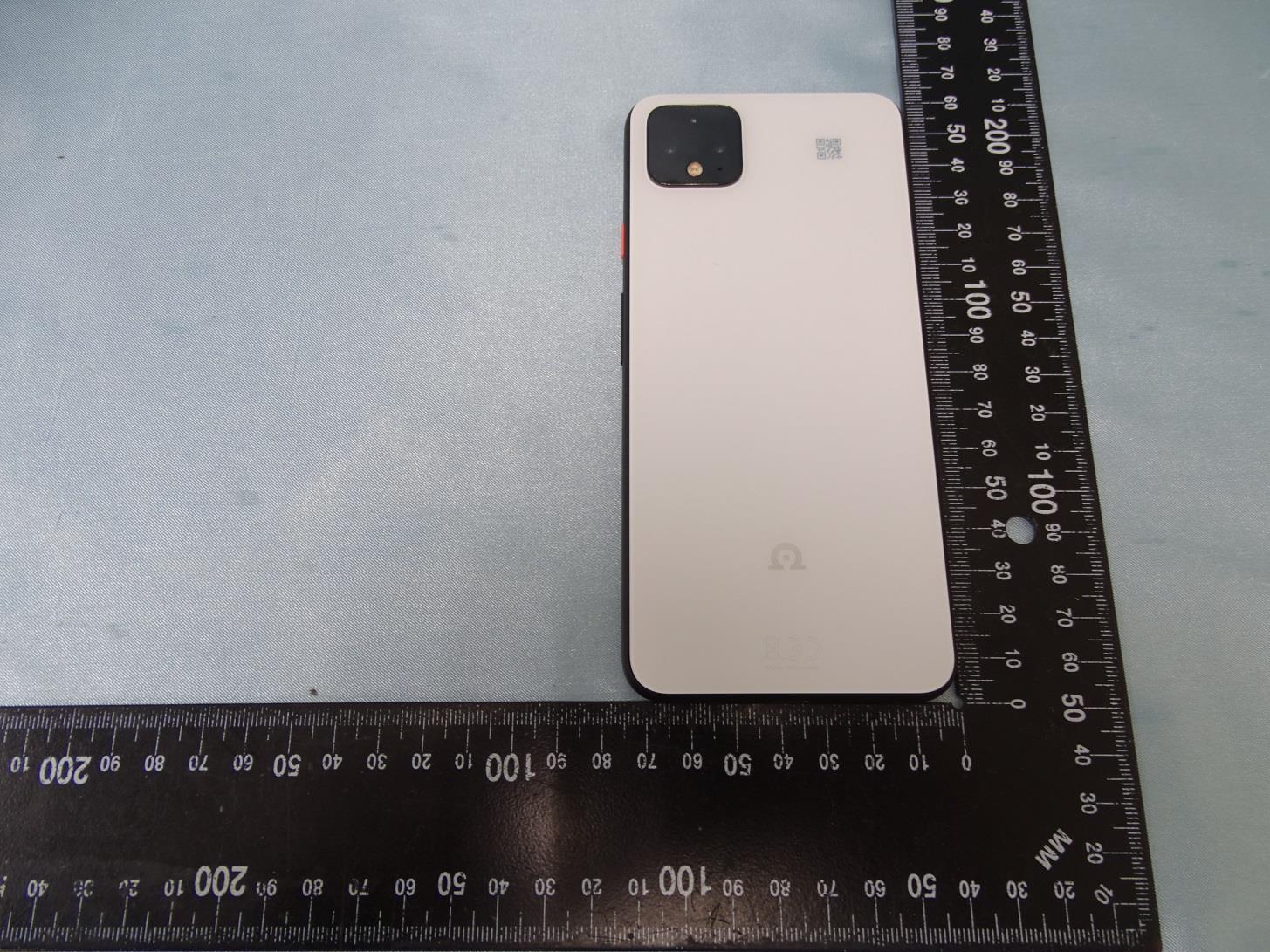

External viewGoogle Pixel external FCC photo from External Photos p. 2Source: External Photos p. 2

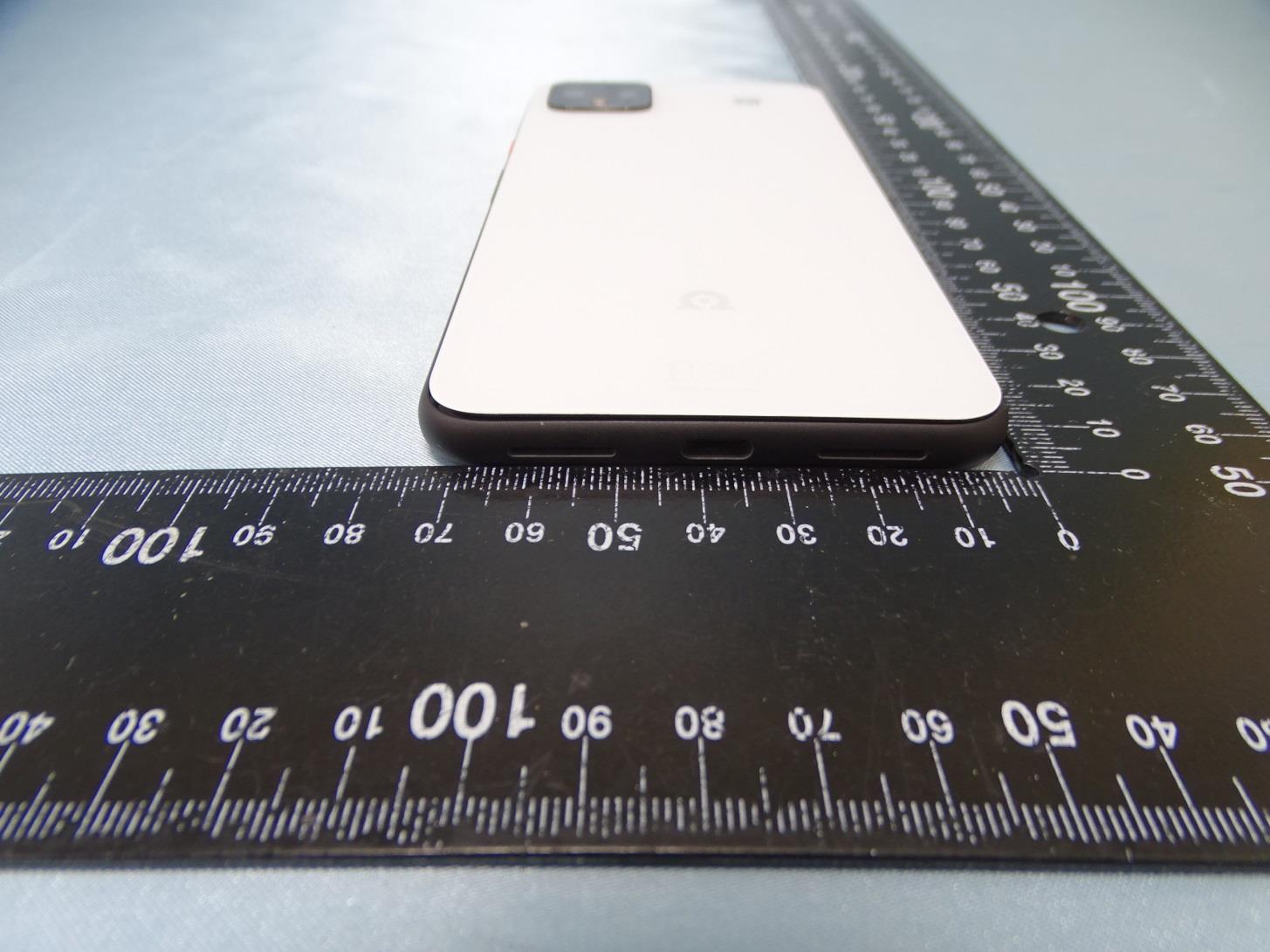

External viewGoogle Pixel external FCC photo from External Photos p. 3Source: External Photos p. 3

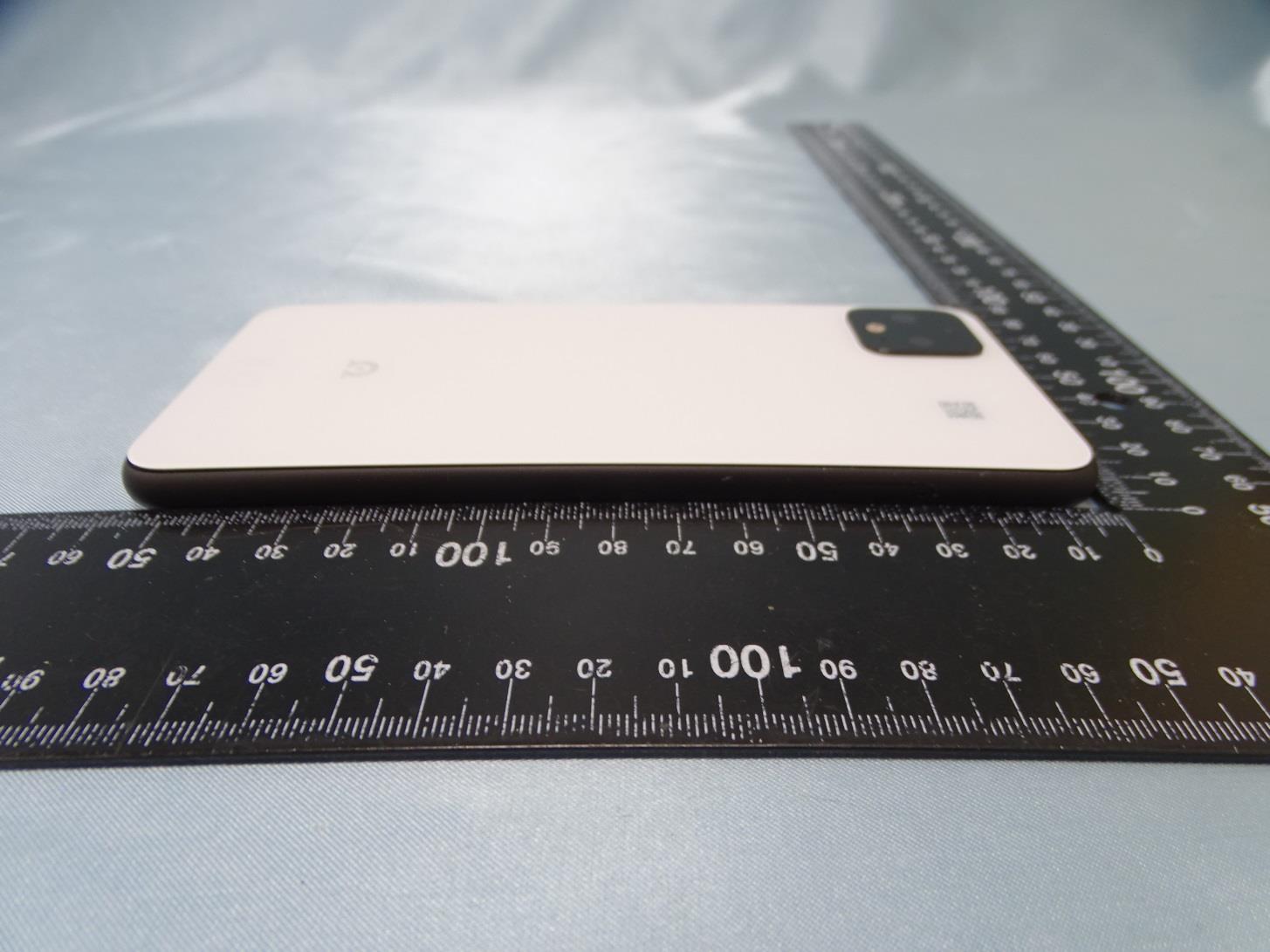

External viewGoogle Pixel external FCC photo from External Photos p. 4Source: External Photos p. 4

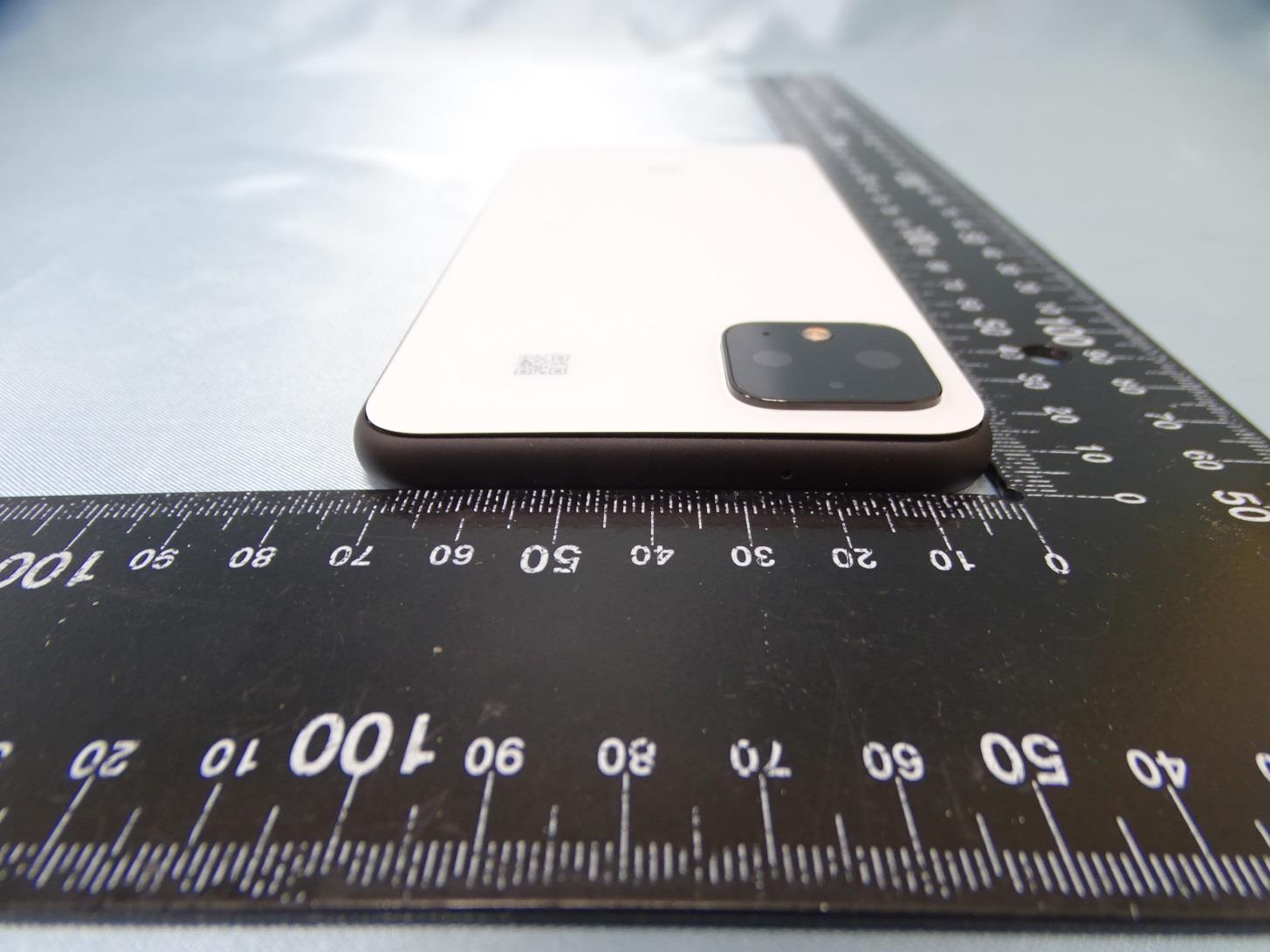

External viewGoogle Pixel external FCC photo from External Photos p. 5Source: External Photos p. 5

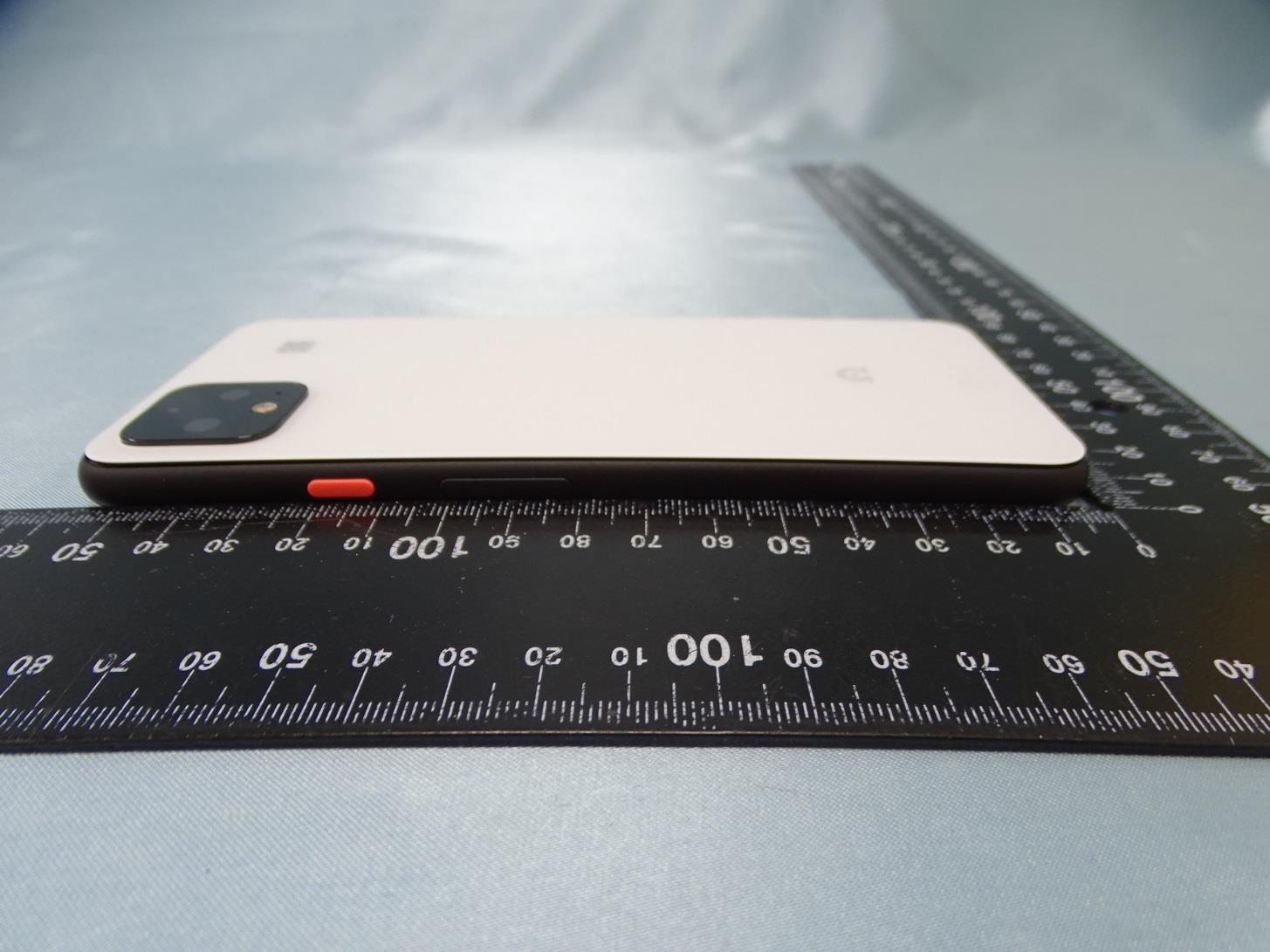

External viewGoogle Pixel external FCC photo from External Photos p. 6Source: External Photos p. 6

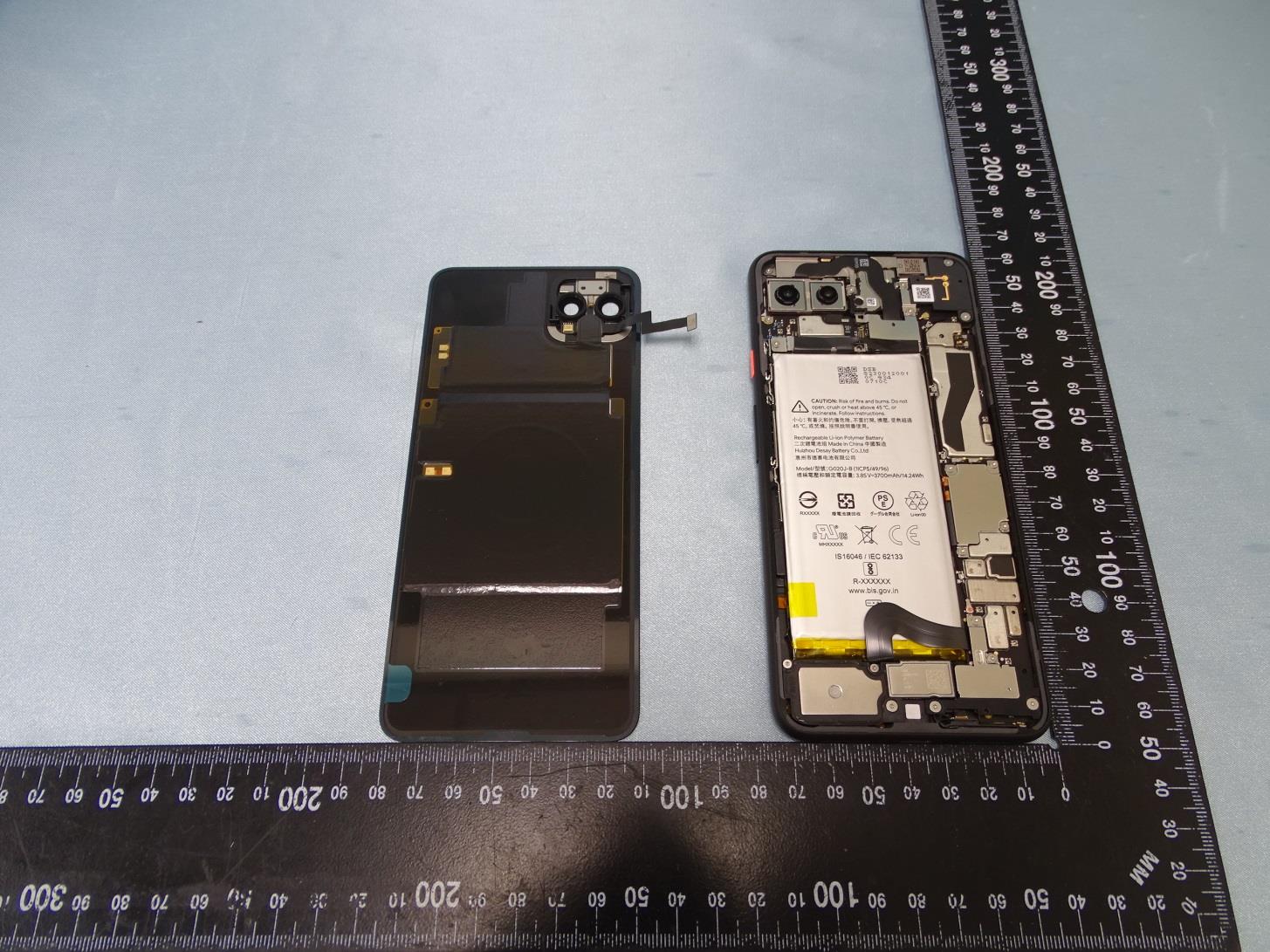

Internal viewGoogle Pixel internal FCC photo from Internal Photos p. 1Source: Internal Photos p. 1

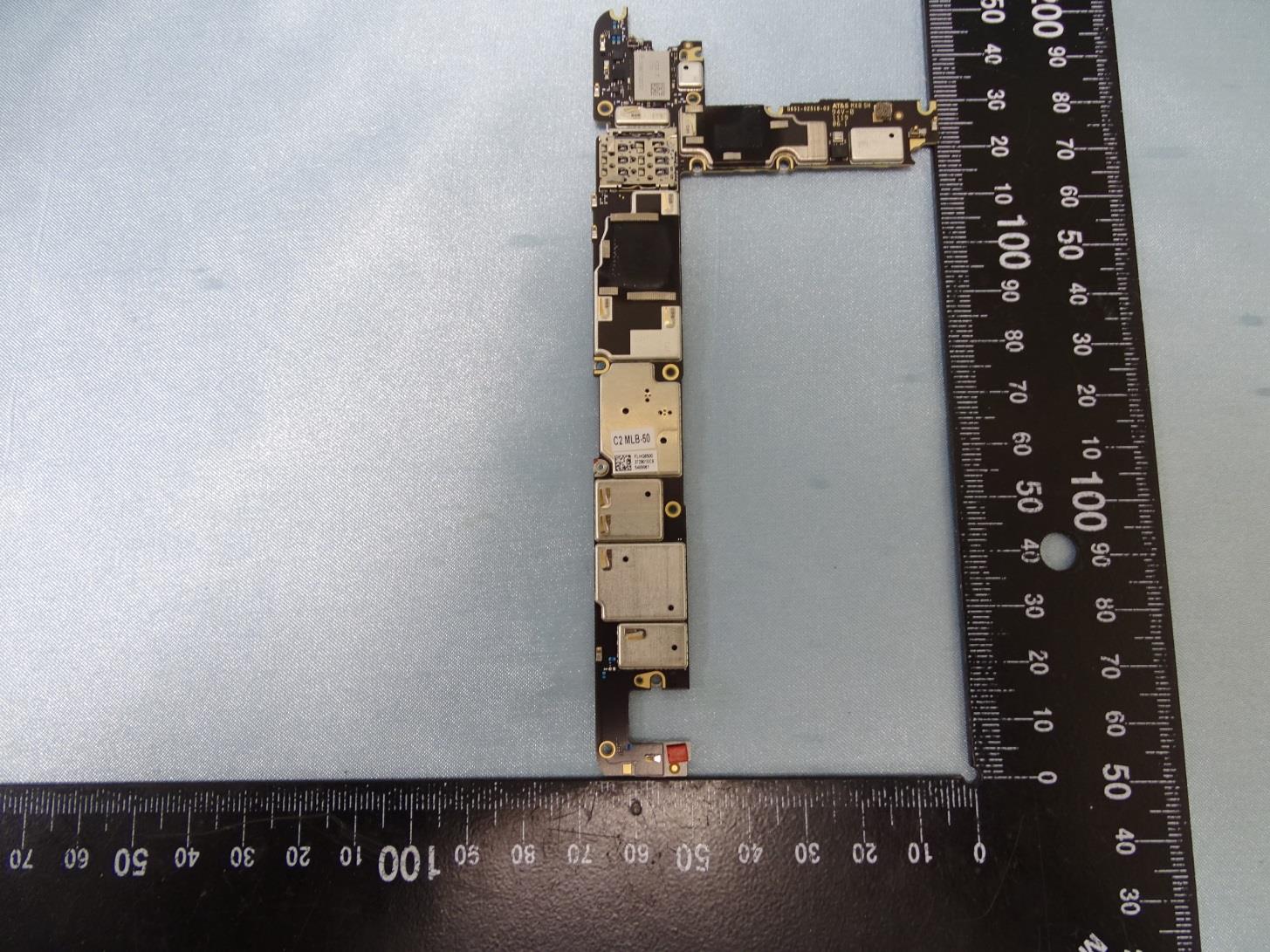

Internal viewGoogle Pixel internal FCC photo from Internal Photos p. 2Source: Internal Photos p. 2

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

Official FCC source: Users Manual (4411248)7 pages1.7 MB public file

To turn on, press and hold the power button
for 5 seconds. Follow the on-screen steps to begin setup.
Source: Users Manual (4411248), page 3
At the Copy apps & data screen, connect the
phones with the Quick Switch Adapter and your old phone’s cable.
Source: Users Manual (4411248), page 4
Find tips, learn about new features, and get
help when you need it: On your phone, go to Settings > Tips & support
Source: Users Manual (4411248), page 7
We’re here for you
Google, Android, Pixel, Active Edge, and related marks and logos are trademarks of Google LLC. iMessage, FaceTime, iTunes, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries. USB-C is a trademark of USB Implementers Forum. All other trademarks are the property of their respective owners.
Source: Users Manual (4411248), page 7
