FCC ID A4R-G020B

Google G020B FCC filing (A4R-G020B)

Name: Google G020B FCC filing dataset
Creator: Google LLC

Public FCC record for Google G020B (A4R-G020B), a digital transmission system device filed by Google LLC. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth and cellular and licensed bands.

Phones & Computers A4R brand hub

ManufacturerGoogle LLC

FCC IDA4R-G020B

Device categoryPhones & Computers

Authorization dateFeb 25, 2019

Plain-English filing summary

What this FCC record tells you

G020B is the device filed under FCC ID A4R-G020B by Google LLC.

Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.

The strongest extracted details are internal and external photos, wireless test measurements, and manual excerpts.

Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.

The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth and cellular and licensed bands.

Manual excerpts cover setup and power details.

Terms in this filing

FCC ID: A public identifier assigned to a wireless device authorization.
Grantee Code: The manufacturer/applicant portion of an FCC ID.
DTS: FCC equipment class for digital transmission systems.
Part 15C: FCC rules for many unlicensed intentional radiators.
RF Exposure: Evaluation of human exposure to radiofrequency energy.
SAR: Specific Absorption Rate, a measure used in RF exposure evaluation.

Official FCC facts

FCC filing details

Raw application fields from the FCC record, shown separately from the plain-English summary.

Grantee codeA4RThe FCC-assigned applicant code at the start of the FCC ID.

Product codeG020BThe filing-specific product code. It is not always the retail product name.

Application purposeOriginal EquipmentShows whether the FCC action was an original authorization, change, or related filing update.

FCC equipment classDTS - digital wireless transmitterIn plain English, this covers wireless data transmitters such as Wi-Fi or Bluetooth-style radios.

FCC rule partsPart 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90Part 15C is the FCC rule bucket used for many low-power Wi-Fi, Bluetooth, and similar transmitters. Part 22H is one of the FCC rule sections cited for this authorization. Part 24E is one of the FCC rule sections cited for this authorization. Part 27 is one of the FCC rule sections cited for this authorization. Part 90 is one of the FCC rule sections cited for this authorization.

Application IDcxPvsC5NFaDF+2jNgBh3Zw==The FCC tracking ID for this application batch.

Filing timeline

What changed in this filing

A quick read on what each public FCC application changed or confirmed, with source links attached.

Mar 19, 2020

Class II Permissive Change

2 FCC applications

2 related FCC applications share this date and purpose, so they are grouped here instead of repeated as separate Class II Permissive Change rows.

Applications: kEqezaEU8Q6ldWgKUlU2bA==, UJ6EdsM53QW8u/RNqlkUlg==
Equipment classes: DSS - spread-spectrum wireless transmitter; PCS - Licensed Transmitter held to ear
FCC rules: Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90
Bands: 2.4 GHz Wi-Fi / Bluetooth: 1 range; Cellular and licensed bands: 22 ranges
Public exhibits: RF exposure, RF test report

SourcesFCC grant FCC exhibit list RF exposure

Feb 25, 2019

Original Equipment

FCC application

This FCC application appears to be the original authorization package for the device, with the matching grant and public exhibits grouped together.

Application ID: cxPvsC5NFaDF+2jNgBh3Zw==
Equipment class: DTS - digital wireless transmitter
FCC rules: Part 15C - low-power wireless rules
Bands: 2.4 GHz Wi-Fi / Bluetooth: 2 ranges
Public exhibits: user manual, external photos, internal photos, RF exposure, RF test report

SourcesFCC grant FCC exhibit list User manual

Wireless test details

Wireless details from FCC tests

This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.

This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.

FCC equipment class	DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing.
FCC rule parts	Part 15C - low-power wireless rules; Part 22H; Part 24E; Part 27; Part 90The rule sections cited by the grant or test documents.
Frequency bands	2.4 GHz Wi-Fi / Bluetooth: 2 ranges; Cellular and licensed bands: 22 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 24 ranges grouped below
Frequency range	750 - 5800 MHz \| 2310 - 2412 MHz \| 2310 - 2500 MHz \| 2462 - 2500 MHzSource: RF Exposure Info p. 10; Test Report p. 47; Test Report p. 49; Test Report p. 51
Maximum conducted output power	1.2 W \| 0.8 WTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: RF Exposure Info p. 29; RF Exposure Info p. 120
SAR	1.4 W/kg \| 1.2 W/kg \| 0.8 W/kg \| 1.45 W/kgRF exposure/SAR values are FCC compliance checks for radio energy near people, not product performance specs.Source: RF Exposure Info p. 15; RF Exposure Info p. 29; RF Exposure Info p. 117

Public photo exhibits

Public FCC photos

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.

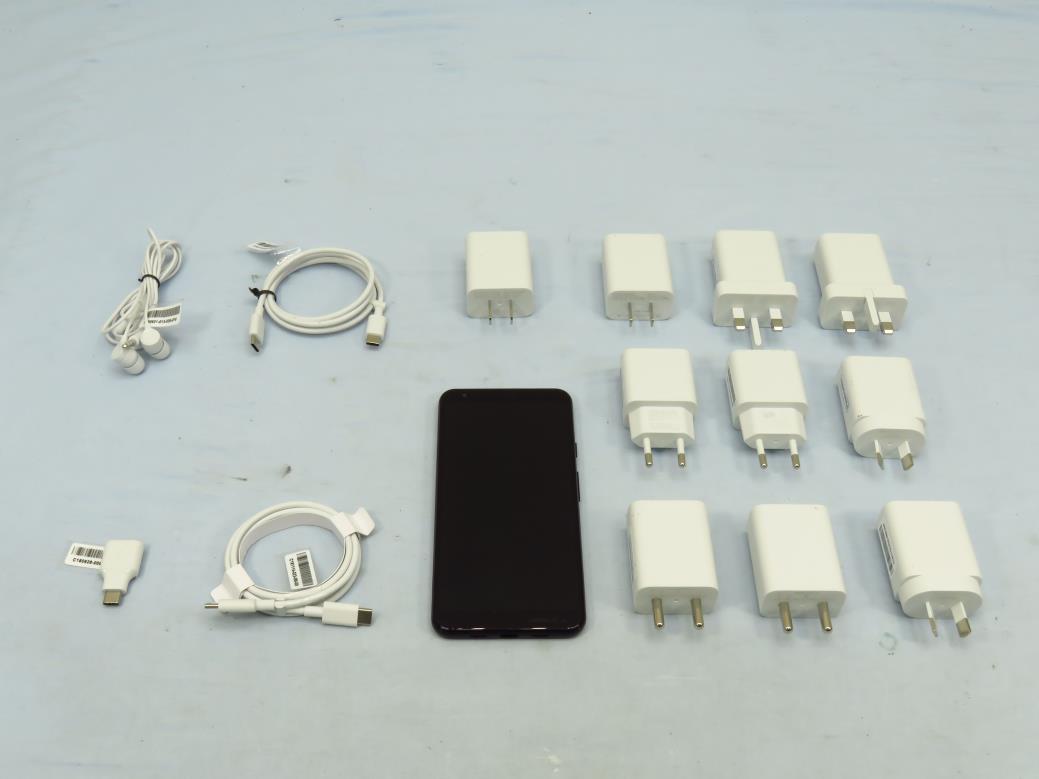

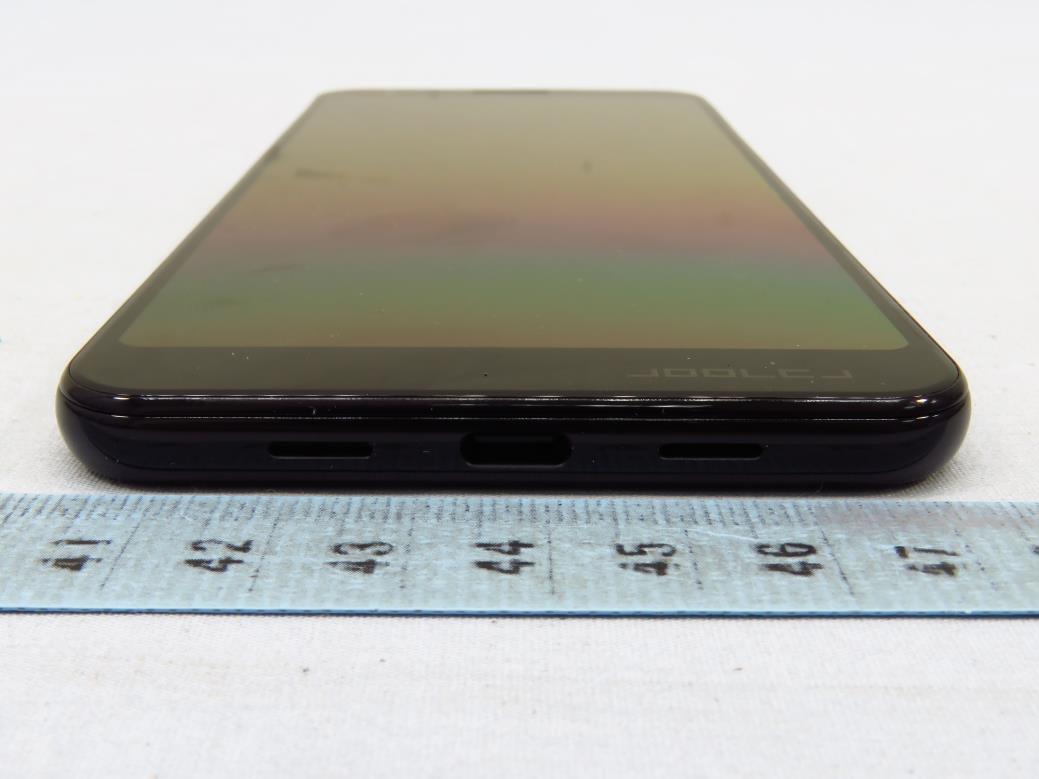

External viewGoogle G020B external FCC photo from External Photos p. 1Source: External Photos p. 1

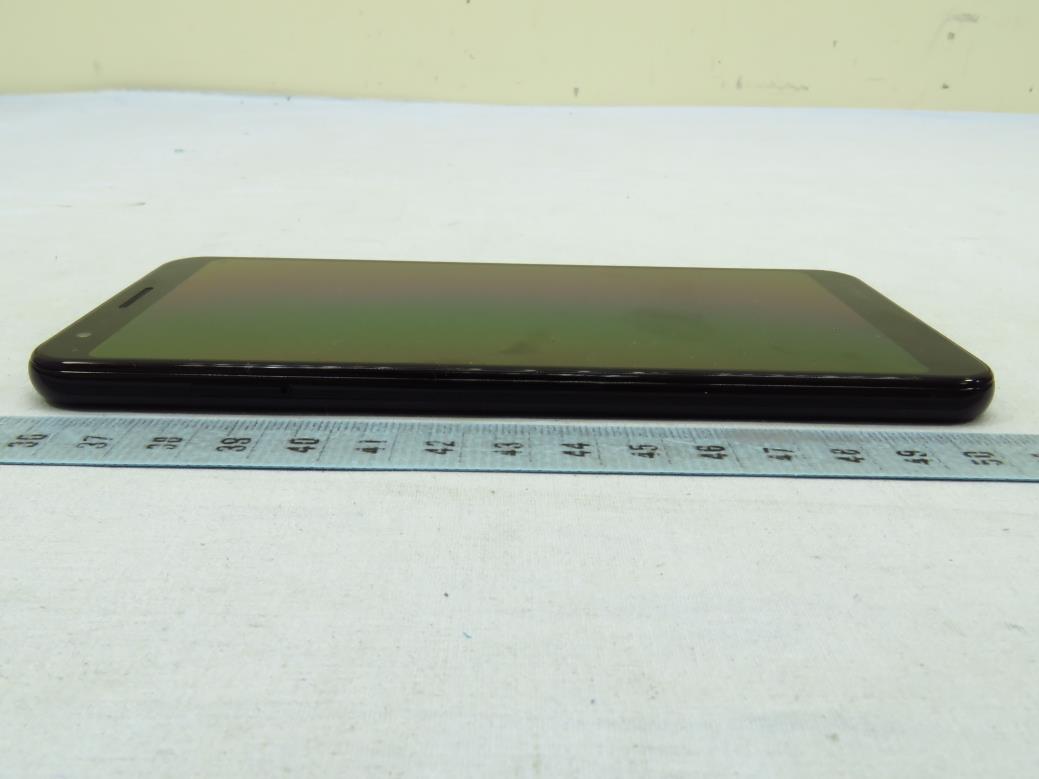

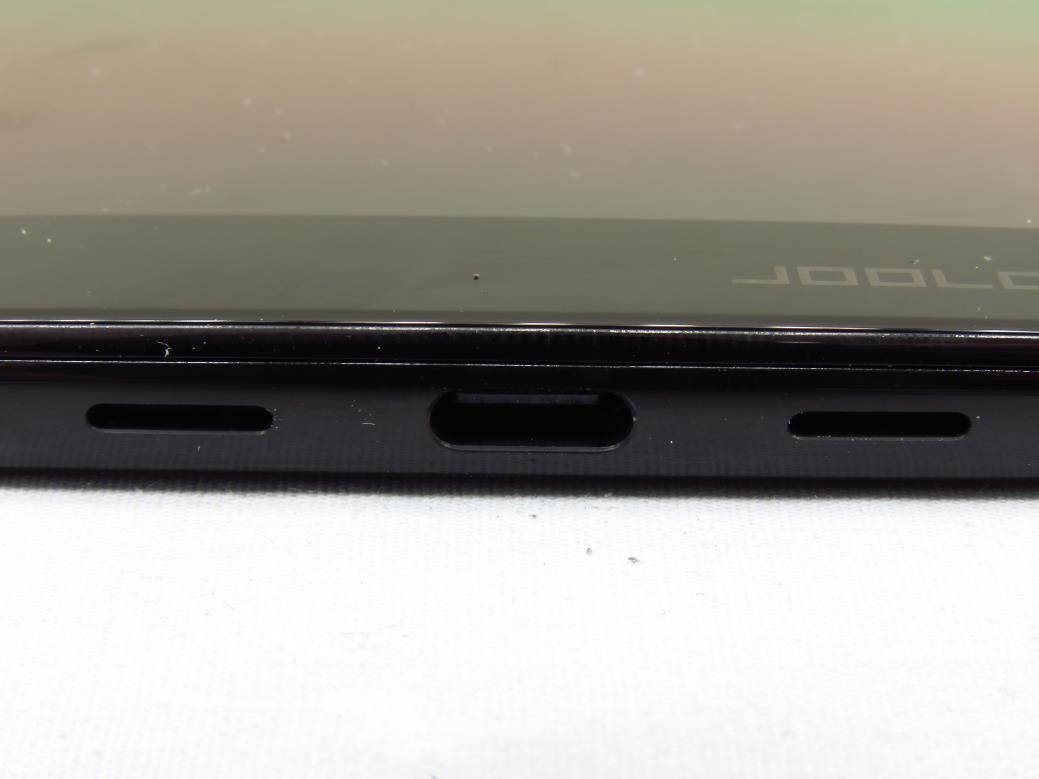

External viewGoogle G020B external FCC photo from External Photos p. 2Source: External Photos p. 2

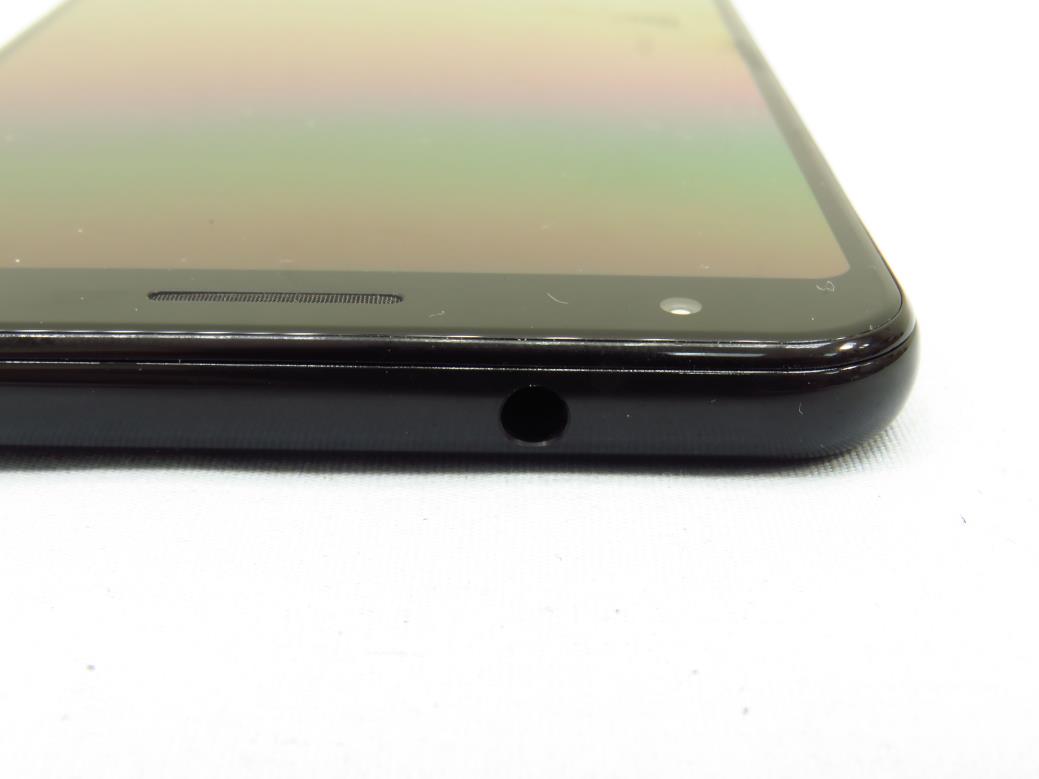

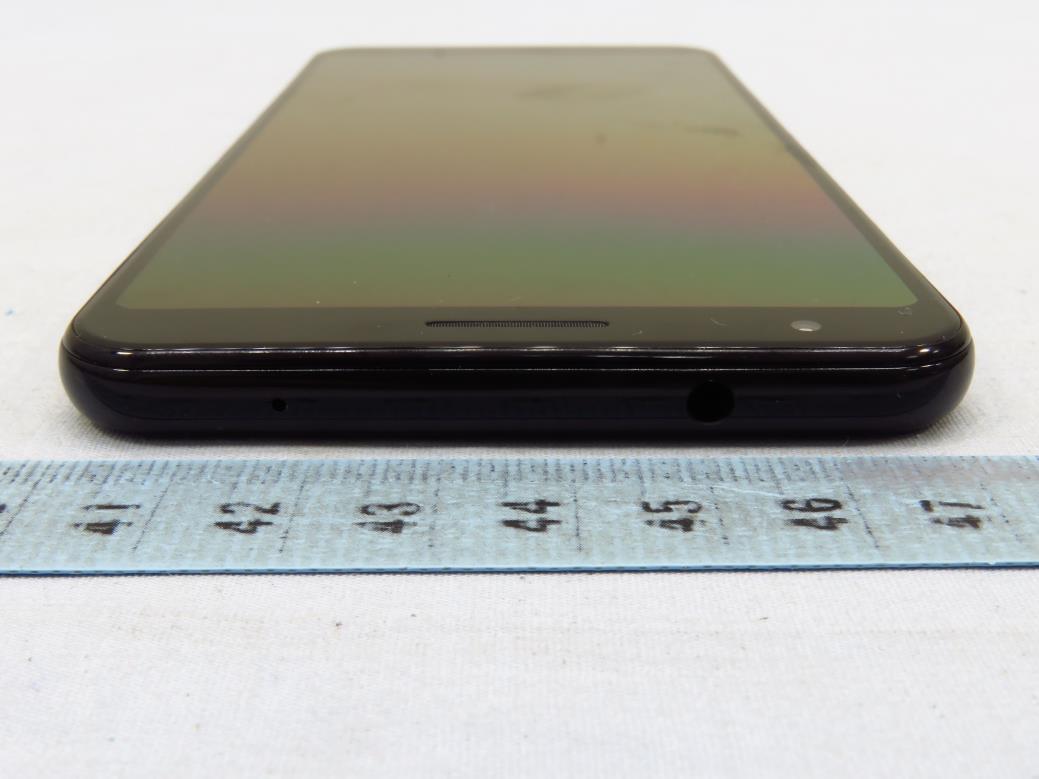

External viewGoogle G020B external FCC photo from External Photos p. 3Source: External Photos p. 3

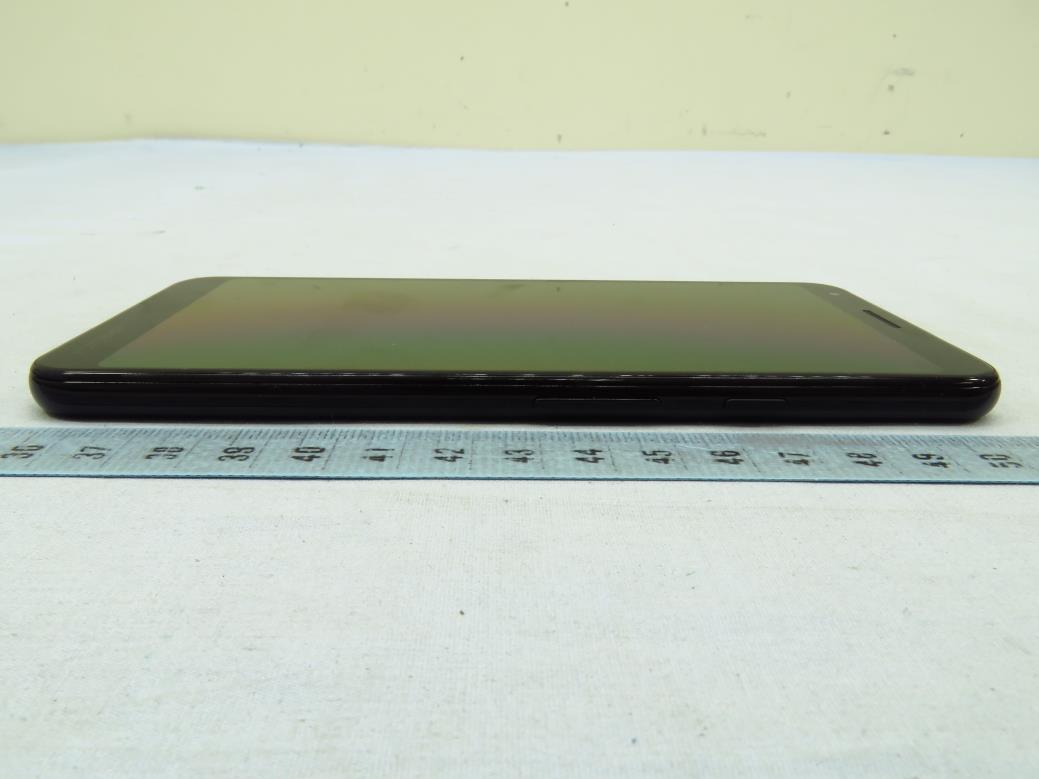

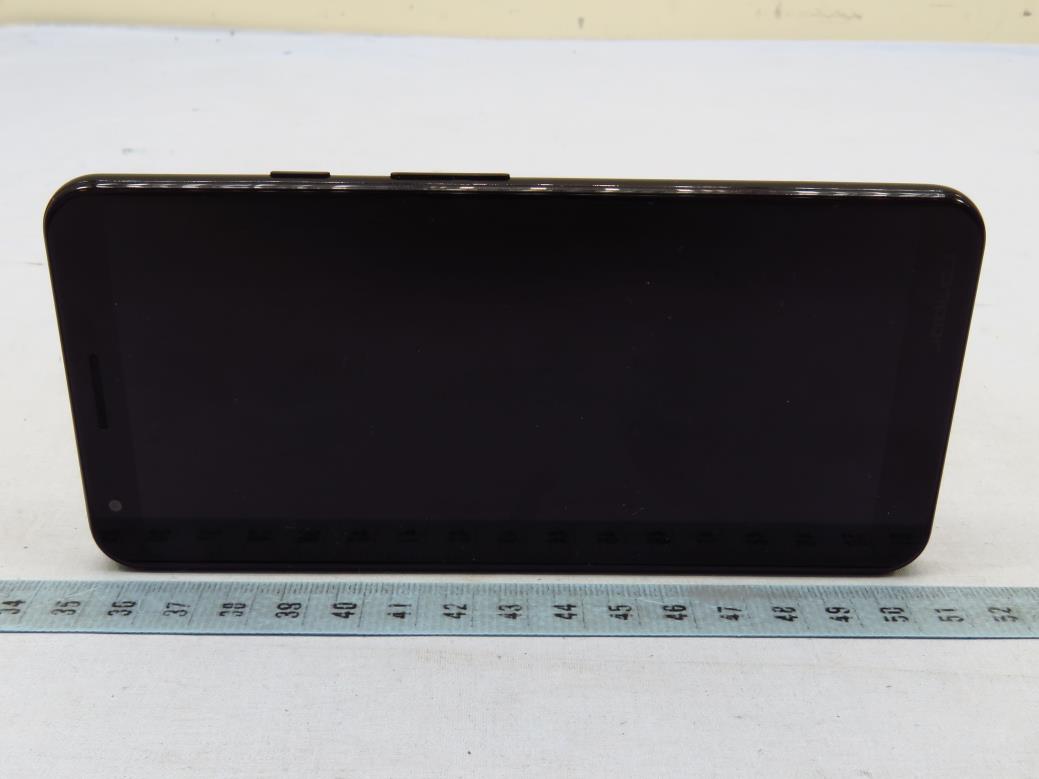

External viewGoogle G020B external FCC photo from External Photos p. 4Source: External Photos p. 4

Manual notes

Useful setup, control, or operating details from the public FCC manual exhibit.

Official FCC source: Users Manual (4150830)11 pages301 KB public file

To turn on, press and hold the power button
for 5 seconds. Follow the on-screen steps to begin setup.
Source: Users Manual (4150830), page 3
Copy apps & data to Pixel
2. At the Copy apps & data screen, connect the phones with the Quick Switch Adapter and your old phone’s cable.
Source: Users Manual (4150830), page 4
Find tips, learn about new features, and get
help when you need it: On your phone, go to Settings > Tips & Support
Source: Users Manual (4150830), page 5
