Public FCC record for Espressif ESP32-H2-MINI-1 (2AC7Z-ESPH2MINI1), a digital transmission system device filed by Espressif Systems (Shanghai) Co., Ltd. Public exhibits include external photos, internal photos, a user manual, and RF exposure information. Radio evidence covers 2.4 GHz Wi-Fi / Bluetooth.
ESP32-H2-MINI-1 is the device filed under FCC ID 2AC7Z-ESPH2MINI1 by Espressif Systems (Shanghai) Co., Ltd.
Public exhibits include internal and external photos, a user manual, RF exposure information, and wireless test reports.
The strongest extracted details are internal and external photos, wireless test measurements, and manual setup and troubleshooting notes.
Those exhibits help verify what the device looks like, how its radios were tested, and setup or use details from the manual.
The listed radio coverage includes 2.4 GHz Wi-Fi / Bluetooth.
Raw application fields from the FCC record, shown separately from the plain-English summary.
A quick read on what each public FCC application changed or confirmed, with source links attached.
This FCC application appears to be the original authorization package for the device, with the matching grant and public exhibits grouped together.
This section summarizes what the FCC test documents say about the device's wireless connections and tested frequency ranges. RF exposure or SAR rows are compliance/safety context, not a speed or range claim.
This filing covers Wi-Fi-style wireless operation, including the shared frequency ranges shown below.
| FCC equipment class | DTS - digital wireless transmitterThe FCC shorthand for the radio behavior reviewed in this filing. |
|---|---|
| FCC rule parts | Part 15C - low-power wireless rulesThe rule sections cited by the grant or test documents. |
| Frequency bands | 2.4 GHz Wi-Fi / Bluetooth: 2 rangesThe radio ranges the FCC filing lists for the device.Source: FCC grant; 2 ranges grouped below |
| Maximum conducted output power | 30 dBm | 18.41 dBmTransmit-power values come from lab testing and should not be read as a promised wireless range.Source: Test Report p. 4; Test Report p. 5 |
| Frequency range | 2402 - 2480 MHz | 2405 - 2480 MHz | 2402 - 2502 MHzSource: RF Exposure Info p. 5; Test Report p. 5 |

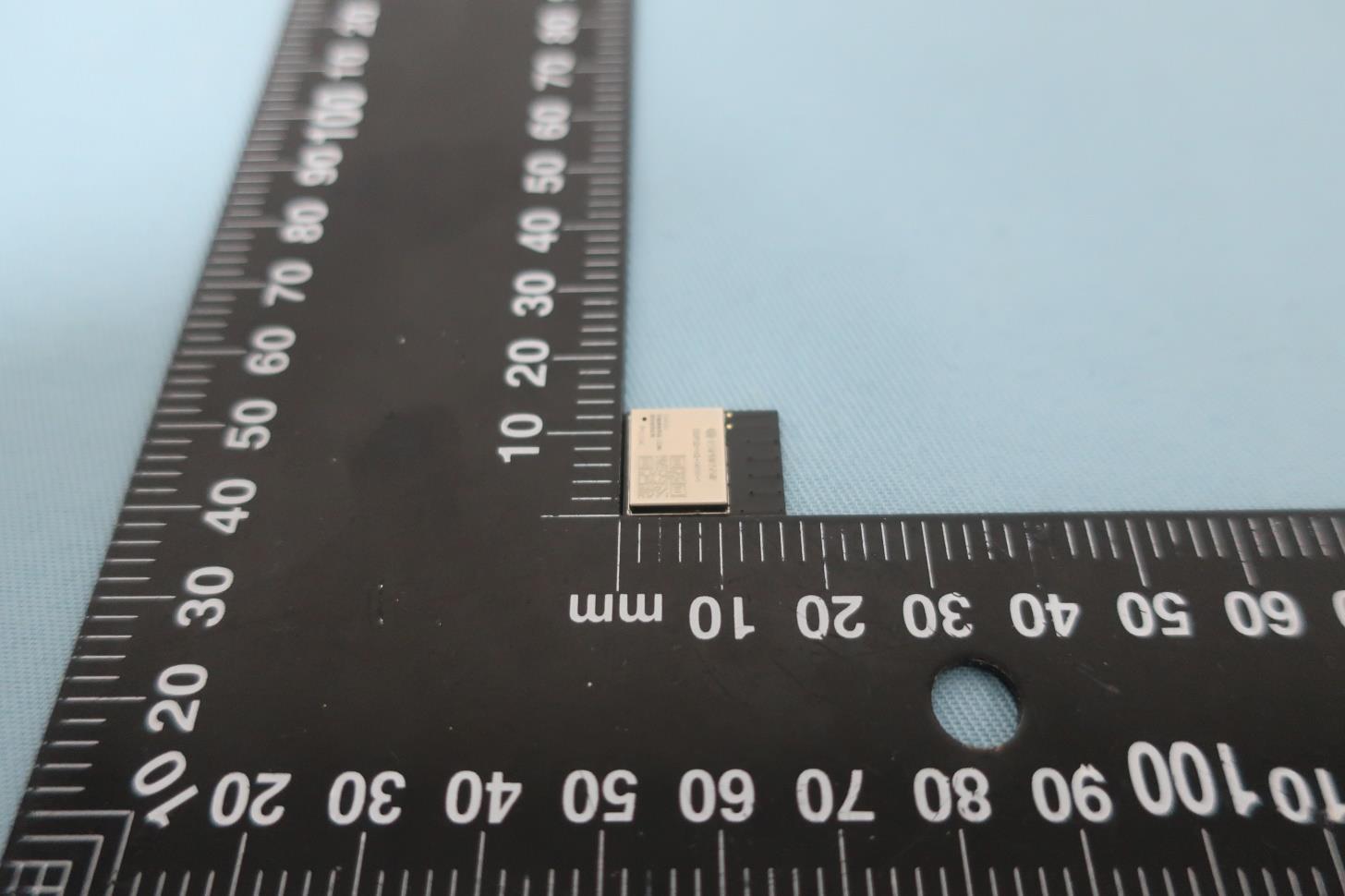

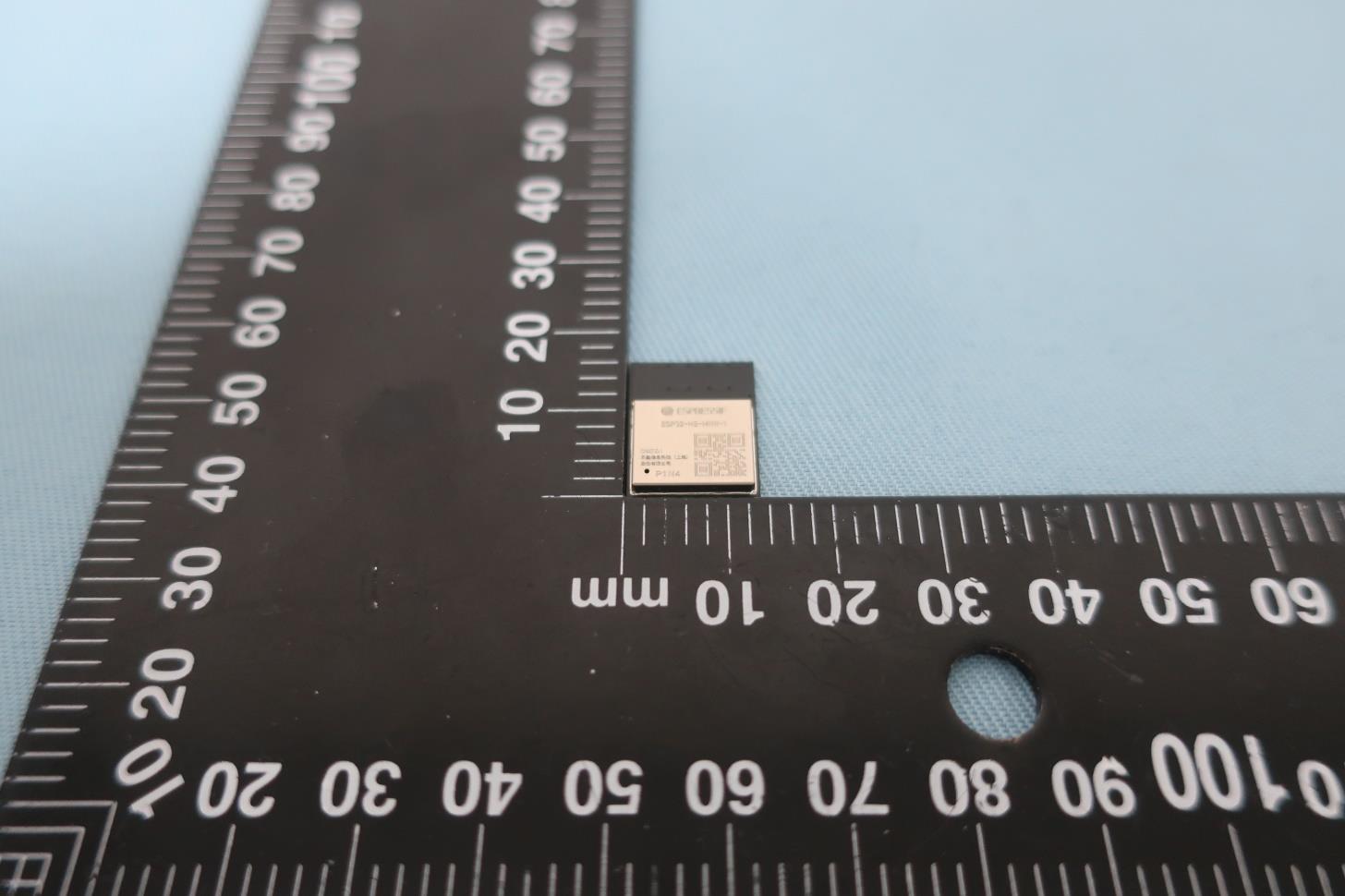

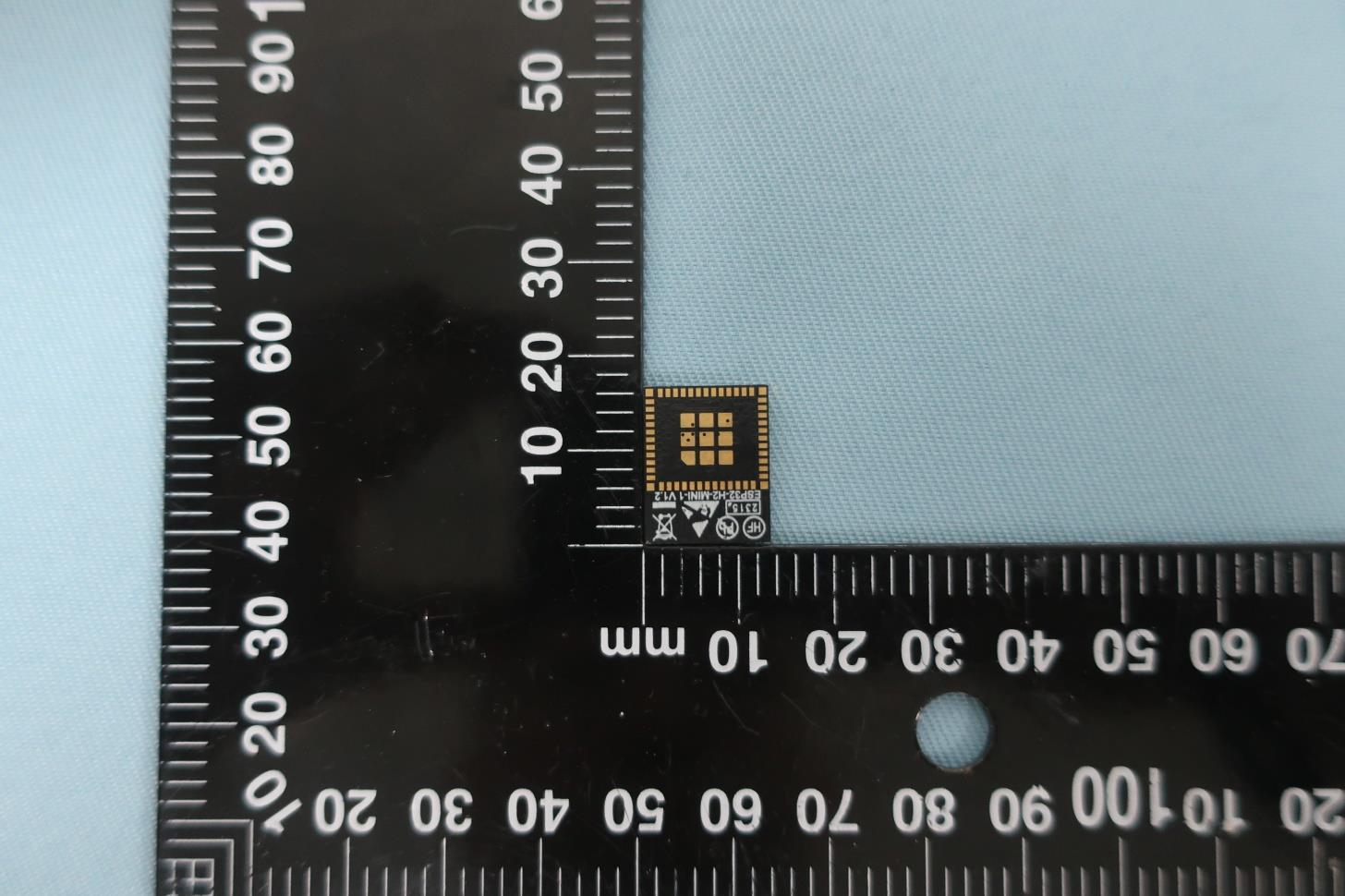

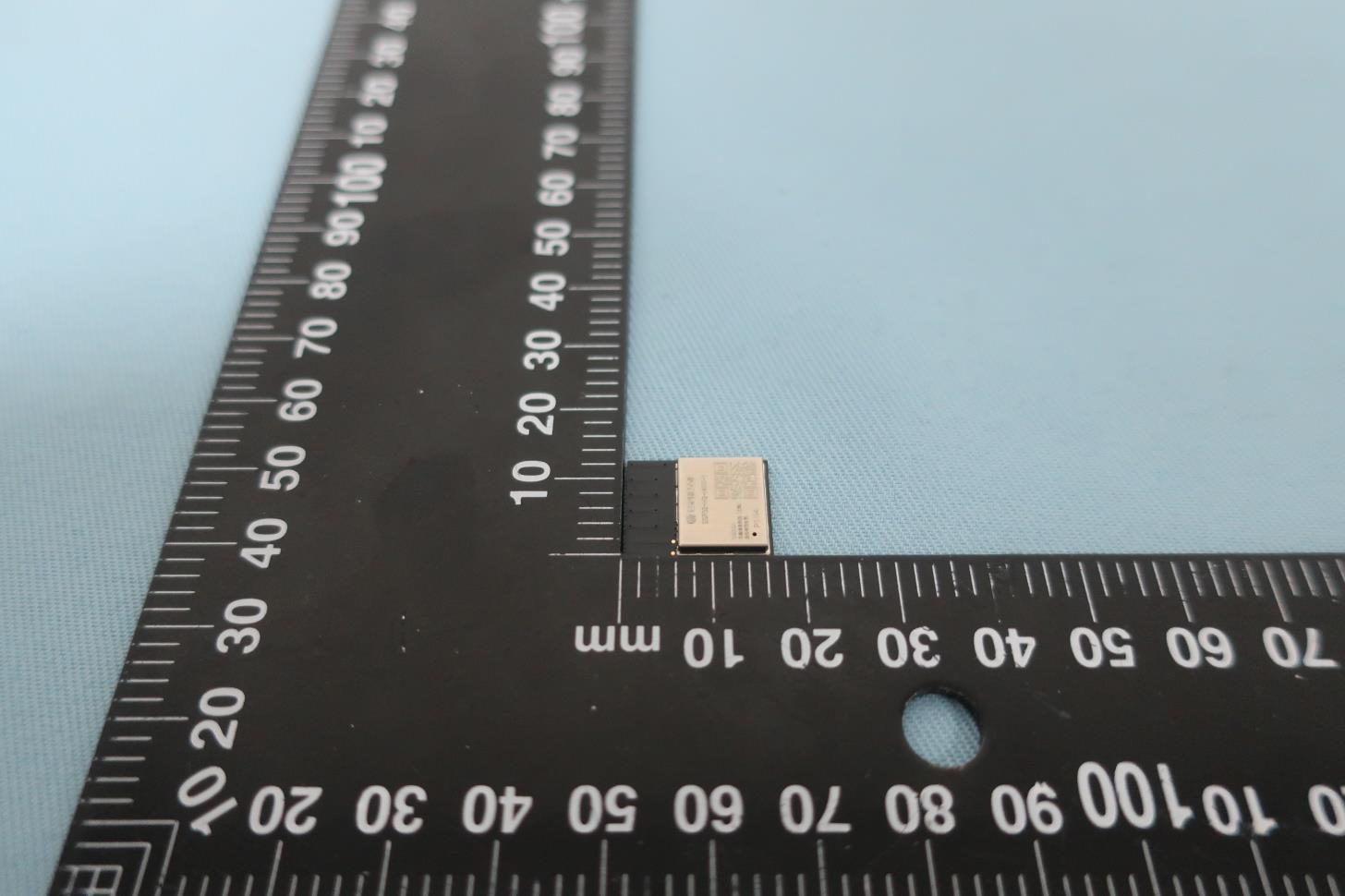

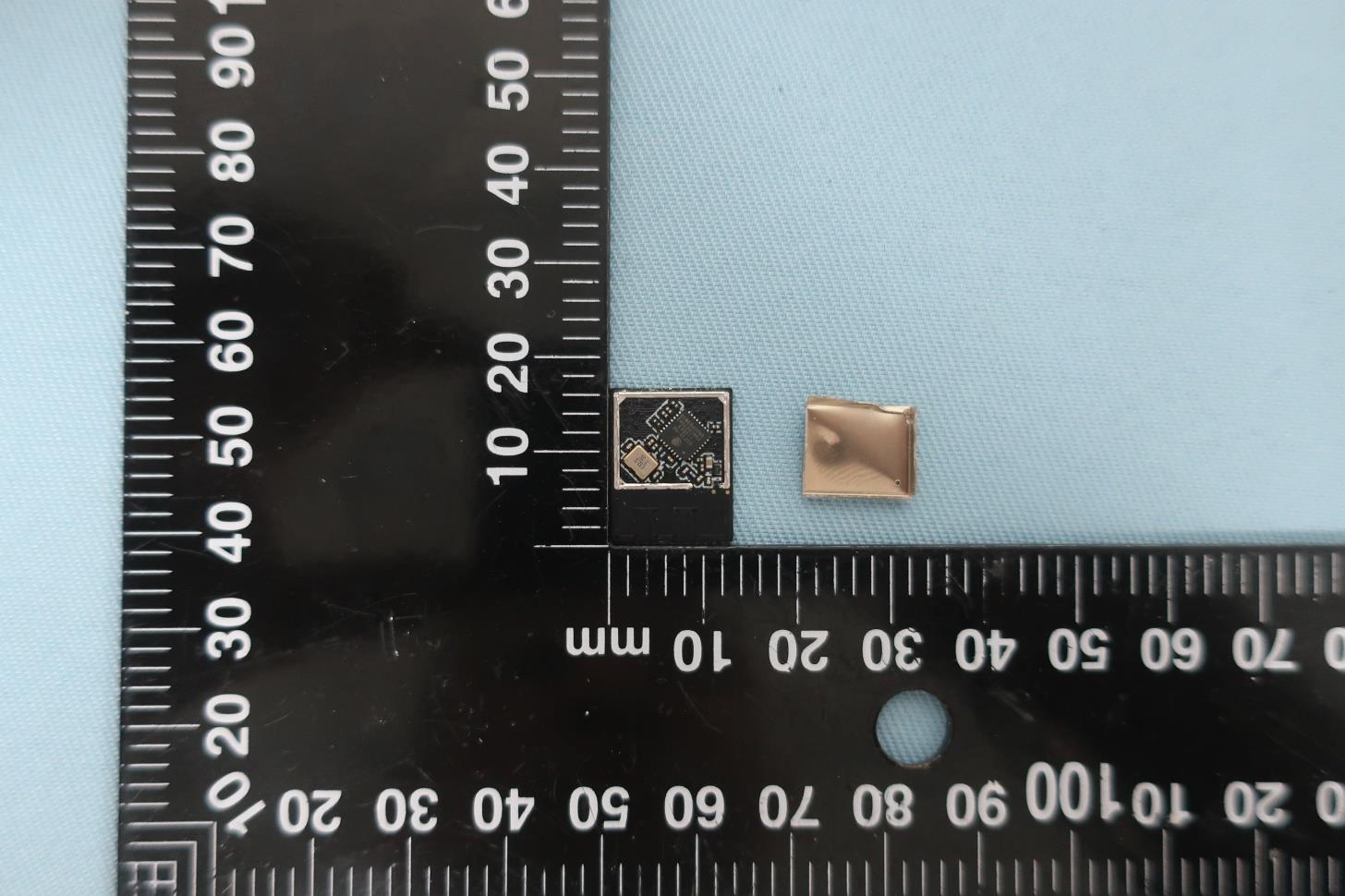

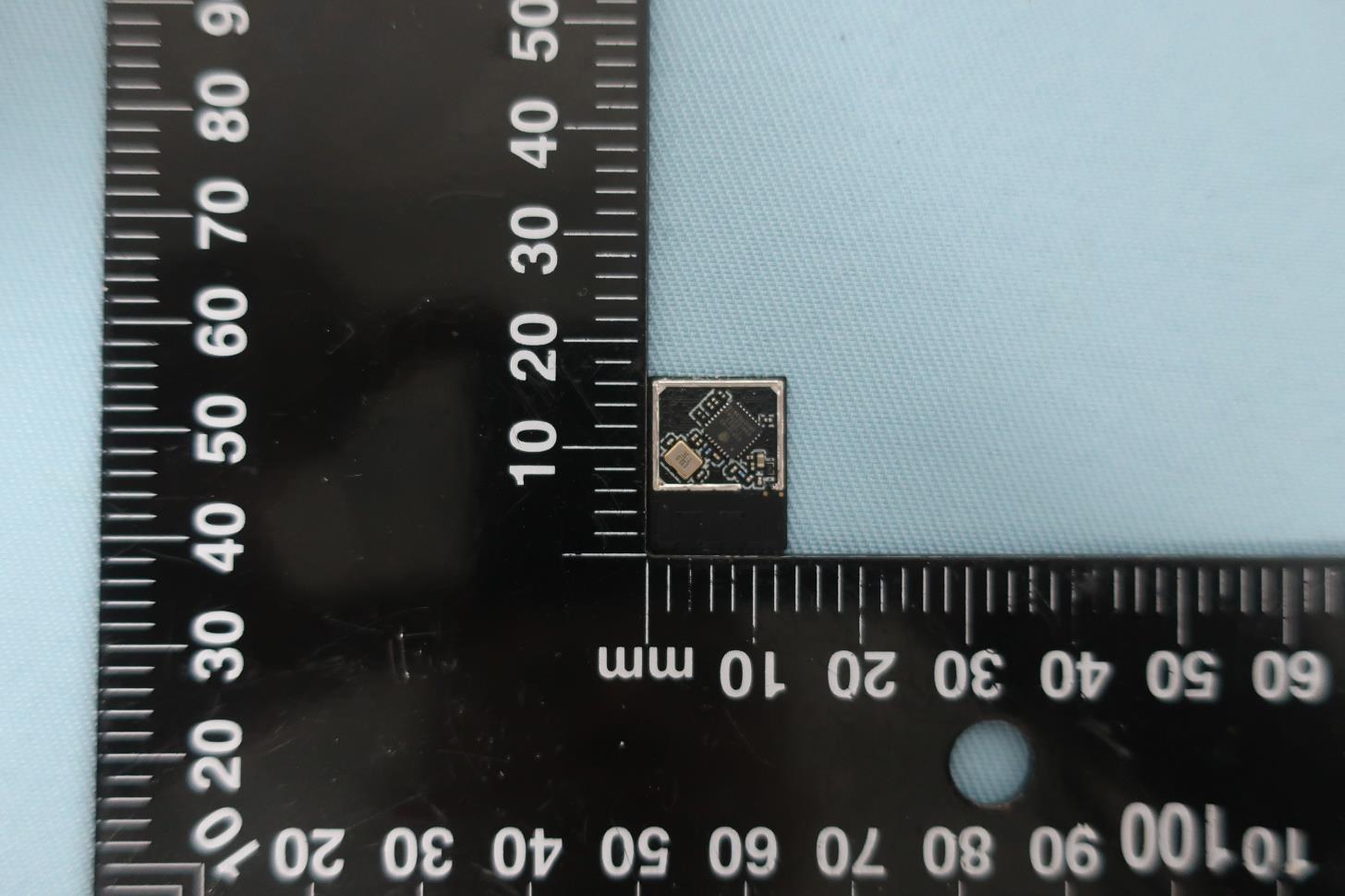

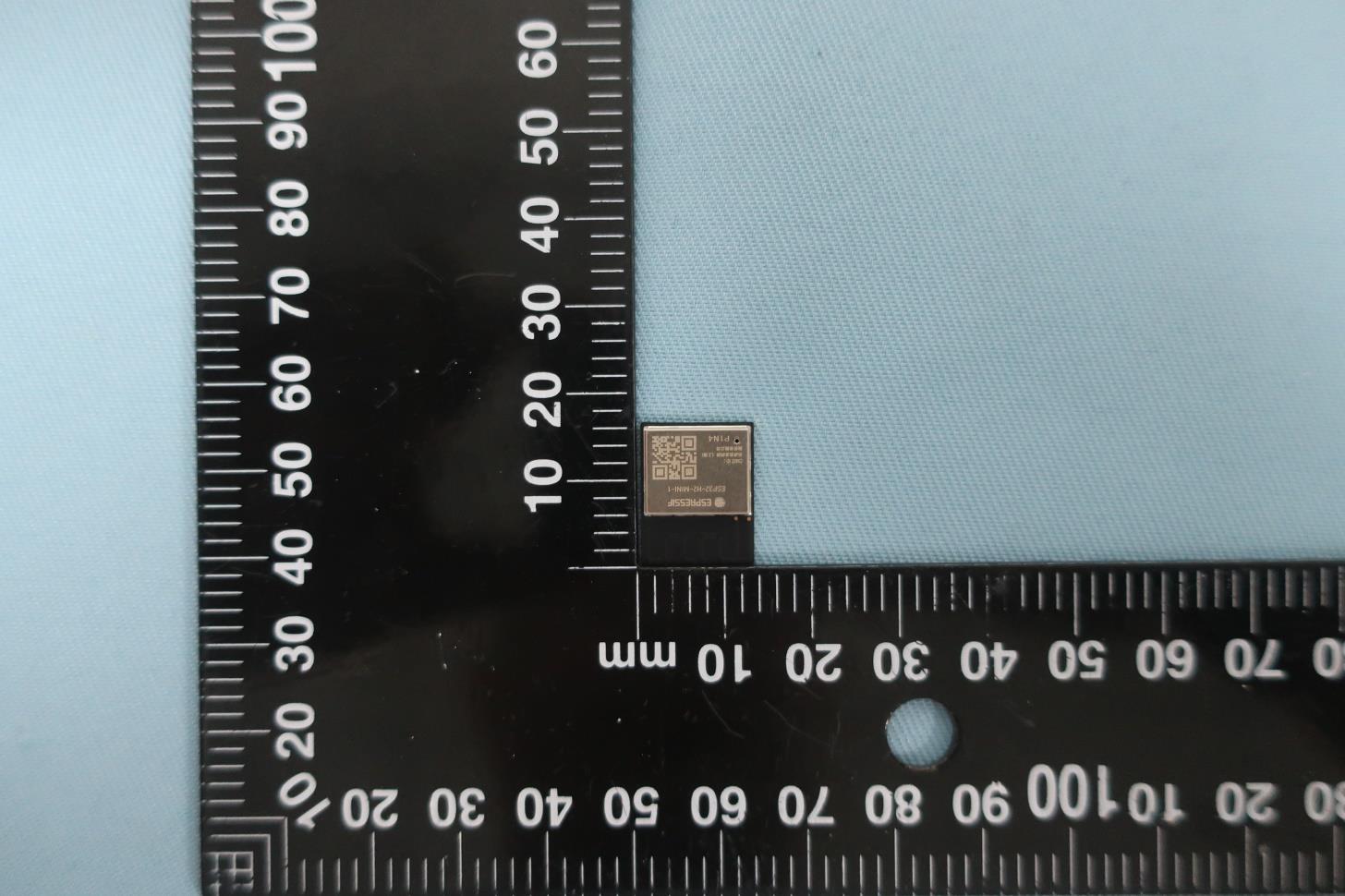

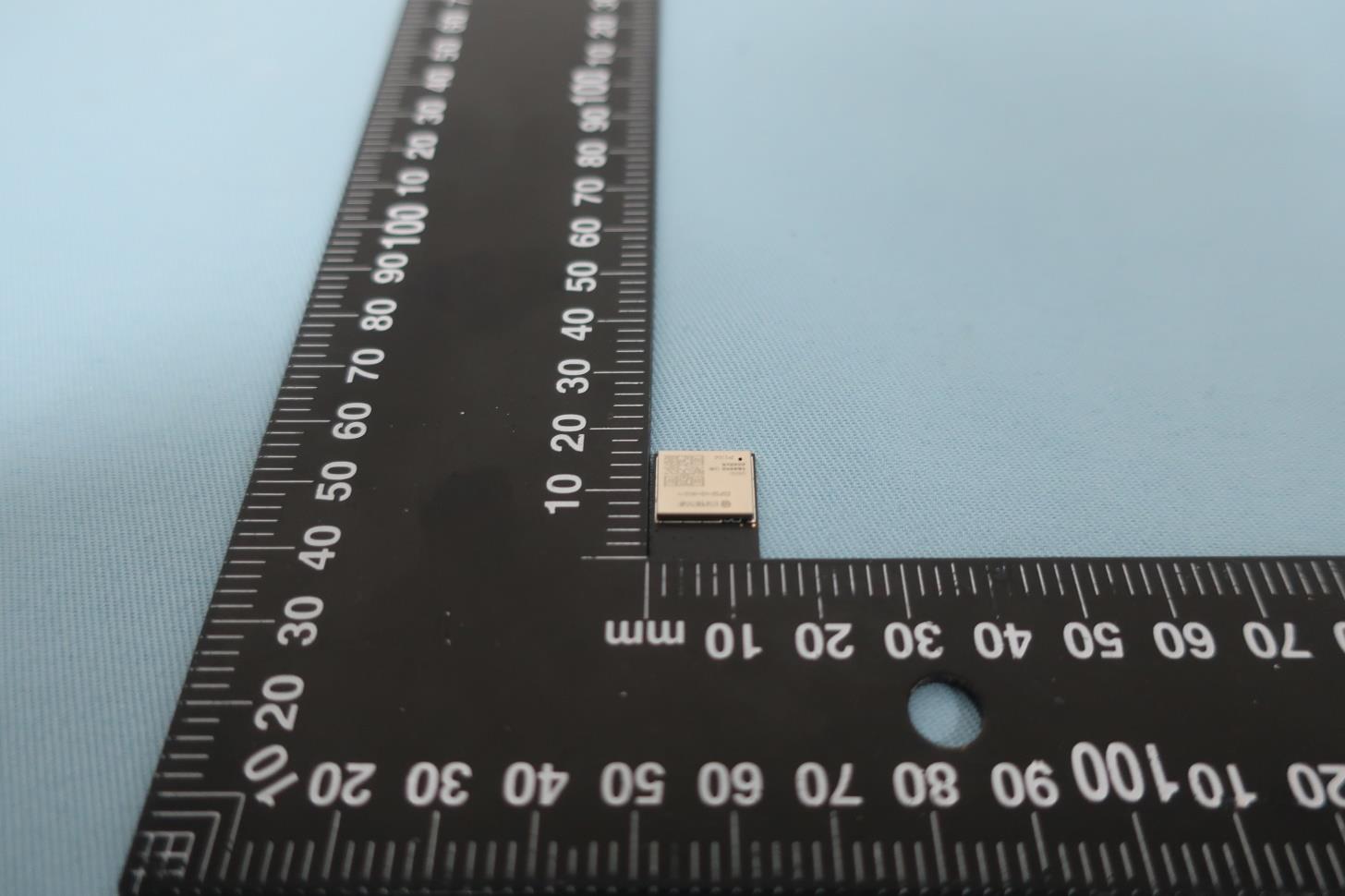

Product photos from public FCC exhibits, formatted for easier browsing. External photos show the enclosure and labels; internal photos show boards, antennas, and other compliance-relevant hardware.
Useful setup, control, or operating details from the public FCC manual exhibit.
Check the link or the QR code to make sure that you use the latest version of this document: https://espressif.com/documentation/esp32-h2-mini-1_mini-1u_datasheet_en.pdf
• ESP32-H2 embedded, RISC-V single-core 32-bit LX7 microprocessor, up to 96 MHz
ESP32-H2-MINI-1 and ESP32-H2-MINI-1U are two powerful, generic Bluetooth® Low Energy and IEEE 802.15.4 combo module that has a rich set of peripherals. This module is an ideal choice for a wide variety of application scenarios related to Internet of Things (IoT), such as embedded systems, smart home, wearable electronics, etc.
ESP32-H2-MINI-1 comes with a PCB antenna. ESP32-H2-MINI-1U comes with a connector for an external antenna. They both feature a 2 or 4 MB external SPI flash.
• Smart Home • Industrial Automation • Health Care • Consumer Electronics • Smart Agriculture • Retail and Catering • Generic Low-power IoT Sensor Hubs • Generic Low-power IoT Data Loggers
Parameter Descriptions of the Setup and Hold Time for the Strapping Pin
